Hub BP Jeweller
Wireless battery-powered control panel. Supports photo verification. Connectable via two SIM cards (2G/3G/LTE).
Ajax Ultra DP: dual-path reliability with ready-to-use presets
Ajax Ultra DP offers a simple way to configure compliant dual-path alarm transmission (DP2, DP3, or DP4). It complements Ajax SIM to deliver reliable and uninterrupted system operation from the very start. All is up and running within minutes thanks to quick and intuitive in-app setup.
Ajax SIM: stable connection with no effort
Ajax SIM provides instant and reliable cellular communication right out of the box. No complicated setup, no tricky activation — the SIM card does almost everything on its own. Unlimited traffic and reliable connection are available from the very first minute of operation.
Product versions
Hub BP Jeweller
Wireless battery-powered control panel. Supports photo verification. Connectable via two SIM cards (2G/3G/LTE).
Hub BP Jeweller (without casing)
Wireless battery-powered control panel designed for installation in an Ajax casing. Supports photo verification. Connectable via two SIM cards (2G/3G/LTE).
Compare product versions
Explore the differences
Hub BP Jeweller
Shipped with a standard casing
Features a built-in internal tamper button

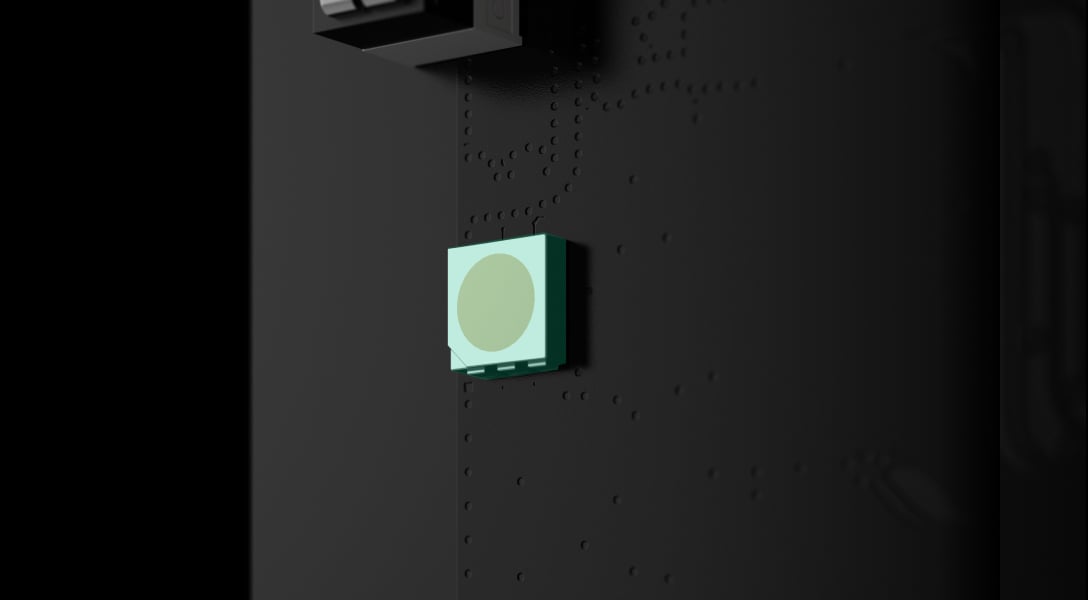

Comes with a built-in internal LED
Hub BP Jeweller (without casing)
Shipped as a board without a casing for installation in Ajax Case devices
Features a built-in tamper button with support for external tamper button connection
Comes with an external LED board
Off-grid security made simple

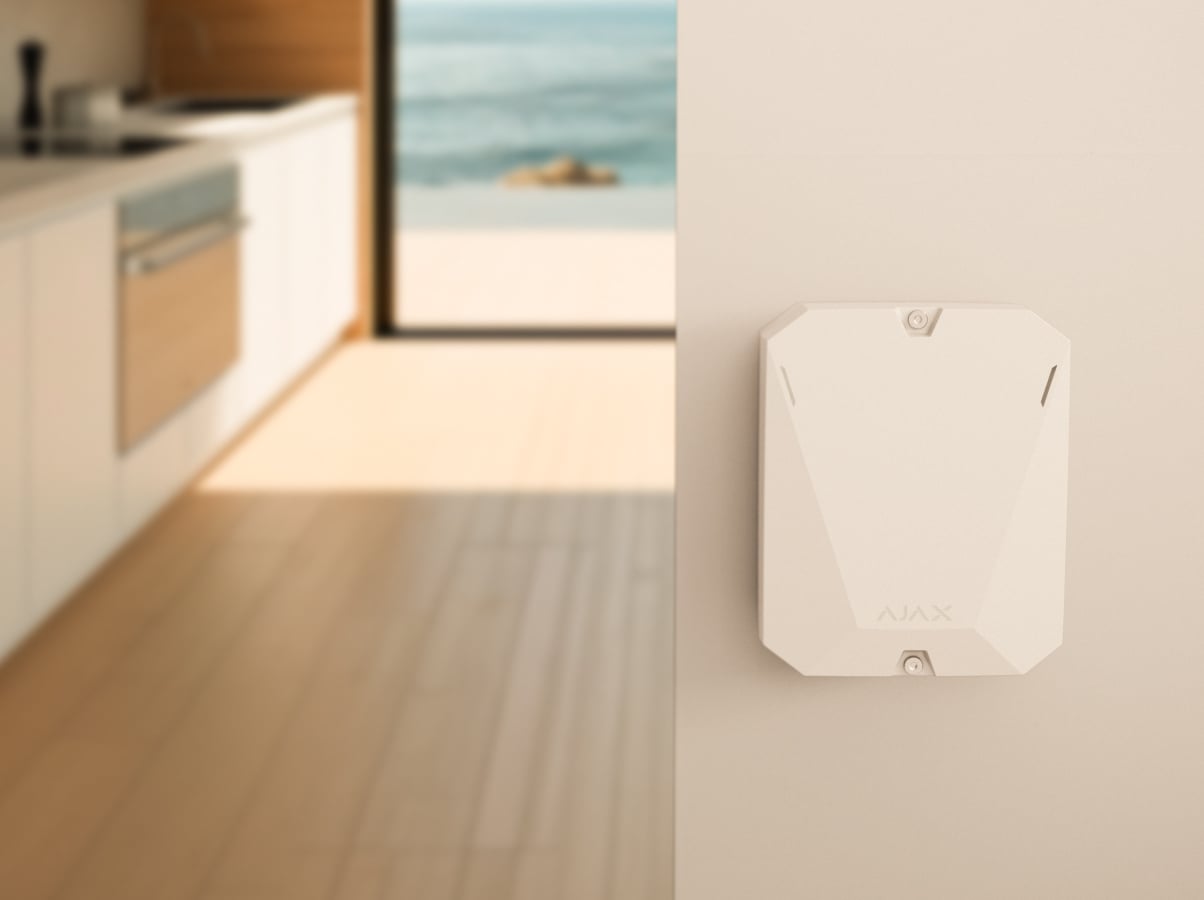

Hub BP Jeweller is an innovative security control panel designed to secure properties without a constant power supply. It's ideal for protecting vacant houses, construction sites, and temporarily unused offices. Unlike other control panels, Hub BP is powered by internal and external batteries, ensuring long-term autonomous operation. Hub supports event photo verification and features dual SIM connectivity, guaranteeing reliable communication. Thanks to its battery power saver feature, the device optimizes battery usage, providing continuous protection for extended periods.
100 wireless Ajax devices
can be added to a hub
Remote control and configuration
Battery powered
Internal
up to 50 months in the Battery power saver mode
External
up to 1.5 years on external third-party Zinc-air 12V/600Ah battery in the full-function mode
Up to 6,500 ft
communication range with wireless Ajax devices1
Alarm photo verification in 9 seconds2
9 groups
Flexible security management of the facility
2 independent communication channels
2G/3G/LTE
2G/3G/LTE
External antennas
for the signal strength of сellular, Jeweller, and Wings communication channels
Jeweller radio communication
Power adjustment

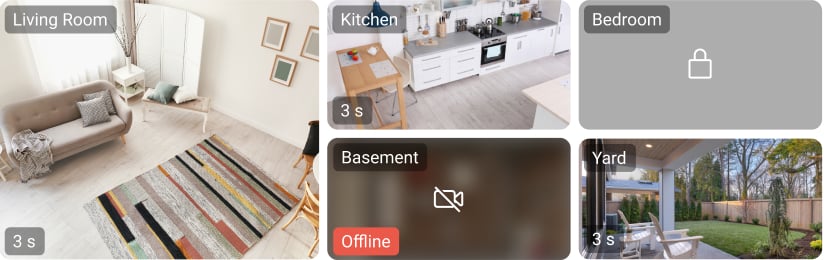

Video surveillance
with Ajax and third-party devices
Multi-tier account security
2FA, session control, and password/biometric login
Stable system operation
with OS Malevich

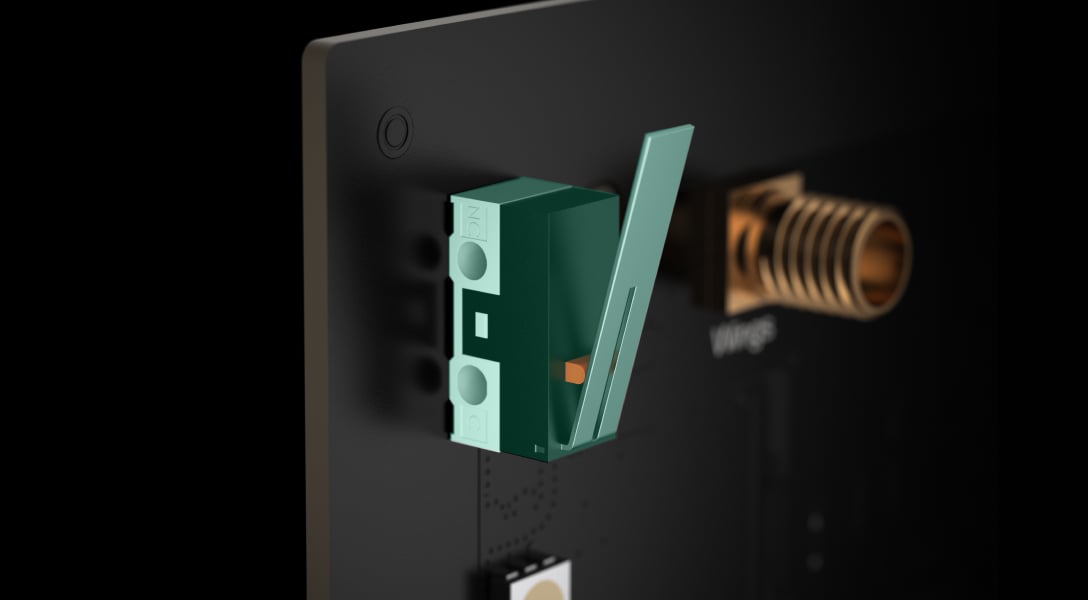

Tamper alarm
2 colors
of matte enclosure
Informative push notifications
Critical
Ajax

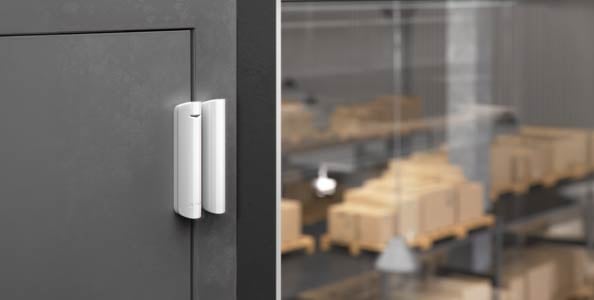

Office: Opening detected, DoorProtect in Hall
Critical
Ajax
Home: Motion detected, MotionProtect in Main room

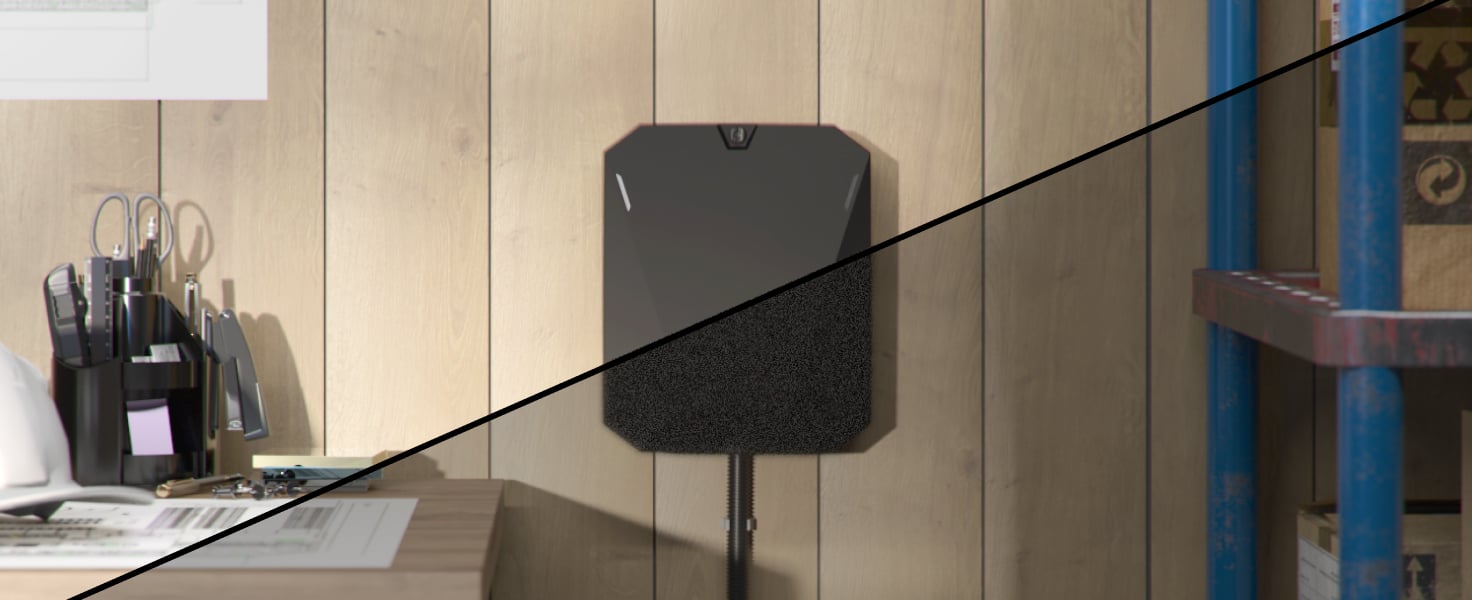

Effortless installation
no need to disassemble the enclosure
In an Ajax system, you can combine devices of all product categories: Intrusion protection, Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.
Awards
Wherever there is a need for protection

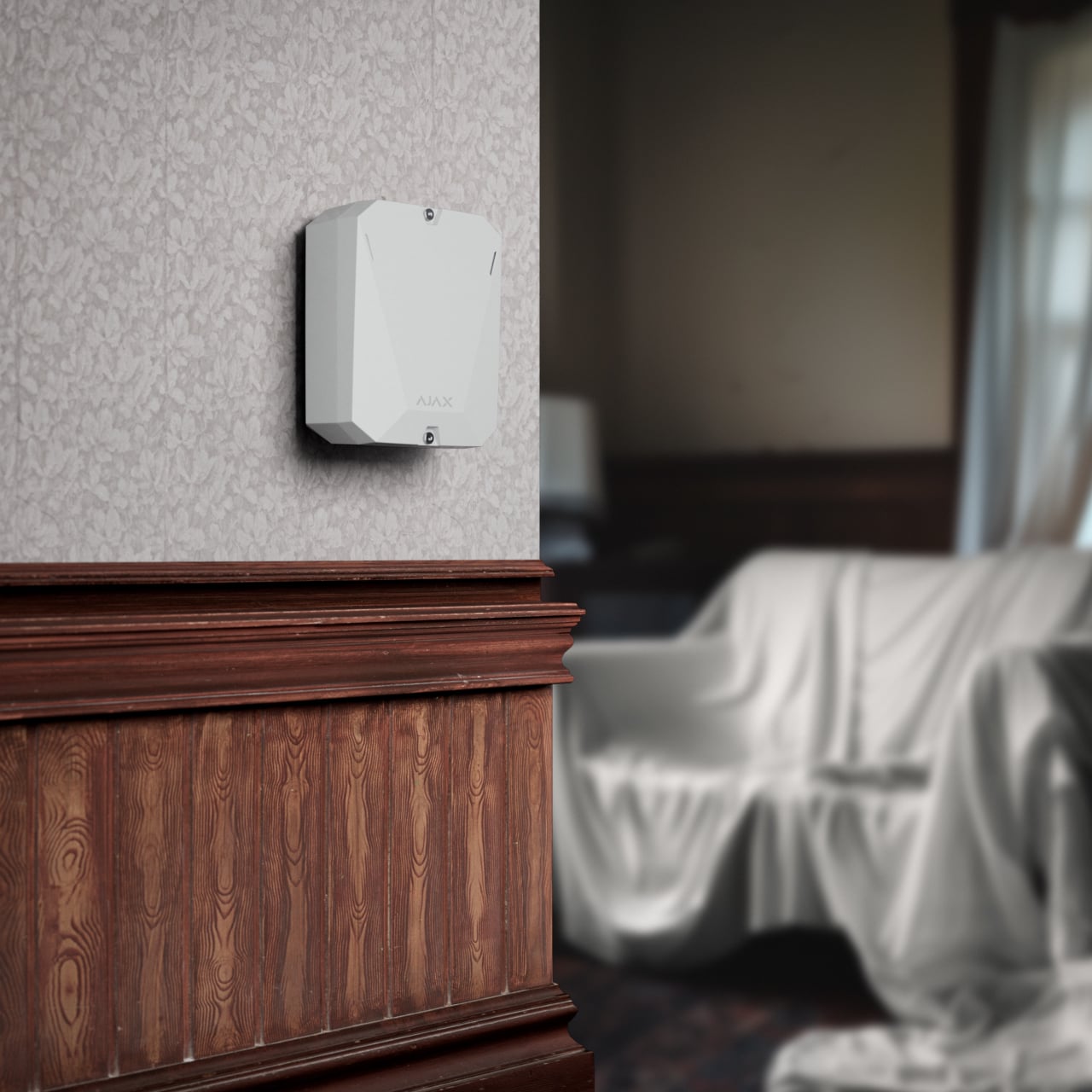

Vacant property
Cottage
Solar power station
Farm

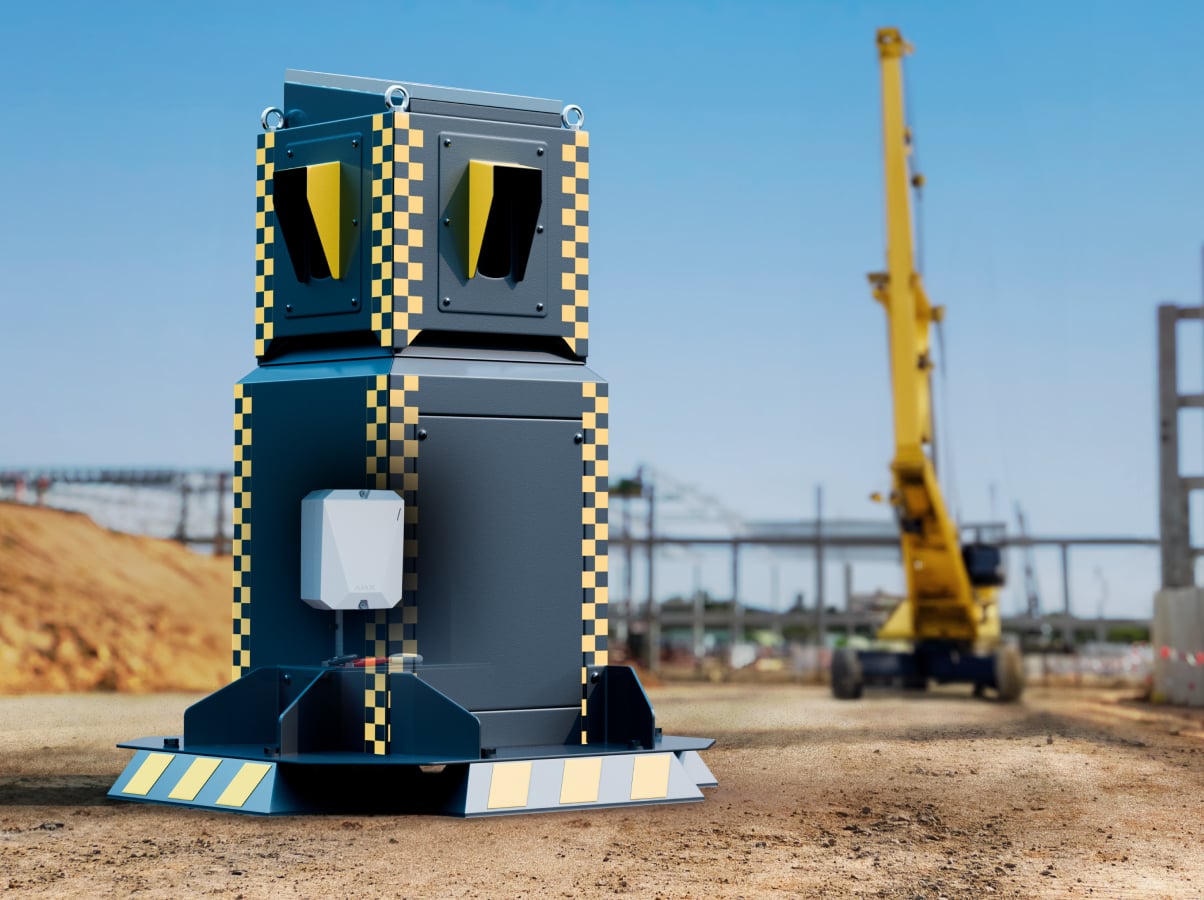

Security pod
Construction site
Discover future-proof hardware

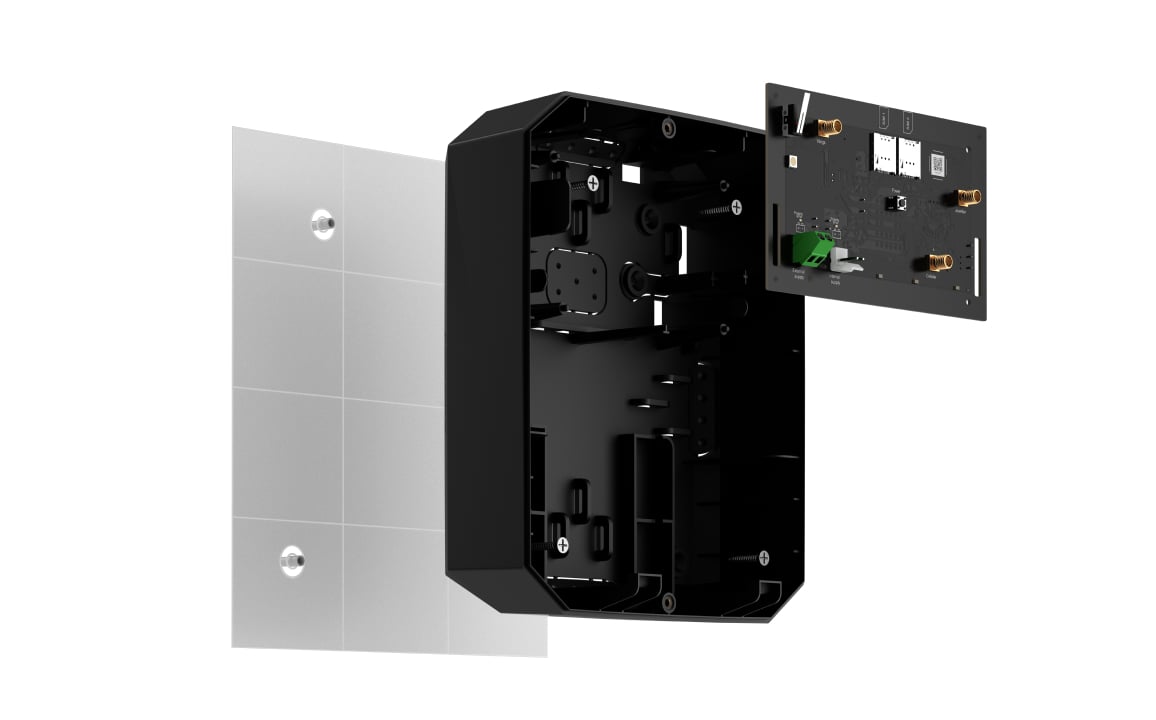

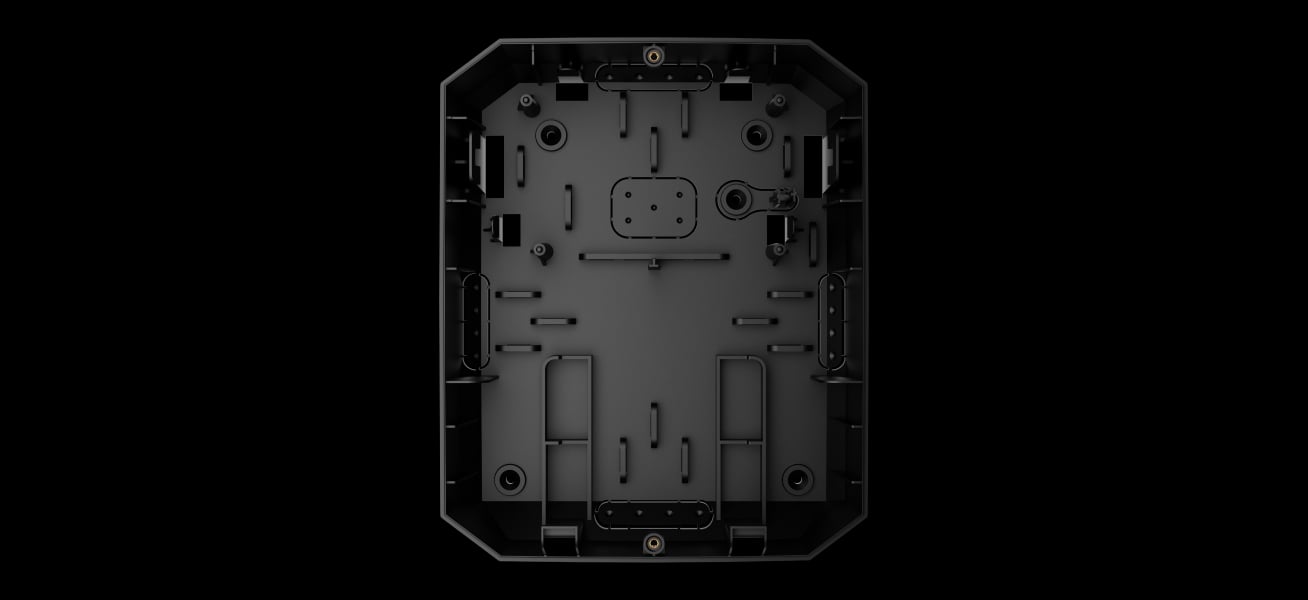

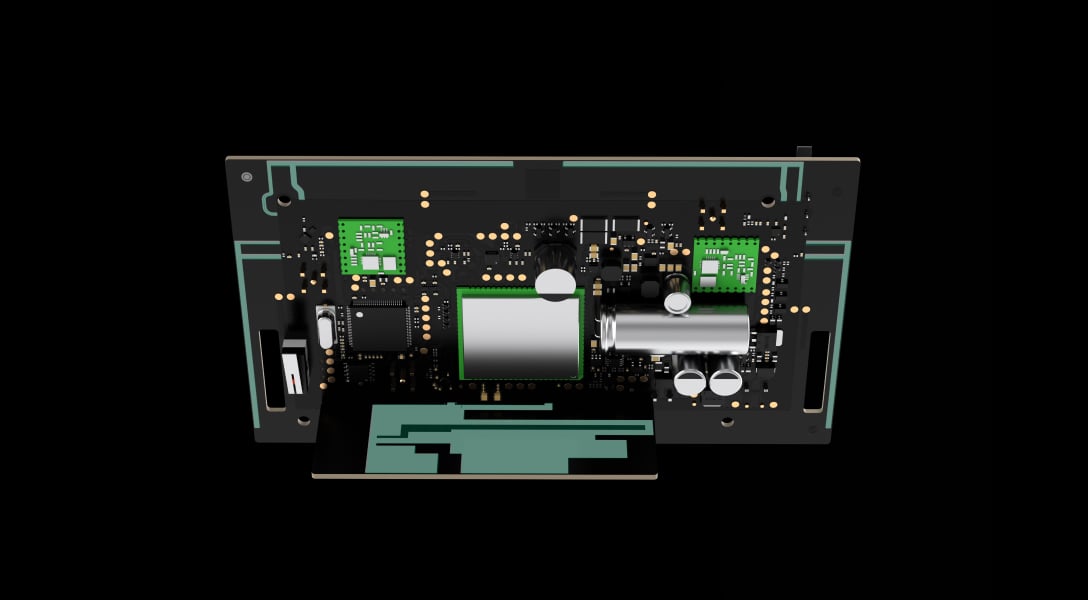

Hub BP Jeweller is available in its original casing or as a board for installation in Ajax casings. It supports internal batteries with higher capacity. When the hub is installed in the original casing, its state is always visible thanks to the built-in LED indicator. If the hub is purchased without the casing and comes as a board, an external LED can be connected and installed outside the Ajax casing.
Hub BP Jeweller
Hub BP Jeweller (without casing)

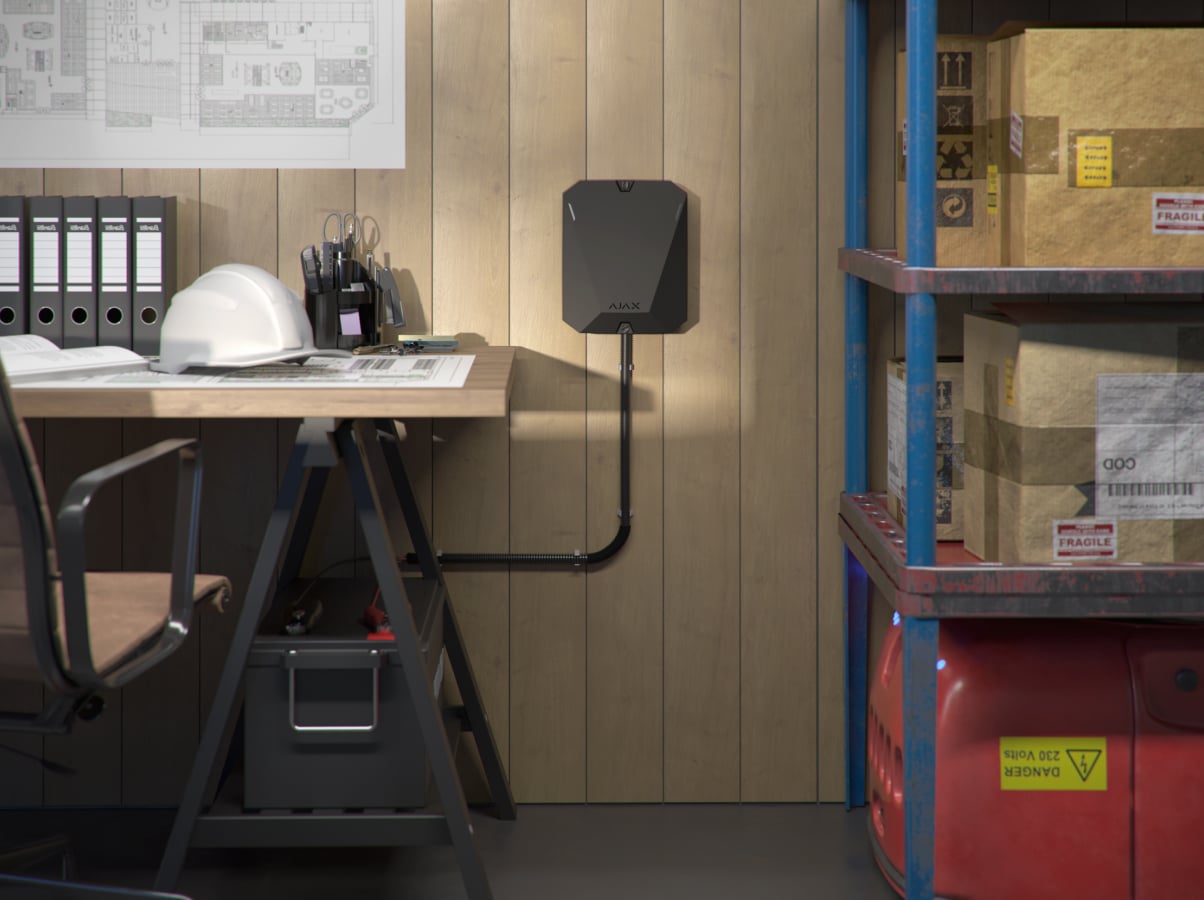

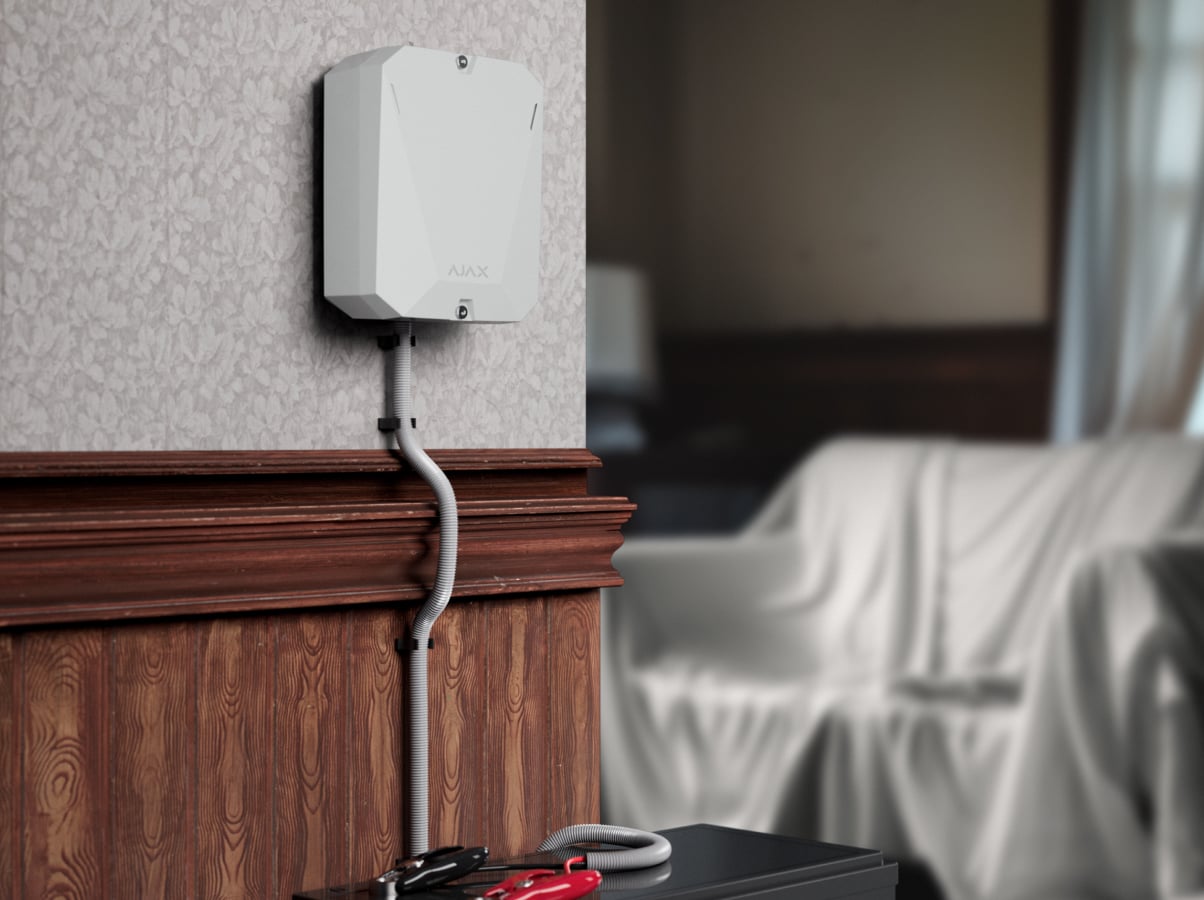

Impressive autonomy for challenging locations

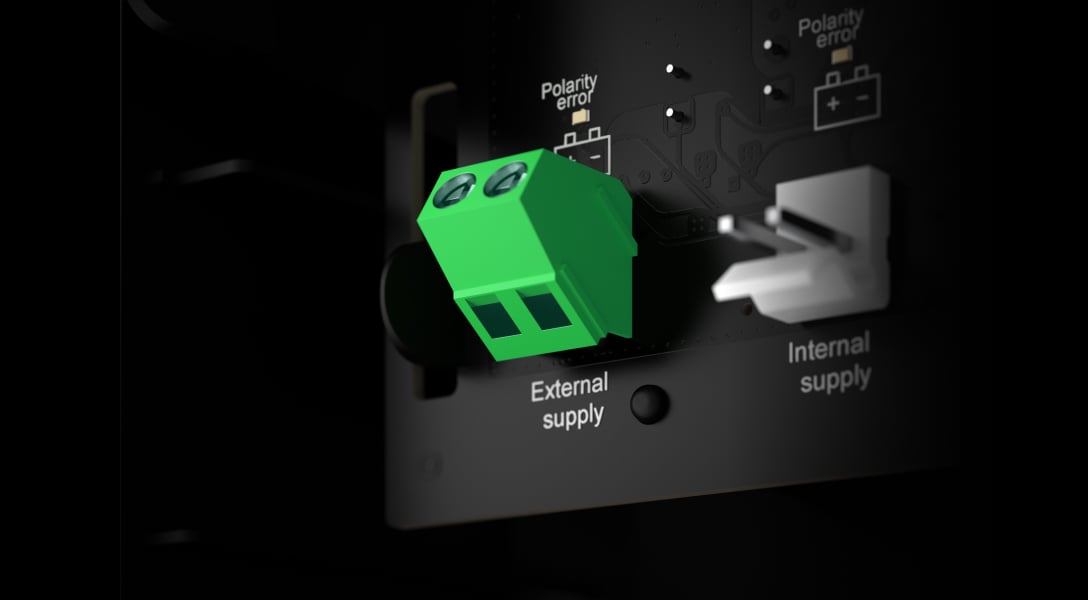

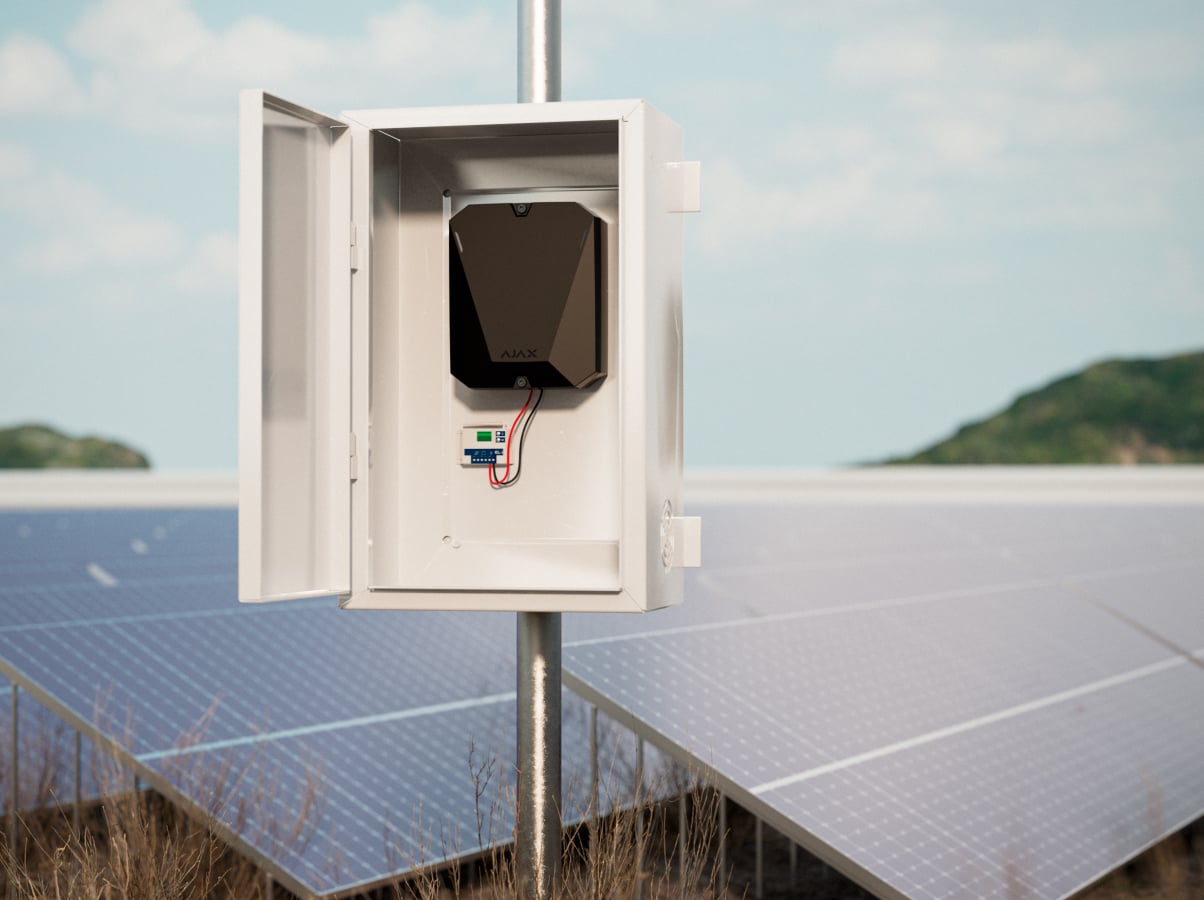

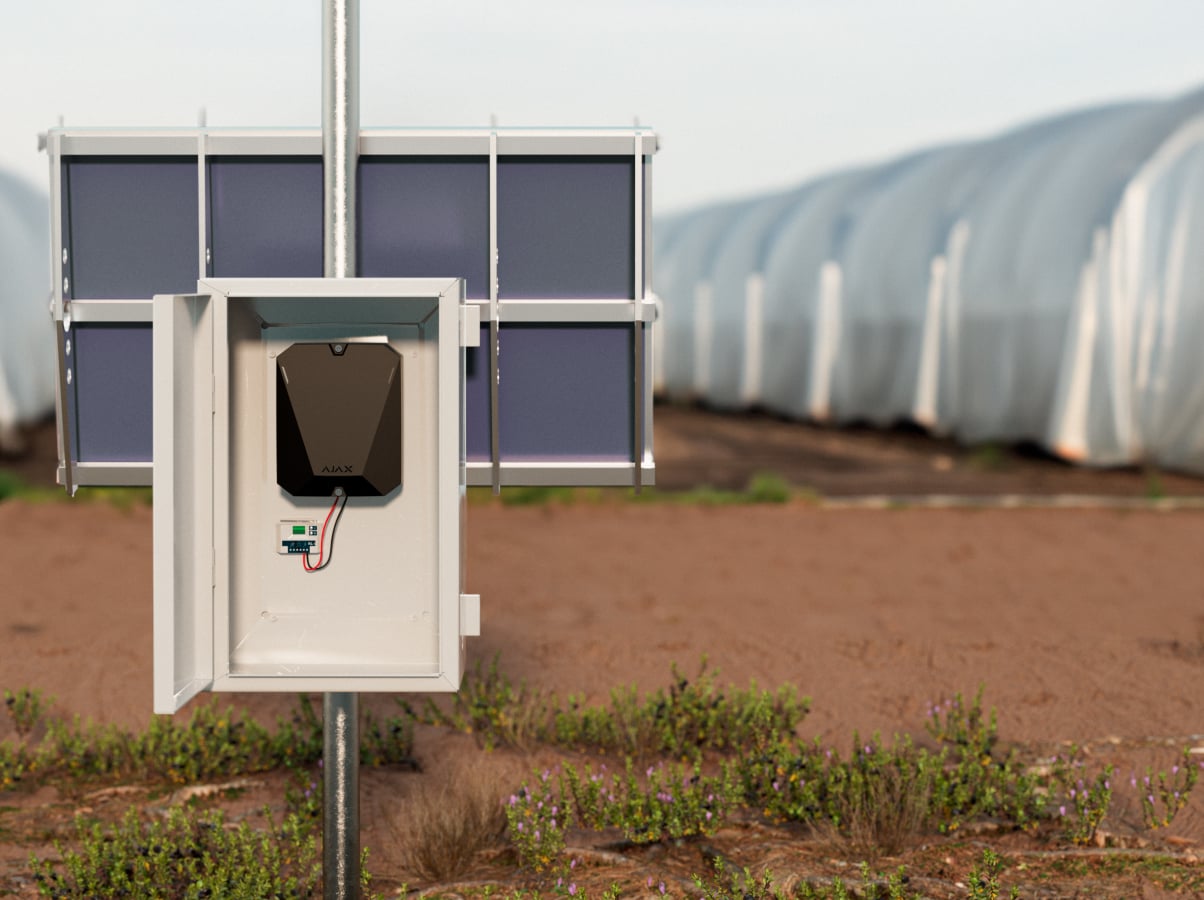

Hub BP Jeweller operates on internal and external batteries or alternative supplies like solar panels, ensuring exceptional autonomy. This feature makes it ideal for sites where it is impossible to install devices powered by the mains. With its battery power saver feature, the hub can function for months, reducing the need for frequent maintenance visits. This innovation protects remote or off-grid locations, expanding installation possibilities for security professionals.
Batteries are not included in the Hub BP Jeweller complete set. For optimal performance and compatibility, please refer to the recommended battery specifications or consult with your Ajax representative for suitable power solutions.
Advanced battery power saver
Hub BP Jeweller's advanced feature, applicable to both internal and external batteries, significantly extends operational life. Battery power saver minimizes maintenance visits and reduces costs, particularly for remote or hard-to-access facilities, enhancing overall system efficiency and reliability.
Batteries supplied by Ajax
Name | Type | Quantity in a pack | Voltage | Capacity | Months of operation in the Battery power saver (BPS) mode3 | Months of operation in the full-function mode4 |
|---|---|---|---|---|---|---|
Internal battery NB (7.2V/95Ah) | Non-rechargeable battery LTC ER34615 | 10 | 7.2V | 95Ah | 25 | 3 |
Internal battery RB (6.4V/36Ah) | Rechargeable battery LiFePO4 18650 | 36 | 6.4V | 36Ah | 8 | 1 |
Internal battery NB (7.2V/190Ah) | Non-rechargeable battery LTC ER34615 | 20 | 7.2V | 190Ah | 50 | 6 |
Internal battery RB (6.4V/78Ah) | Rechargeable battery LiFePO4 18650 | 104 | 6.4V | 78Ah | 18 | 2 |
Batteries from third-party suppliers
Name | Type | Voltage | Capacity | Months of operation in the Battery power saver mode3 |
|---|---|---|---|---|
Internal third-party battery | Rechargeable battery Lead-acid | 12 V | 7 Ah | 2 |
External third-party battery | Non-rechargeable Zinc-air battery | 12 V | 600 Ah | 72 |
Complete set of business tools
Ajax PRO: Tool for Engineers
A mobile app for installers and security service providers
Ajax PRO Desktop
Installation, monitoring, and facility and staff management in a single interface
Alarm photo verification in 9 seconds

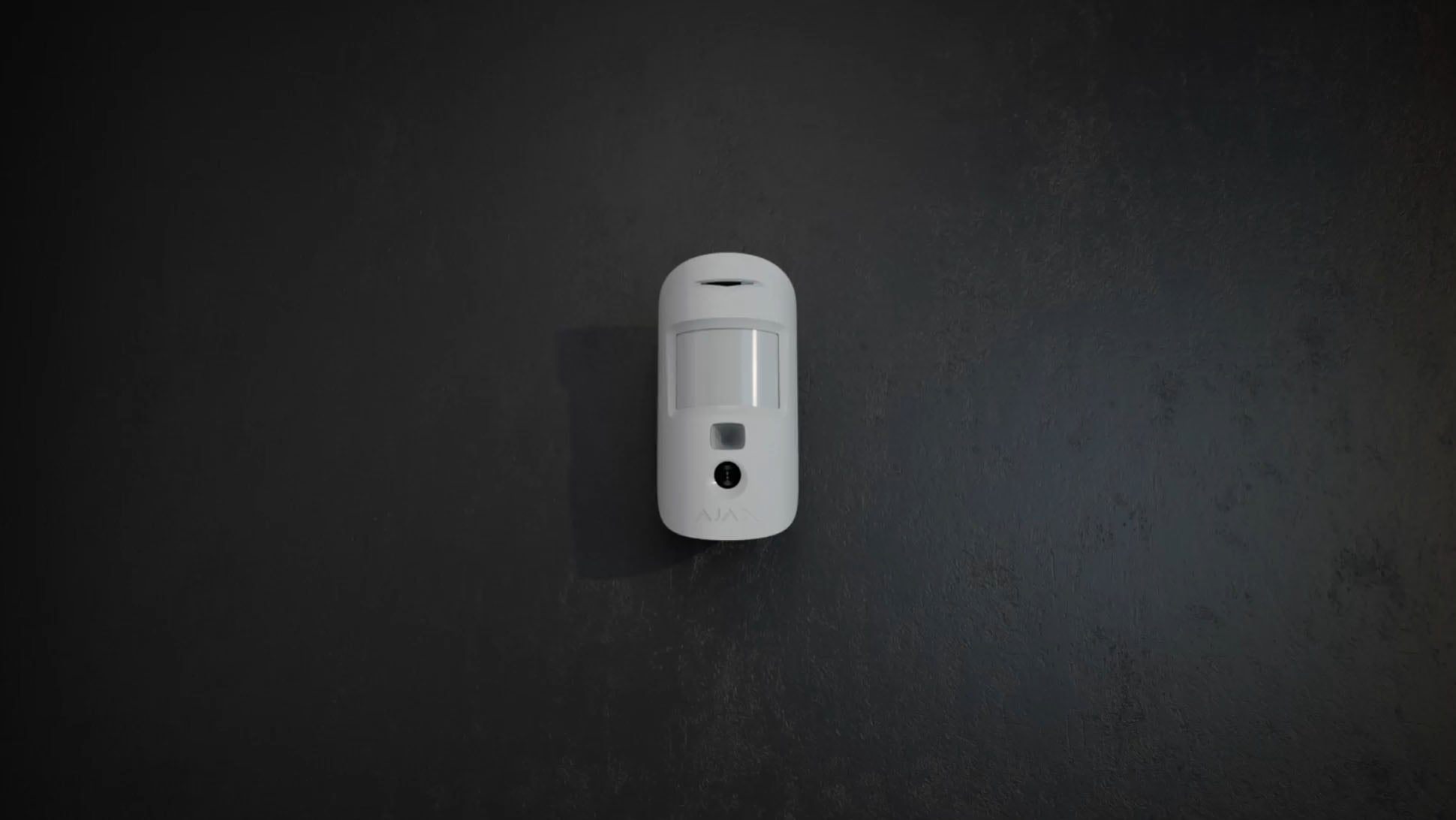

Hub BP Jeweller works with MotionCam and MotionCam Outdoor detectors. When detectors are triggered, they take a series of photos. It helps to evaluate the situation at the facility. Visual verification provides an instant situation assessment, relieving user anxiety and preventing false patrol dispatches for security companies.
Motion detected
Alarm raised
Evidence captured

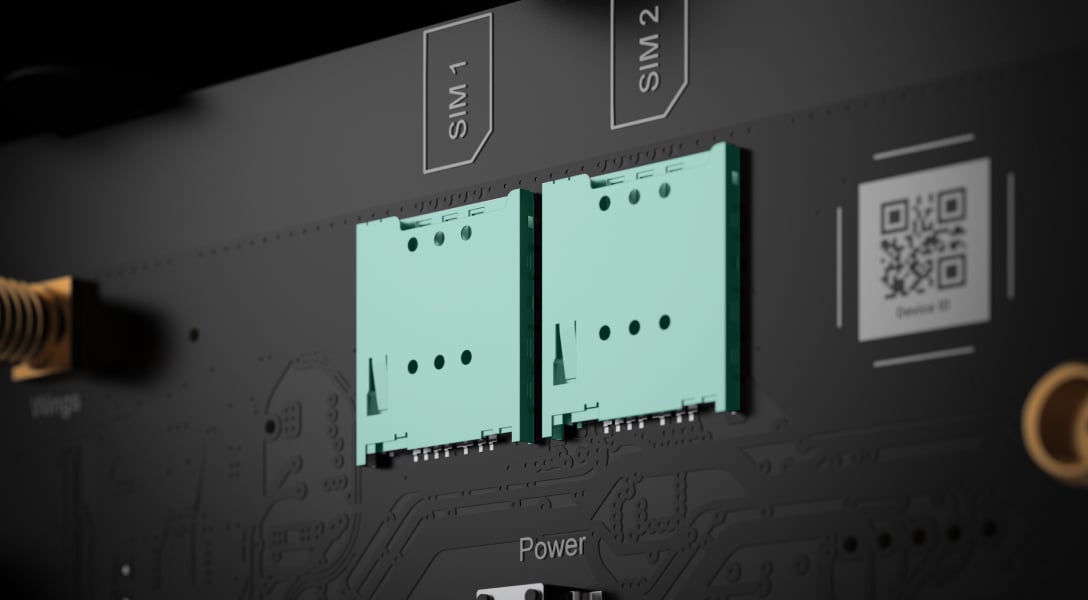

Always connected via cellular networks
Communication with the outside world is critical for the security system’s control panel. Its reliability and stability guarantee timely alarm transmission to the security company and users.

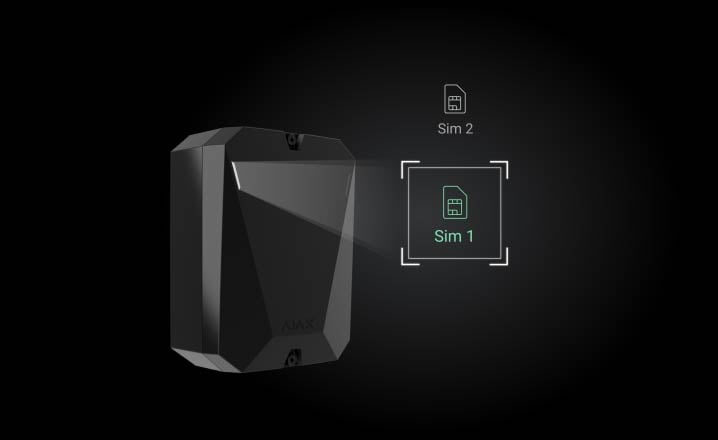

Hub BP Jeweller can connect to internet service providers via two SIM cards supporting 2G, 3G, and LTE networks. Different mobile operators can be used for each SIM card to enhance fault tolerance, providing stable connectivity. The automatic switching between channels takes seconds, guaranteeing uninterrupted operation.
Two communication channels
Instant channel switch
Real-time status updates

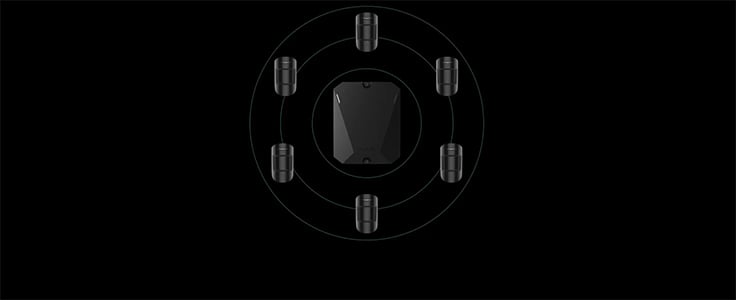

Jeweller
Unique wireless technologies

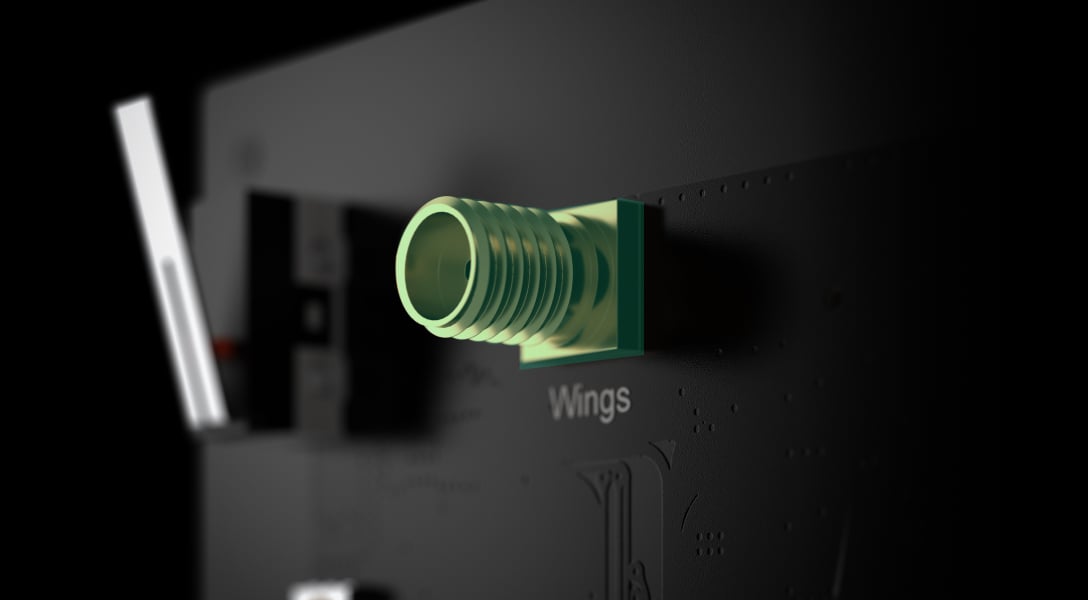

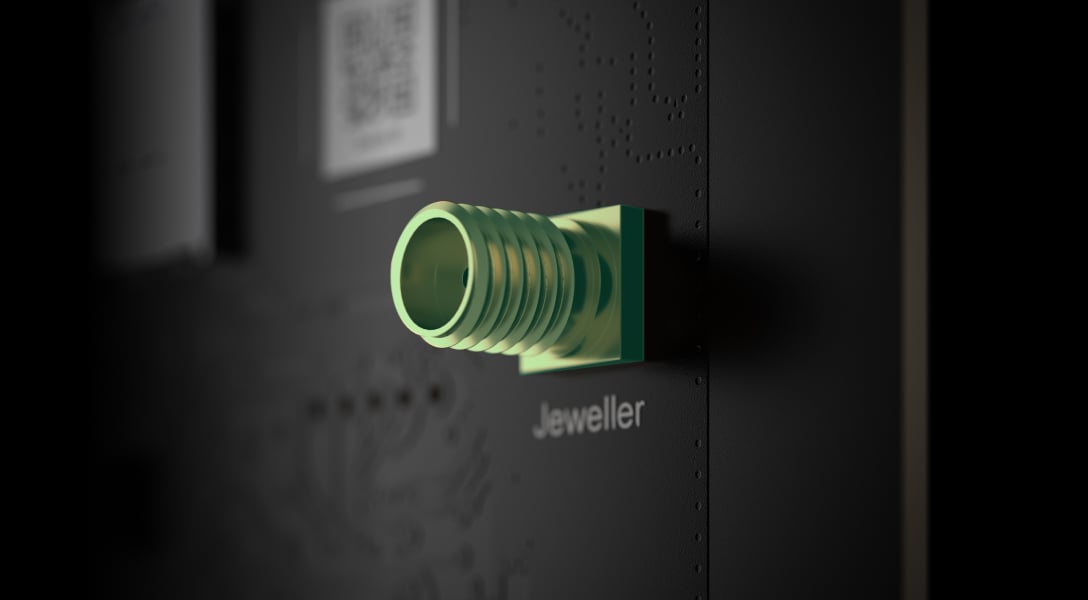

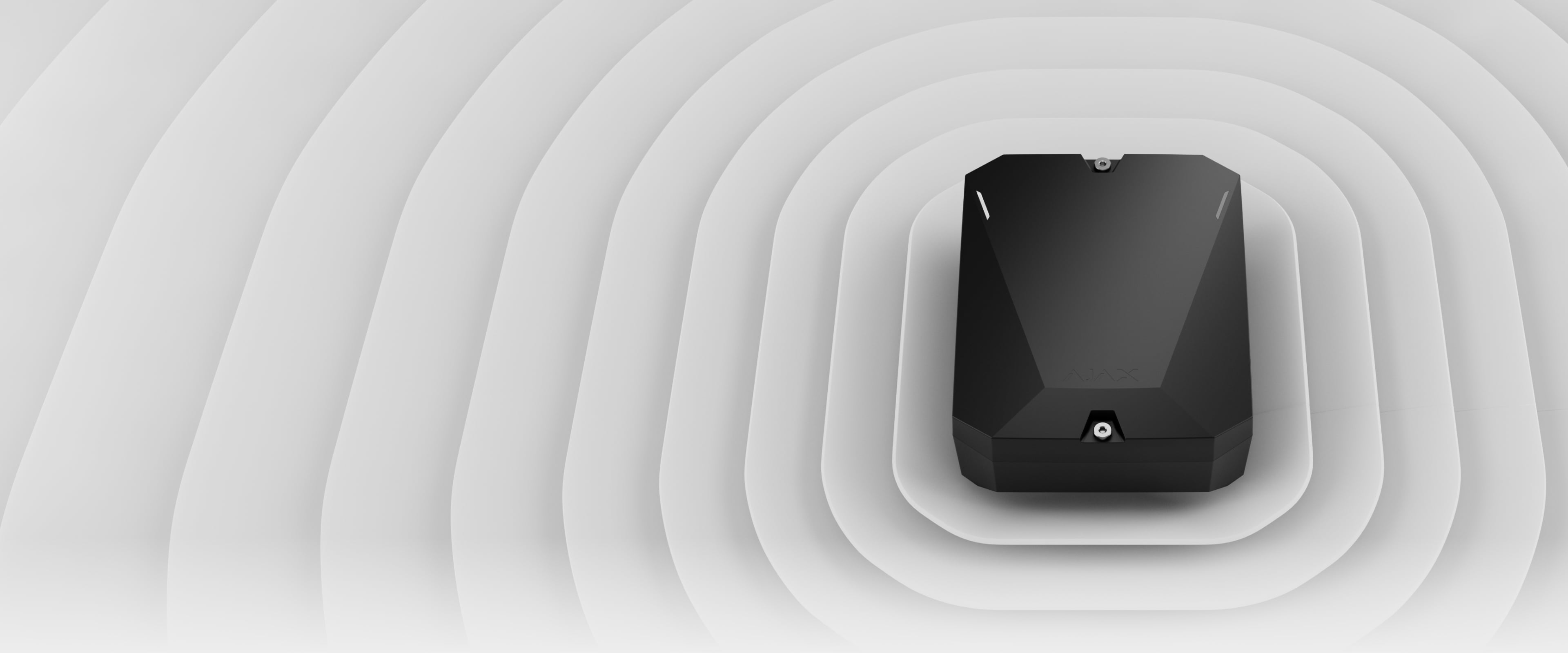

Hub BP Jeweller supports up to three external antennas and uses Jeweller and Wings proprietary radio protocols for reliable communication. Jeweller is responsible for the transmission of commands, events, and alarms, while Wings provides batch transmission of images. Ajax two-way radio communication provides block cipher encryption and device authentication at each communication session between the hub and connected devices to prevent sabotage, spoofing, or data theft.
Up to 6,500 ft distance of radio communication1 between wireless devices and a hub
Encrypted two-way communication
Notifications about jamming and connection loss
9 seconds2 to deliver the first photo
Reliable communication through any barrier

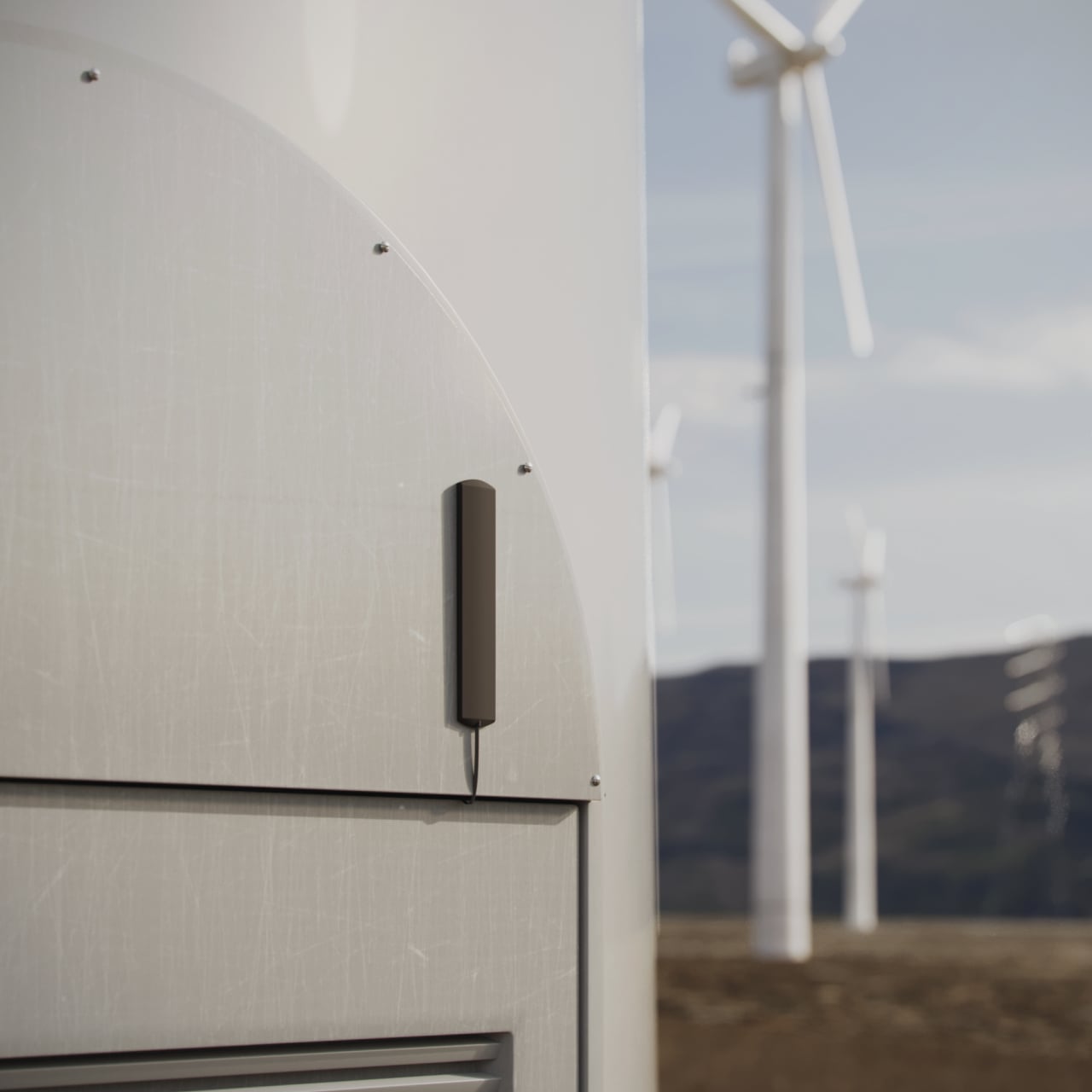

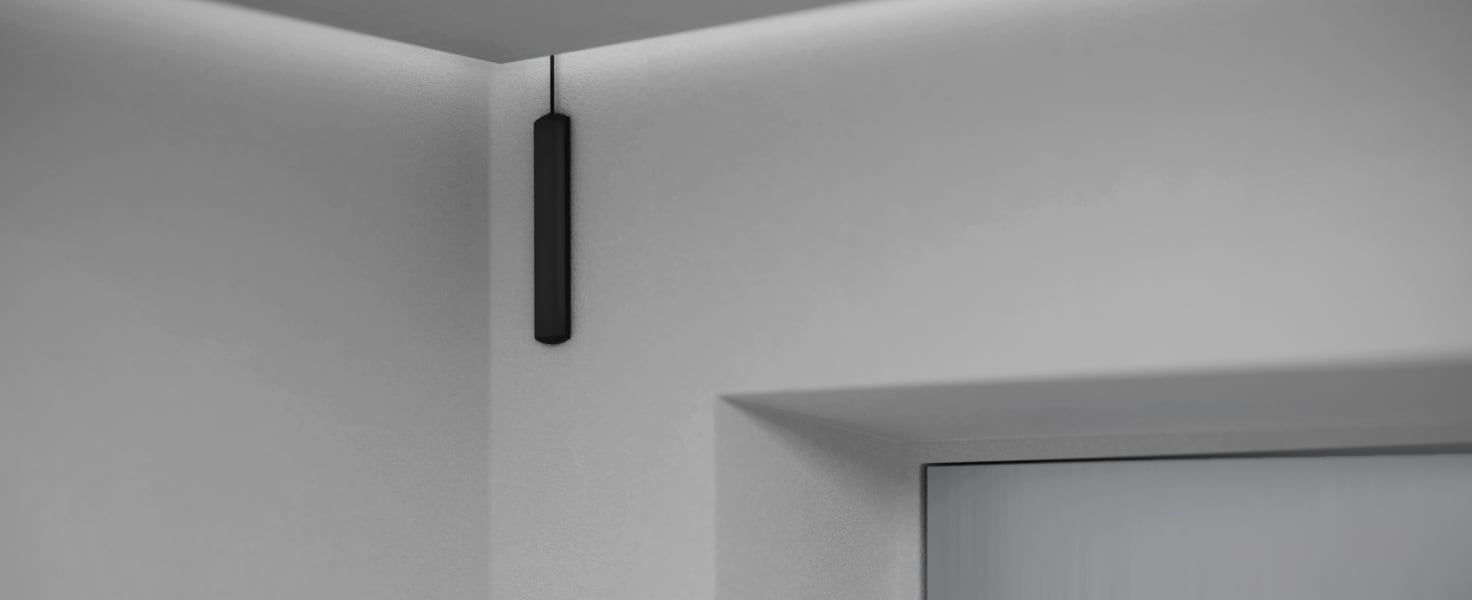

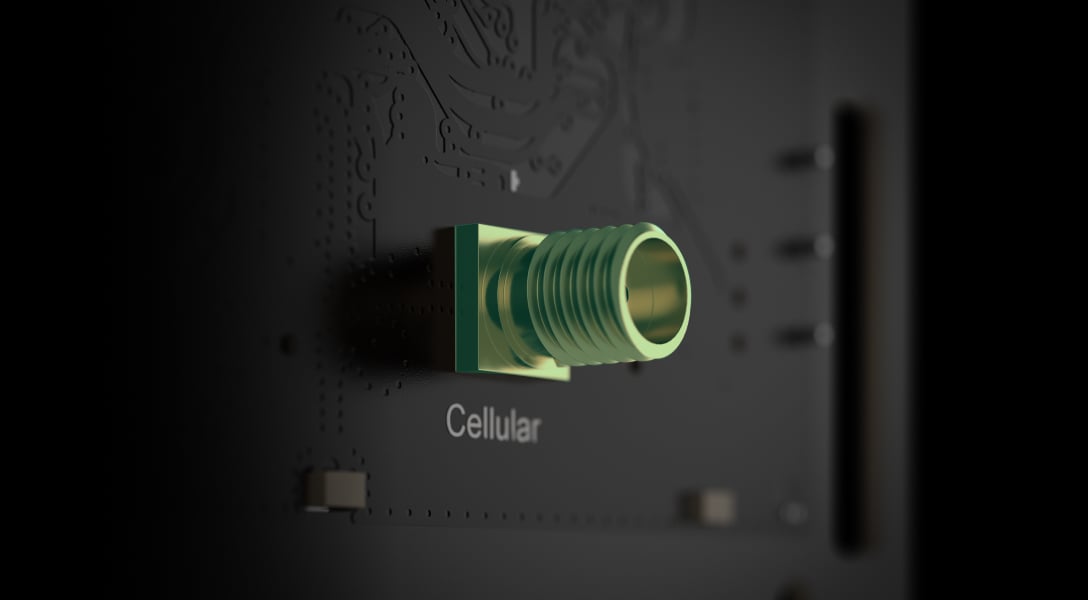

Hub BP Jeweller can be equipped with an ExternalAntenna to ensure reliable connectivity. Whether the facility is in an open field, or a metal-enclosed vault, this solution helps Hub BP Jeweller overcome signal interference. It enhances the communication between the hub and connected devices, as well as with the outside world. The 3-meter cable allows for optimal antenna placement, boosting Jeweller, Wings, and cellular communication channels. In the event of antenna breaking or damage, the system promptly notifies users and the security company.
For сellular, Jeweller, and Wings communication channels
External antenna breakage detection
Cable length 9 ft
For facilities of different sizes
Hub BP Jeweller is a versatile security solution suitable for a range of facilities, from private houses to huge construction sites, offering up to 6,500 ft of radio communication range. The Ajax radio signal range extender expands coverage, ensuring a stable connection for devices located on different floors or at a long distance. It can be installed with a power supply unit (PSU) if the site is off-grid. The hub efficiently manages up to 100 devices without lags, accommodating 50 users and supporting 9 security groups for advanced access control. Whether for homes or businesses, Hub BP Jeweller is well-equipped to ensure comprehensive security.
9
security groups
50
users
100
devices
Up to 6,500 ft
of communication range1
Automated security
Hub BP Jeweller allows the creation of 32 automation scenarios and expands the system’s capabilities. This flexibility enables PRO users to set up various security configurations to meet their specific requirements. The hub can arm and disarm the entire system or a group by schedule. Take photos by schedule for constant monitoring of the facility and shut off the water in case of a leak. Control lights, electric locks, roller shutters, and garage doors — by arming/disarming, button press, or a detector’s alarm.
Home activity simulation
If a property is left unattended for an extended period, an installer can set up a schedule using Relay Jeweller to simulate home activity with battery-powered lights. This setup makes the house appear occupied, reducing the risk of attracting potential intruders.
Photo surveillance
MotionCam (PhOD) Jeweller and MotionCam Outdoor (PhOD) Jeweller can take photos by schedule. The detectors need just a few seconds to show the actual situation on the scene for constant facility monitoring.
Automatic water shut-off
An Ajax hub can manage water leak detectors and shutoff valves. Upon detecting a water leak, the detector triggers the shutoff valve to automatically stop the water flow within 7 seconds.
Immune to lags, freezing, and viruses
Hub BP Jeweller runs on OS Malevich, a real-time operating system. It does not lag or freeze, instantly loading and executing all actions. It takes less than a second from tapping on a smartphone to the lights switching on. A scenario is executed within the same rapid timeframe.

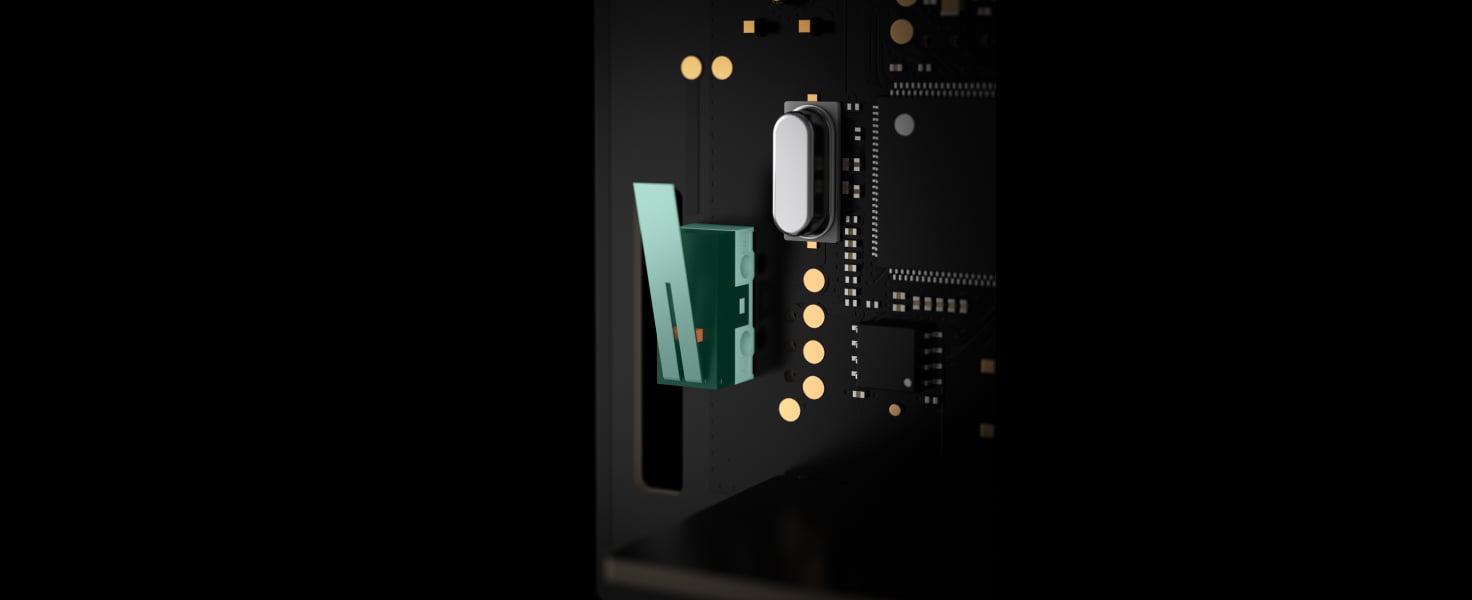

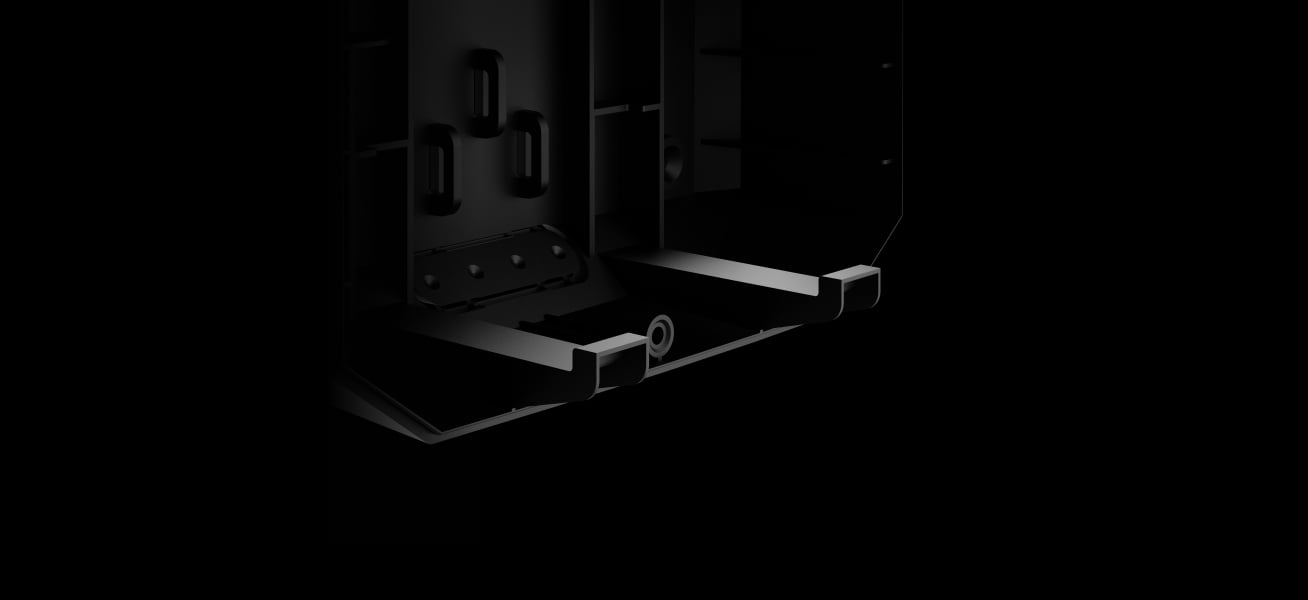

Sabotage resistance
Effortless installation and setup
Ajax has streamlined every installation step, making it simpler than ever — from system design to maintenance and customer support. Installing the hub doesn’t require disassembling its enclosure, and adding the device is quick and easy with Ajax apps. Both internal and external batteries are integrated via convenient connectors. All necessary fasteners are included, and adjustments to settings can be made without the need to visit the facility via the apps.
Adding Hub BP Jeweller to the system is easy by сonnecting the hub to the power source and scanning a QR code. Once added, the device receives a default name and settings suitable for most cases.
Connecting to the power source
Insert a SIM card
Pairing by scanning the QR code
Versatile default settings

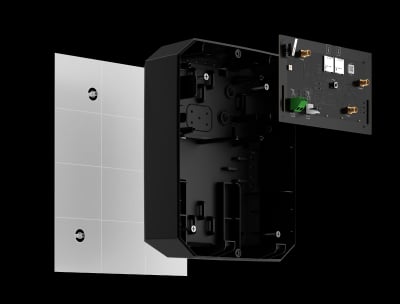

Using the SmartBracket mounting panel, an installer can effortlessly mount the device on the wall without disassembling the enclosure. Holding screws fix the hub on the SmartBracket mounting panel.
No need to disassemble the enclosure
All necessary fasteners are included in the installation kit
Holding screws to fix Hub BP Jeweller on SmartBracket
Configuring Hub BP Jeweller and the added devices is possible via mobile and desktop apps. It can always be reconfigured remotely without the need for on-site visits.
Configuring and testing Hub BP Jeweller on-site or remotely
Mobile and desktop apps
Accounts for companies and installers
The Ajax security system sends alarms to Ajax PRO Desktop and the central monitoring station (CMS) using proprietary protocols.
Addressability of each device
Instant notifications in Ajax apps
Alarm and event monitoring in Ajax PRO Desktop for security companies
In open space.
With default settings (photo resolution is 320 × 240 px).
Applicable for systems with 10 connected devices.
Applicable for Hub BP Jeweller with hardware version HB2.011.MBR.001v1. For hardware version HB2.009.MBR.001v4, the expected operating time is as follows:
- Internal battery NB (7.2V/95Ah): up to 16 months in the BPS mode and up to 2 months in the full-function mode.
- Internal battery RB (6.4V/36Ah): up to 5 months in the BPS mode and up to 20 days in the full-function mode.
- Internal battery NB (7.2V/190Ah): up to 33 months in the BPS mode and up to 4 months in the full-function mode.
- Internal battery RB (6.4V/78Ah): up to 12 months in the BPS mode and up to 40 days in the full-function mode.
Depends on the hub model.
Depends on settings.
Technical information
Hub BP Jeweller
Hub BP Jeweller (without casing)
Ajax product categories
In an Ajax system, you can combine devices of all product categories: Intrusion protection, Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.
Hub BP Jeweller: securing properties without power
The most challenging sites are often those without a constant power supply. Vacant properties, construction sites, solar farms, and remote agricultural facilities have historically been difficult to protect due to the lack of mains electricity. The Hub BP Jeweller changes the game. This is a wireless, battery-powered control panel designed specifically to secure properties where traditional power is unavailable or unreliable.
By eliminating the need for a mains connection, Hub BP Jeweller opens up new possibilities for installers and security companies. It enables rapid deployment of a professional-grade Ajax security system in virtually any location, ensuring that even the most remote assets are monitored and protected with the same reliability as in a city-center office.
Off-grid security with autonomy
The core strength of the Hub BP Jeweller lies in its sophisticated power management. It is engineered to operate effectively on internal and external batteries, making it the ideal solution for "off-grid" security scenarios where running cables is impossible or too costly.
- Internal power: the hub supports internal batteries that can provide up to 50 months of operation in "Battery power saver" mode.
- External power: for even longer deployments, it can be powered by external third-party batteries (e.g., Zinc-air), extending operation up to 1.5 years in full-function mode.
- Flexible options: the system is compatible with various battery types, including non-rechargeable and rechargeable options, allowing installers to choose the best power solution based on site conditions and maintenance schedules.
This impressive autonomy significantly reduces the operational costs associated with frequent site visits for battery replacements, making it a cost-effective choice for long-term remote protection.
Dual-SIM connectivity for uninterrupted monitoring
When a site has no power, it usually has no wired internet either. Reliable cellular communication is therefore critical for transmitting alarms. The Hub BP Jeweller is equipped with a modem supporting 2 SIM cards (2G, 3G, and LTE).
This dual-SIM capability ensures redundancy. If one mobile network fails or has poor coverage, the hub automatically switches to the second SIM card within seconds. This guarantees that alarms, events, and photo verifications are transmitted instantly to the monitoring station and system users, regardless of network fluctuations.
Visual verification in seconds
Blind alarms are a major issue for remote sites where dispatching a patrol team can be costly and time-consuming. Hub BP Jeweller addresses this by supporting photo verification.
Compatible with MotionCam and MotionCam Outdoor detectors, the hub can transmit a series of photos in just 9 seconds (with default settings) when an alarm is triggered. This allows security personnel to immediately verify the cause of the alarm — whether it's a genuine intrusion or a false alarm caused by wildlife — before dispatching a response team.
Advanced wireless technology: Jeweller and Wings
Despite running on batteries, the hub does not compromise on communication range or security. It utilizes Ajax's proprietary radio protocols to maintain a robust connection with all system components:
- Jeweller: used for transmitting commands, events, and alarms. It is encrypted, energy-efficient, and capable of communicating with connected devices over distances of up to 2,000 meters.
- Wings: a dedicated high-speed protocol for transmitting visual data from MotionCam detectors.
The hub supports up to 100 wireless Ajax devices, providing comprehensive coverage across large areas. Whether you need to protect a sprawling construction site or a large vacant warehouse, the signal range and device capacity are more than sufficient to cover the entire perimeter and interior.
Designed for professional flexibility
The Hub BP Jeweller is built with the installer in mind, offering versatile installation options. It is available in two versions:
- With casing: a complete unit ready for standard installation.
- Without casing (board only): designed for integration into third-party enclosures or specialized Ajax casings, offering greater flexibility for custom setups.
For sites with challenging signal conditions, the hub supports the use of external antennas. This allows the device to be placed inside a secure metal cabinet or deep within a building. At the same time, the antenna is positioned externally to ensure a strong connection to the cellular, Jeweller, and Wings channels.
Intelligent automation and sabotage protection
Beyond intrusion detection, the Hub BP Jeweller brings smart automation to remote sites. Installers can configure up to 32 automation scenarios. For example, the system can automatically shut off water valves if a leak is detected, or simulate home activity by turning lights on and off to deter potential intruders.
Security is paramount, and the hub includes robust anti-sabotage features:
- Tamper alarm: notifications are sent instantly if the device is dismantled or removed from its mount.
- Jamming detection: the system analyzes noise levels and alerts users if radio frequency jamming is attempted.
- Data encryption: all data is protected by block encryption with a dynamic key.
- Regular polling: the Ajax Cloud server checks the hub's status frequently to ensure it is online and functioning.
Conclusion
The Hub BP Jeweller is not just a control panel; it is a specialized tool for securing the unsecured. It combines the reliability and user-friendly experience of the Ajax ecosystem with the rugged autonomy required for off-grid applications. For construction companies, property managers, and owners of remote assets, it offers a level of security that was previously difficult or impossible to achieve without significant infrastructure investment.
