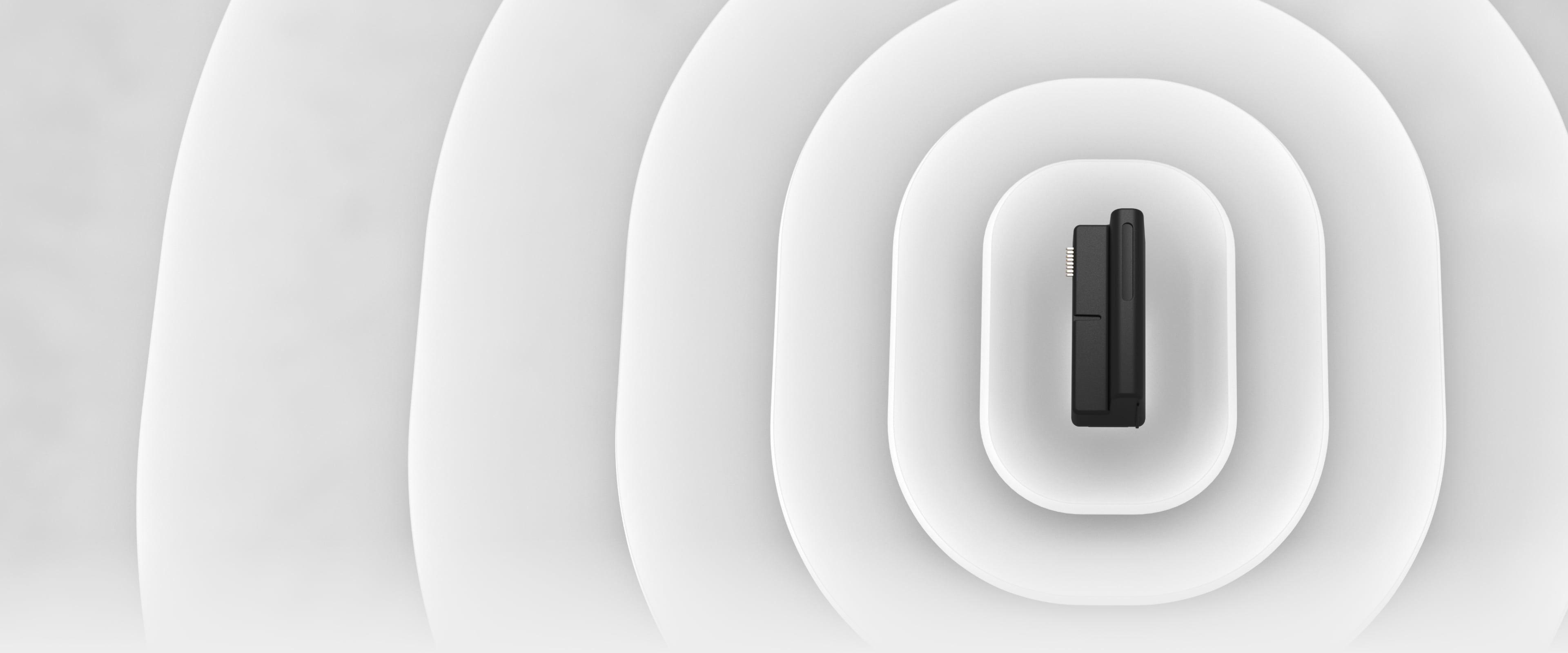

LockBridge (D) Jeweller
Wireless module to integrate compatible Yale Doorman smart locks (V2N/Classic and L3/L3S) into an Ajax system
The integration module is not compatible with Yale Linus and Yale Doorman V2 (manufactured before 2016) smart locks. Yale Linus smart locks with Wi-Fi support can be added to Ajax systems without the module.
Ajax × Yale: integration that strengthens security
LockBridge (D) Jeweller seamlessly integrates compatible Yale Doorman smart locks into the Ajax ecosystem. Through the module, the smart lock communicates with the hub via an encrypted radio protocol, ensuring reliable operation even without internet access. Lock or unlock doors on-site or remotely, or let scenarios handle it automatically.
Key features
Smart lock control via an Ajax app
Support for various scenario types
Remote configuration in Ajax apps
access codes
Yale key tags
access permissions
Auto-Lock feature
notifications
Compatibility with Yale Doorman smart locks:
V2N/Classic
L3/L3S
Up to 4,550 ft of radio communication
between the module and the hub or range extender in open space
Jeweller and Wings communication technologies
Power adjustment

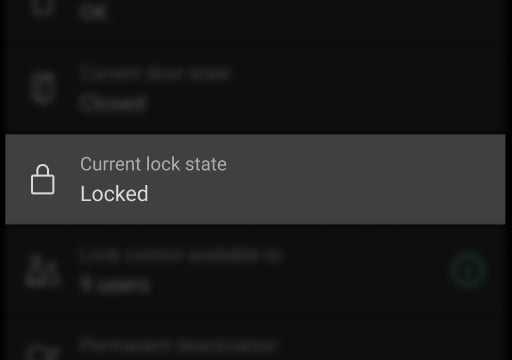

Real-time smart lock state in Ajax apps
Support for a Chime feature

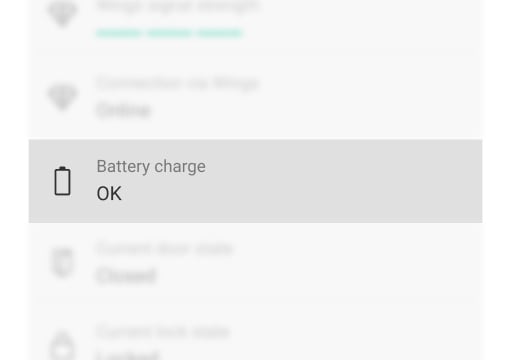

Battery charge level visible
Door left open notifications
Ajax
Home: door remains open too long, LockBridge in Entrance
Step-by-step in-app wizard
to configure and add the smart lock to the system
Automatic firmware updates
Adjustable smart lock sound volume
Informative push notifications
Ajax
Home: LockBridge in Entrance locked by Anna
Ajax
Home: LockBridge in Entrance unlocked by Anna
Instant maintenance notifications
Support for Secure mode
In an Ajax system, you can combine devices of all product categories: Intrusion protection, Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.

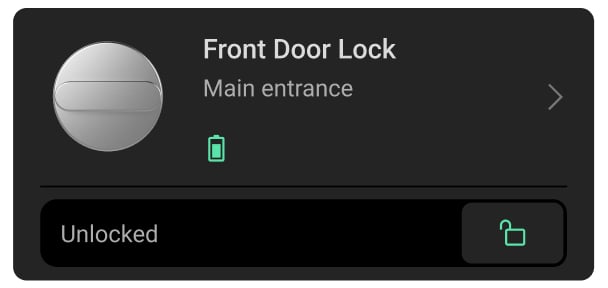

Full lock control — from tap to scenario
Control the Yale Doorman smart locks anytime through an Ajax app: from the device menu, room view window, or while checking the video doorbell for visitors. The system accurately logs every action, so a user can always see who opened or closed the door and when it happened.

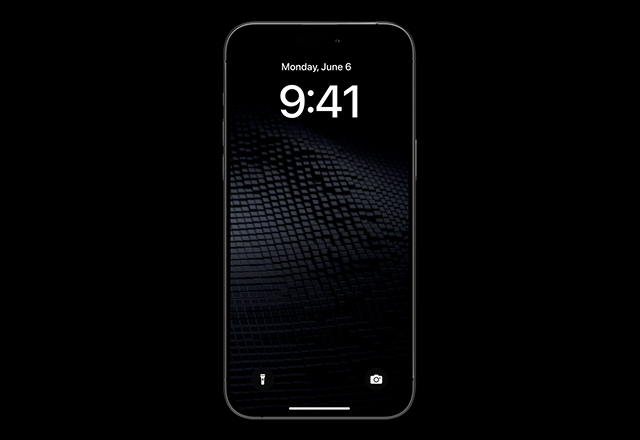

The smart lock can also be operated manually as usual. These manual actions can also trigger scenarios. For example, arming the system on lock and disarming on unlock.
Set access permissions for users, PROs, and companies
Manage the smart lock from a smartphone or manually
Get notifications about who locked or unlocked the door

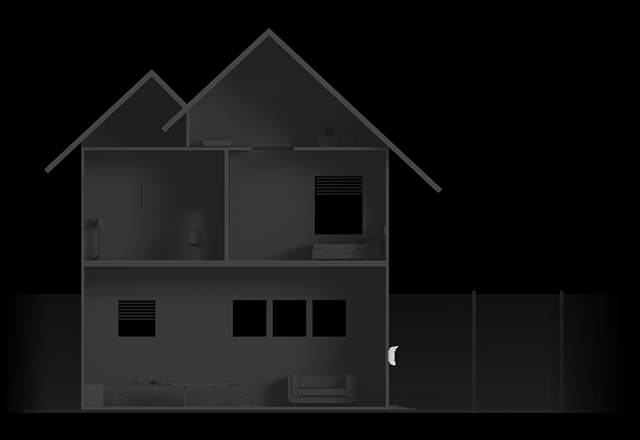

The smart lock can follow schedules or respond to system alarms and events. For example, the door unlocks automatically when a user disarms the system with a keypad. Alternatively, the system can follow the smart lock state: locked — armed, unlocked — disarmed. For added security, scenarios can be set to run on regular alarms or only on confirmed ones.
Extensive scenario configuration options available
Scenario activation on regular or confirmed alarms
Smart security for home and business

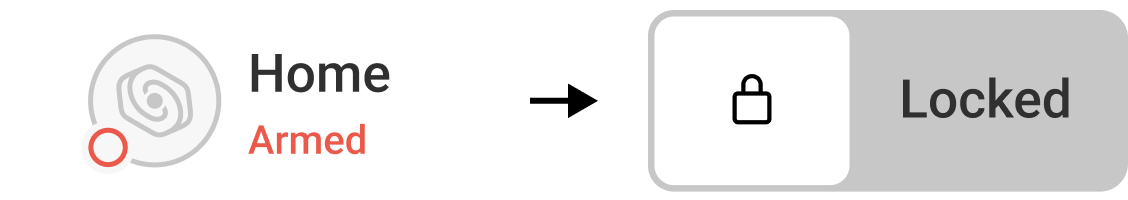

Response to security mode changes
Link the smart lock to security modes. For example, when the system is disarmed with the outdoor keypad, the smart lock automatically unlocks. The lock's response can be configured for the entire site, for a specific security group, or only for Night mode.
Response to smart lock state changes
The system could follow the smart lock state. For example, the system disarms when the lock is opened and arms when it is closed.
Activation of other system devices by smart lock state change
The smart lock can activate other system devices through scenarios. For example, lights might turn off automatically as soon as the smart lock is locked. These scenarios work independently of the system security mode and are based solely on the smart lock state.

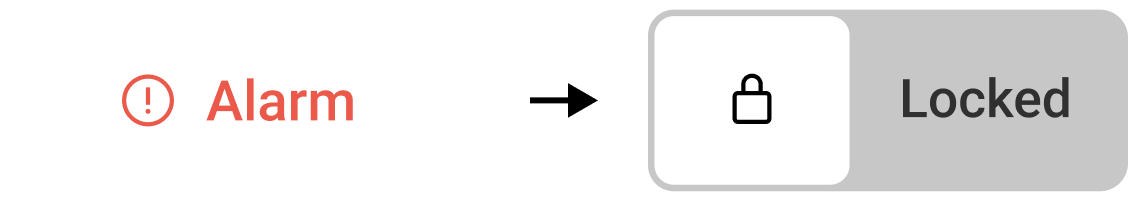

Response to alarms
Make smart locks part of emergency response. For example, all doors can be locked when the panic button is pressed. For added security, scenarios can be set to run only on confirmed alarms.

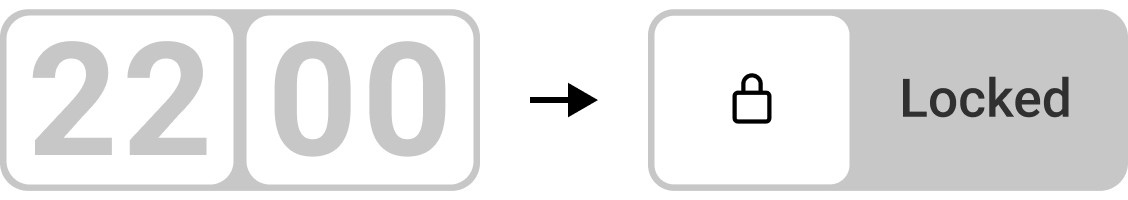

Scheduled actions
Configure the smart lock to follow daily routines. For example, so that it unlocks at 10:00 a.m. and locks again at 10:00 p.m.

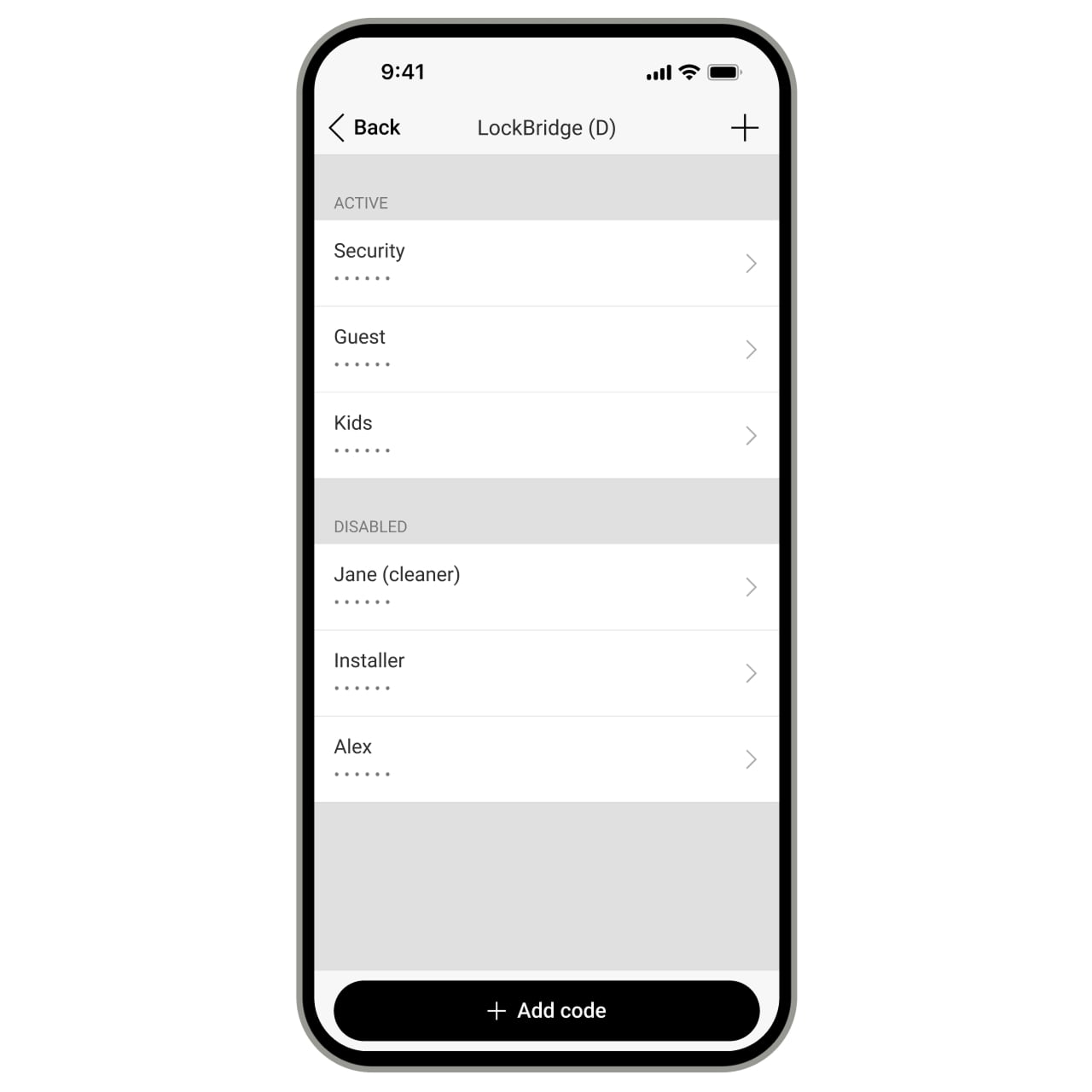

Remote smart lock access control
Each user, PRO, or monitoring company can have individual access rights to the smart lock. For example, the monitoring company or response unit can access the smart lock only after an alarm has been triggered. Permissions, codes, and key tag parameters are configured in Ajax apps and can be changed or reassigned by the admin at any time.
Detailed log of exactly who locked or unlocked the door
Remote access granting or revoking in Ajax apps
Remote configuration of codes and key tag parameters
After-alarm access for monitoring companies and response units
Use a smart lock as a doorbell
The Chime feature turns a Yale smart lock and an Ajax siren into a modern shopkeeper's bell. When the system is disarmed, the siren plays a short sound each time the door opens or at a press of a doorbell1 button. System admins can adjust the alert volume and assign different sound patterns to separate entrances, making it easy to identify whether the front or back door has been opened.
Get notified when the door is being opened
Configure different chime behavior for different security groups
Assign distinct sound pattern to each entrance
The system requires an Ajax siren for the Chime feature to work.
Unique wireless technologies

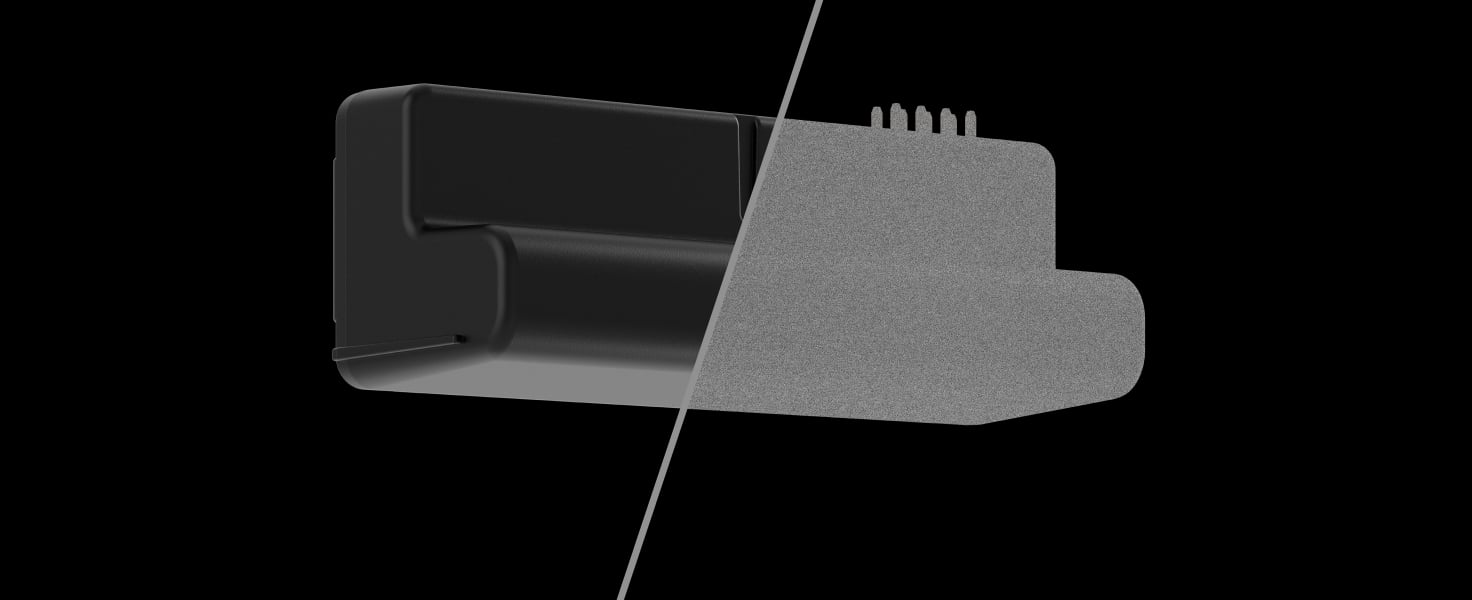

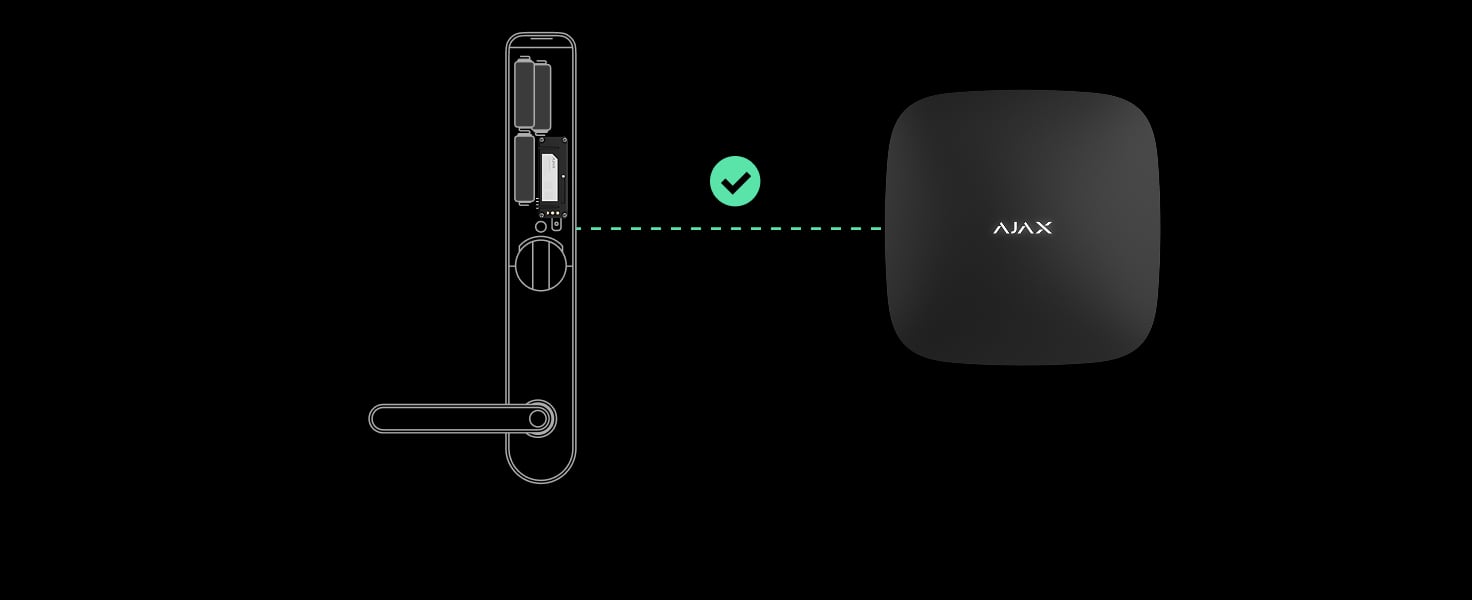

An Ajax system uses secure two-way radio communication based on Jeweller and Wings proprietary protocols. They support block encryption and device authentication during every session with the hub to prevent sabotage, spoofing, and data theft.
Up to 4,550 ft of communication range in open space
Data encryption throughout the transmission
Notification of jamming and connection loss
Automatic firmware updates
Sabotage resistance
Quick installation and easy setup

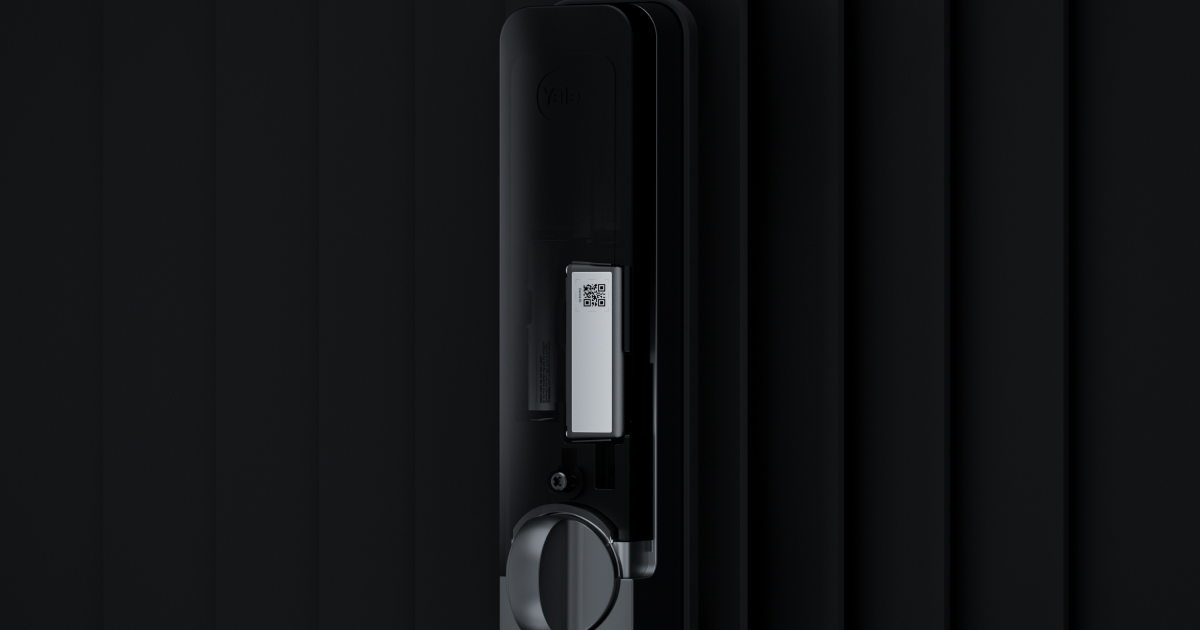

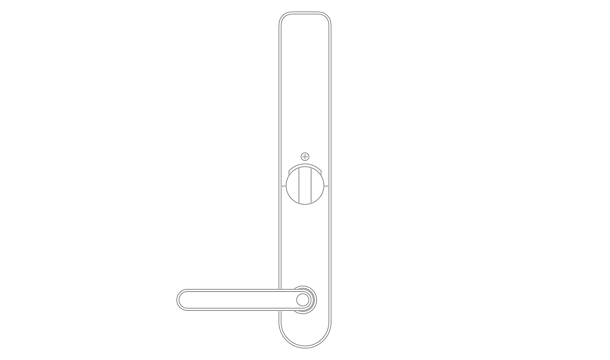

The module is installed inside the Yale Doorman smart lock.

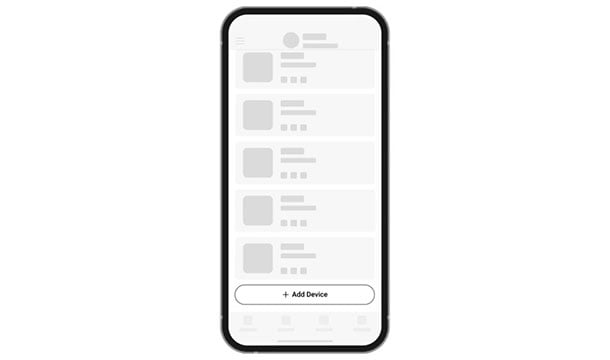

The module can be added to an Ajax system by scanning its QR code or entering the ID manually.

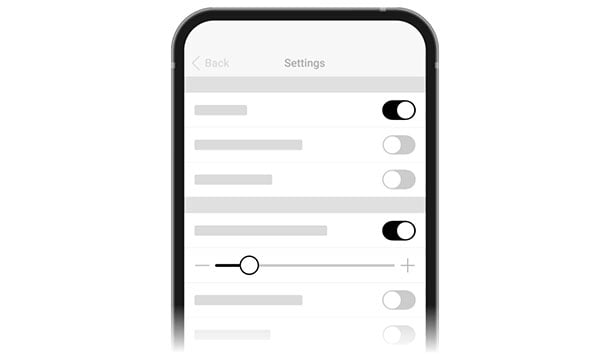

Intuitive Ajax apps provide easy setup with a step-by-step wizard. Remote access gives installers the same level of awareness and control as if they were physically on site.

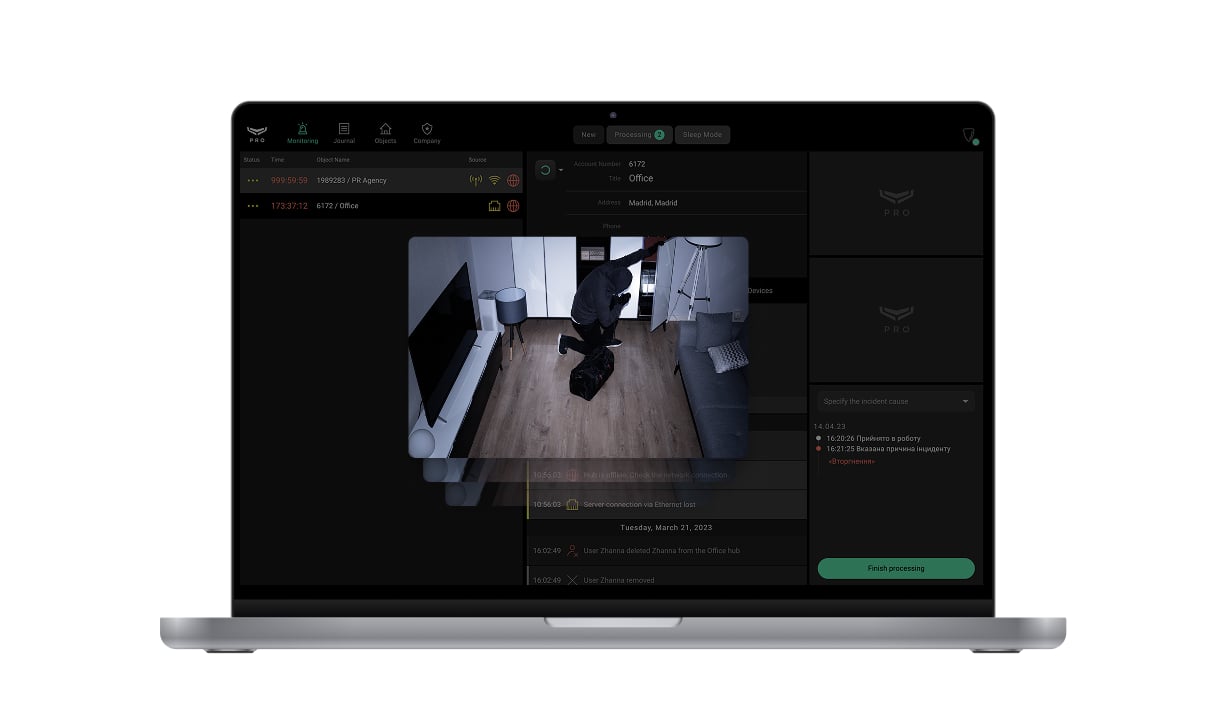

Ajax systems transmit events and alarms to the Ajax PRO Desktop app or any third-party monitoring software. Both users and monitoring companies receive notifications in less than a second. Each alert includes detailed information: the device name, event time, and exact location of the triggered device.
Applicable only to the Yale Doorman L3/L3S smart locks featuring a built-in doorbell.
