MotionCam Outdoor

Lightning-fast alarms. Verified.

MotionCam Outdoor recognizes intrusion from the very first steps on the territory and confirms it with an animated series of photos. Visual verification helps to instantly ascertain the situation, saving users from concerns, and security companies from unnecessary patrol dispatches.

Motion detected

Alarm raised

Evidence captured

MotionCam Outdoor requires Hub 2 or Hub 2 Plus for operation

Don't miss a thing

Combining the best optics, fast processor and advanced software algorithms, MotionCam Outdoor takes informative pictures in any weather, day or night.

HDR camera
IR backlight
Series of 2–5 photos

Horus
Manitou
SBN
Sentinel
WBB
Learn more about connecting Ajax to monitoring software

Horus

Manitou

SBN

Sentinel

WBB

Learn more about connecting Ajax to monitoring software

Intelligent false alarm filter

MotionCam Outdoor is equipped with two independent PIR sensors, the signals of which are analyzed by a two-step LISA algorithm. When both sensors detect motion, LISA performs correlation and spectral analysis of the signals, which helps to instantly distinguish real threats from interferences.

Correlation analysis
Spectral analysis

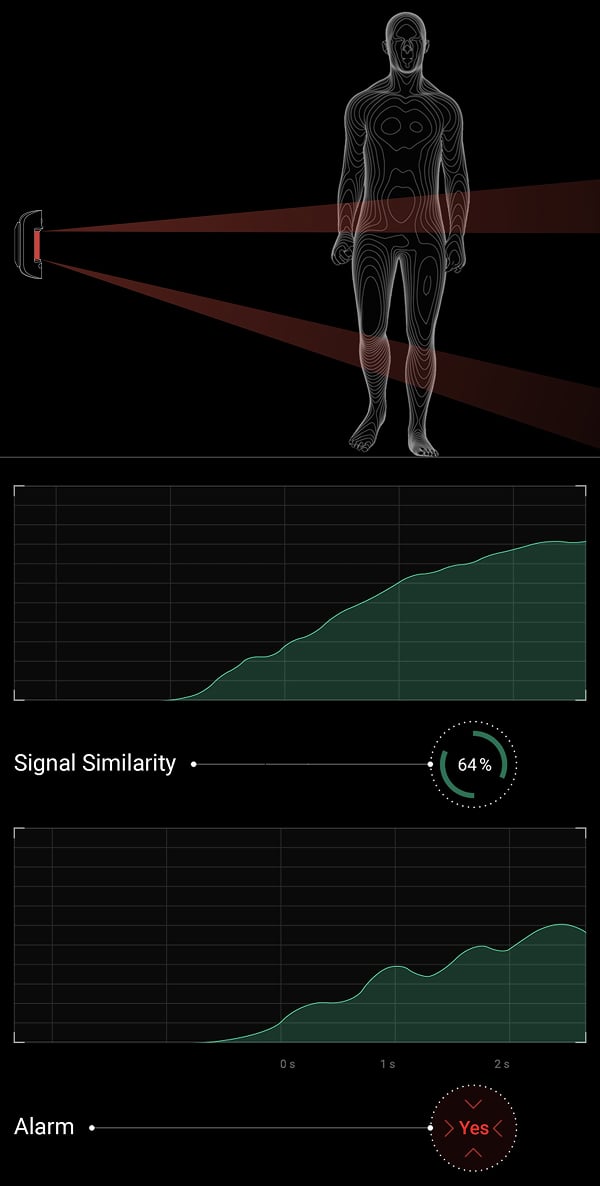

Correlation analysis

Whenever MotionСamOutdoor detects motion, LISA analyses and compares signal forms from two sensors in real-time. If forms are similar, the alarm is activated.

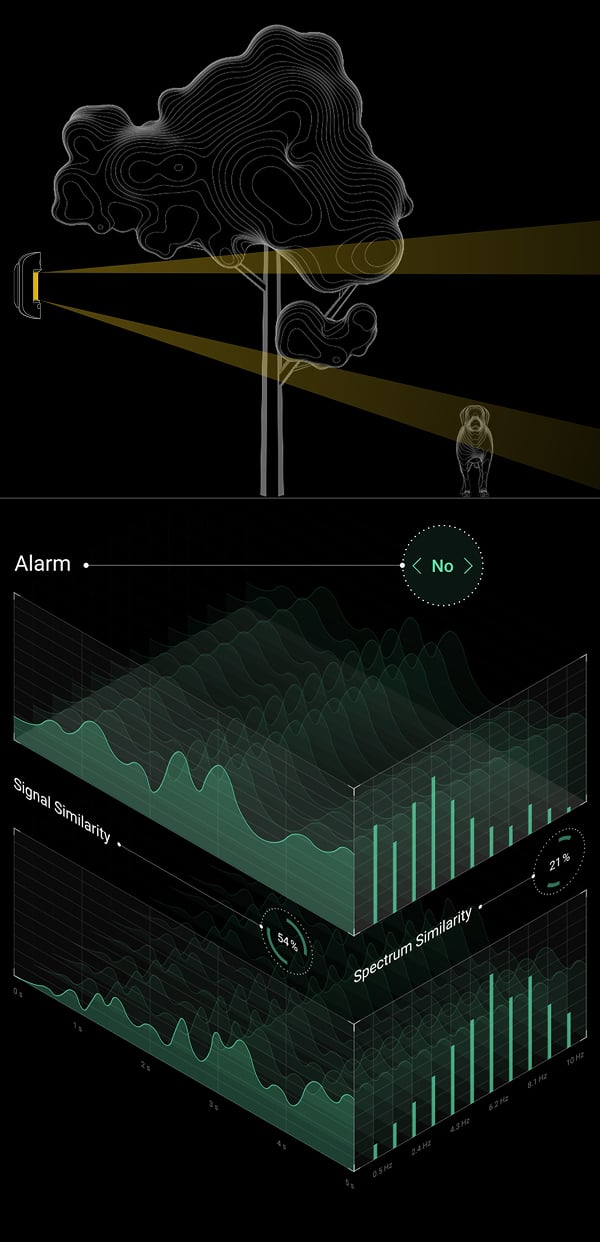

Spectral analysis

When both sensors detect motion, but the correlational analysis doesn’t identify enough similarities, LISA compares frequency components in the signals of both sensors.

EN 50131

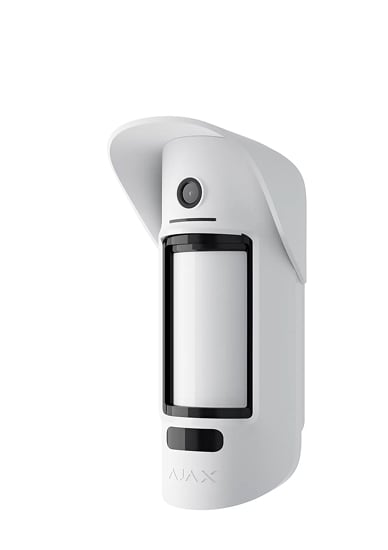

Multilevel anti-sabotage protection

MotionCam Outdoor can not be unnoticeably disabled even if the system is disarmed. The detector is equipped with masking sensors reacting to hindering, covering and painting the lens.

It will take the hub less than a minute¹ to detect the loss of communication with the detector and inform a central monitoring station and users about the problem. The fact that MotionCam Outdoor was dismantled will become known instantly.

Anti-masking system
Notifications about detachment
Configurable detector ping interval

Effective security in any weather

MotionCam Outdoor resists the heat up to +60°С and withstand the cold down to −25°С. And to protect the sensors of the anti-masking system from rain and snow, we included a special hood.

Efficiency in heat and cold
IP55 enclosure protection
Bundled hood to protect from rain and snow

Efficiency in heat and cold
IP55 enclosure protection
Bundled hood to protect from rain and snow

Jeweller

Wings

Uncompromising communication reliability

MotionCam Outdoor uses two secure radio protocols simultaneously: Jeweller and Wings. Radio protocols work independently of each other and each is focused on its own function. Jeweller transmits alarms in 0.15 seconds, and thanks to Wings, the first shot from the site will be in the app in less than 9 seconds².

The radio signal range is sufficient to install the detector where it will be most effective. And up to 3 years of battery life minimizes maintenance efforts.

Two-way communication at a distance of up to 1,700 meters
Photo delivery in less than
9 seconds
Up to 3 years
of battery life

Less manual labor. More settings in the app.

The process of connecting and configuring MotionCam Outdoor saves installation engineers time in the best possible way. To add a detector to the system, all you have to do is scan the QR code with the Ajax app, assign a name and a room to it. Configure the device in the app in real time,test detection zones and communication. If necessary, the detector can be disabled or its system parameters can be reconfigured remotely, without visiting the site.

Manual

Adding to the security system via QR code

Mounting using SmartBracket without disassembling the body

Configuring in the app

Manual

Professional installation

Qualified engineers guarantee the quality installation of devices and disclosure of all the features of your security system. Contact a certified Ajax partner for help.

Our partners

Tech specs

Classification

Electro-optical radio channel security detector

Type of detector

Wireless

Installation method

Outdoors / indoors

Recommended installation height

0.8 – 1.3 m

Compatibility

Hub 2, Hub 2 Plus

Not compatible with ReX radio signal range extender

Sensing element

2 × PIR sensor

Motion detection distance

Adjustable, from 3 to 15 m

Pet immunity

Animals up to 80 cm tall

Sensitivity

Adjustable, 3 levels

Motion detector’s viewing angle

Horizontal — 90°
Vertical — 80°

Camera’s angle

Horizontal — 105°
Vertical — 50°

TV distortion (EBU standard)

Barrel, –17%

Photo in case of alarm

Photo resolution:

320 × 176 pixels (by default)
640 × 352 pixels

Shooting series up to 5 photos

Learn more

Infrared light for shooting in the dark

Available

Power supply

4 × CR123A batteries

Supply voltage

6 V

Battery life

Up to 3 years (up to 2.5 years if “Delay when entering” setting is activated)

Calculate battery life

Jeweller radio technology

Communication range with a hub — up to 1,700 m in an open space
Two-way communication between hub and device
Operating frequencies — 868.0–868.6 MHz³
Self-adjusting RF output power — up to 20 mW
Block encryption with a dynamic key
Detector polling period — 12–300 s
Frequency hopping

Learn more about Jeweller

Alarm delivery time

0.15 s

Wings radio technology

Transmission of a series of photos
Photo delivery time with a default settings: up to 9 seconds

Temperature sensor

Available

Operating temperature range

From –25°С to +60°С

Operating humidity

Up to 95%

Protection class

IP55
