Flood-prevention system
Set the automatic water shut off in case the washing machine breaks or a pipe bursts. Control the water supply at the facility remotely or set up a schedule.
Automatic gates / barrier
Control opening-closing via the app or using Button. No compromises in comfort and safety.

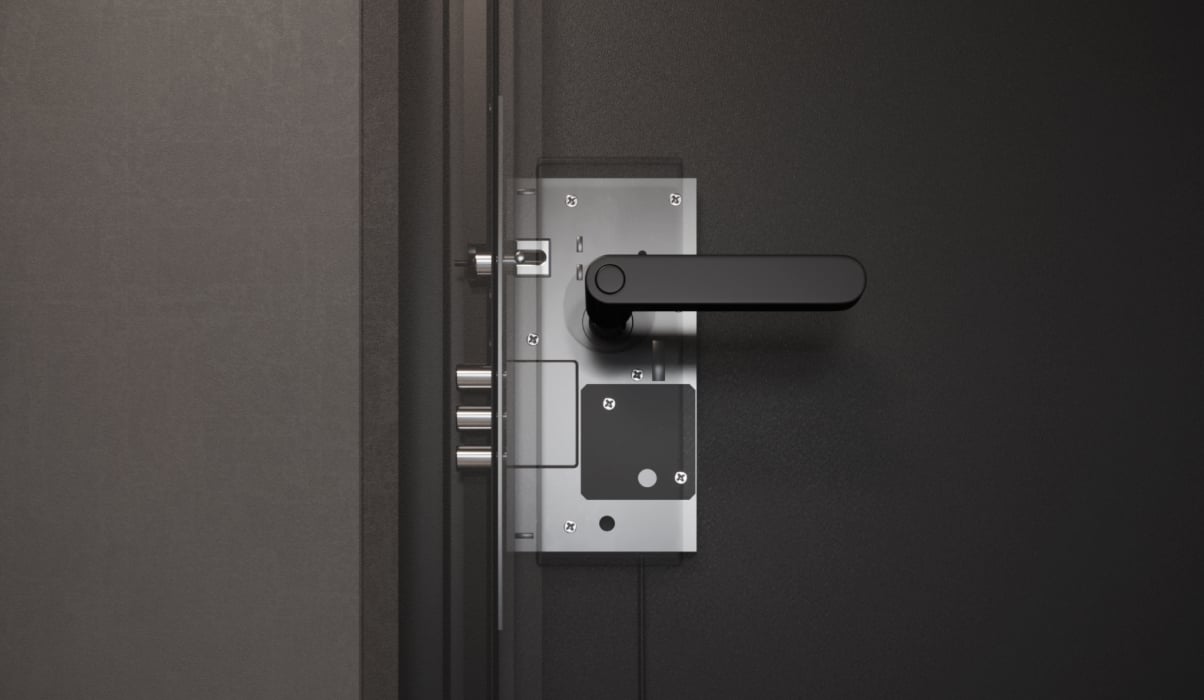

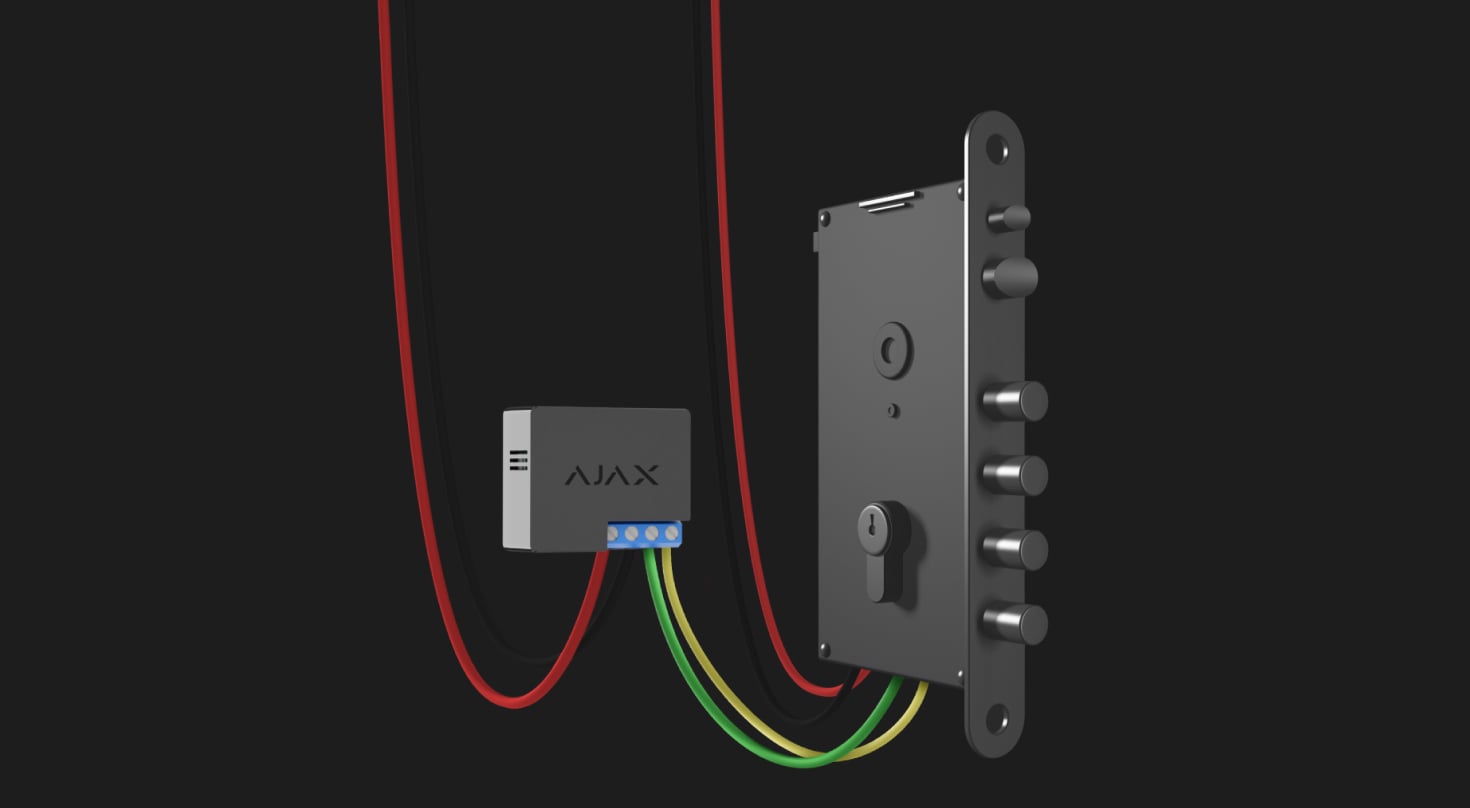

Electric lock
Lock or unlock doors with the app or Button. Block access to premises by alarm or Night Mode activation and sleep calmly.
Security smoke cannon
Set up the smoke cannon triggered by any detector alarm or DoubleButton hold-up device activation. Such a system reliably shelters people and valuables from burglars.
Roller blinds / motorized curtains
Control the equipment remotely through the app, via Button, or set a scenario: when changing the security mode, according to the time of day, or by alarm activation.

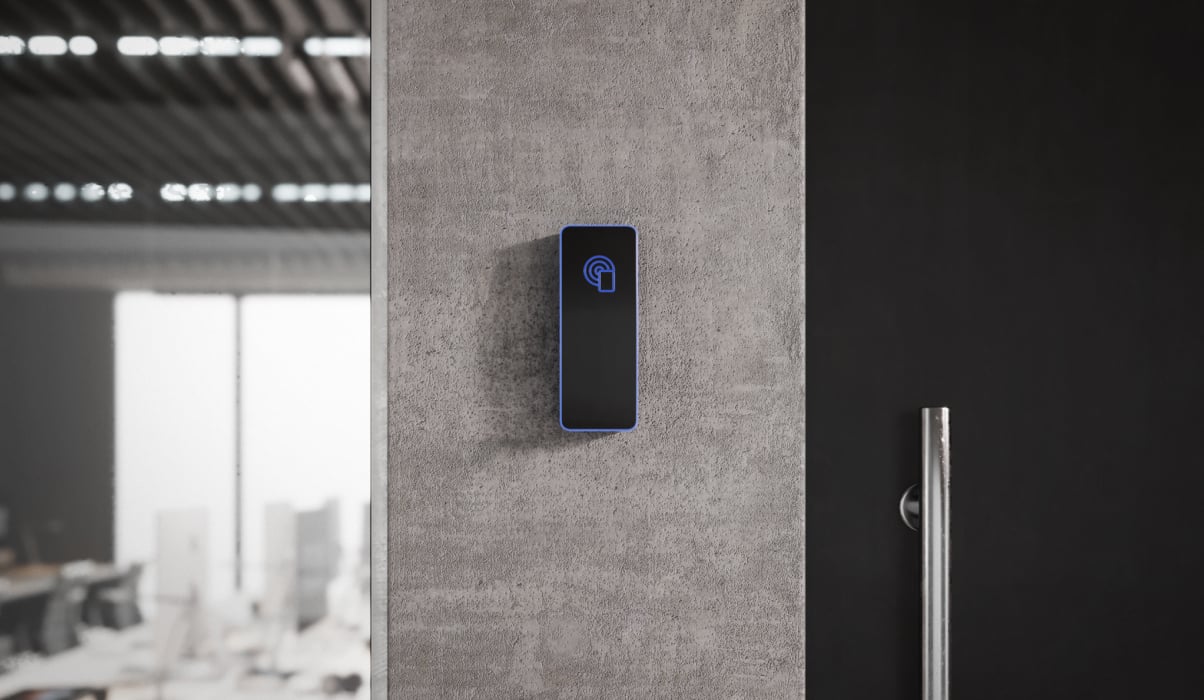

ACS blocking
Set up Access Control System (ACS) reader blocking when arming the system to prevent employee access to the guarded premises and avoid false alarms.
Features
Flexibility at the core

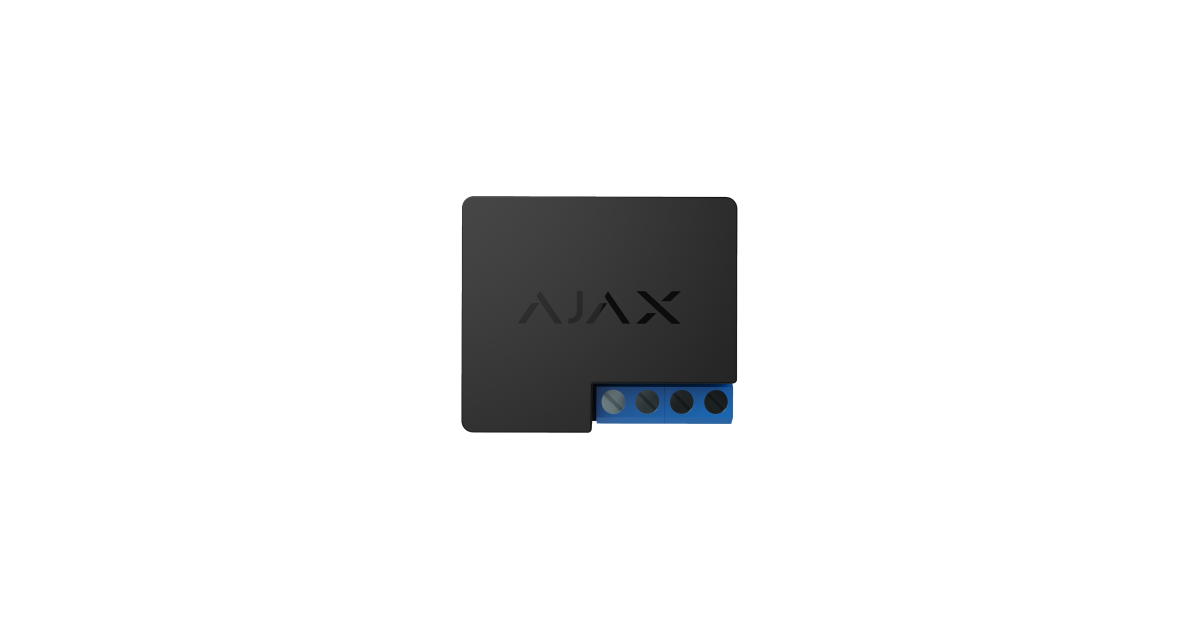

Settings versatility and low power consumption make Relay a universal tool for equipment control. Dry contact is not galvanically connected to the device power supply so that it can be used both in low-voltage and household networks. There are bistable and pulse modes. The relay can be easily connected to a power supply unit paired with a backup battery.
- Pulse 0.5–255 seconds
- Power supply 7–24 V DC
- Dry contact
Installation
No extra effort

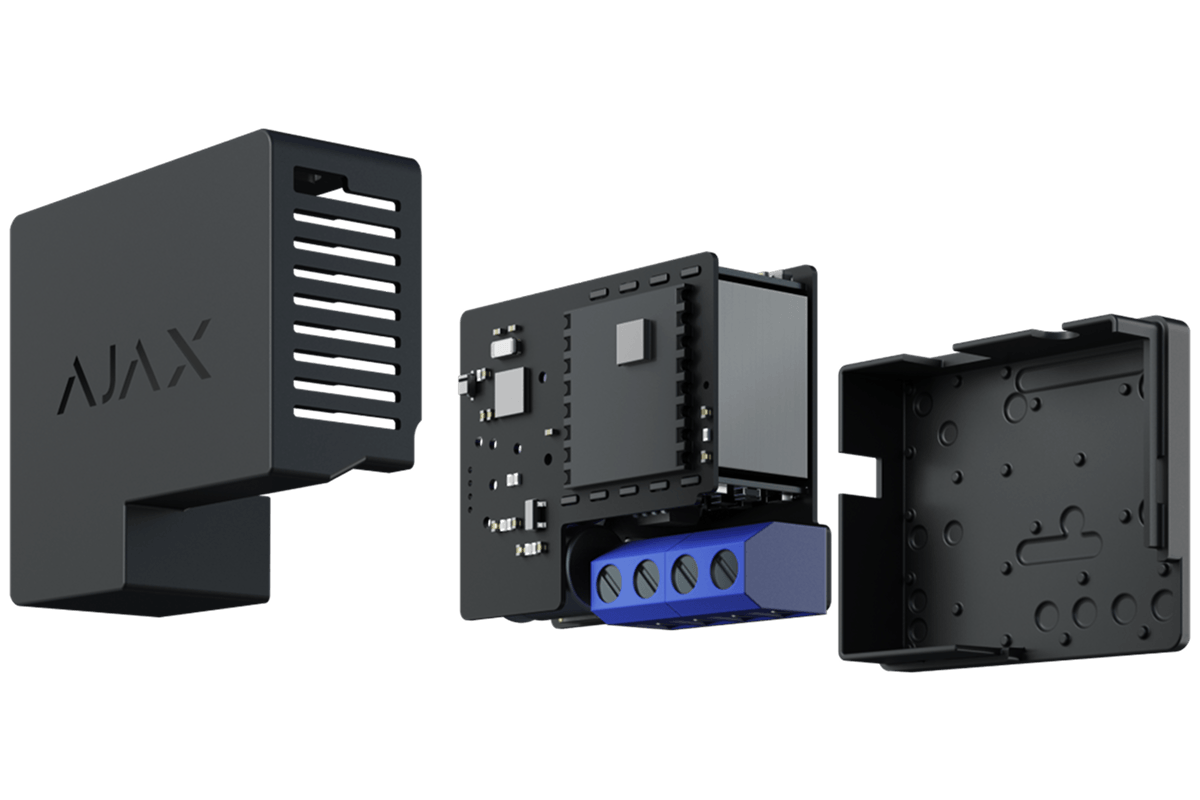

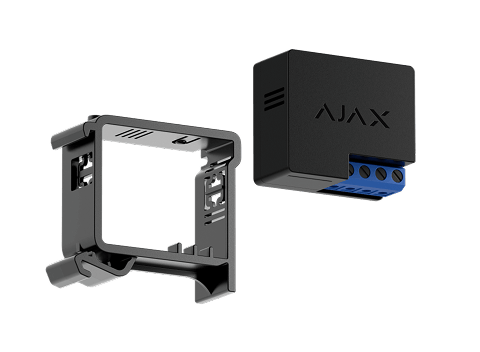

Connecting Relay to the hub takes less than a minute — it's enough to scan a QR code with the Ajax app. The miniature device (39×33×18 mm) fits easily into a junction box, an electrical panel, or a switching unit body. And the flexible external antenna provides stable connectivity.
Jeweller
Always in touch
We developed the Jeweller radio protocol to ensure uninterrupted interaction of all security system devices. The radio protocol uses frames to synchronize device communication, authentication to prevent forgery, and encryption to protect against hacking.
- Two-way communication at a distance of up to 1000 meters
- 5 ReX radio signal range extenders in the system
-
Command delivery in
0.15 s -
Adjustable ping from
12 s
Smart security for home and business
Use automation scenarios so your security system not only reports threats but also actively counters them.
- Water
- LeaksProtect
- Relay
- Electrovalve
- Schedule
- Relay
- Electrovalve
- Arming
- Relay
- Electric lock
- Schedule
- Relay
- Roller shutters
Professional installation
Qualified engineers guarantee the quality installation of devices and disclosure of all the features of your security system. Contact a certified Ajax partner for help.

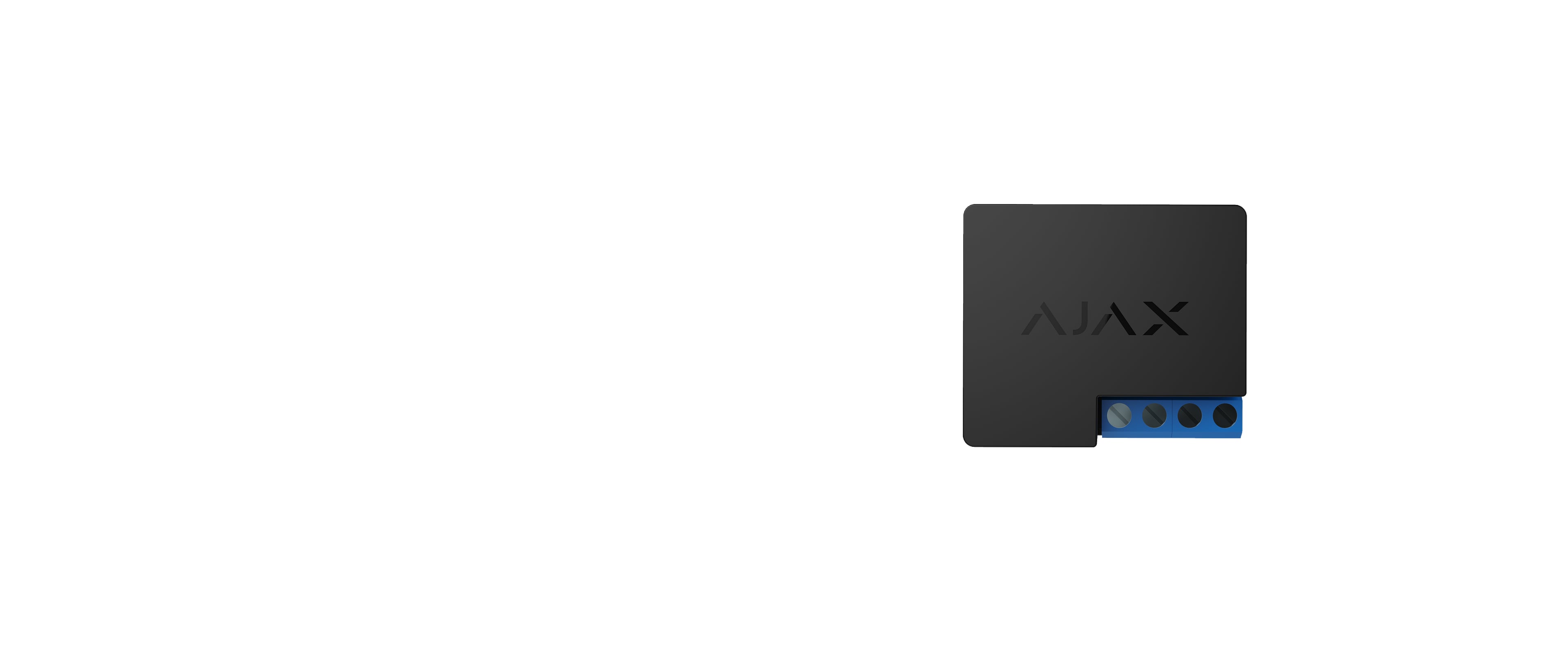

Tech specs
Classification
Radio channel relay unit
Device type
Wireless
Installation method
Into electric switchboard, junction box
Compatibility
Operates with all Ajax hubs, and range extenders
Actuating element
Electromagnetic relay
Relay service life
200,000 switch-ons
Voltage protection
Max — 36.5 V, min — 6.5 V
Maximum load current
5A at 36V DC, 13A at 230V AC
Maximum current protection
No
Maximum temperature protection
> 65°C at the place of installation
Electric power meter function
No
Energy consumption parameter check
Voltage
Power supply
7 - 24 V (DC only)
Operation modes
Impulse
Bistable
Bistable
Contact state
Normally open
Normally closed
Normally closed
Adjustable pulse duration
0.5–255 sec
Jeweller radio technology
Communication range with central unit — up to 1,000 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Device scanning period — 12 - 300 s
Learn more about Jeweller
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Device scanning period — 12 - 300 s
Learn more about Jeweller
Operating temperature range
From 0°С to +64°С
Permissible humidity
Up to 75%
Protection class of body
IP20
Anti-sabotage
Protection against fraud
Jamming detection
Jamming detection
Remote setting and testing
+
Dimensions
39 × 33 × 18 mm
Weight
25 g
Warranty
Replacement and repair within 24 months of the date of sale.
Service life
10 years
Complete set
Relay
Installation set
User's guide
Installation set
User's guide
