ReX 2
Radio signal range extender supporting photo verification of alarms
ReX 2 is compatible with Hub 2 and Hub 2 Plus control panels
More applications of a security system
Range extenders expand the boundaries of the protected area and give even more freedom to place security system devices. By connecting all or part of the devices 1 to ReX 2, you will ensure the security and automation of a business centre, estate, warehouse complex, or a large production facility.
5 range extenders can operate within the Ajax system to expand the coverage of the radio network up to 35 km2 2. Events and alarms are transmitted instantly, and the first photo verification snapshot is delivered to a monitoring station and users in just 13 seconds 3.
Photo verification of alarms without privacy concerns
Coming soon

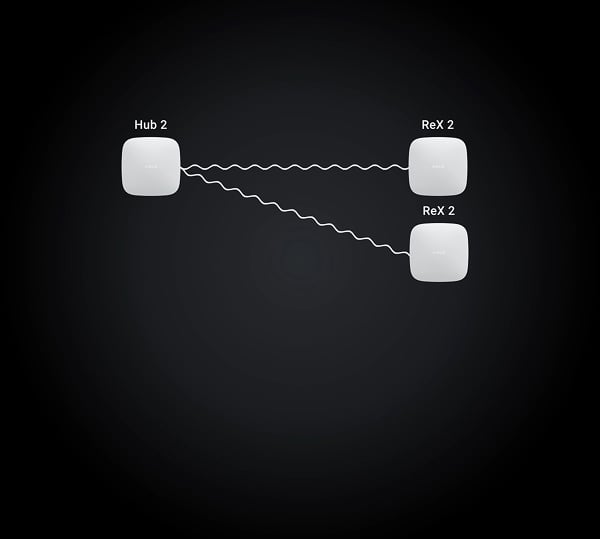

Connecting to a hub via Ethernet
when you can't rely on radio communications
Up to 38 hours of backup battery life
PRO anti-sabotage
- Tampers
- Pings
- Authentication
Jeweller
Wings
Up to 35 km 2 of coverage with one security system 2

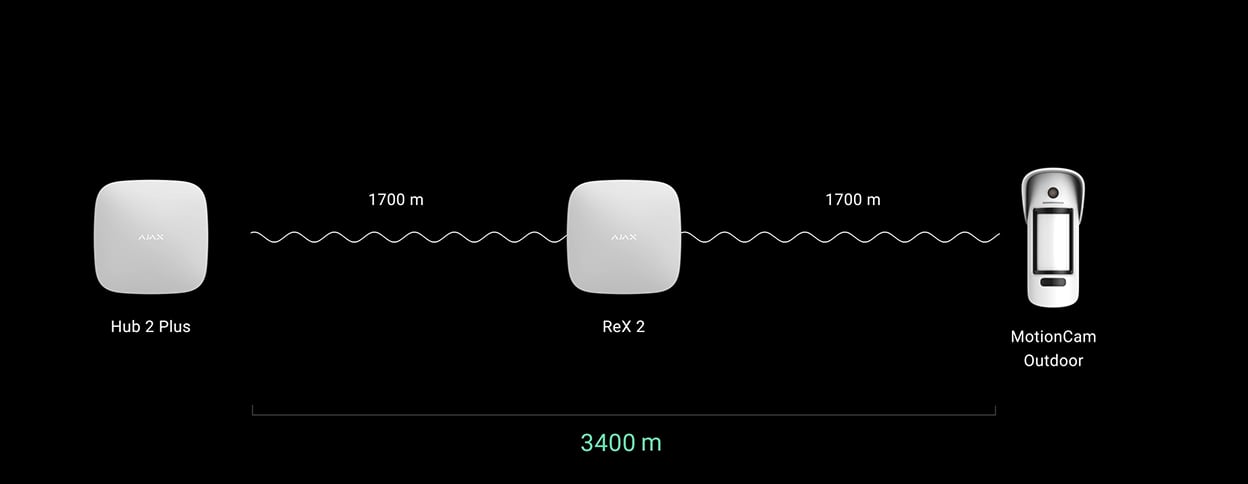

Extended radio communication range
Verification of alarms with snapshots
ReX 2 works with MotionCam and MotionCam Outdoor motion detectors. When triggered, they take a series of shots, helping to evaluate the events at a facility. Visual verification helps to instantly ascertain the situation, saving users from concerns and security companies from unnecessary patrol dispatches.
1
2
3

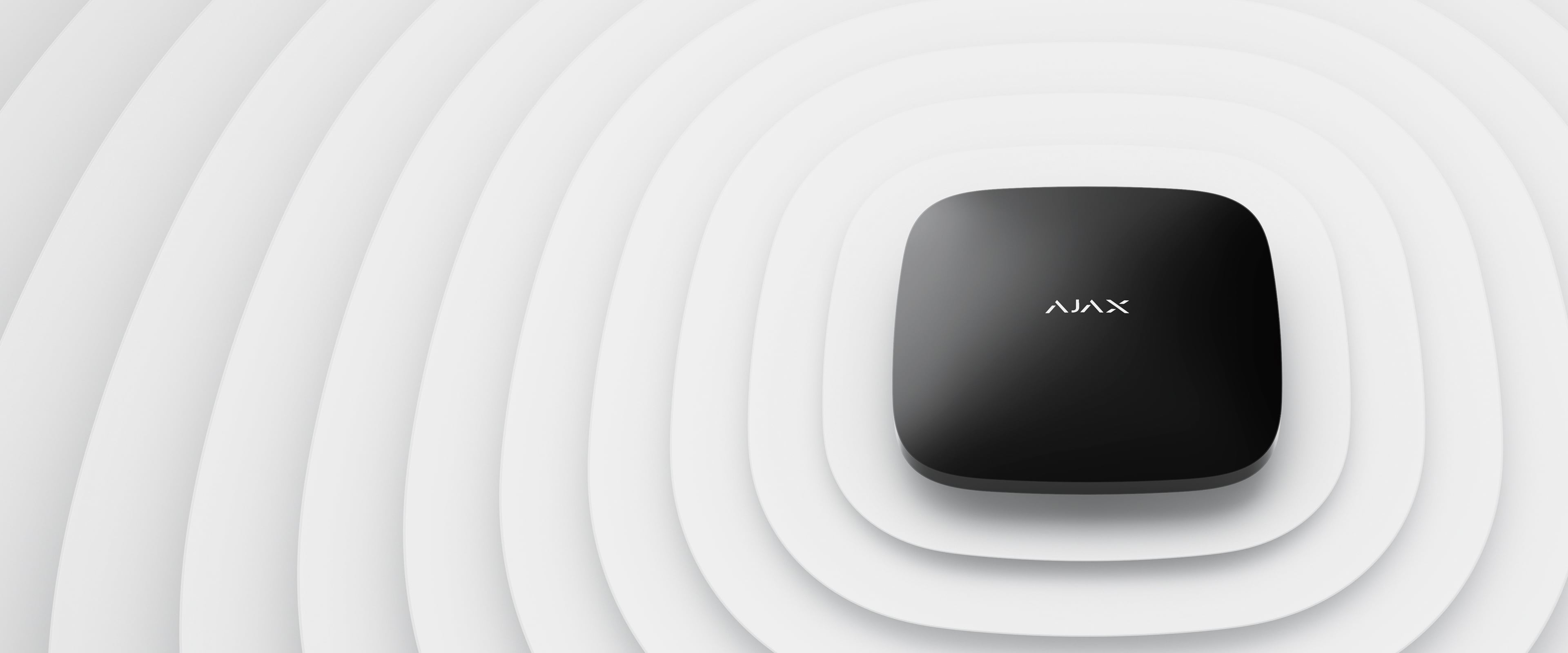

Jeweller
Guaranteed delivery of alarms and visual alarm verifications
To ensure reliable communications, we have equipped ReX 2 with four antennas and support of two proprietary radio protocols: Jeweller and Wings. Jeweller is responsible for the transmission of commands, events, and alarms, while Wings provides batch transmission of images. Ajax two-way radio communication uses frames to synchronize device communication sessions, authentication to prevent fraud, and encryption to protect against data theft.
Alarm in
0.3 seconds
0.3 seconds
The first photo in
13 seconds 3
13 seconds 3
Coming soon
Radio communication through steel and concrete

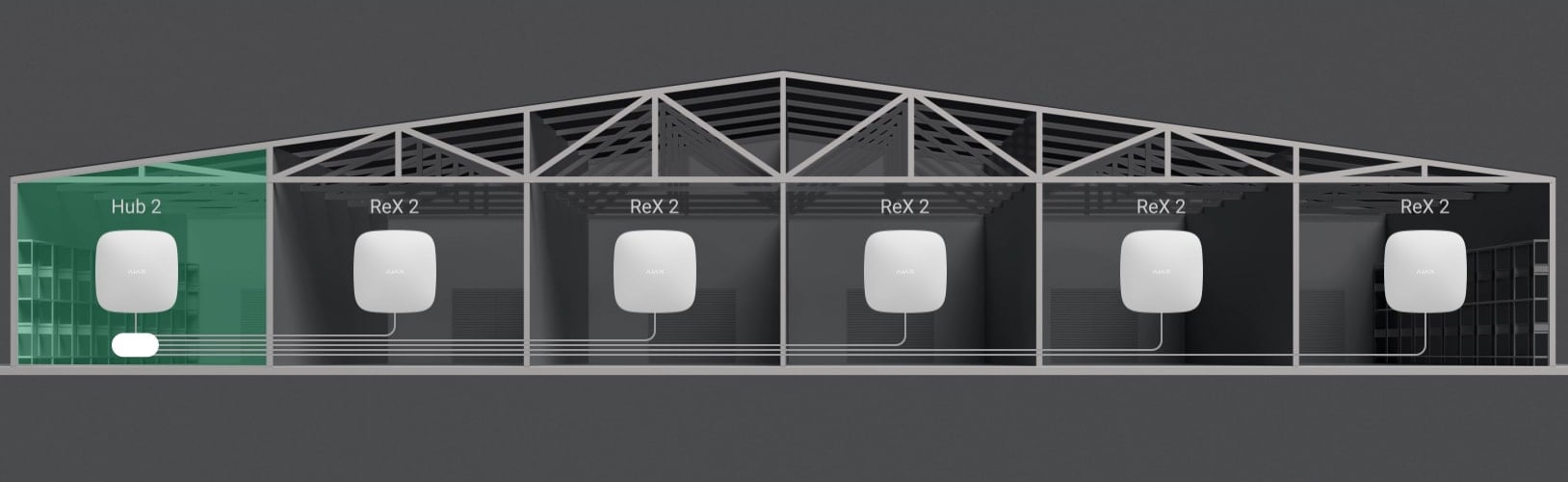

With one of the upcoming major OS Malevich operating system updates, the ReX 2 range extender will connect to the hub not only via radio but also via Ethernet 4using the wire as the only or the second communication channel. Then, one Ajax system will be able to cover the facility like an office center with underground parking, or sectional metal hangars, or a warehouse complex of several large buildings.
Sectional warehouse

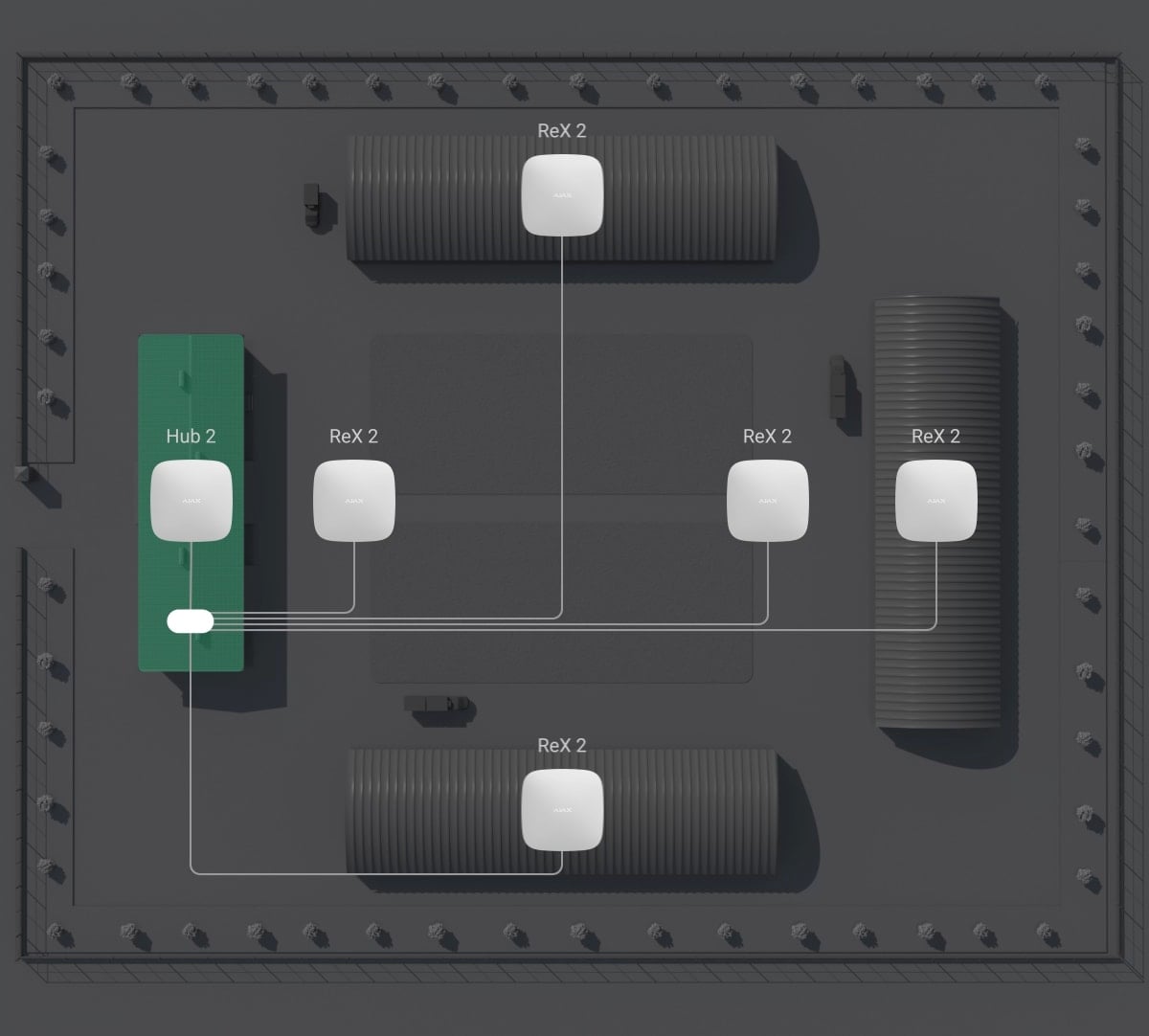

Manufacturing complex

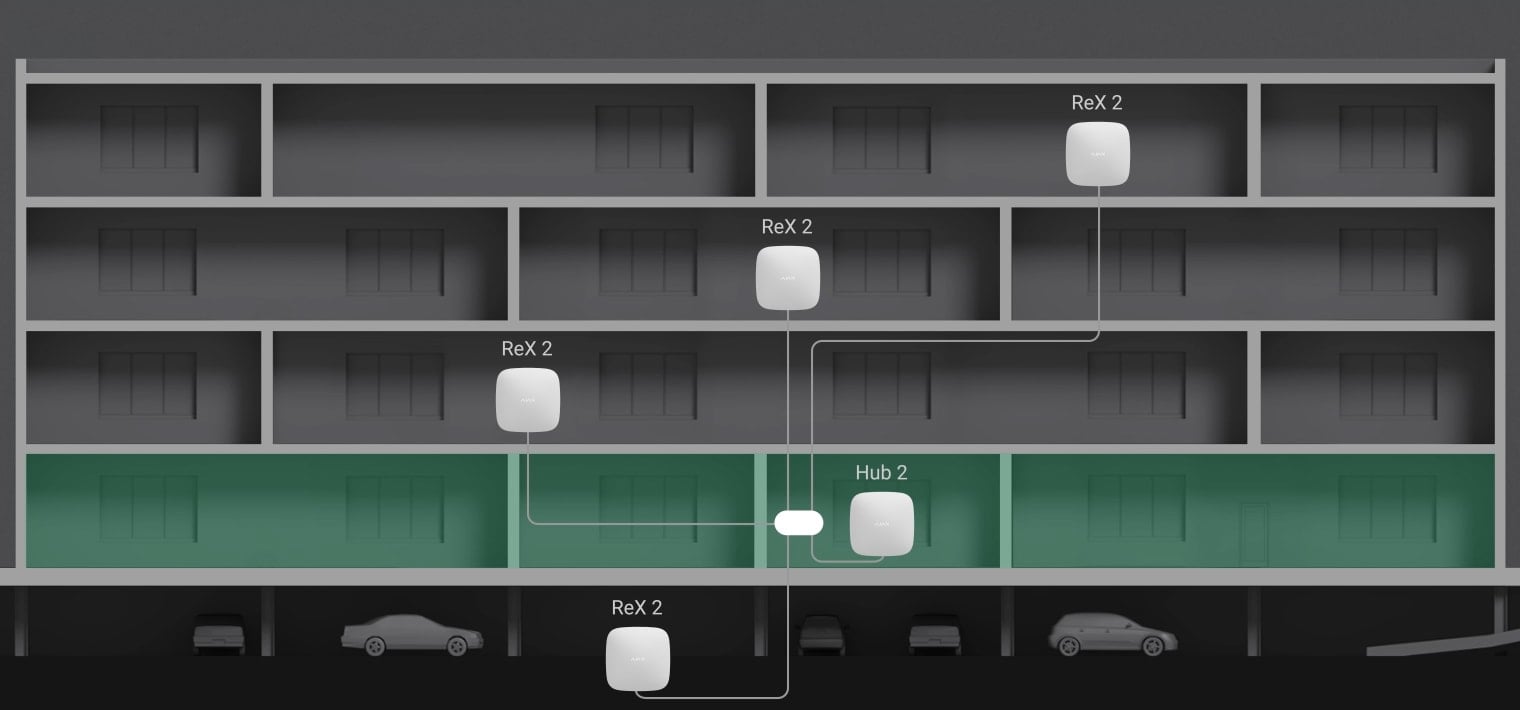

Underground parking
Sectional warehouse
Manufacturing complex
Underground parking
Transmission of events and visual alarm verifications via cable
Automatic change of communication channel in case of break
Encryption of transmitted data
Connecting via router

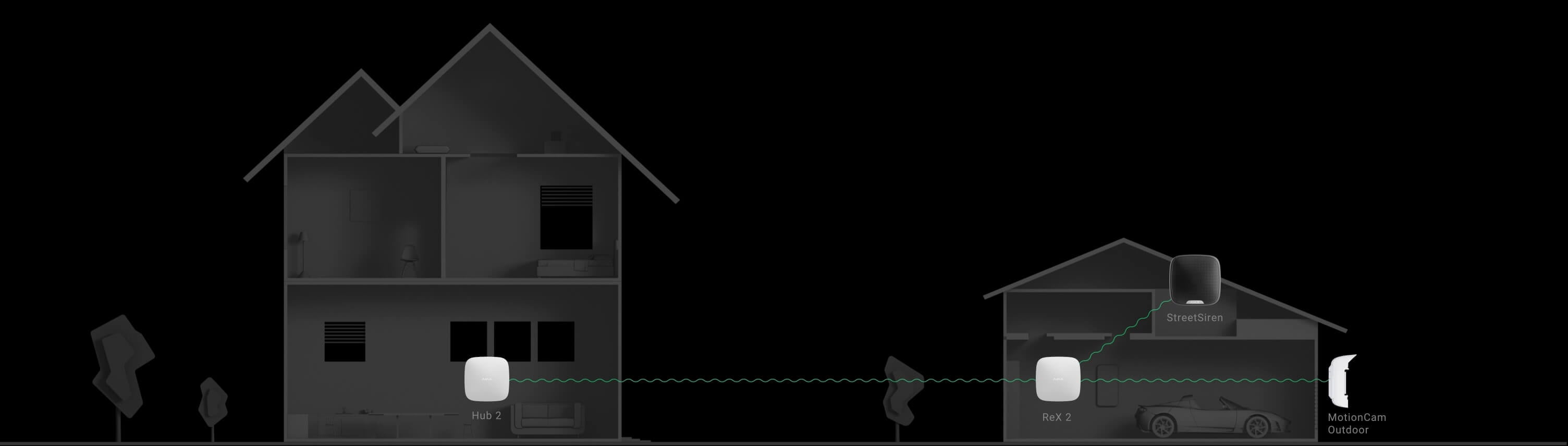

Enhanced security system
ReX 2 works as an extra intelligent control panel: it connects devices into an autonomous group and takes over control at the right time. Thanks to automatic adjustment of signal strength and frame synchronization, any number of system devices can be connected to ReX 2 — the reliability of communication will not be affected by this. If, for some reason, radio communication with the hub is interrupted, ReX 2 will receive an alarm from a sensor and activate a siren to draw attention to the incident and deter the burglar.
Ready to resist intruder attacks

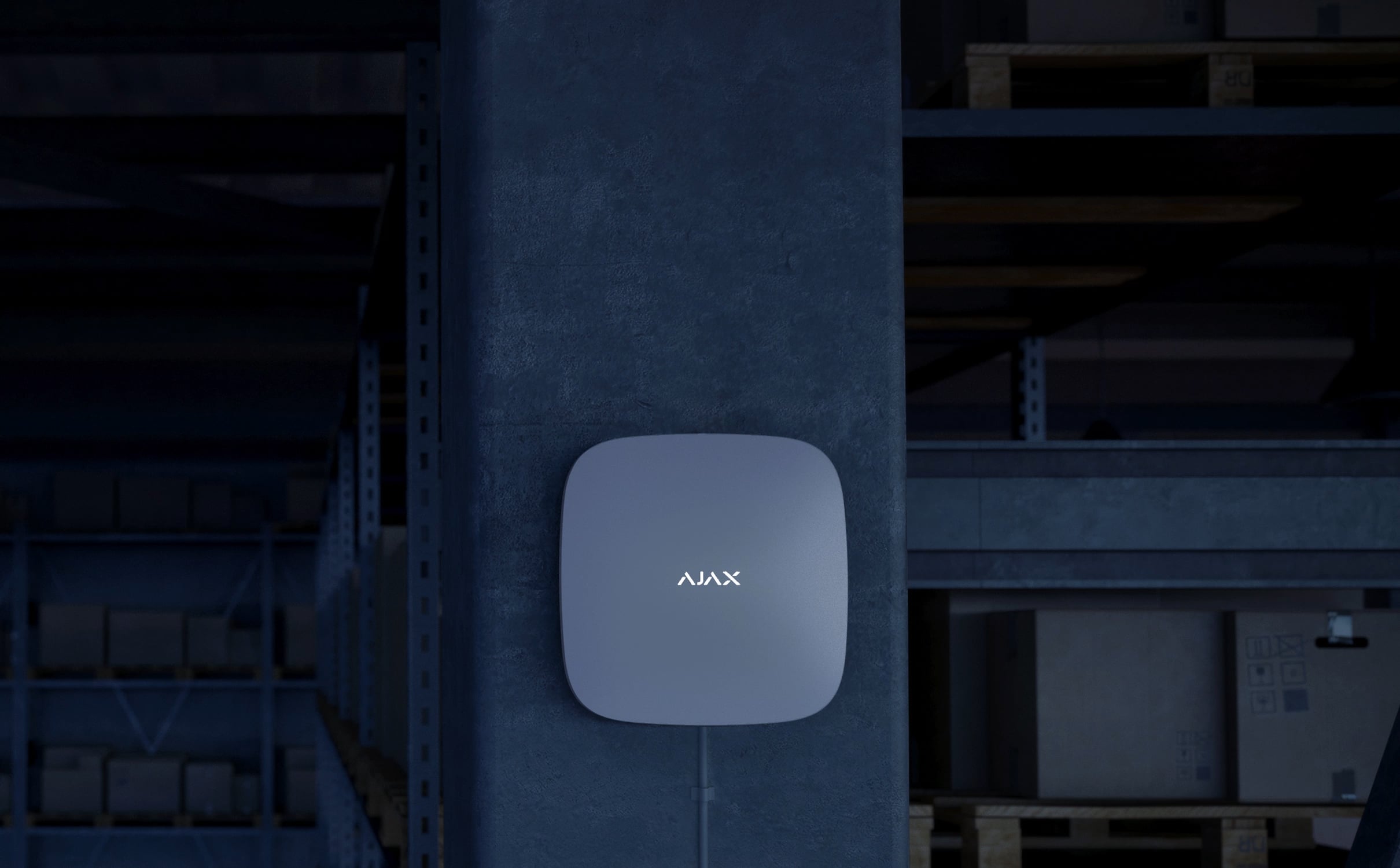

ReX 2 is protected from attacks at the software and hardware levels. It runs on the OS Malevich operating system, which is immune to viruses. All data transmitted by the range extender is encrypted. Thanks to the built-in backup battery, a sudden blackout at a facility will not be a problem.
Up to 38 hours of backup battery life
Informing about interferences and jamming
Detecting attempts to dismantle and open the enclosure
Immunity against viruses
Hassle-free installation
ReX 2 connection and configuration process saves the installation engineer time as much as possible. To add a range extender to a system, simply scan a QR-code with the Ajax app and assign it a name and a room. The device is also configured in real time in the app. If necessary, ReX 2 can be disabled or reconfigured without site visits.
Scan the QR-code to begin system set up

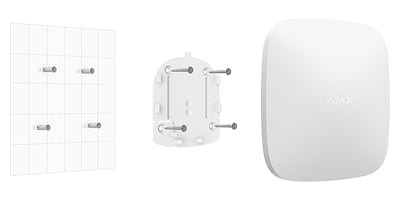

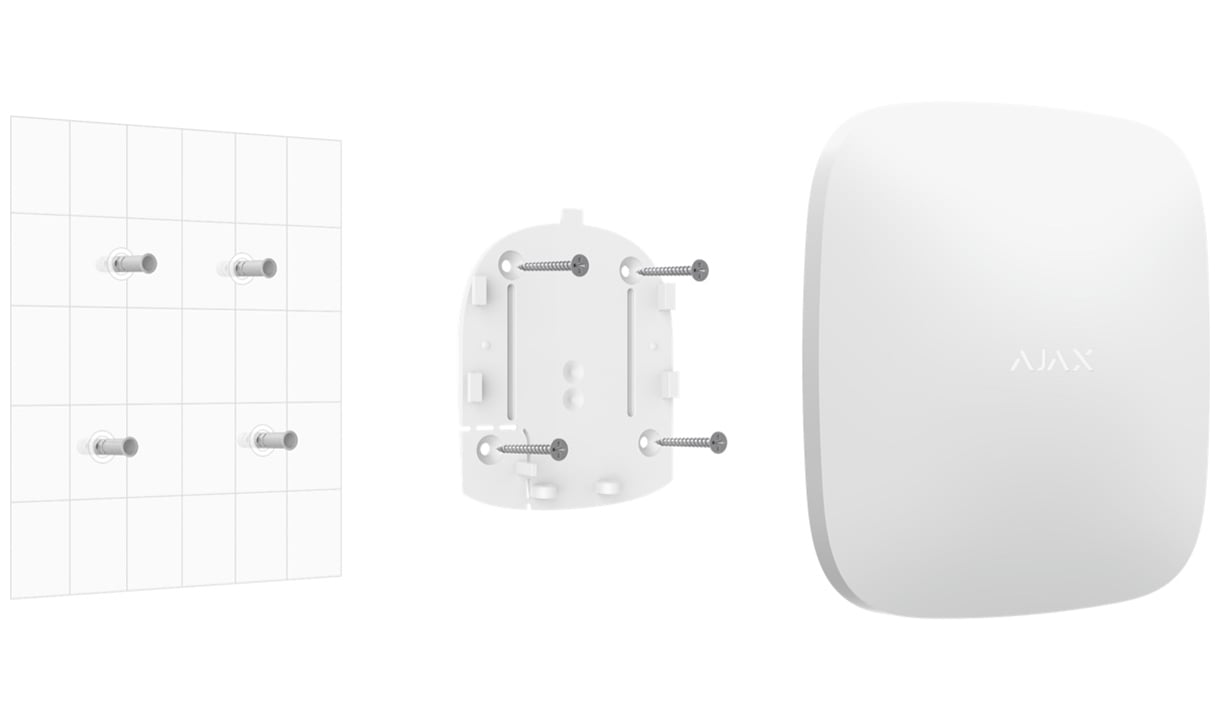

Use SmartBracket to mount the device without disassembling it
Configure devices in the app
Tech specs
Classification
Radio channel range extender
Device type
Wireless
Installation method
Indoors
Compatibility
Alarm signal delivery time
0.3 seconds
Maximum connected devices (in a system with one range extender)
Hub 2 — up to 99
Hub 2 Plus — up to 199
Hub 2 Plus — up to 199
Number of range extenders connected to the hub
5
Operating system
Power supply
110−240 VAC or 12 V from 12V PSU for Hub 2/Hub 2 Plus/ReX 2
Built-in backup battery Li-Ion 2 Ah
Up to 38 hours of backup battery life
Built-in backup battery Li-Ion 2 Ah
Up to 38 hours of backup battery life
Jeweller radio protocol
Communication range with the hub — up to 1,700 m in open space
Communication range with detectors — up to 1,700 m in open space, depending on the detector model
Two-sided communication between devices
Operating frequencies:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Auto-regulated radio signal power: ≤ 25 mW
Blocking encryption based on the AES algorithm
Detector ping interval — 12–300 seconds
Frequency hopping
Learn more about Jeweller
Communication range with detectors — up to 1,700 m in open space, depending on the detector model
Two-sided communication between devices
Operating frequencies:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Auto-regulated radio signal power: ≤ 25 mW
Blocking encryption based on the AES algorithm
Detector ping interval — 12–300 seconds
Frequency hopping
Learn more about Jeweller
Operating temperature range
From −10°C to +40°C
Operating humidity
Up to 75%
Anti-sabotage
Fraud protection
Jamming notification
Tamper-resistant
Jamming notification
Tamper-resistant
Dimensions
163 × 163 × 36 mm
Weight
330 g
Warranty
24 months from the date of sale
Complete set
ReX 2
SmartBracket mounting panel
Power cable
Installation kit
Quick start guide
SmartBracket mounting panel
Power cable
Installation kit
Quick start guide
Service life
10 years
1
ReX 2 cannot be connected to another range extender, only to a hub.
2
If five radio signal range extenders are used in the system.
3
When transmitting images from MotionCam Outdoor (default settings) through ReX 2 range extender and the hub. The hub should be connected to the internet via Ethernet, Wi-Fi, or LTE. Photos delivery time depending on image resolution settings is available at thelink
4
ReX 2 is equipped with an Ethernet port, but the connection of the range extender to the hub via cable will be available after one of the upcoming OS Malevich updates.
