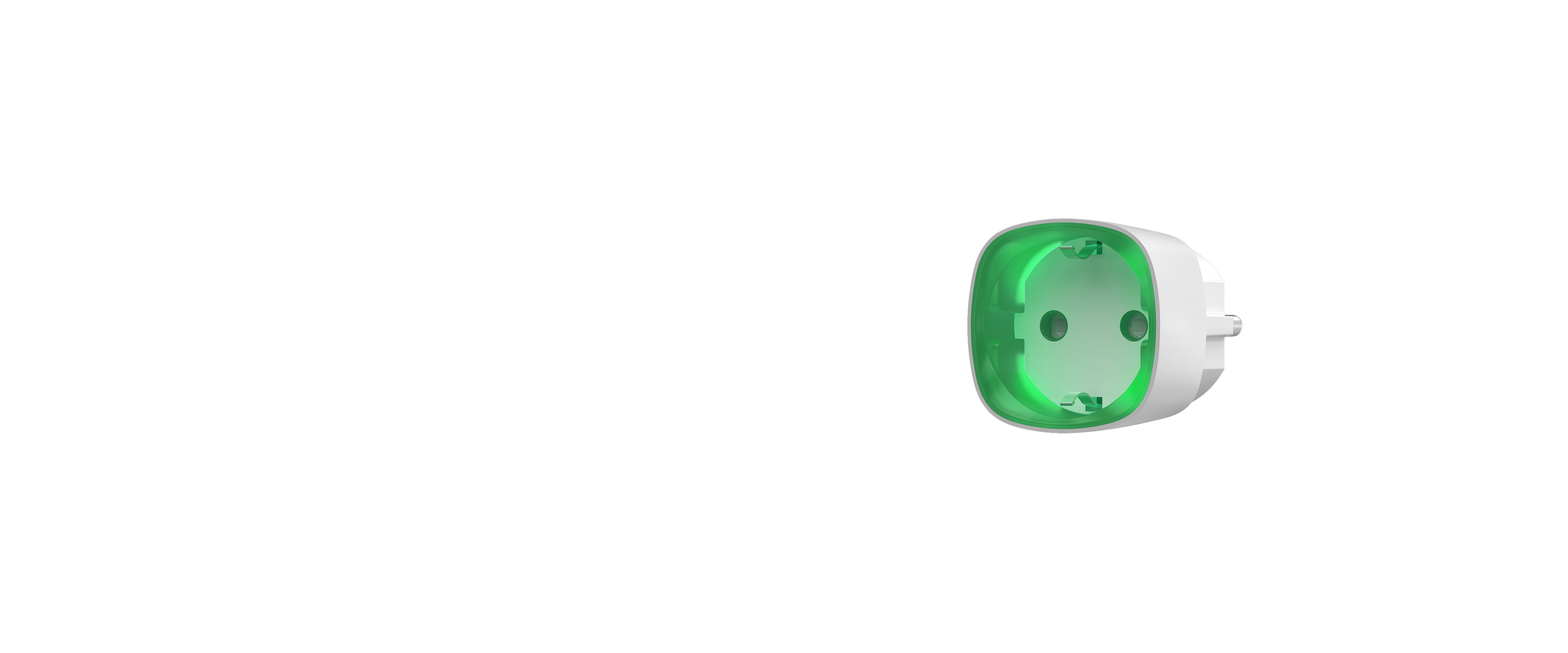

Socket
type F

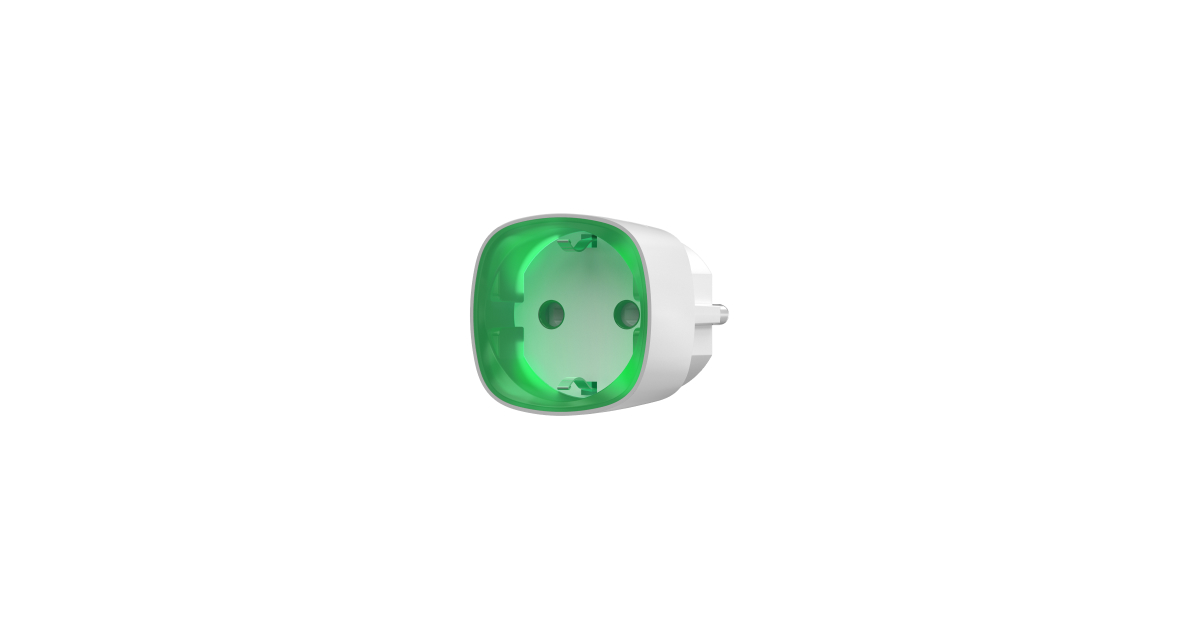

Smart plug

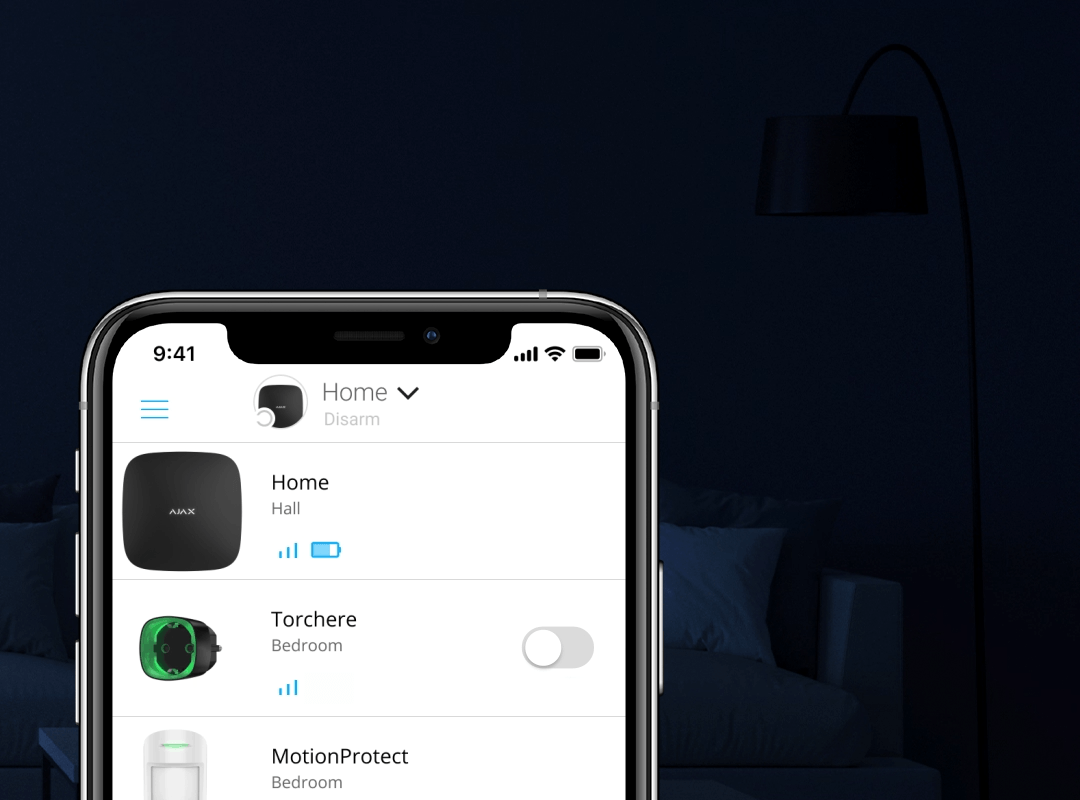

Control appliances remotely
00000
W
Monitor power consumption
Automate your security
Everything is ready by the time you get home
You will come back home to enjoy comfortable climate and cozy atmosphere all year round. Turn on your heating devices during winter and air conditioner during summer. Start your humidifier and heat water for your bath: do it all with only a few taps in the app on your way home.
Everything is ready by the time you get home
You will come back home to enjoy comfortable climate and cozy atmosphere all year round. Turn on your heating devices during winter and air conditioner during summer. Start your humidifier and heat water for your bath: do it all with only a few taps in the app on your way home.

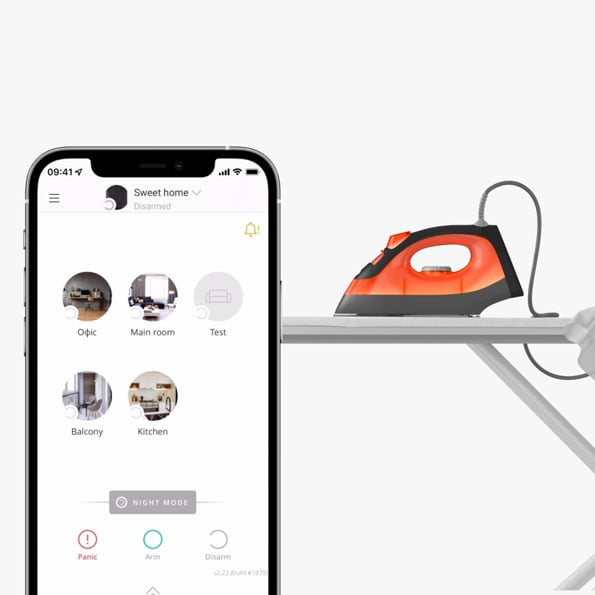

No more worries about forgetting an iron on
When you leave your house, close the door and arm the system. All top energy consuming and dangerous appliances will be automatically switched off. Iron, heater, and toaster will no longer create a risk of fire.
No more worries about forgetting an iron on
When you leave your house, close the door and arm the system. All top energy consuming and dangerous appliances will be automatically switched off. Iron, heater, and toaster will no longer create a risk of fire.

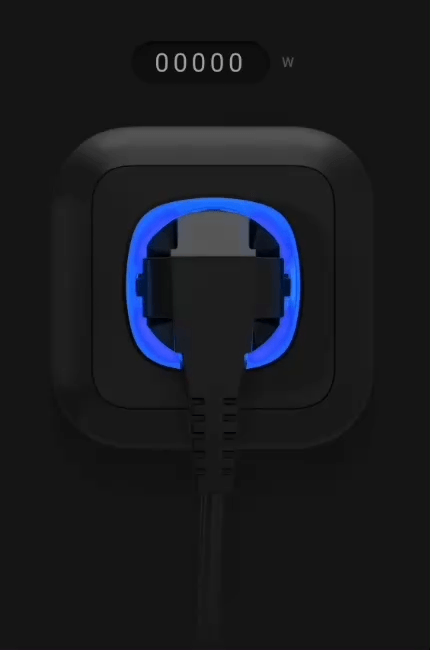

Identifies power vampires
Socket informs you about the most power consuming devices. As soon as an appliance starts consuming electricity, Socket's LED changes colour in real time.
Socket consumes less than 1 W in the standby mode
00000
W
RED
RoHS
Complies with electrical safety standards
Socket complies with the standards for electrical appliances ensuring your safety. Each smart plug is fully tested: quality of materials, effect of high temperatures, ability to work for a long time under load.
Protects your curious little ones
Special shutters inside the Socket protect your children and prevent them from inserting screwdrivers, scissors, or hairpins. They also protect from dust and splashes.
Protects your curious little ones
Special shutters inside the Socket protect your children and prevent them from inserting screwdrivers, scissors, or hairpins. They also protect from dust and splashes.

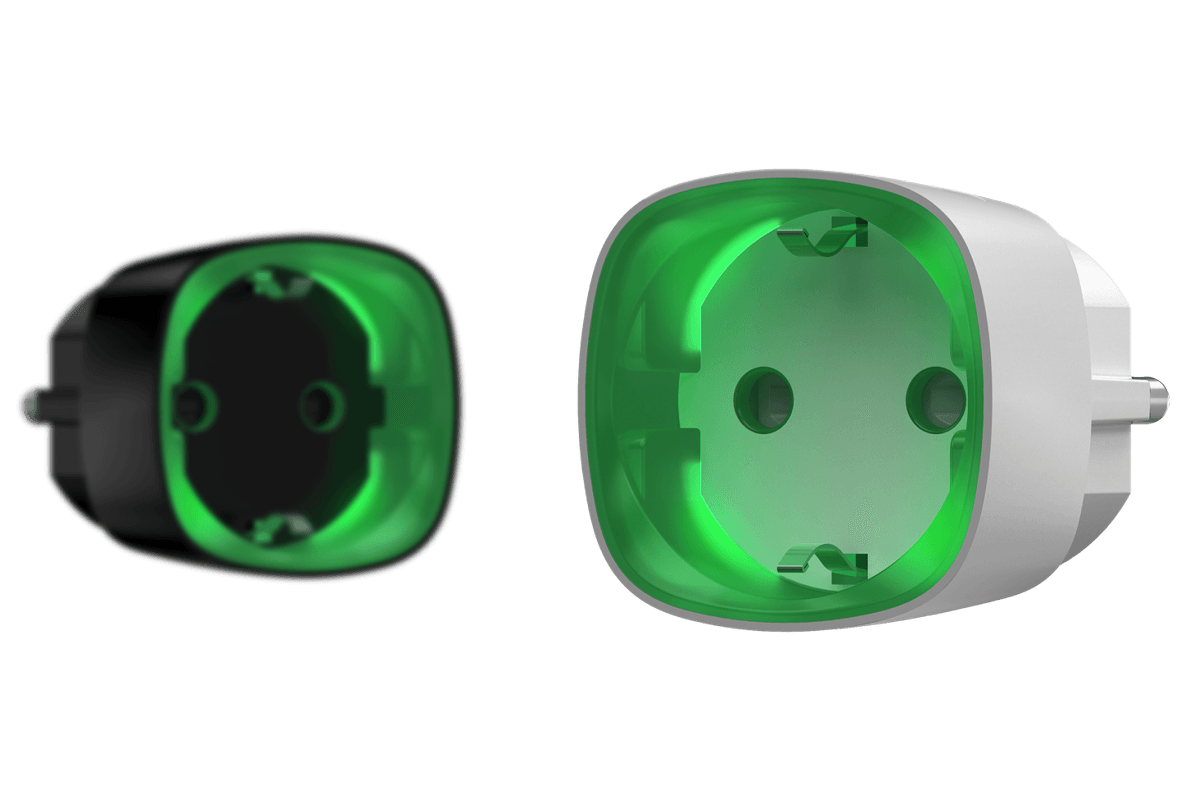

Safeguard in the power grid
The device connects to the 230 V AC source and closes/opens the circuit on command. The smart plug can handle loads of up to 2.5 kW, which is enough to connect a very power-hungry devices.
- Operates in bistable or pulse modes
- Protects devices against overcurrent and voltage surges
Jeweller
Always in touch
We developed the Jeweller radio protocol to ensure uninterrupted interaction of all security system devices. The radio protocol uses frames to synchronize device communication, authentication to prevent forgery, and encryption to protect against hacking.
- Two-way communication at a distance of 1000 meters
- 5 radio signal range extenders in the system
-
Command delivery in
0,15 s -
Adjustable pollingп from
12 s
Home and office automation
Use scenarios to make life safer and more comfortable. Set your office lights to turn off automatically on arming, program your projectors to turn on when outdoor motion detectors identify intruders, or turn on your toaster at a certain time in the morning.
Simple connection
Socket can be connected and set up in a matter of minutes. To add a Socket to the system, scan a QR code with the Ajax app, name it and assign a room. The device and automation scenarios are also configured in the app in real time.
Pairs with the system using QR code
Configured through the Ajax app
Tech specs
Classification
Smart socket
Device type
Remote-controlled
Installation method
In outlet
Compatibility with hubs
Compatibility with range extenders
Actuating element
Electromagnetic relay
Service life
At least 200,000 switches
Power supply voltage range
110–230 V~ ± 10%; 50/60 Hz
Output power (resistive load at 230 V)
Up to 2.5 kW
Device energy consumption
≤ 1 W
Maximum current protection
Yes,
11 A if the protection is turned on
13 A if the protection is turned off
11 A if the protection is turned on
13 A if the protection is turned off
Maximum temperature protection
Yes, +85°С
The socket turns off automatically if the temperature is exceed
The socket turns off automatically if the temperature is exceed
Overvoltage protection
Yes,
min — 184 V~
max — 253 V~
min — 184 V~
max — 253 V~
Electric shock protection class
Class I (with grounding terminal)
Energy consumption parameter check
Yes (current, voltage, power consumption)
Load indicator
Yes
Maximum load current
11 A (continuous)
13 A (up to 5 sec)
13 A (up to 5 sec)
Alarm signal delivery time
0.15 sec
Load indicator
Yes
The option of adjusting the brightness of the LED frame of the device (high or low)
The option of adjusting the brightness of the LED frame of the device (high or low)
Operation modes
Pulse (firmware version 5.54.1.0 or higher. Manufacture date from March 4, 2020)
Bistable
Bistable
Contact state (firmware version 5.54.1.0 or higher)
Normally open
Normally closed
Normally closed
LED indication
Adjustable (LED frame, 7 colours)
Adjustable pulse duration (firmware version 5.54.1.0 or higher)
0.5 to 255 sec
Jeweller radio technology
Communication range with central unit — up to 1,000 m in an open space
Two-way communication between devices
Operating frequencies:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 25 mW
Block encryption with floating key
Device authentication
Verification of each communication session
Detector scanning period from12 to 300 sec
Learn more about Jeweller
Two-way communication between devices
Operating frequencies:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 25 mW
Block encryption with floating key
Device authentication
Verification of each communication session
Detector scanning period from12 to 300 sec
Learn more about Jeweller
Anti-sabotage
Protection against forgery
Jamming detection
Jamming detection
Remote setting and testing
+
Operating temperature range
From 0°С to +40°С
Operating humidity
Up to 75%
Ingress protection
IP20
Overall dimensions
65.5 × 45 × 45 mm (with plug)
Weight
58 g
Warranty
Service life
10 years
