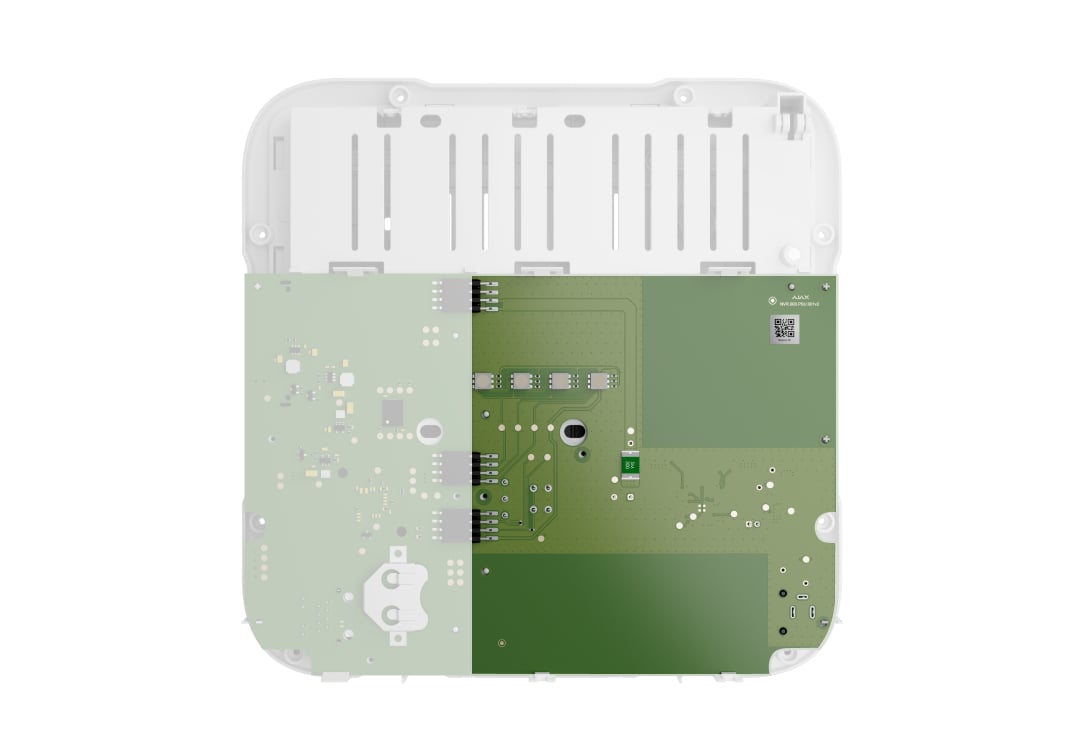

12V PSU for NVR
Power supply unit for NVR operation on a low-voltage power source
Input without an installed jumper
Device operating voltage range
8–16 V⎓
Maximum current consumption
up to 4 A
When output maximum current consumption is 2 A.
Turn-on threshold when the voltage rises
8 V⎓
In the no-load state.
Turn-off threshold when the voltage drops
6.5 V⎓
In the no-load state.
Input with an installed jumper
Device operating voltage range
12.1–16 V⎓
Maximum current consumption
up to 4 A
When output maximum current consumption is 2 A.
Turn-on threshold when the voltage rises
12.1 V⎓
In the no-load state.
Turn-off threshold when the voltage drops
10.35 V⎓
In the no-load state.
Output
Nominal voltage
12 V⎓ ± 3%
Shutdown device’s current consumption
110 μA
Quiescent device’s current consumption
65 mA
Maximum device’s current consumption
2 A
Installation
Installation method
into the NVR enclosure by replacing the bundled power supply board
Operating temperature range
from 32 °F to 104 °F
Operating humidity
up to 75%
Protection class
IP20
Power supply connection
Connector slot
0.26″ × 0.08″
Power jack (female).
Connector
0.22″ × 0.08″
Power jack (male).
Connected cable cross-section
AWG 12–14
Board
Color
N/A
Dimensions
4.64″ × 4.84″ × 0.67″
Weight
1.80 oz
Complete set
12V PSU for NVR
Terminal adapter
Quick start guide
