Case B (175)

Casing for one or two Fibra modules

Case B (175)

Devices installation

Number of devices

2

To install a different number of devices, select a model with the appropriate number of slots:

Plastic latches

to secure devices

Slide the latches to remove the device.

Cable fasteners

to hold the cables together with ties

Plastic stoppers

to protect the installed devices

During drilling, the instrument rests on the Case stoppers.

Bubble level

To check the inclination angle of the casing during installation.

Recesses for drilling

Ø16 mm or Ø20 mm

The drill bit is fixed in the recess and does not move during drilling. We recommend using a hole saw for plastic.

Wider holes

To ensure that the casing is installed correctly, even if there are errors during installation.

Key features

Tamper board

Included in the Case complete set. The tamper board connects to the appropriate connector of one of the devices and protects the installed devices from sabotage.

Rotate devices

by 180°

The devices can be rotated by 180°, giving two options for fixation.

Holding screws

in the casing lid

Rotate the lid

by 180°

The lid of Case B (175) can be rotated by 180° during installation.

Latches

to secure the lid during installation

The latches prevent the lid from falling off Case until it is secured with screws.

Recomendations

The device is designed for indoor use only. Case is produced in several versions.

Product

Dimensions

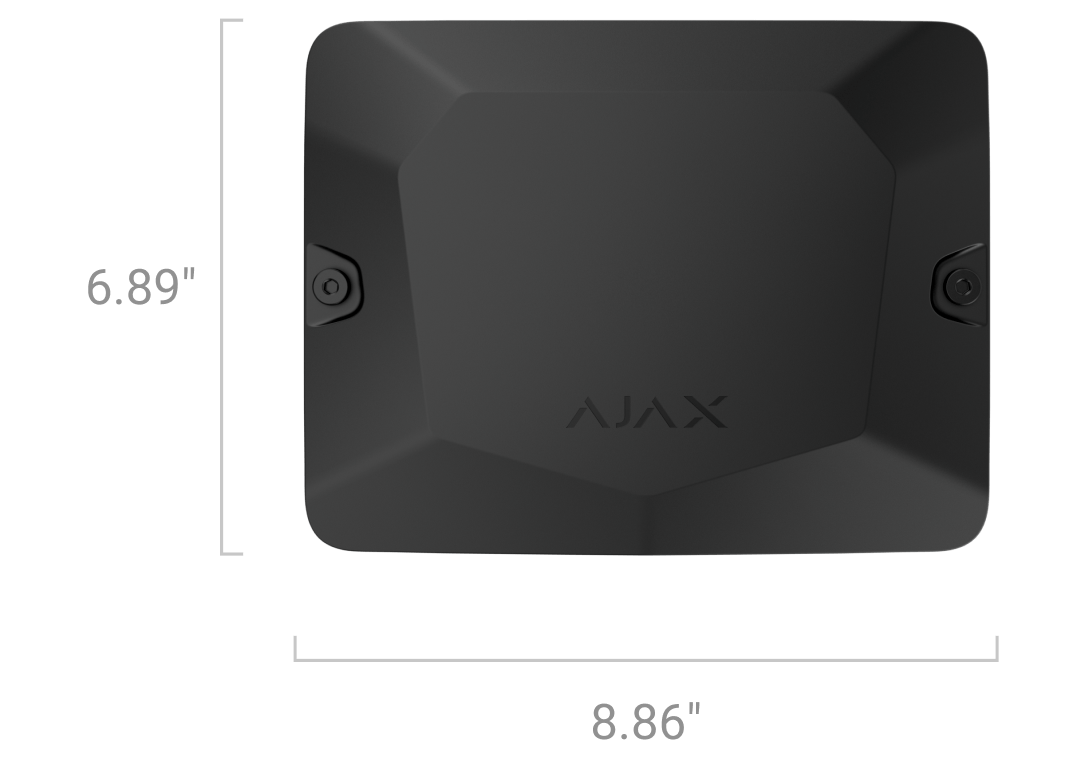

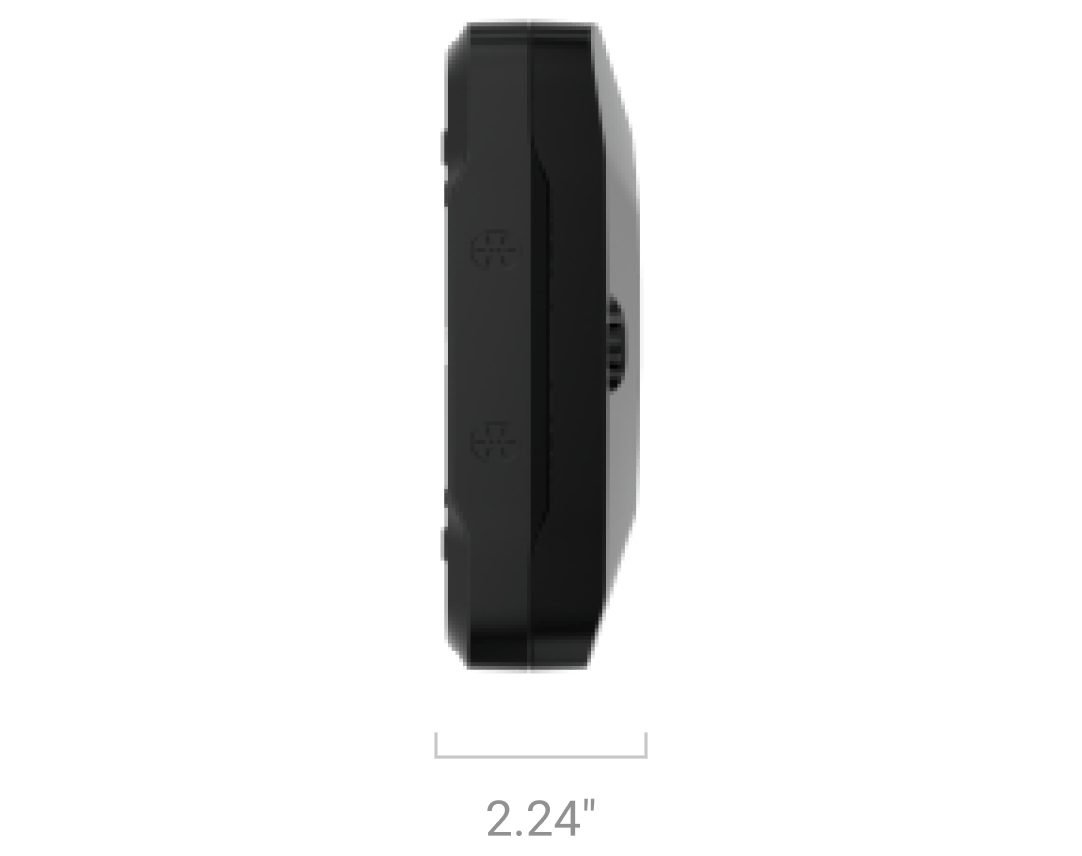

6.89″ × 8.86″ × 2.24″

Weight

14.6 oz

Operating temperature range

from 14 °F to 104 °F

Operating humidity

up to 75%

ttx
ttx

Colours

Black

White

Complete set

Case B (175)

Tamper board

Installation kit

Quick start guide

hQt5e6

Case B (175)

Case B (175)

Compliance with the security alarm standards

Certificate issued by TREZOR TEST s.r.o.

EN 50131-1:2006 / A1:2009 / А2:2017 / A3:2020

EN 50131-3:2009

Low Voltage Directive (LVD)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN 60670-1:2005

Restriction of Hazardous Substances (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018

Security Grade (SG)

Certificate issued by TREZOR TEST s.r.o.

3

Environmental class according to EN 50131

Certificate issued by TREZOR TEST s.r.o.

II
