Tech specs

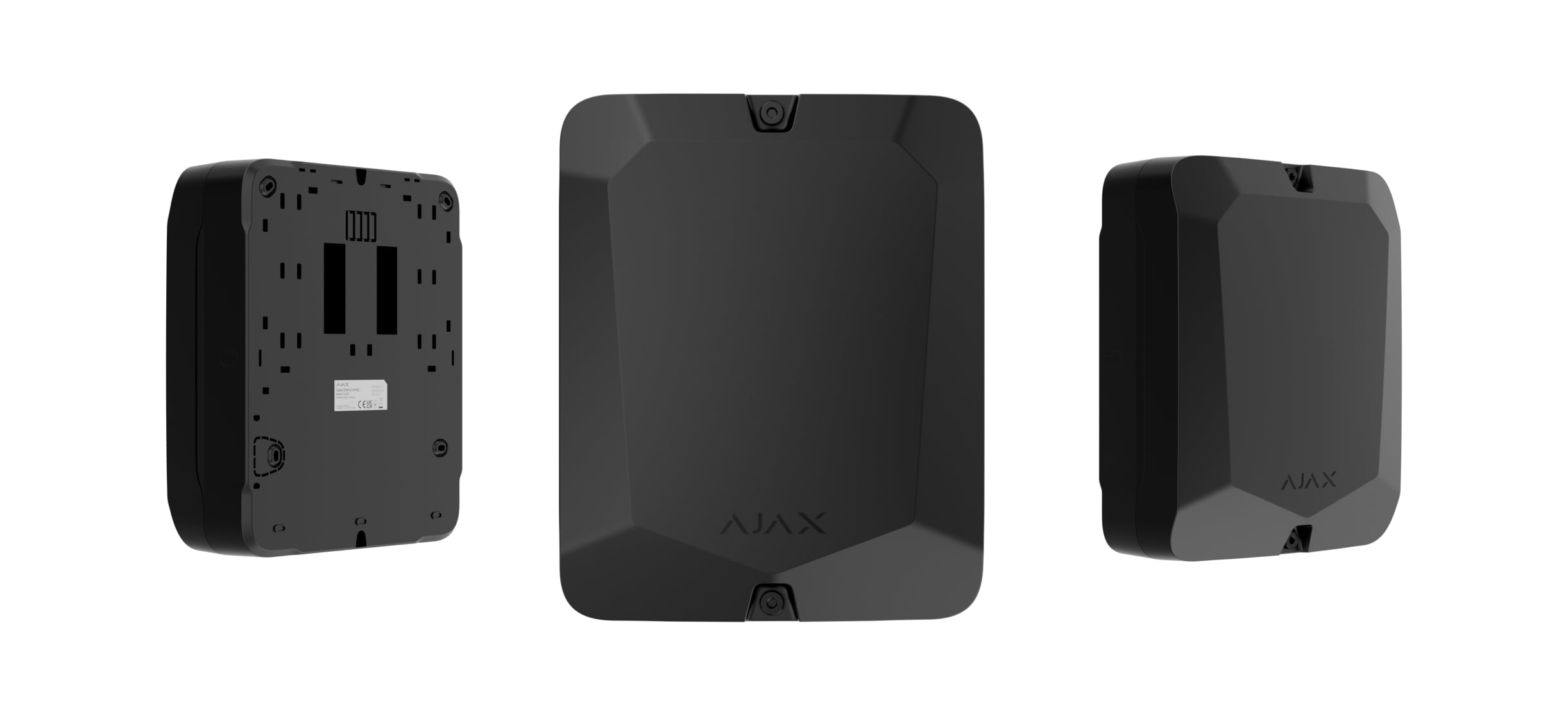

Case C (260)

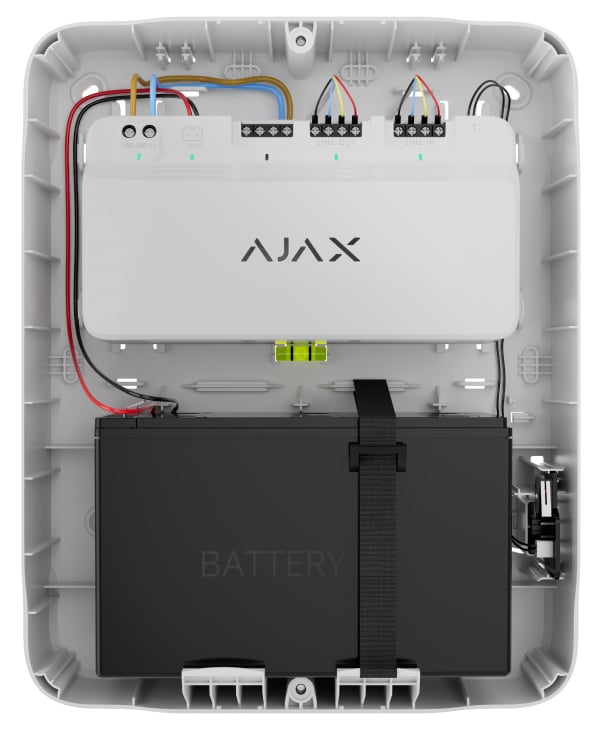

Casing for an Ajax module and a 7 Ah battery

Case C (260)

Compatibility

with a battery up to 7 Ah

Devices installation

Number of slots

1

To install a different number of devices, select a model with the appropriate number of slots:

Plastic rails

to secure a module

Slide LineSupply Fibra along the rails to remove it from the casing.

Cable fasteners

to hold the cables together with ties

Plastic stoppers

to protect the installed device

During drilling, the instrument rests on the Case stoppers.

Bubble level

To check the inclination angle of the casing during installation.

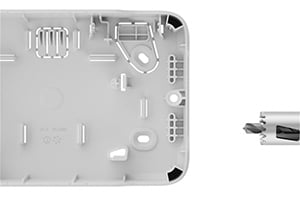

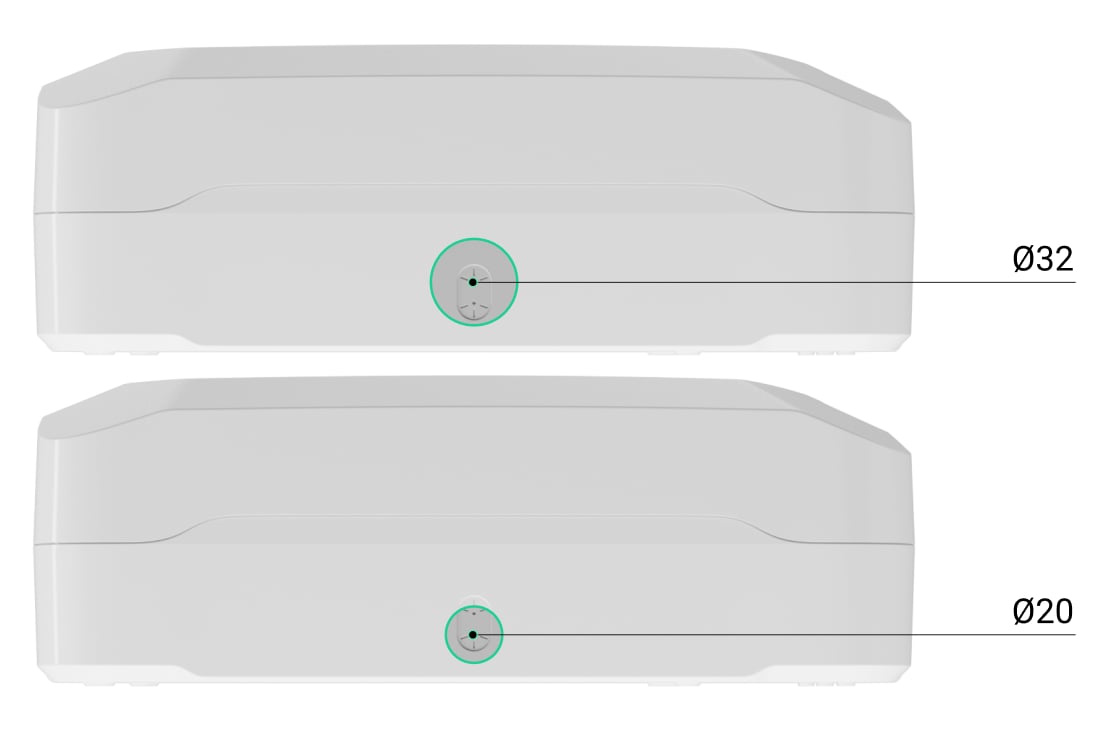

Recesses for drilling

Ø20 mm or Ø32 mm

The drill bit is fixed in the recess and does not move during drilling. We recommend using a hole saw for plastic.

Wider holes

To ensure that the casing is installed correctly, even if there are errors during installation.

Holders for a battery

up to 7 Ah

To prevent accidental dislodgement of the battery.

Key features

Tamper board

Included in the Case complete set. The tamper board connects to the appropriate LineSupply Fibra connector and protects the installed device from sabotage.

Holding screws

in the casing lid

Latches

to secure the lid during installation

The latches prevent the lid from falling off Case until it is secured with screws.

Recomendations

The device is designed for indoor use only. Case is produced in several versions.

Product

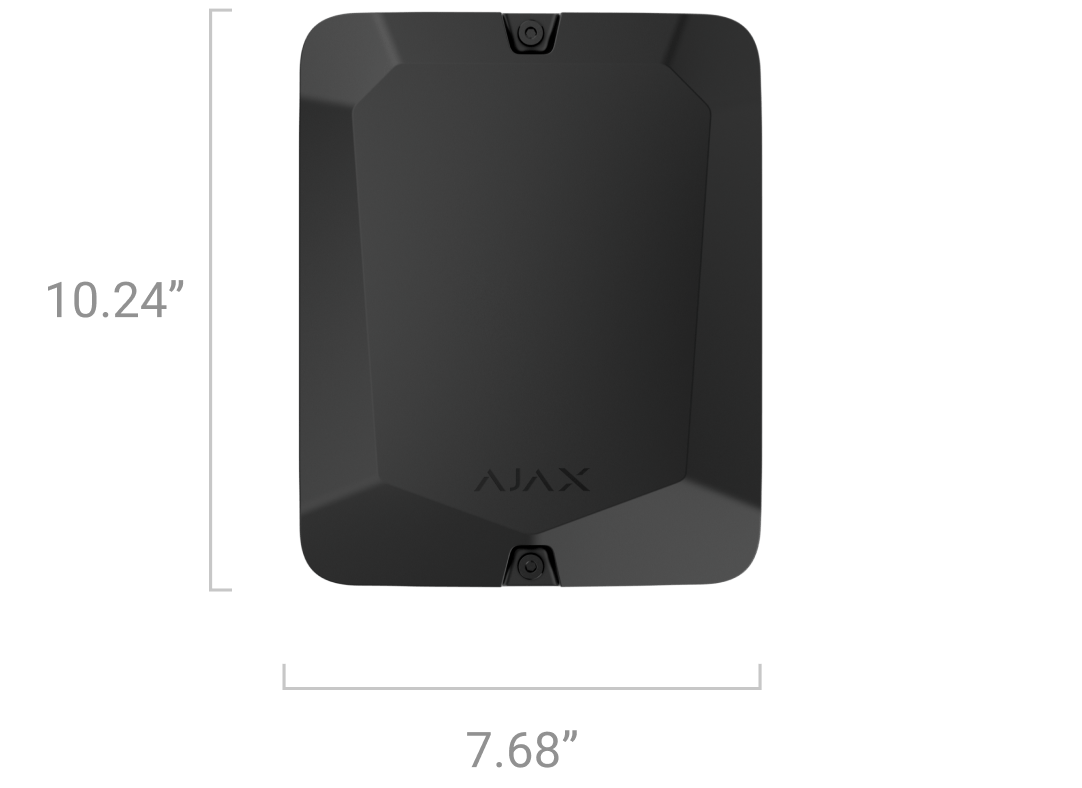

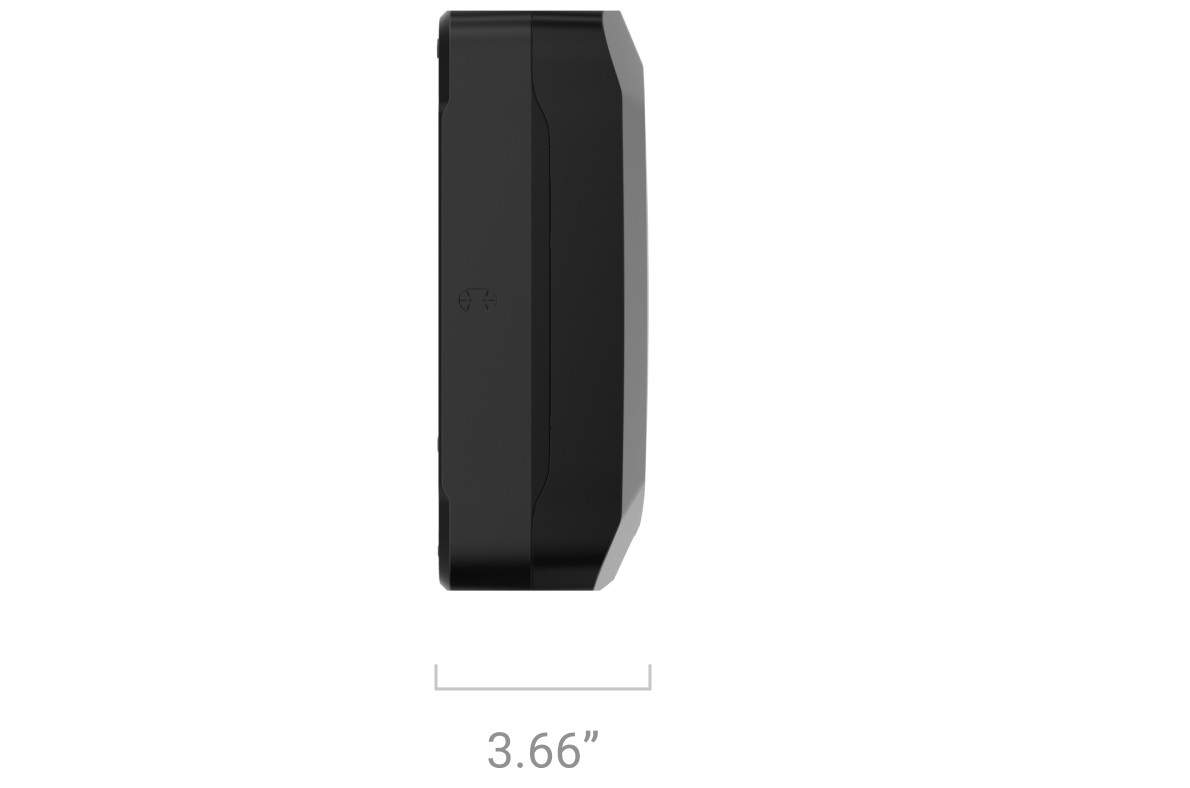

Dimensions

10.24″ × 7.68″ × 3.66″

Weight of the black Case

2.2 lb

Weight of the white Case

2.3 lb

Operating temperature range

from 14 °F to 104 °F

Operating humidity

up to 75%

ttx
ttx

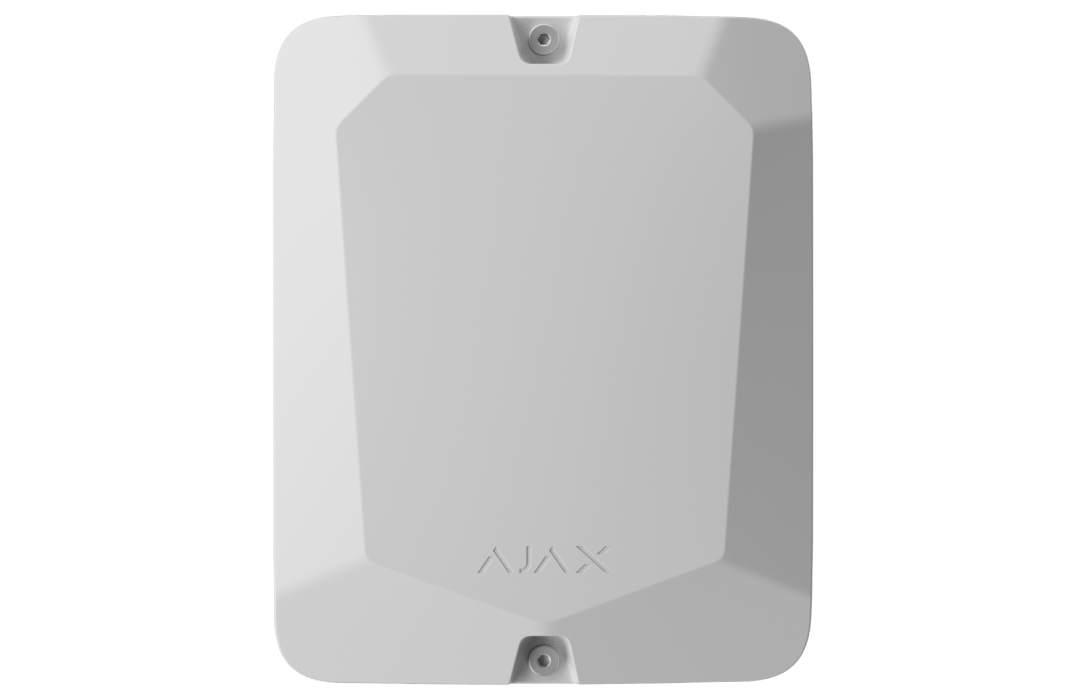

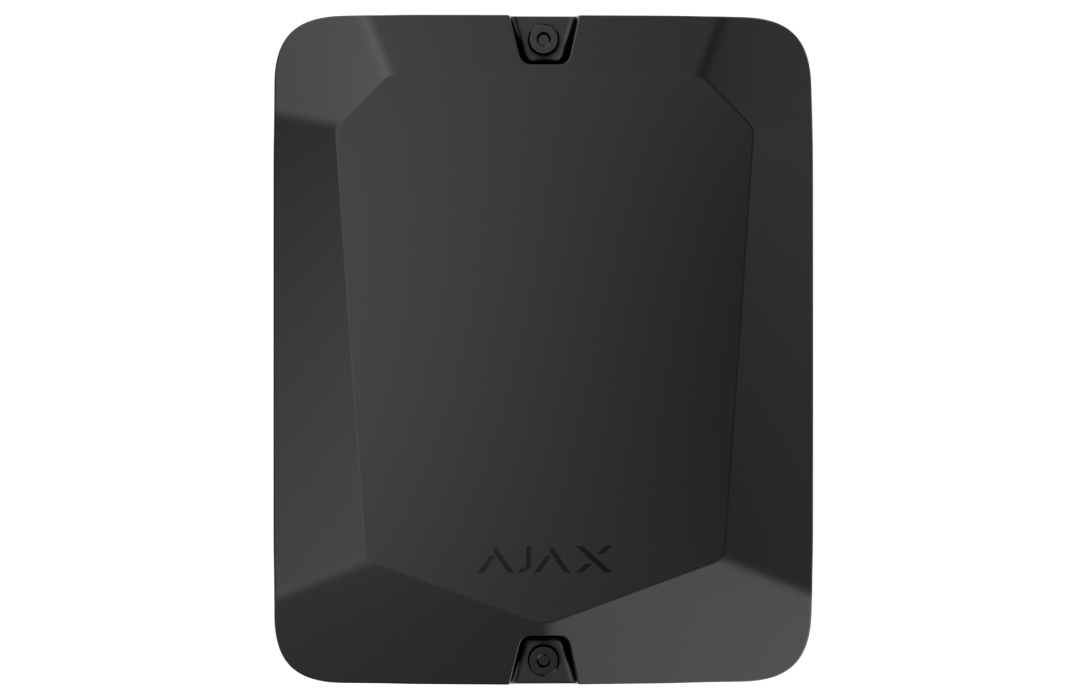

Colours

Black

White

Complete set

Case C (260)

Tamper board

Installation kit

Quick start guide

Certification and compliance with standards

Case C (260)

Case C (260)

Compliance with the security alarm standards

Certificate issued by TREZOR TEST s.r.o.

EN 50131-1:2006 / A1:2009 / А2:2017 / A3:2020

EN 50131-3:2009

Low Voltage Directive (LVD)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN 60670-1:2005

Restriction of Hazardous Substances (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018

Security Grade (SG)

Certificate issued by TREZOR TEST s.r.o.

3

Environmental class according to EN 50131

Certificate issued by TREZOR TEST s.r.o.

II
