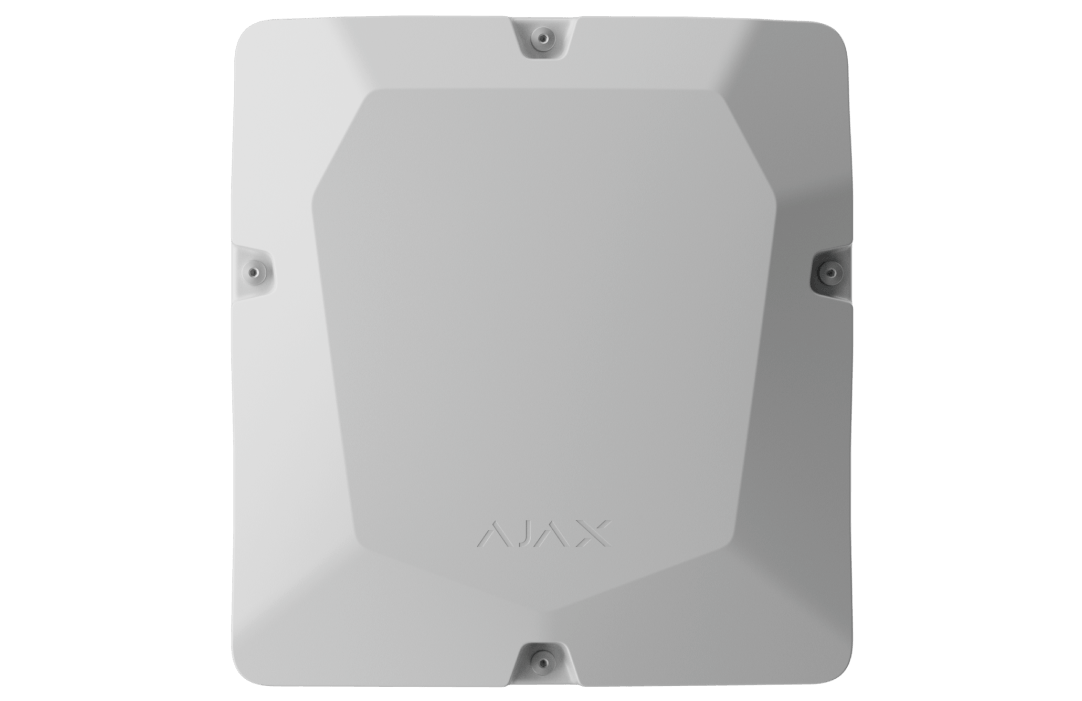

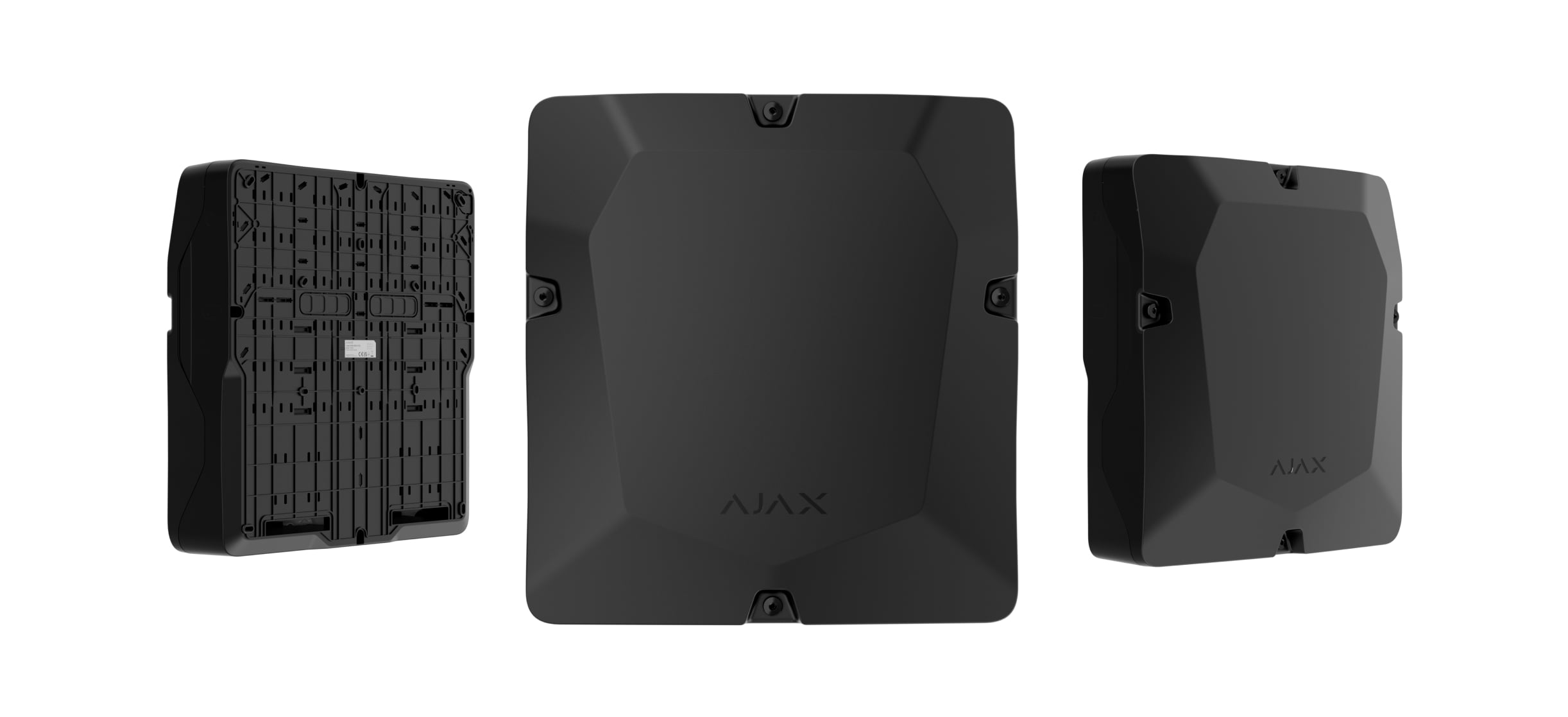

Case D (430)

Casing for up to eight Ajax modules and two 18 Ah batteries

Case D (430)

Devices compatibility

Check

Devices installation

Number of devices

up to 8

To install a different number of devices, select a model with the appropriate number of slots:

Compatible devices

With batteries up to 18 Ah

With battery up to 9 Ah. Installing the hub in Case D (430) does not meet the Grade (EN 50131) requirements. The compliant version will be available soon.

Plastic holders

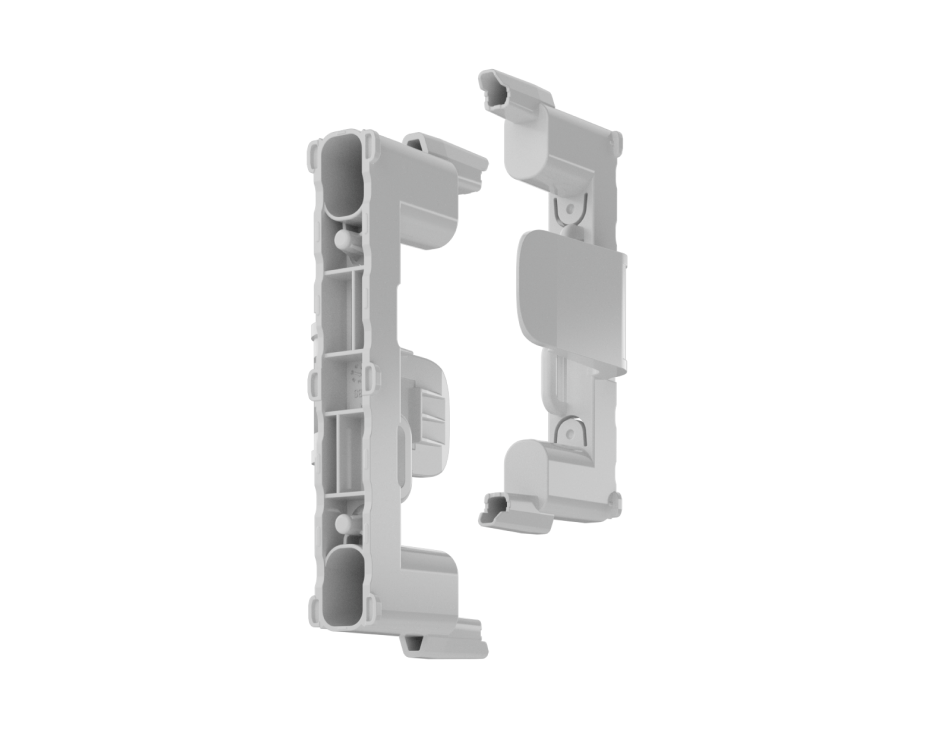

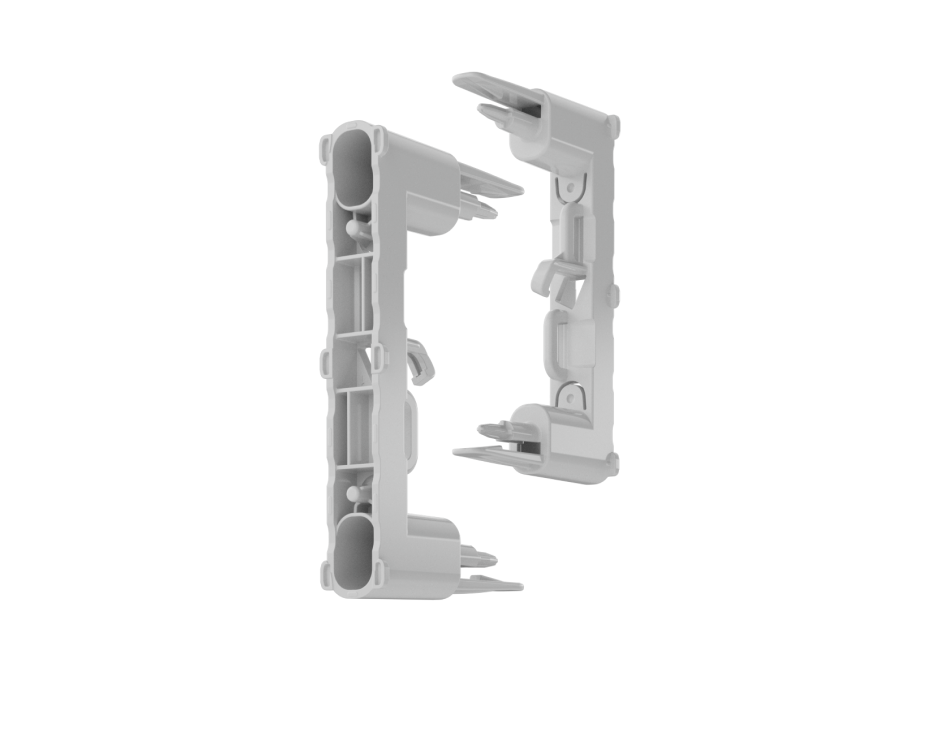

Module Holder (type A)

Place the required number of Module Holder (type A) into the casing to accommodate LineSplit Fibra, LineProtect Fibra, and MultiRelay Fibra modules. The Case D (430) complete set includes a total of 4 holders. If you need more, additional holders can be purchased separately.

Module Holder (type B)

Place two Module Holder (type B) into the casing to accommodate the Hub Hybrid board. Holders are sold separately.

Plastic rails

to secure LineSupply Fibra

Slide LineSupply Fibra along the rails to remove it from the casing. No holders are required to secure the module.

Cable fasteners

to hold the cables together with ties

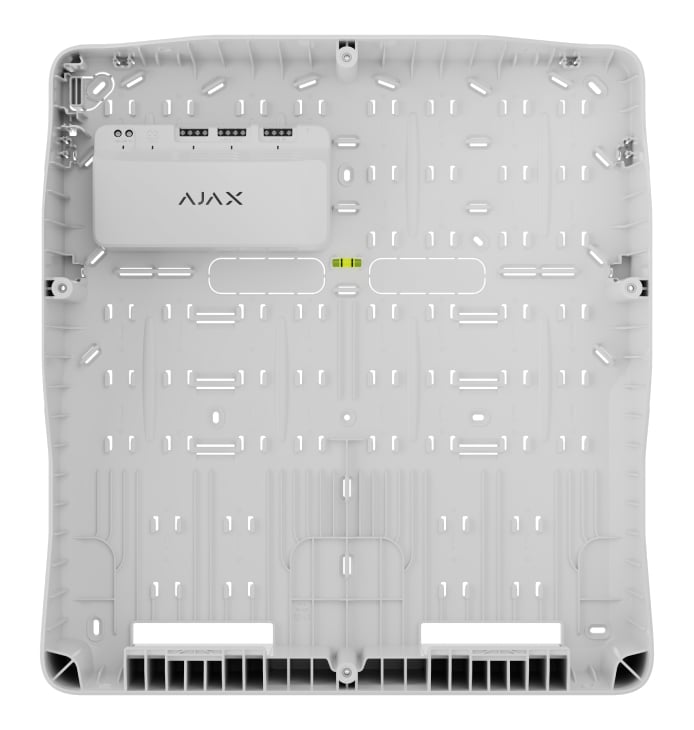

Bubble level

To check the inclination angle of the casing during installation.

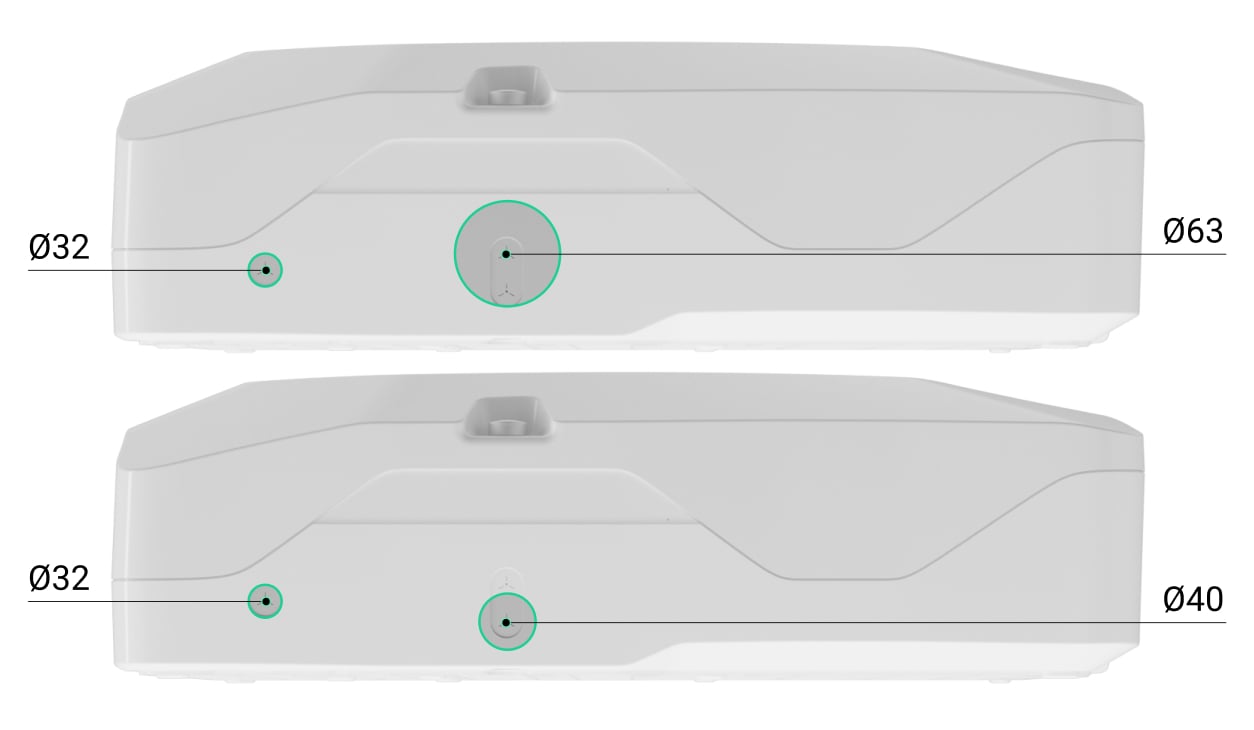

Recesses for drilling

Ø32 mm, Ø40 mm, or Ø63 mm

Wider holes

To ensure that the casing is installed correctly, even if there are errors during installation.

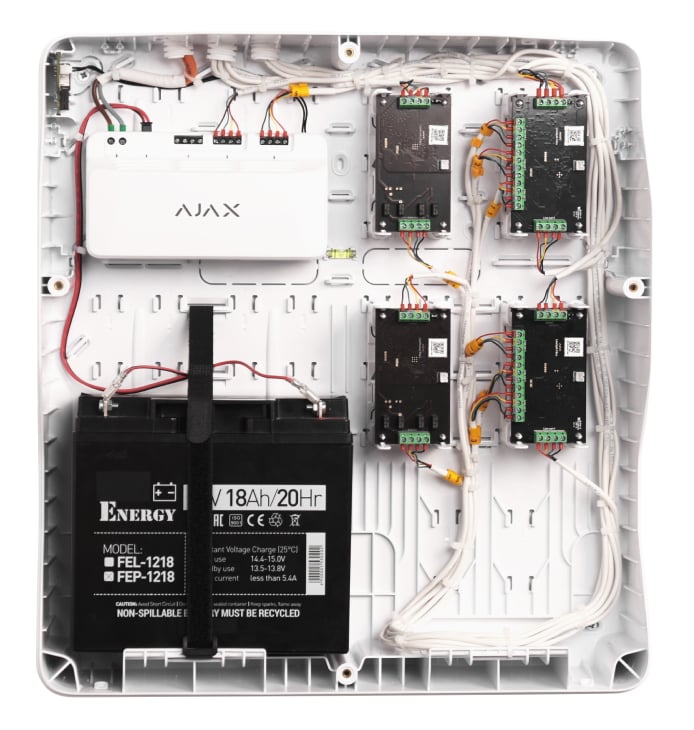

Holders for batteries

up to 18 Ah

At the bottom of the casing.

Holding stripe

for the battery

To prevent accidental dislodgement of the battery.

Key features

Tamper board

Included in the Case complete set. The tamper board connects to the appropriate connector of one of the devices and protects the installed devices from sabotage.

Device rotation

by 180°

The devices in the casing can be rotated by 180°, providing two fixation options.

Holding screws

in the casing lid

Latches

to secure the lid during installation

The latches prevent the lid from falling off Case until it is secured with screws.

Recomendations

The device is designed for indoor use only. Case is produced in several versions.

Product

Dimensions

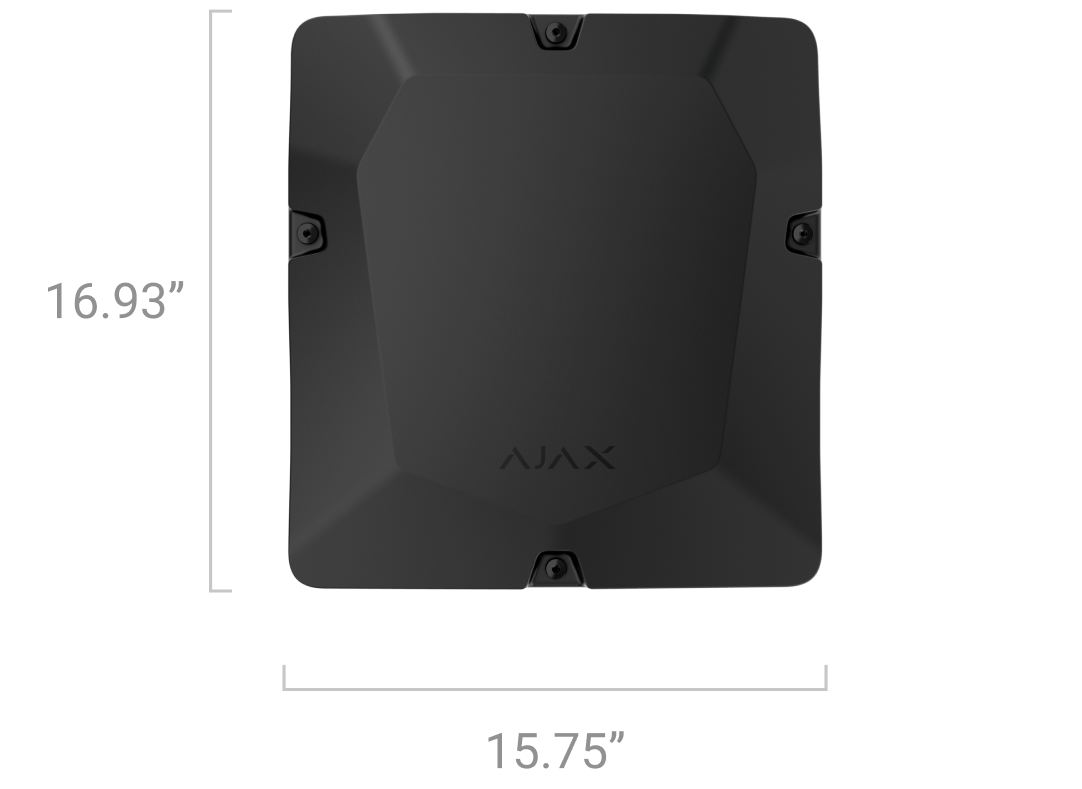

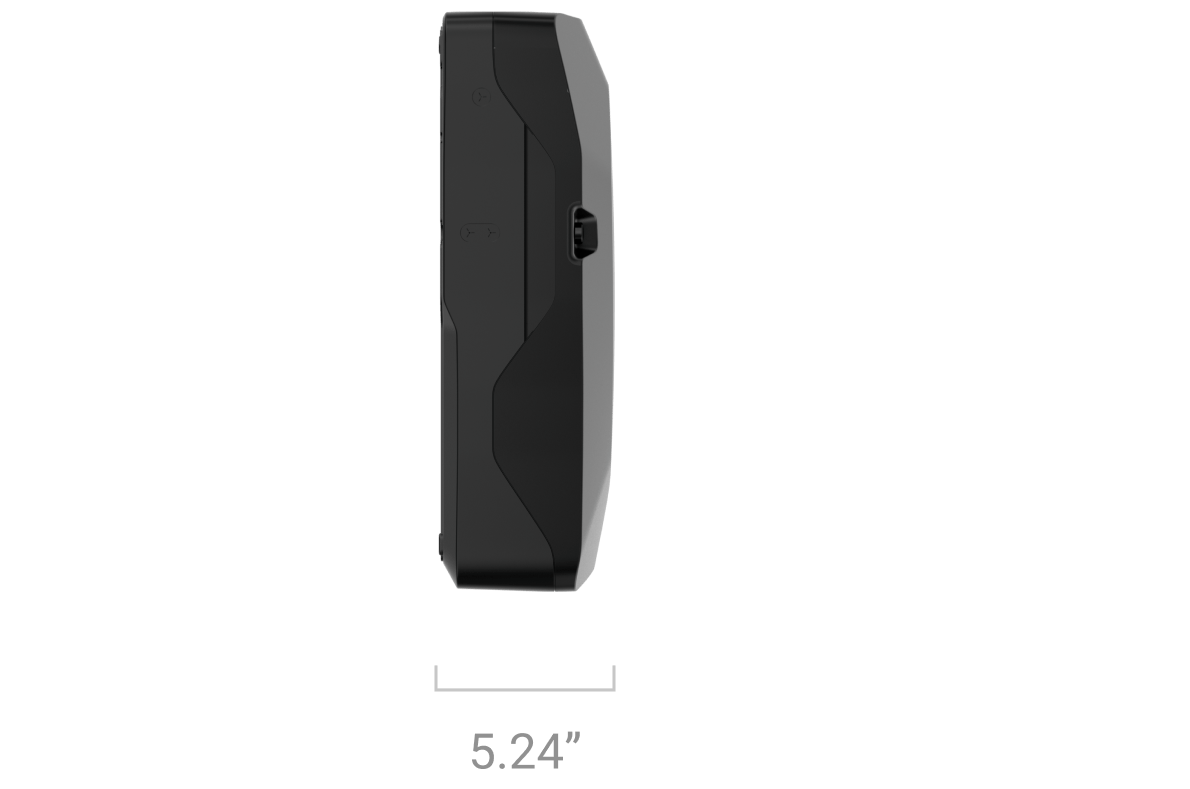

16.93″ × 15.75″ × 5.24″

Weight of the black Case

7.37 lb

Weight of the white Case

7.45 lb

Operating temperature range

from 14 °F to 104 °F

Operating humidity

up to 75%

ttx
ttx

Colours

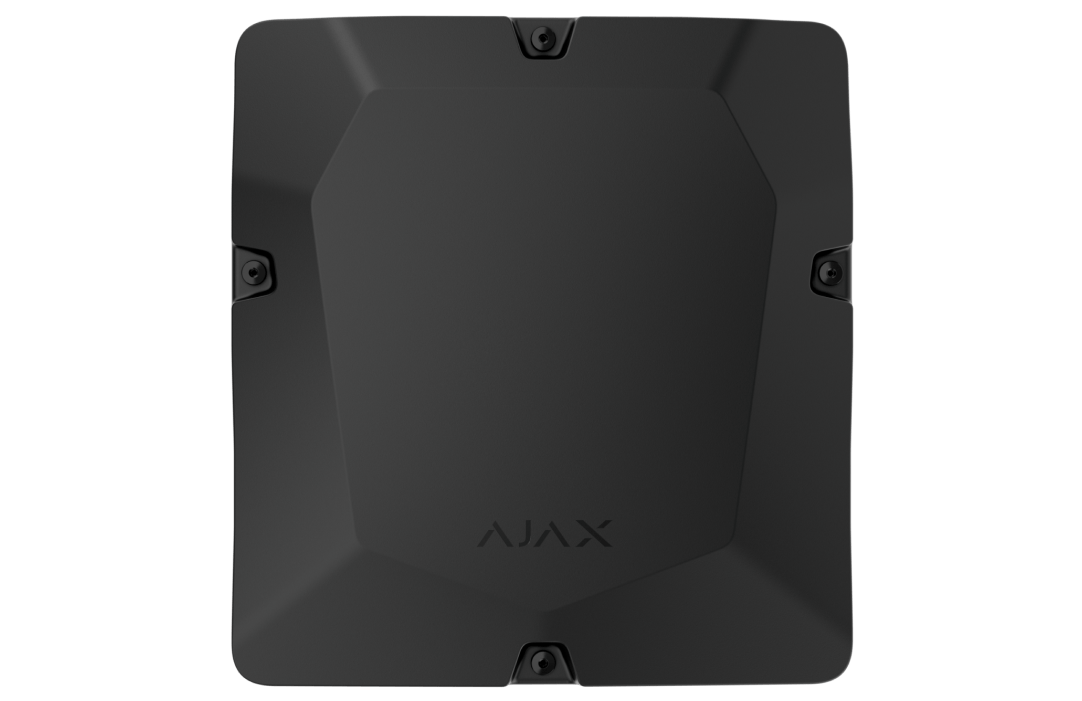

Black

White

Complete set

Case D (430)

Tamper board

Holding stripe for a battery

Module Holder (type A) — 4 pcs.

Installation kit

Quick start guide

Certification and compliance with standards

Case D (430)

Case D (430)

Compliance with the security alarm standards

Certificate issued by TREZOR TEST s.r.o.

EN 50131-1:2006 / A1:2009 / А2:2017 / A3:2020

EN 50131-3:2009

Low Voltage Directive (LVD)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN 60670-1:2005

Restriction of Hazardous Substances (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018

Security Grade (SG)

Certificate issued by TREZOR TEST s.r.o.

3

Environmental class according to EN 50131

Certificate issued by TREZOR TEST s.r.o.

II

Additional information

Compliance with standards

Learn more

Warranty

24 months

Learn more

User manual

Learn more
