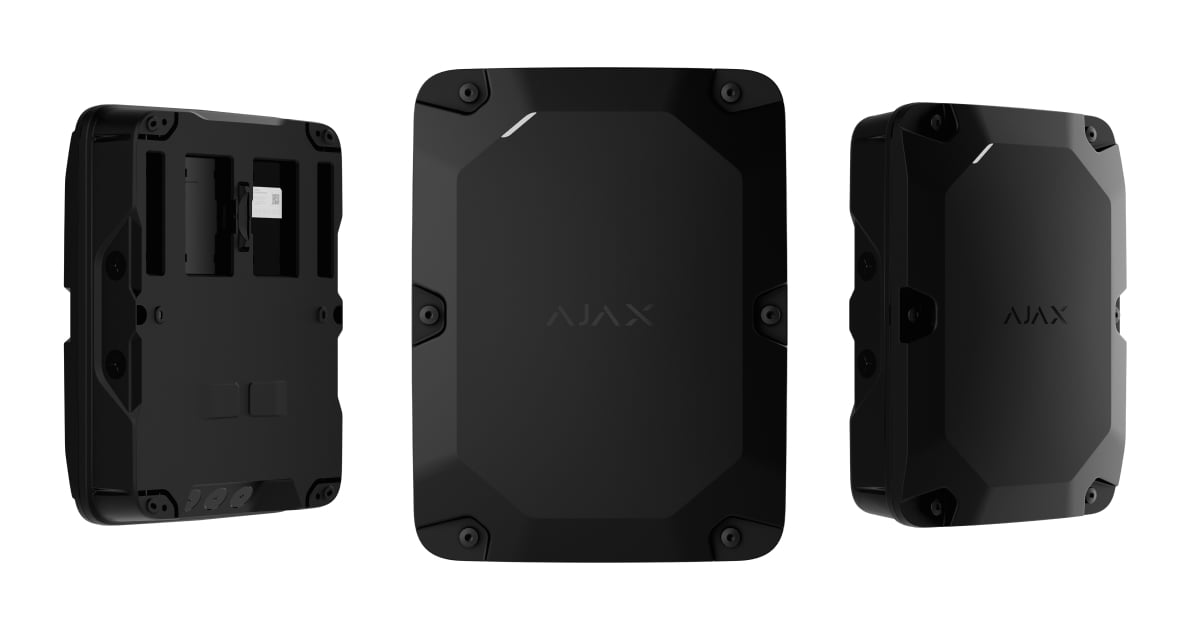

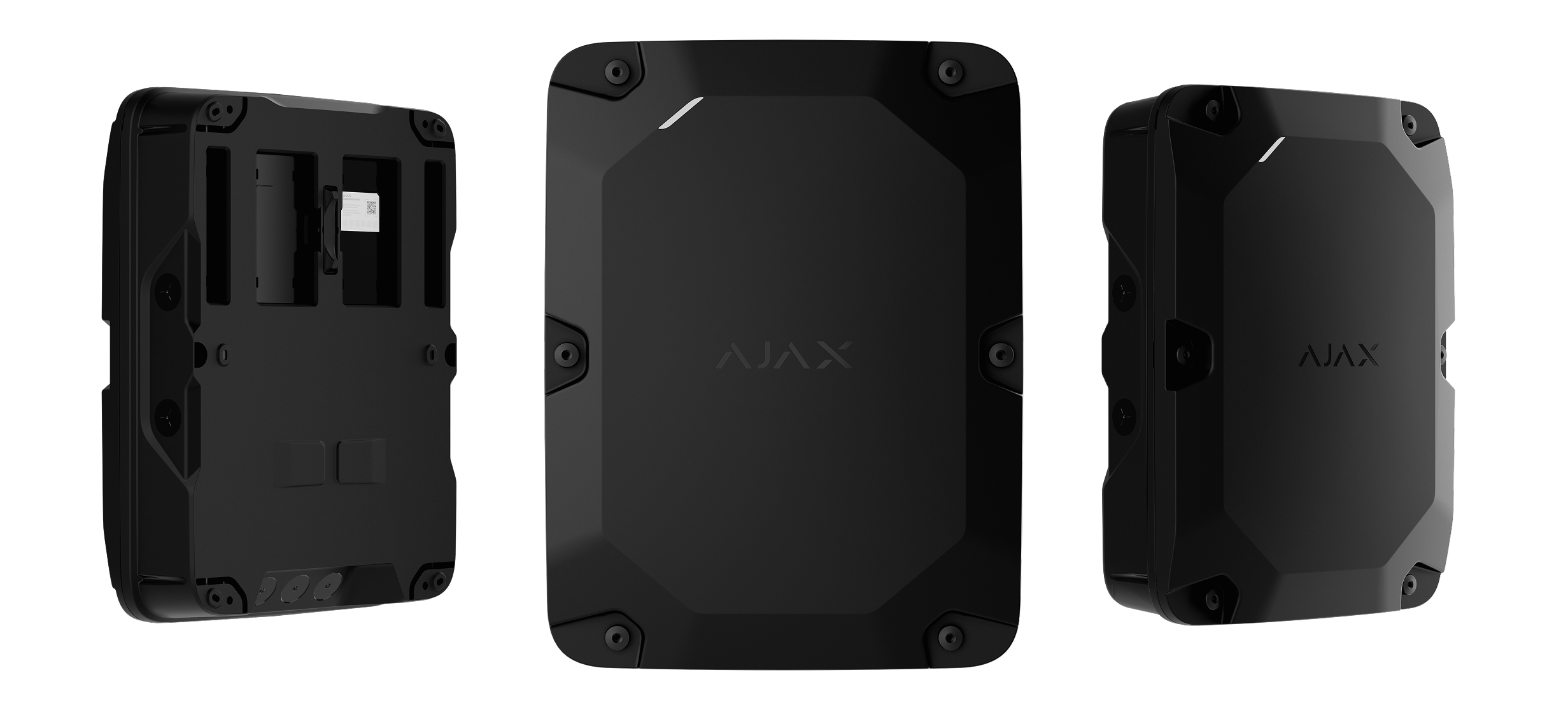

Case E (395)
Waterproof casing for an Ajax hub with an internal battery. For outdoor and indoor use.
Device compatibility
CheckCompatibility
Hubs
Modules
Batteries1
1 Case E (395) supports the installation of third-party batteries. Verify the battery size before installation.
Key features
Plastic holders

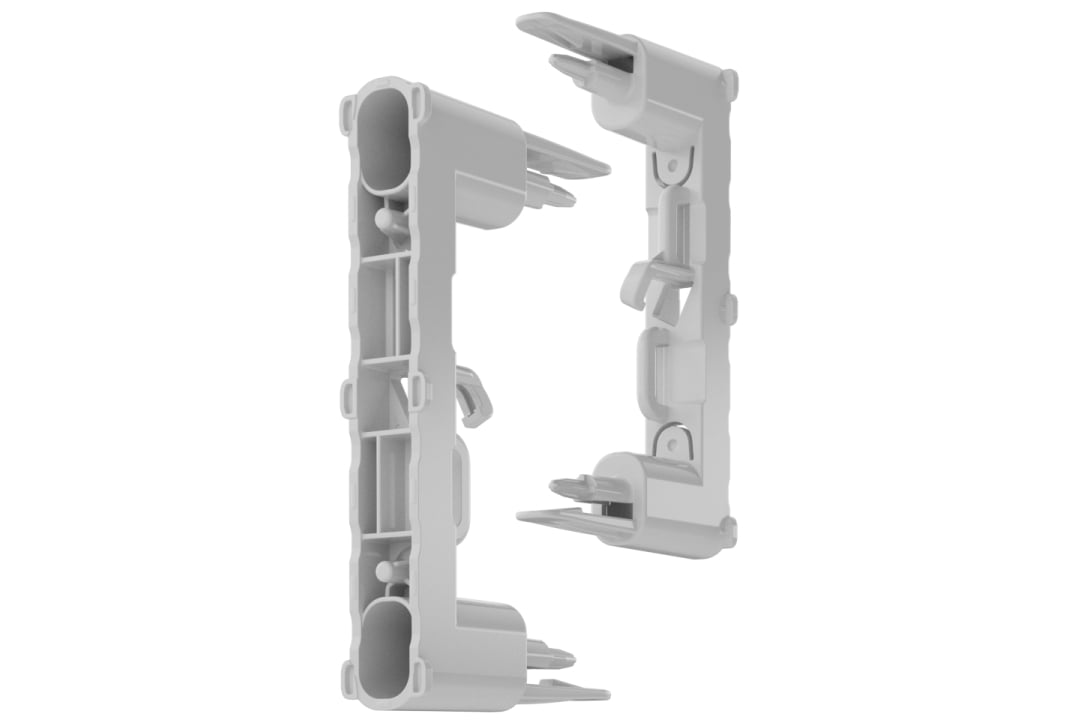

Module Holder (type A)
To install the Superior MegaHub (without casing) and Hub BP Jeweller (without casing) boards.
The casing complete set includes two holders for Hub BP Jeweller (without casing). Additional holders can be purchased separately if required.

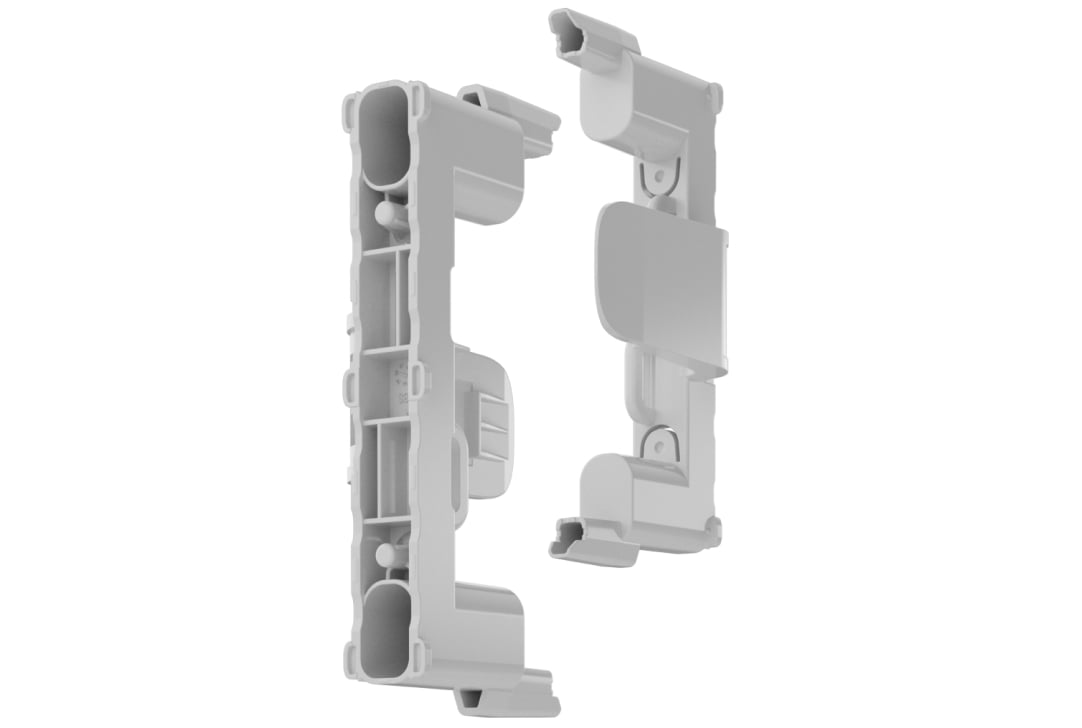

Module Holder (type B)
To install the Superior Hub Hybrid (4G) (without casing) and Superior Hub Hybrid 2 (without casing) boards. The holders are sold separately.
Cable fasteners
To secure the cables with ties.
Bubble level
To check the inclination angle of the casing during installation.

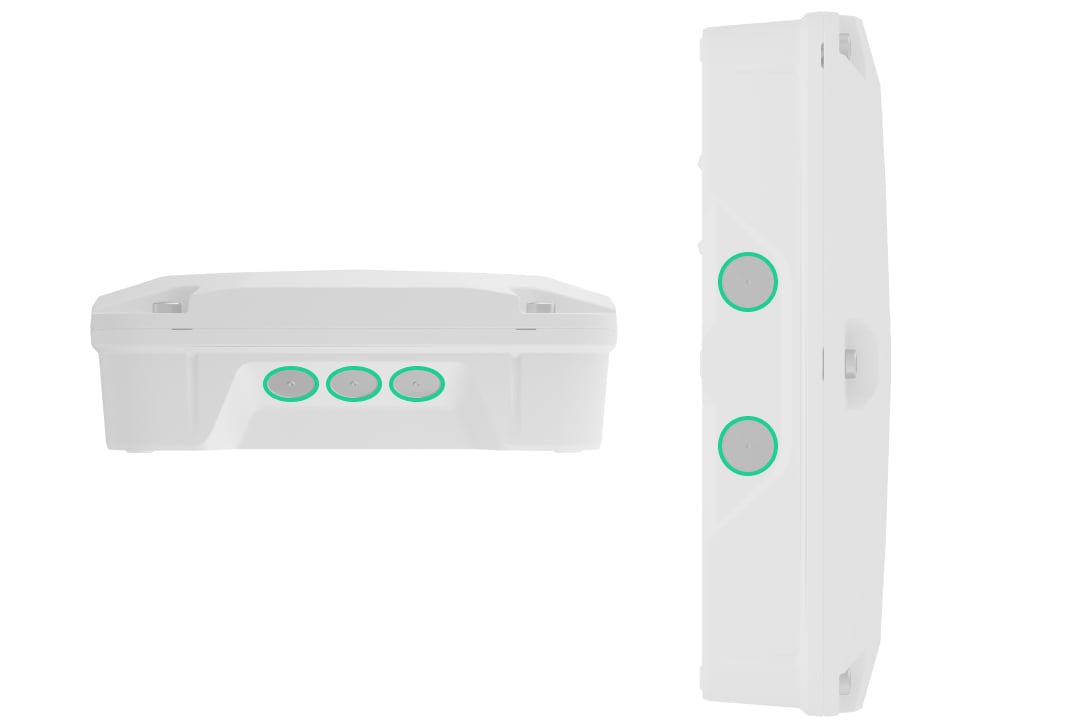

Drilling recesses
To route the cables into the casing.
Wide holes
To ensure the casing is installed correctly, even if mistakes are made during installation.
Battery holders
Located at the bottom of the casing.
Hook-and-loop fastener
for securing the battery
To prevent accidental battery dislodgement.
Captive screws
in the casing lid
Tamper boards
Included in the casing complete set. The tamper boards are connected to the appropriate device connector and protect the installed device from sabotage.
Installation recommendations
The casing is designed for both outdoor and indoor use.
When routing cables into the casing, use waterproof cable glands with a protection class equal to or higher than the casing's IP rating.
Casing

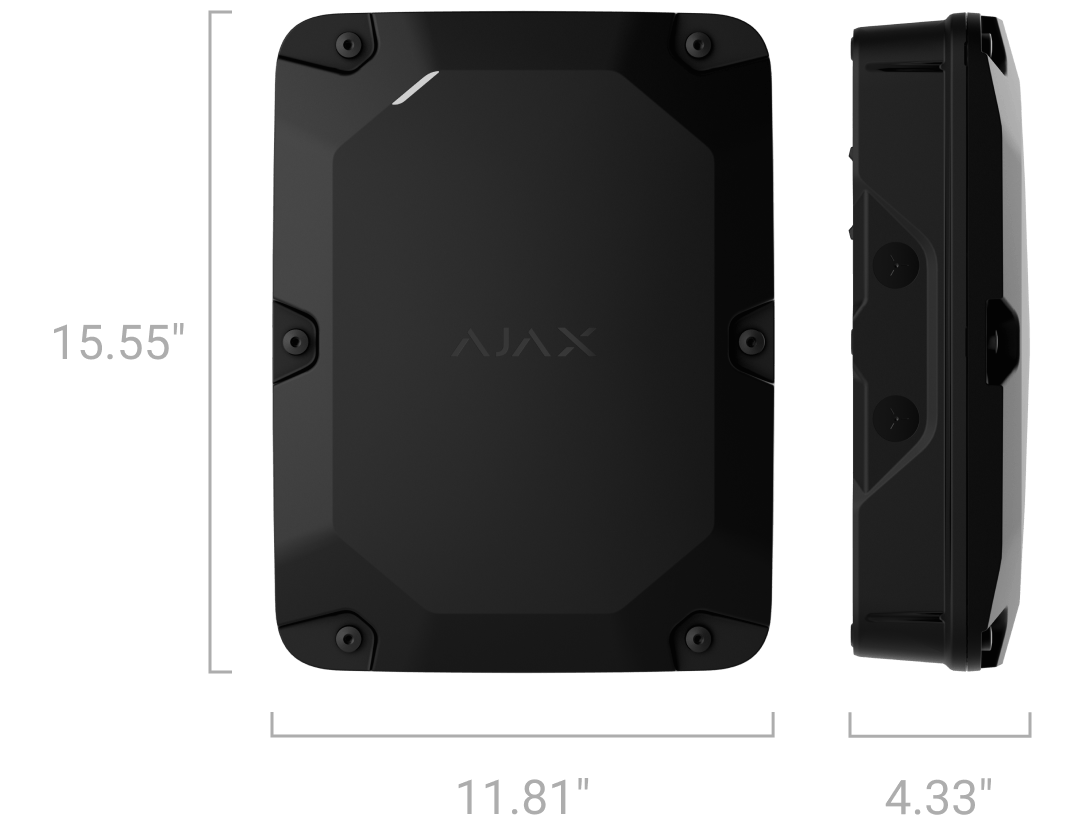

Dimensions
15.55" × 11.81" × 4.33"
Weight for the casing in black
4.97 lb
Weight for the casing in white
5.09 lb
Operating temperature range
from –13 °F to 140 °F
Operating humidity
up to 95% with no condensation
Protection class
IP66, IK10
Color

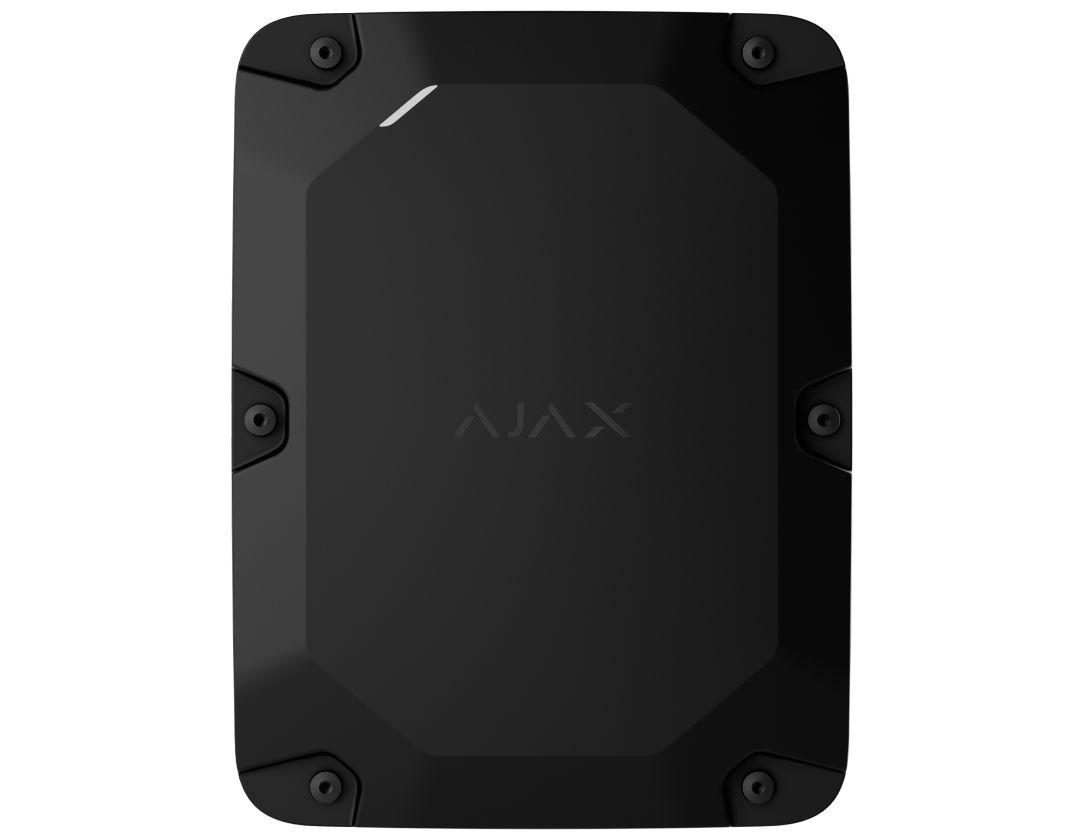

Black

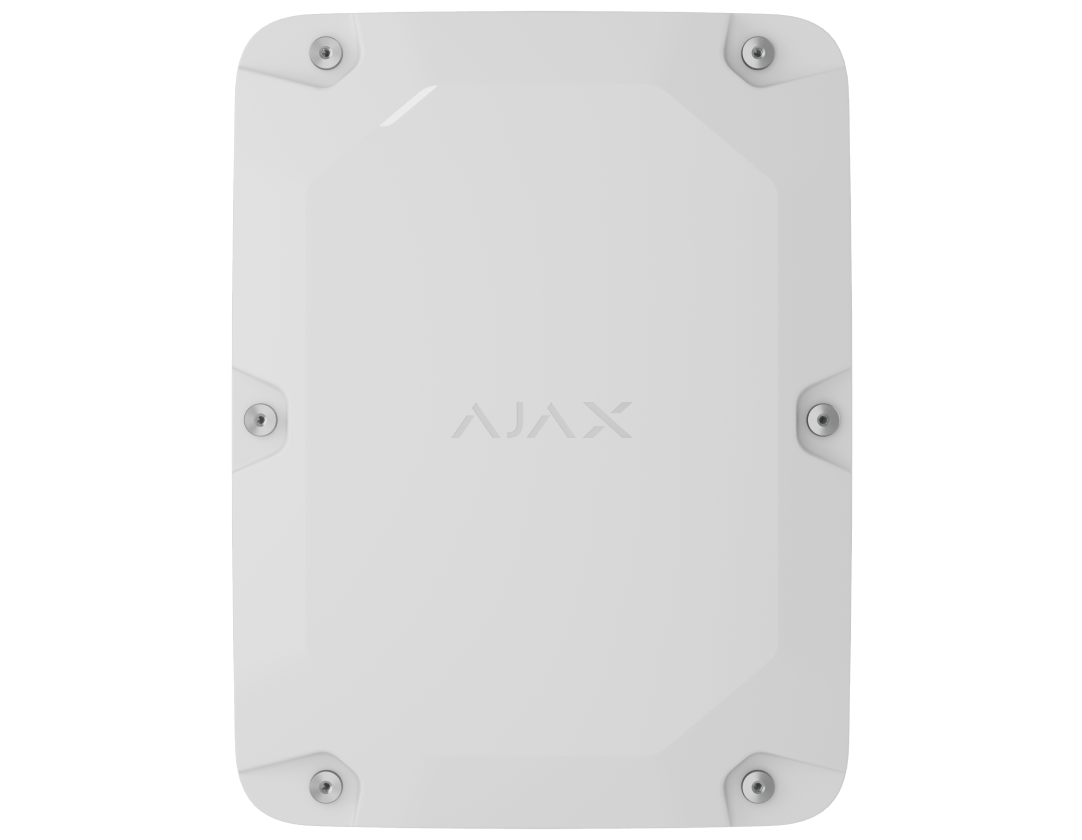

White
Complete set
Case E (395)
2 × Module Holder (type A)
2 × tamper board
2 × cable for connecting the tamper board
Installation kit
Quick start guide
