Hub BP Jeweller

Ajax devices

up to 100

Specifically, up to 10 sirens or keypads with a built-in siren and up to 5 range extenders.

Ajax NVRs

up to 36

Ajax cameras

up to 224 via Ajax NVRs and up to 492 standalone

Third-party IP cameras

up to 10 when using RTSP via SDK

up to 224 when using ONVIF via Ajax NVRs

Users

up to 50

• Any number of admin users within the hub limit.
• PRO accounts for installers.
• PRO accounts for installation and monitoring companies.
• Access management for users.

Automation scenarios

up to 32

• By alarm.
• By schedule.
• By arming/disarming.
• By temperature, humidity, CO₂ concentration.
• By pressing Button.
• By touching LightSwitch.

Security groups

up to 9

Rooms

up to 50

Event log

up to 1,000 events

Events are saved on the non-volatile onboard flash memory.

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.

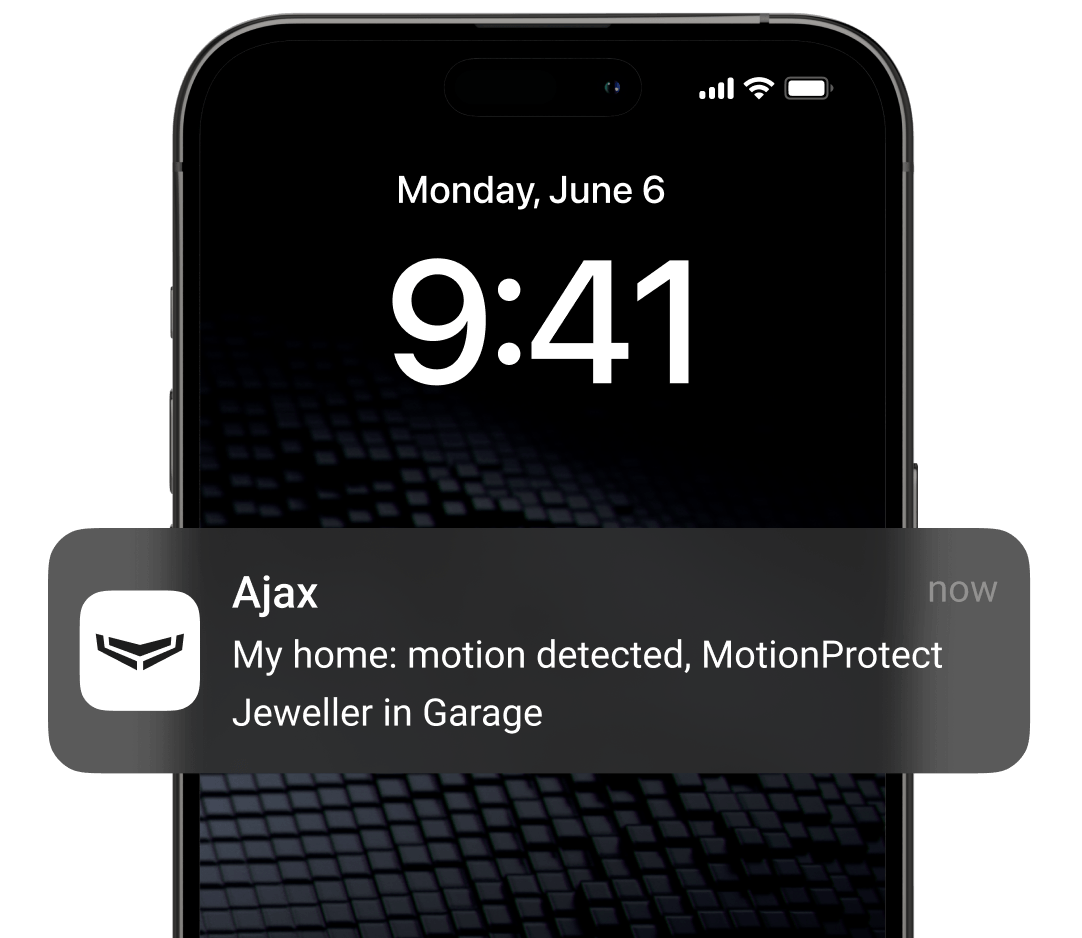

• Instant notifications.
• Remote control and configuration in Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz

Depends on the sales region.

Maximum effective radiated power (ERP)

up to 25 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio communication range

up to 6,500 ft

Between a hub and connected devices (in an open space). The maximum range depends on the connected device.

Polling interval

from 12 s to 300 s

Adjusted by a PRO or user with admin rights in Ajax apps.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Wings communication technology

Proprietary wireless communication technology to transmit photos.

Key features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Data packages reload in case of transmission errors.
• Photo delivery check.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz

Depends on the sales region.

Maximum effective radiated power (ERP)

up to 25 mW

Automatic power control to reduce power consumption and radio interference.

Radio communication range

up to 6,550 ft

Between a hub and connected devices (in an open space). The maximum range depends on the connected device.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Photo verification types

• Photo by alarm
• Photo by scenario
• Photo on demand
• Photo by schedule

The Photo by Schedule feature is available for hubs with OS Malevich 2.19 firmware version or later.

Photo delivery time

up to 9 s

By default.

Photo resolution

up to 640 × 480 pixels

Depends on the detector.

Number of photos in a series

from 1 to 5 pictures

Supported protocols

• SIA DC-09 (SIA-DCS)
• SurGard (Contact ID)
• ​​ADEMCO 685
• Other proprietary protocols

Event types

• System alarms and events
• Panic button coordinates
• Photo verification

External

4.2–16 V⎓, up to 2 A

Zinc-air battery or external power source.

Internal

4.2–16 V⎓, up to 2 A

Rechargeable lead-acid and LiFePO4 batteries (not included). Non-rechargeable LTC batteries (not included).

Device operating DC voltage range

3.5–16 V⎓

On external battery in full function mode

up to 18 months

On a 12 V⎓, 600 Ah, zinc-air non-rechargeable external battery (not included).

On external battery in Battery saving mode

more than 5 years

On a 12 V⎓, 600 Ah, zinc-air non-rechargeable external battery (not included).

On internal battery in a Battery saving mode

up to 17 months

On a 7.2 V⎓, 95 Ah, LTC non-rechargeable Internal battery NB (7.2V/95Ah) (not included).

up to 4 months

On a 6.4 V⎓, 27 Ah, LiFePO4 rechargeable Internal battery RB (6.4V/27Ah) (not included).

up to 2 months

On a 12 V⎓, 7 Ah, lead-acid rechargeable internal battery (not included).

Tamper alarm

Notifications on attempts to detach the device from the surface or remove it from the mounting panel.

Protection against spoofing

device authentication

Frequency hopping

The hub sends notifications to all users and the security company of jamming or losing connection with the devices.

Jamming alert

Hub BP Jeweller analyzes the channel’s noise level and the quality of communication with added devices and sends an alert in 30 seconds.

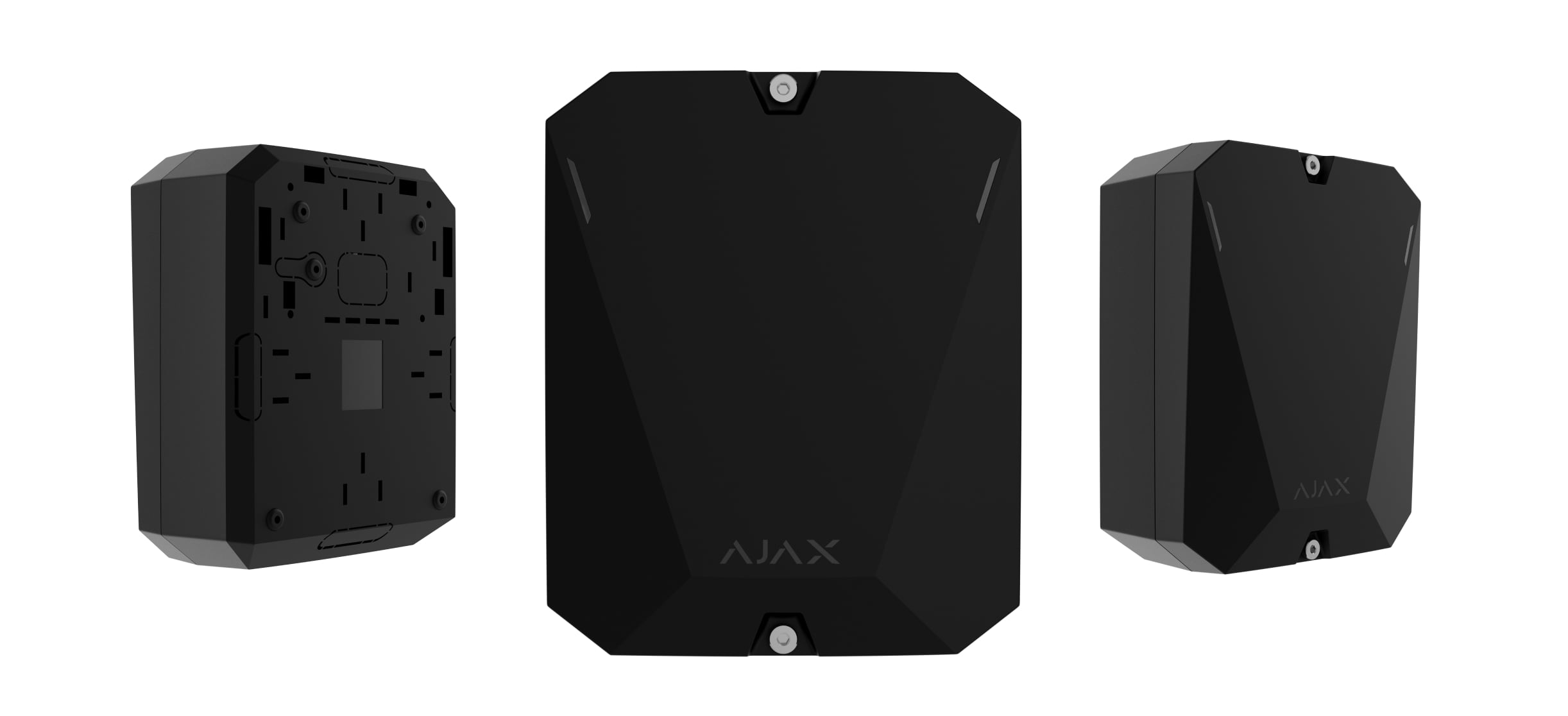

Hub BP Jeweller

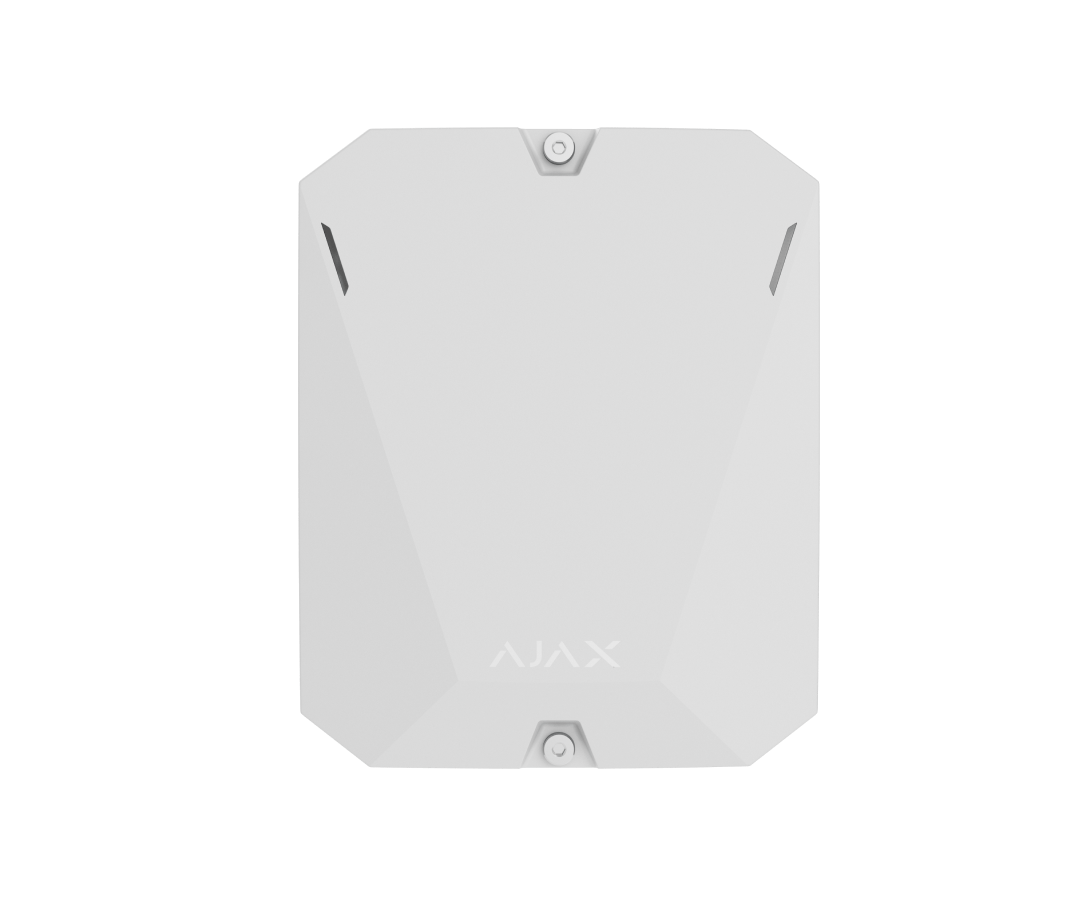

Casing

Installation kit

Quick start guide
