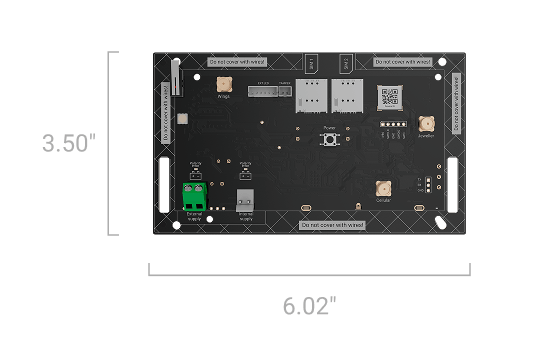

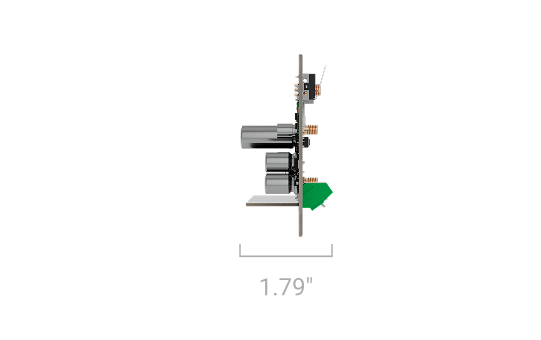

Hub BP Jeweller (without casing)

Ajax devices

up to 100

Specifically:

• up to 5 range extenders;
• up to 10 sirens;
• up to 50 keypads with a built-in buzzer.

Ajax NVRs

up to 36

Ajax cameras

up to 224 via Ajax NVRs and up to 492 standalone

Third-party IP cameras

up to 10 when using RTSP via SDK

up to 224 when using ONVIF via Ajax NVRs

Users

up to 50

• Any number of admin users within the hub limit.
• PRO accounts for installers.
• PRO accounts for installation and monitoring companies.

Automation scenarios

up to 32

• By alarm.
• By schedule.
• By arming/disarming.
• By temperature, humidity, CO2 concentration.
• By pressing Button.
• By touching LightSwitch.

Security groups

up to 9

Rooms

up to 50

Event log

up to 1,000 events

Events are saved in the non-volatile onboard flash memory.

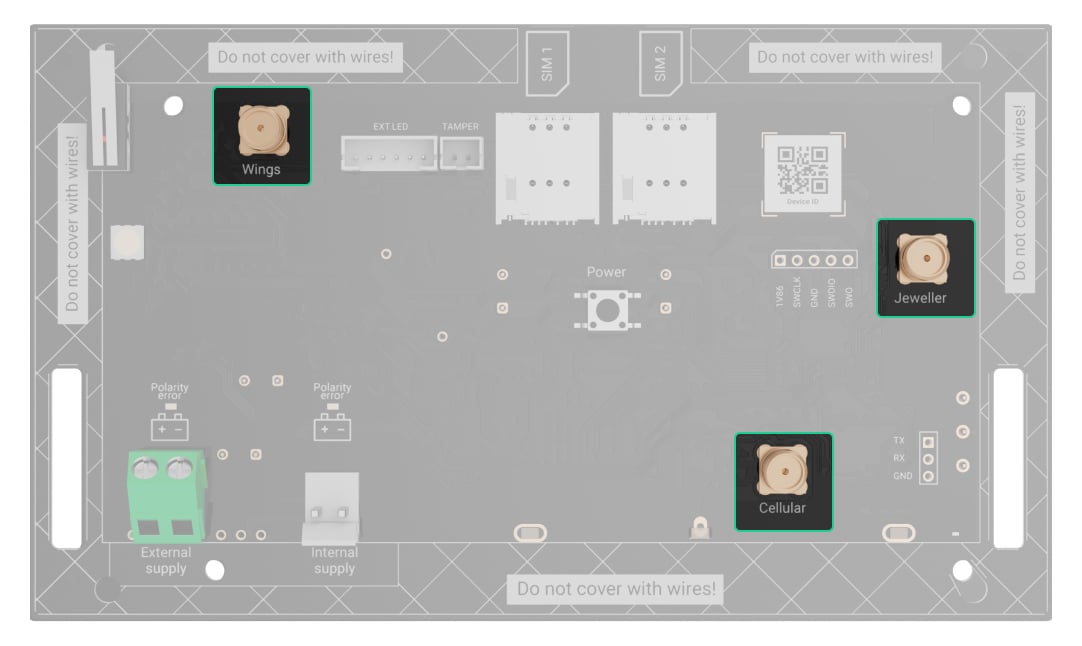

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

• Two-way communication.
• Advanced sabotage protection.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

Frequency bands

• 866.0–866.5 MHz
• 868.0–868.6 MHz
• 868.7–869.2 MHz
• 905.0–926.5 MHz
• 915.85–926.5 MHz
• 921.0–922.0 MHz

Depends on the sales region.

Maximum effective radiated power (ERP)

up to 25 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio communication range

up to 6,550 ft

Between the hub and the devices added to it in open space. The maximum range depends on the added device.

Polling interval

from 12 s to 300 s

Adjusted by a PRO or user with admin rights in Ajax apps.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Wings communication technology

Proprietary wireless communication technology to transmit photos.

Key features:

• Two-way communication.
• Advanced sabotage protection.
• Block encryption featuring a dynamic key.
• Data packet reload in case of transmission errors.
• Photo delivery check.

Frequency bands

• 866.0–866.5 MHz
• 868.0–868.6 MHz
• 868.7–869.2 MHz
• 905.0–926.5 MHz
• 915.85–926.5 MHz
• 921.0–922.0 MHz

Depends on the sales region.

Maximum effective radiated power (ERP)

up to 25 mW

Automatic power control to reduce power consumption and radio interference.

Radio communication range

up to 6,550 ft

Between the hub and the devices added to it in open space. The maximum range depends on the added device.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Photo verification types

• Photo by alarm
• Photo by scenario
• Photo on demand
• Photo by schedule
• Photo by arming/disarming
• Photo by anti-masking
• Photo by tamper alarm
• Photo by magnetometer

Photo delivery time

up to 9 s

By default.

Photo resolution

up to 960 × 720 pixels

Depends on the detector.

Number of photos in a series

from 1 to 5

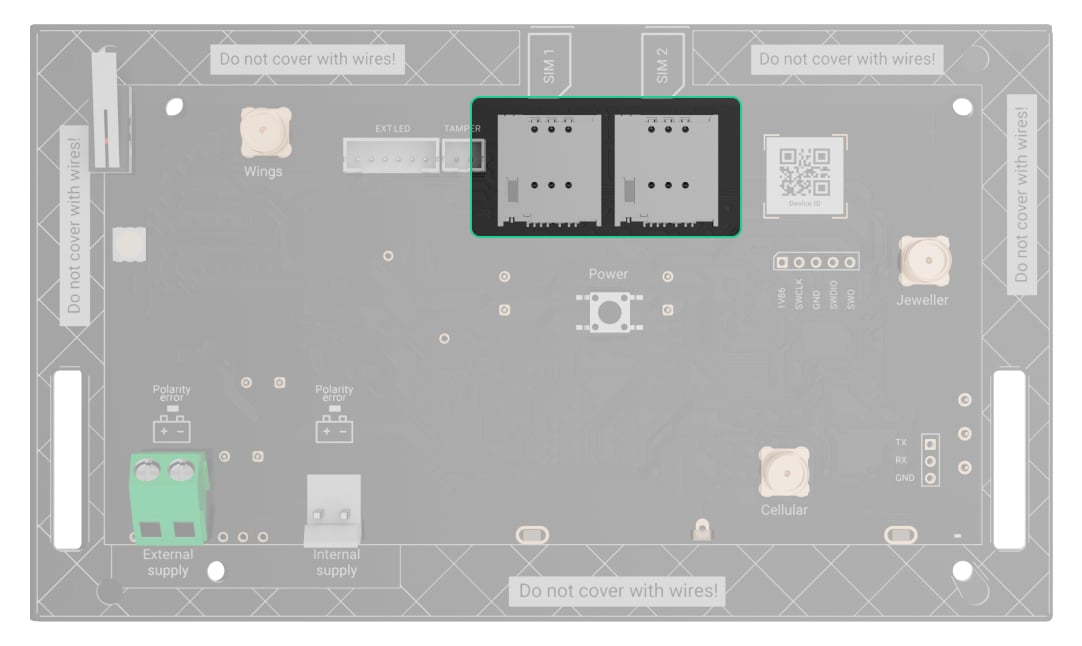

Supported protocols

• SIA DC-09 (SIA-DCS)
• SurGard (Contact ID)
• ​​ADEMCO 685
• Other proprietary protocols

Event types

• System alarms and events
• Panic button coordinates
• Photo verification

External

4.2–16 V⎓, up to 2 A

Zinc-air battery or external power source.

Internal

4.2–16 V⎓, up to 2 A

Rechargeable lead-acid and LiFePO4 batteries (not included). Non-rechargeable LTC batteries (not included).

On an external battery in full function mode

up to 18 months

On a 12 V⎓, 600 Ah, non-rechargeable zinc-air external battery (not included).

On an external battery in Battery saving mode

more than 5 years

On a 12 V⎓, 600 Ah, non-rechargeable zinc-air external battery (not included).

On an internal battery in a Battery saving mode

up to 46 months

On a 7.2 V⎓, 190 Ah, non-rechargeable LTC Internal battery NB (7.2V/190Ah) (not included).

up to 23 months

On a 7.2 V⎓, 95 Ah, non-rechargeable LTC Internal battery NB (7.2V/95Ah) (not included).

up to 16 months

On a 6.4 V⎓, 78 Ah, rechargeable LiFePO4 Internal battery RB (6.4V/78Ah) (not included).

up to 8 months

On a 6.4 V⎓, 36 Ah, rechargeable LiFePO4 Internal battery RB (6.4V/36Ah) (not included).

up to 2 months

On a 12 V⎓, 7 Ah, rechargeable lead-acid internal battery (not included).

Tamper alarm

The board has a connector for attaching a tamper board. The tamper board detects when the Case lid is opened and notifies of attempts to detach Case with the installed hub from the surface.

Protection against spoofing

device authentication

Frequency hopping

The hub sends notifications of jamming or connection loss with the devices to all users and the monitoring company.

Jamming alert

Hub BP Jeweller analyzes the noise level in the channel and the communication quality with the added devices and sends a notification in 30 seconds.

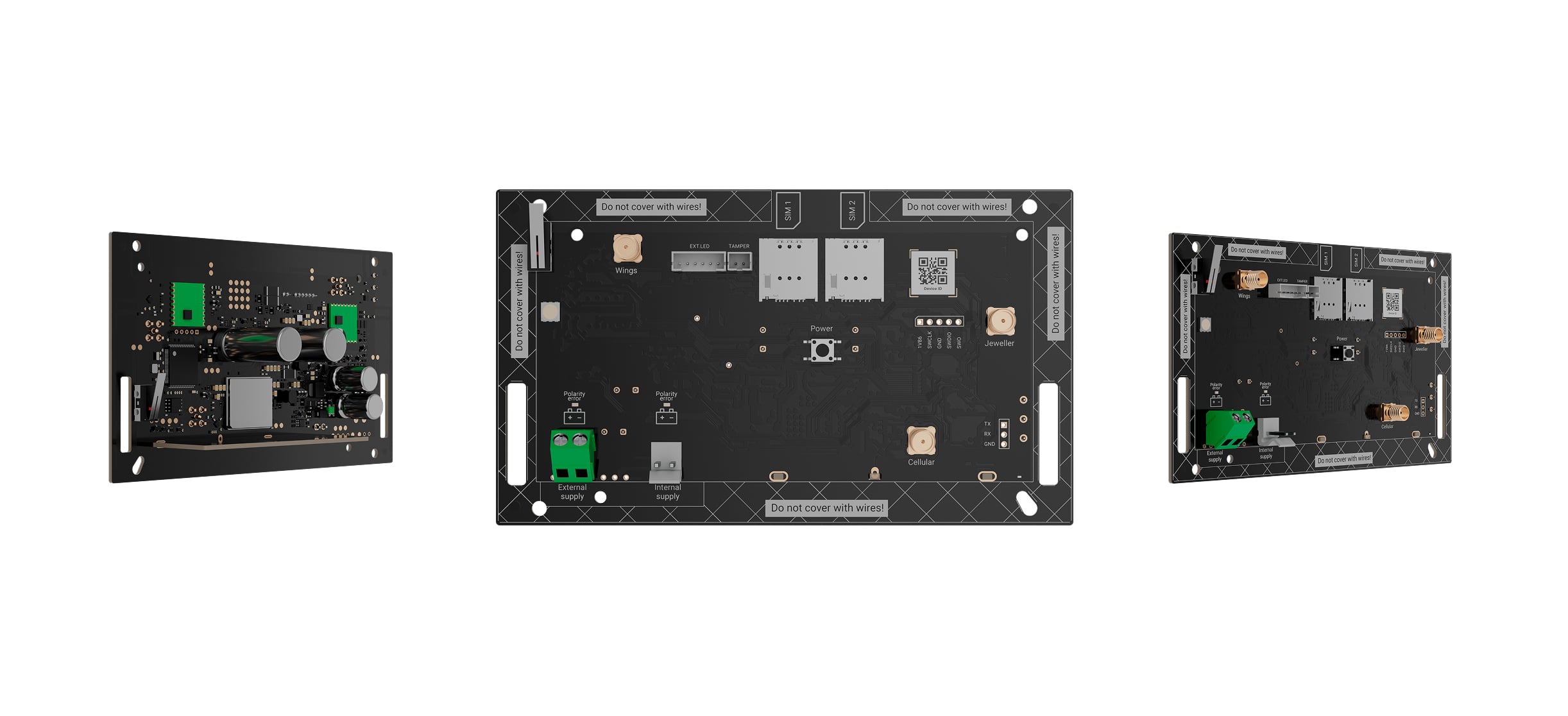

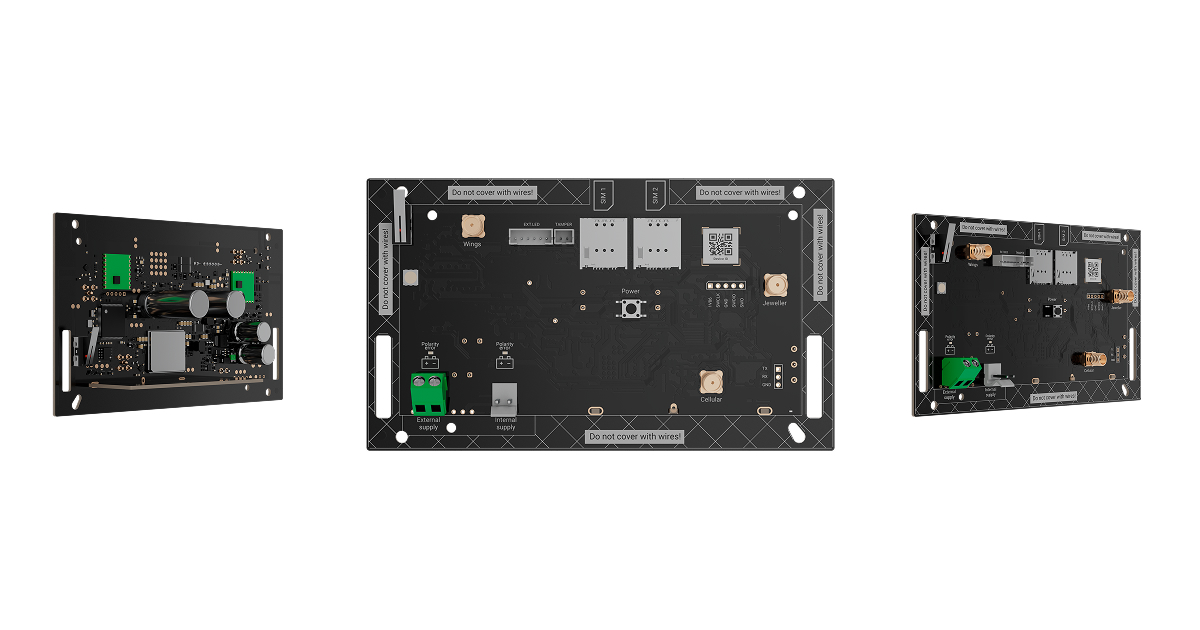

Hub BP Jeweller (without casing)

LED board

Cable for connecting the LED board

Quick start guide
