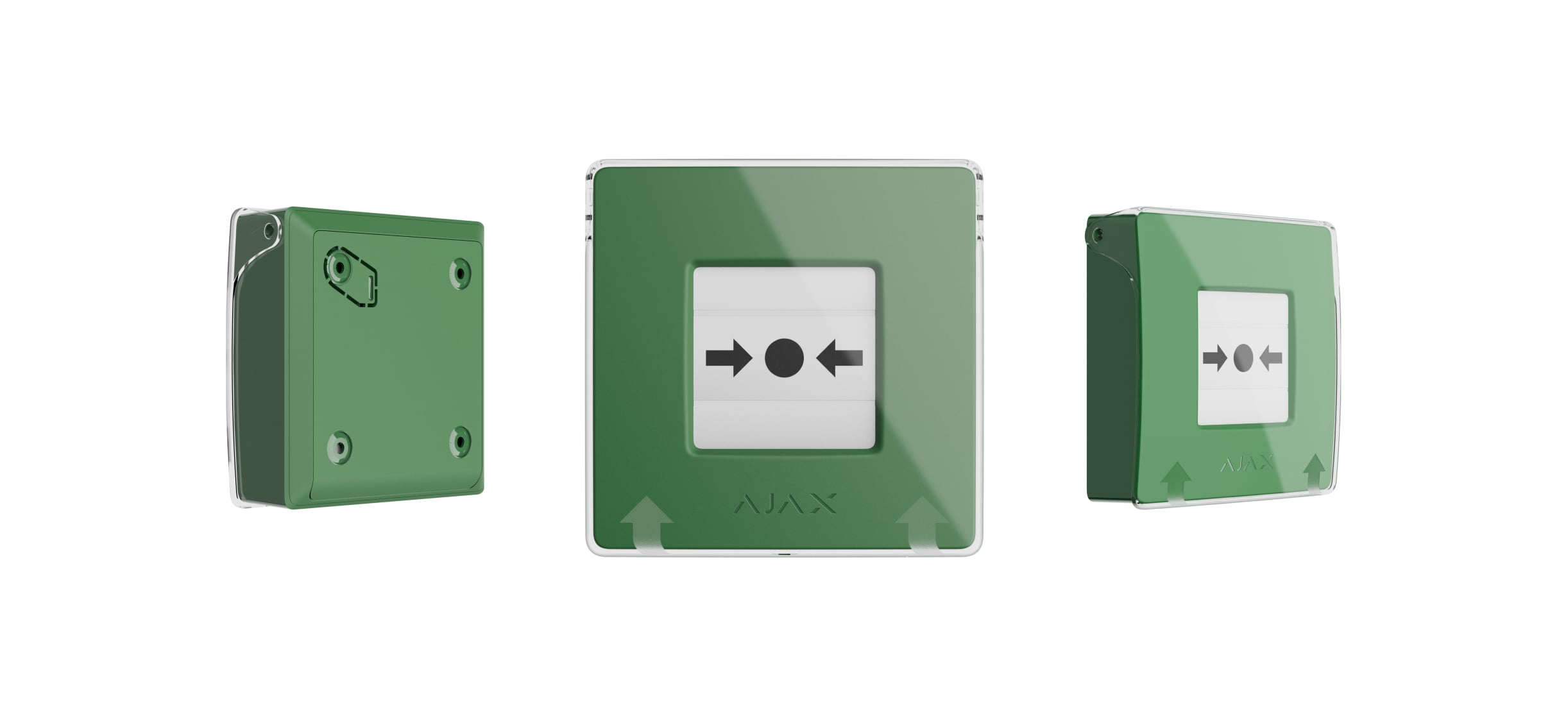

ManualCallPoint (Green) Jeweller

Wireless resettable button featuring programmable scenarios. Green-colored version.

ManualCallPoint (Green) Jeweller

Devices compatibility

Check

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration in the Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the region of sale.

Maximum effective radiated power (ERP)

up to 25 mW

Automatic power control to reduce power consumption and noise interference.

Radio signal modulation

GFSK

Radio signal range

up to 5,500 ft

Between button and hub (or range extender) in an open space.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

Radio communication uses frequency hopping to prevent interception and jamming.

Key features

Resettable frangible element

activates the button

When the central part (frangible element) is pressed, the button depresses inward, initiating a scenario or triggering an alarm. Two yellow stripes appear at the top and bottom, indicating the device's state.

Operating modes

scenario trigger
fire alarm

With appropriate settings, it controls Ajax automation devices or activates an alarm.

LED status indication

The LED indicator on the device enclosure lights up when the button is activated, or malfunctions are detected.

Interconnected fire detectors alarms

by pressing the button

By pressing the frangible element, fire detectors in the system trigger the built-in sirens.

Critical alerts

The system can activate intrusion sirens and send audible alarm notifications to users, even if the sound is muted, the Do Not Disturb mode is on, or headphones are connected.

Protection against accidental presses

Lift the transparent lid to access the frangible element. The lid protects against false button presses.

Alarm transmission to CMS

disabled by default

Recommendations

The ManualCallPoint button is available in several versions.

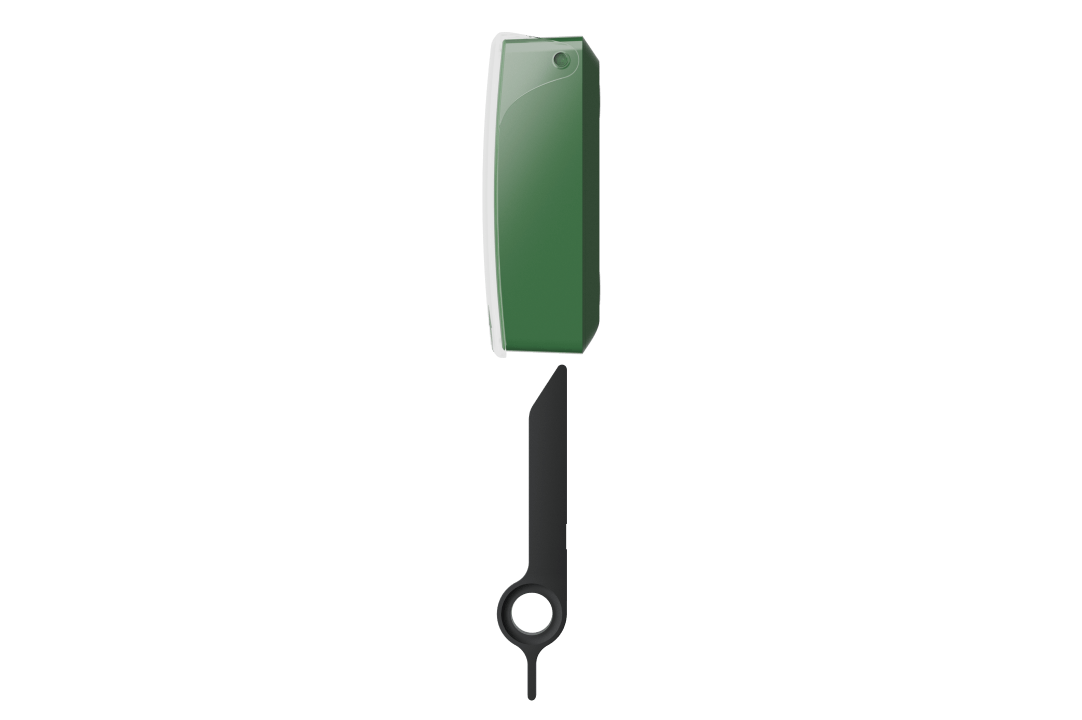

Special tool (key)

Button reset

after pressing

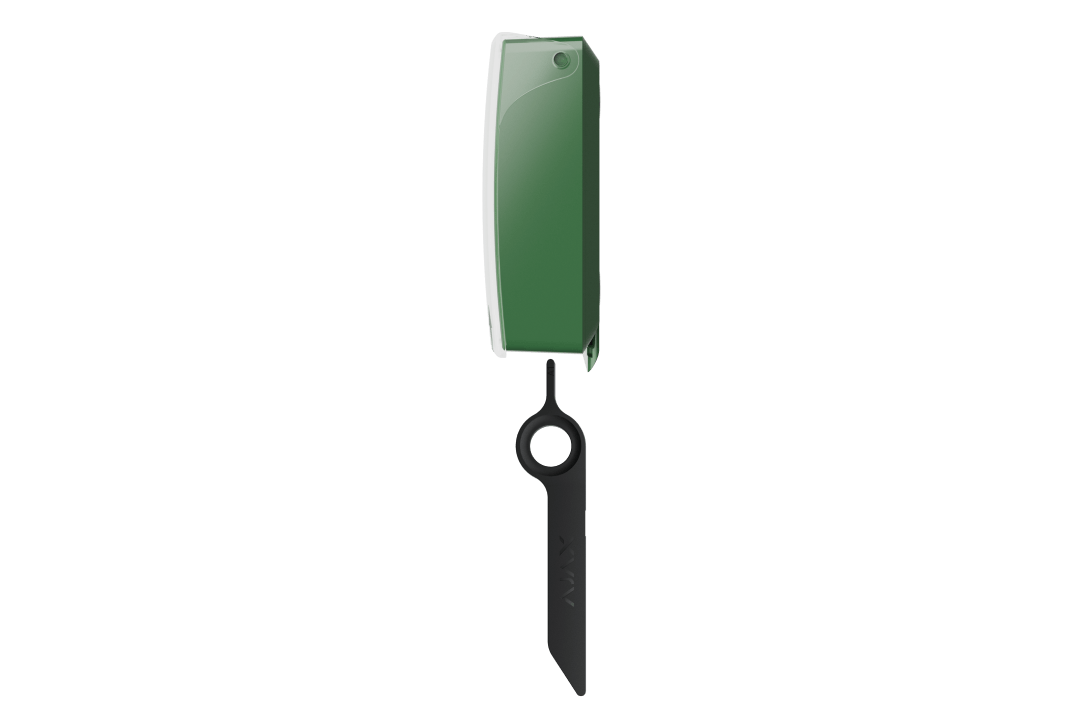

To reset the button, insert the special tool into the corresponding hole.

Hole in the enclosure

to hang on a ring from a keychain

The person responsible for fire safety can carry the special tool on their keychain.

Convenient dismantling

The special tool opens the lock to dismantle the device from SmartBracket mounting panel.

Recommendations

It is recommended to install the button in easily accessible places at a height of 1.4 m.

The device is designed for indoor installation only.

Sabotage protection

Tamper alarm

Notifies on attempts to detach the button from the surface or remove it from the mounting panel.

Protection against spoofing

device authentication

Communication loss detection

after 36 s

The detection time depends on the Jeweller or Jeweller/Fibra settings.

Power supply

Batteries

2 × CR123A

Pre-installed. With typical use (one press lasting 1 minute per week), the batteries can last up to 7 years.

Enclosure

Dimensions

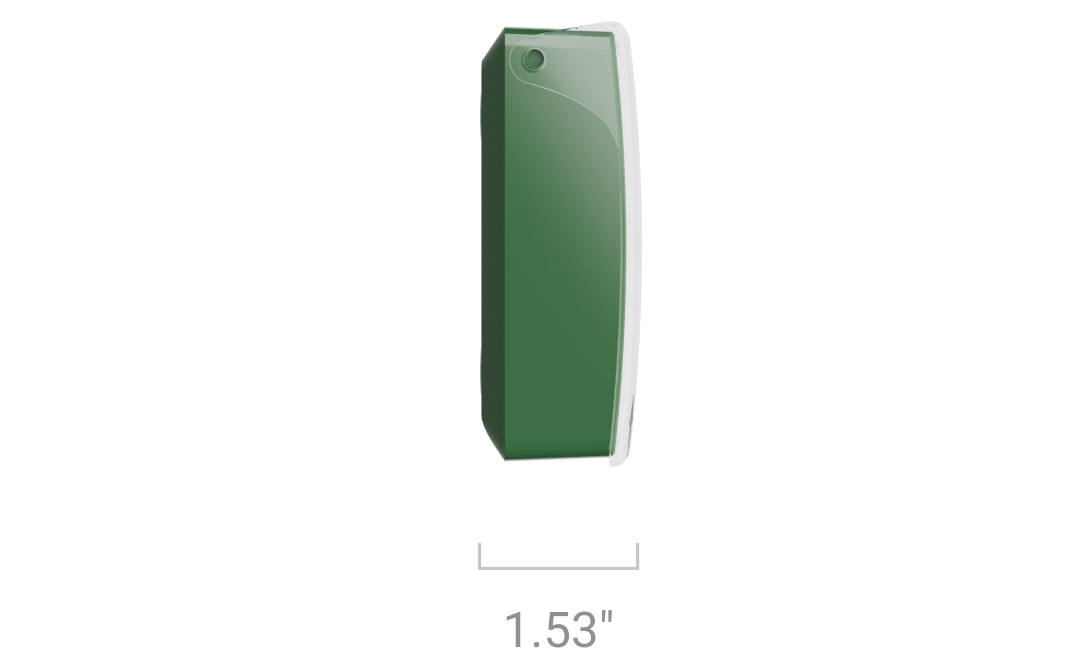

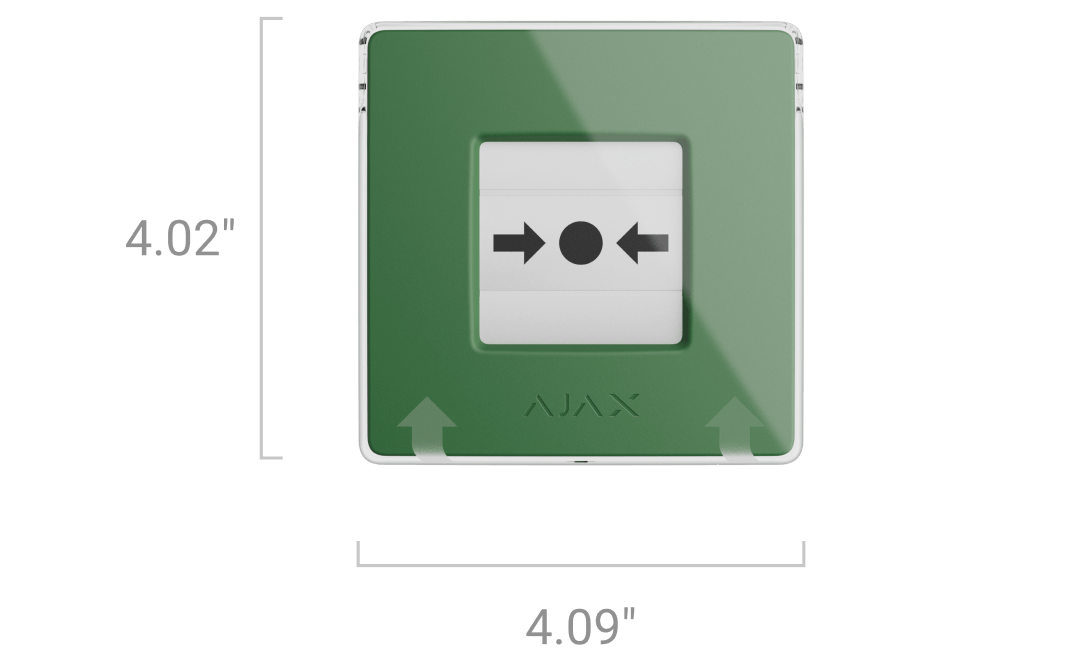

4.02″ × 4.09″ × 1.53″

Weight

7.55 oz

Operating temperature range

from 32 °F to 122 °F

Operating humidity

up to 80%

ttx
ttx

Complete set

ManualCallPoint (Green) Jeweller

SmartBracket mounting panel

Special tool (key)

2 × CR123A battery (pre-installed)

Installation kit

Quick start guide

Certification and compliance with standards

ManualCallPoint (Green) Jeweller

ManualCallPoint (Green) Jeweller

Radio Equipment Directive (RED)

Certificate issued by MiCOM Labs

  • EN 300 220-1 V3.1.1
  • EN 300 220-2 V3.2.1

Restriction of Hazardous Substances Directive (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018

Electromagnetic Compatibility Directive (EMC)

Certificate issued by MiCOM Labs

  • EN 301 489-1 V2.2.3
  • EN 301 489-3 V2.1.1

Low Voltage Directive (LVD)

Certificate issued by MiCOM Labs

  • EN IEC 62311:2020
  • EN IEC 62368-1:2020+A11:2020

FCC ID

Certificate issued by MiCOM Labs

2AX5VMCPRNA1

PSTI UK

Schedule 1
