Tech specs
MotionCam Jeweller
Wireless IR motion detector supporting photo by alarm feature
Devices compatibility
CheckCommunication
Jeweller communication technology
Proprietary wireless communication technology to transmit alarms and events.
It features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote configuration via the Ajax apps.
Frequency bands
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP)
up to 20 mW
Radio signal modulation
GFSK
Radio signal range
up to 5,600 ft
Between detector and hub or range extender in an open space.
Encrypted communication
All the data stored and transmitted are protected by block encryption with a dynamic key.
Radio frequency hopping
Radio communication uses frequency hopping to prevent interception and jamming.
Wings communication technology
Proprietary wireless communication technology to transmit photo verifications.
It features:
- Two-way communication.
- Block encryption featuring a dynamic key.
- Advanced anti-sabotage.
- Data package reloading in case of transmission errors.
- Photo delivery check.
Frequency bands
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the sales region.
Radio signal range
up to 5,600 ft
Between detector and hub or range extender in an open space.
Encrypted communication
All the data stored and transmitted are protected by block encryption with a dynamic key.
Radio frequency hopping
Radio communication uses frequency hopping to prevent interception and jamming.
Detection
Sensitive element
1 × PIR sensor

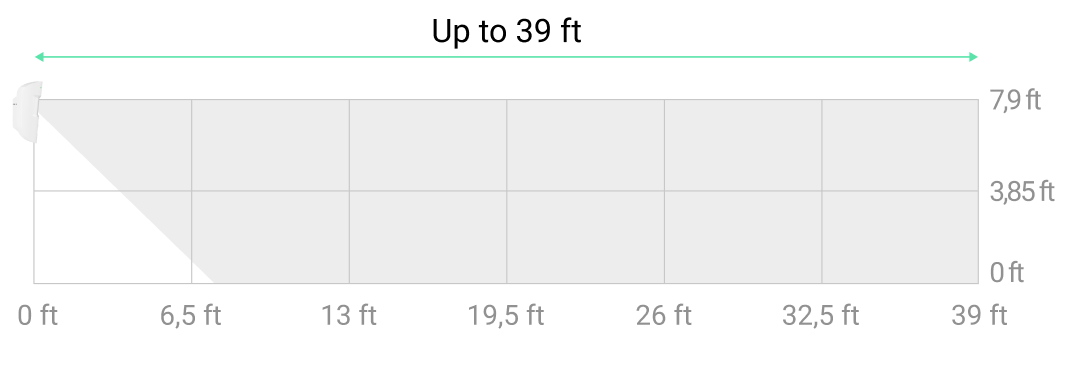

Motion detection distance
up to 39 ft
When installed at a height of 8 ft.
Motion detection angles
horizontal — 88.5°
vertical — 80°
Motion detection speed
from 1 to 6.6 ft/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity
3 levels
Adjusted by PRO or user with admin rights in the Ajax app.
Pet immunity
weight: up to 44 lb
height: up to 1.6 ft
False alarm prevention
SmartDetect
Software algorithm.
Temperature compensation
Effective motion detection at temperatures from 14°F to 104°F.
Photo verification
Photo by alarm
A built-in camera is activated if the detector is armed, and motion is detected.
Photo resolution
640 × 480 px
320 × 240 px (by default)
160 × 120 px
Adjusted by PRO or user with admin rights in the Ajax app.
IR backlight
For night photography and low light conditions.
Pictures in a series
from 1 to 5 images with resolution of 320 × 240 px or 160 × 120 px
from 1 to 3 images with resolution of 640 × 480 px
Adjusted by PRO or user with admin rights in the Ajax app.
Photo delivery time
up to 7 s — 160 × 120 px resolution
up to 9 s — 320 × 240 px resolution
up to 20 s — 640 × 480 px resolution
When the hub is connected via Ethernet or 4G and the Wings signal strength between hub and device is 2–3 bars. Photo delivery time when the detector is connected via range extender is available here.
Recommendations
It is recommended to install the detector at a height of 8 ft.
Device is designed for indoor use only.
Anti-sabotage protection
Tampering alarm
Alerts of attempts to detach the detector from the surface or remove it from the mounting panel.
Protection against forgery
device authentication
Communication loss detection
within 36 s
Detection time depends on the Jeweller or Jeweller/Fibra settings.
Power supply
2 × CR123A battery
Up to 4 years of battery life.
Enclosure
Dimensions
5.31″ × 2.75″ × 2.36″
Weight
5.89 oz
Operating temperature range
from 14°F to 104°F
Operating humidity
up to 75%
Protection class
IP50
Colour
Black
White
Complete set
MotionCam Jeweller
SmartBracket mounting panel
Installation kit
2 × CR123A battery (pre-installed)
Quick Start Guide
Certification and compliance with standards
MotionCam Jeweller
MotionCam Jeweller
Compliance with the security alarm standards
EN 50131-1:2006 / A1:2009 / A2:2017
EN 50131-2-2:2017
EN 50131-6:2017
EN 50131-5-3:2017
PD 6662:2017*
Security Grade (SG)
2
Radio Equipment Directive (RED)
EN 300 220-1 V3.1.1
EN 300 220-2 V3.2.1
Restriction of Hazardous Substances Directive (RoHS)
EN IEC 63000:2018
Electromagnetic Compatibility Directive (EMC)
EN 301 489-1 V2.2.3
EN 301 489-3 V2.1.1
Low Voltage Directive (LVD)
EN 62479:2010
EN 62368-1:2014+A11:2017
Environmental class according to EN 50131
II
FCC ID
2AX5VMOTCAM-NA
2AX5VMOTCAMJ1
IC ID
26860-MOTCAMNA1
26860-MOTCAMJ1
CSA
ANSI/UL 62368-1:19
CSA C22.2 No. 62368-1:19
Standard for Intrusion-Detection Units
UL 639
ULC S306 (Canada)
Household Burglar-Alarm System Units
UL 1023
Commercial Premises Security Alarm Units and Systems
UL 2610
Standard for Control Units, Accessories and Receiving Equipment for Intrusion Alarm Systems
ULC S304 (Canada)
PSTI UK
Schedule 1
