United StatesTech specs
Outlet (LAN)

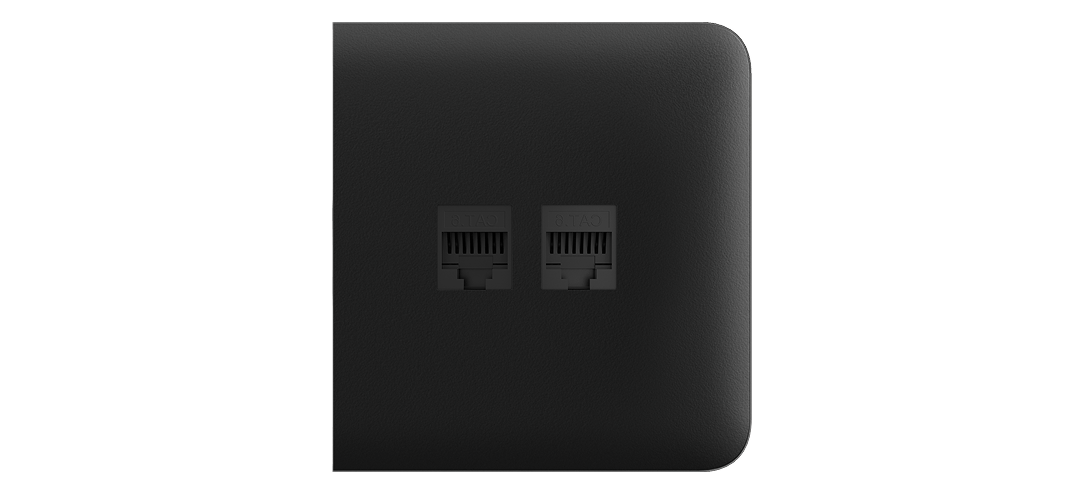

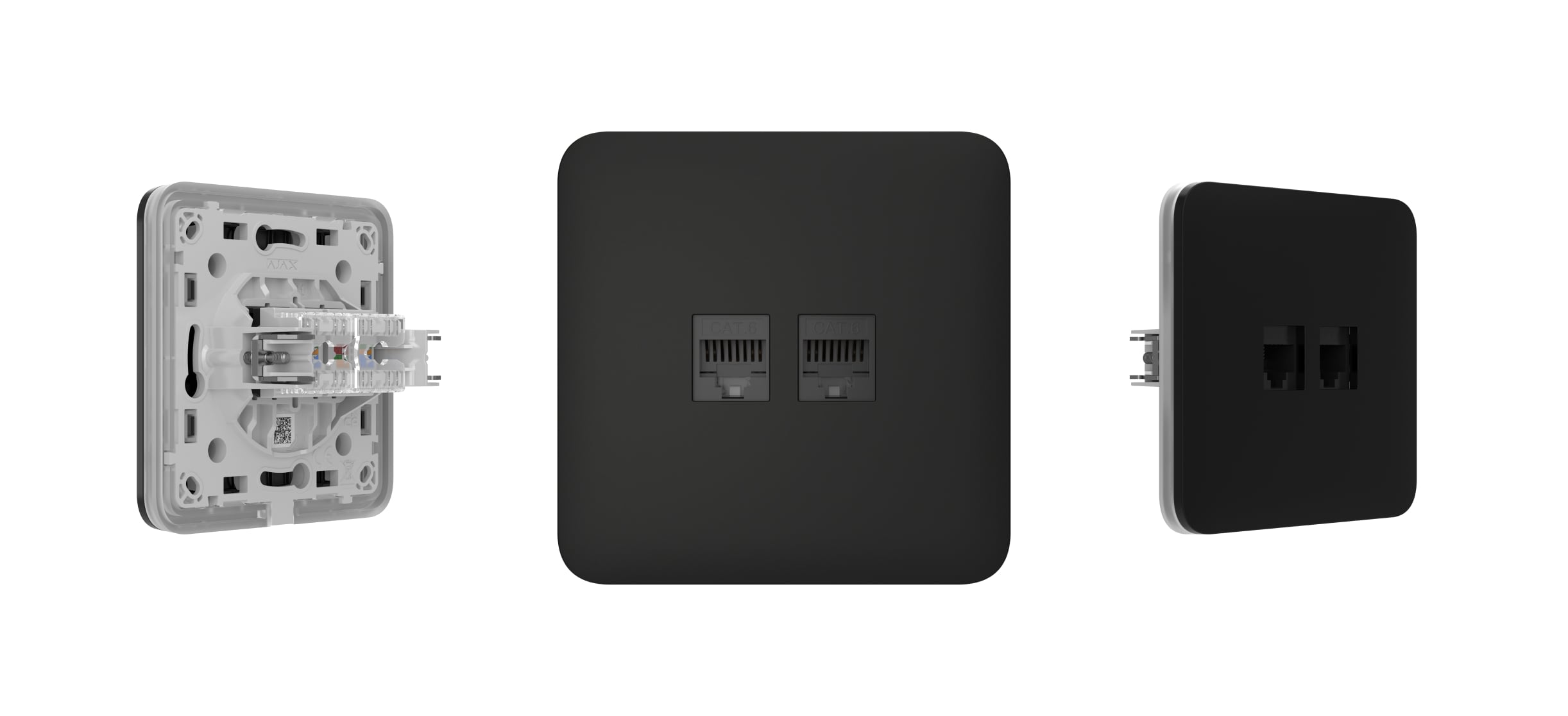

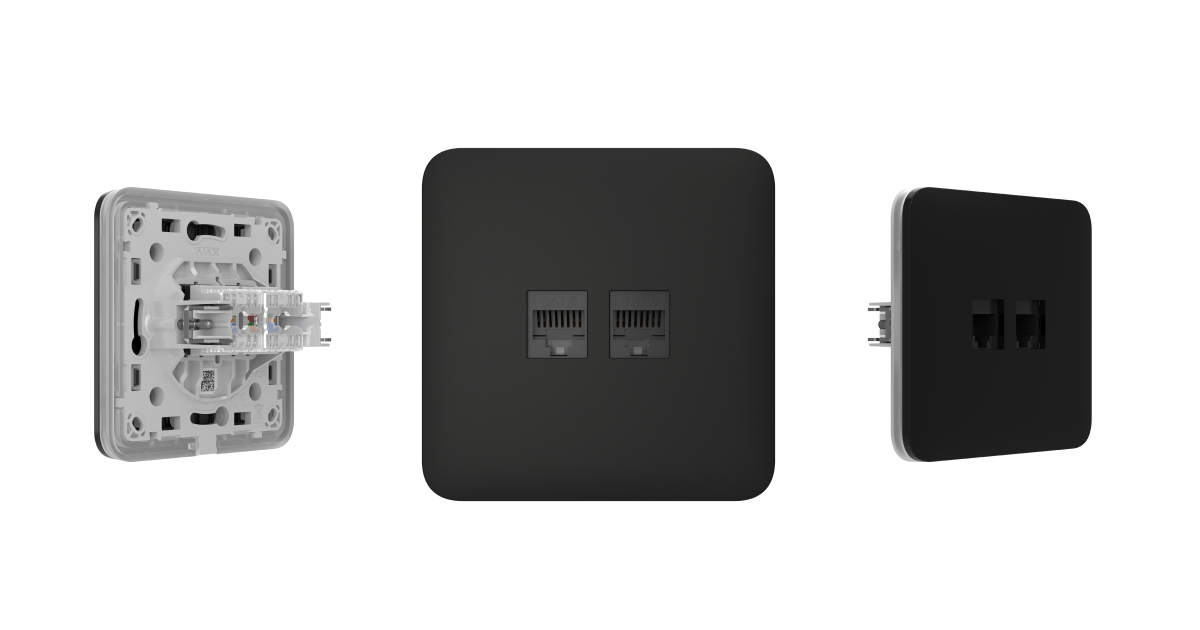

Ethernet wall outlet with two ports
Components
Core

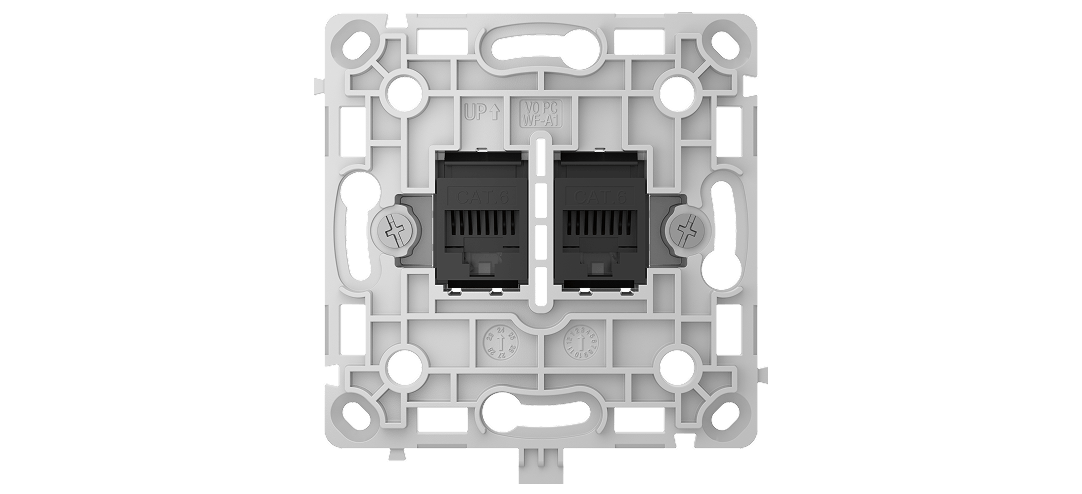

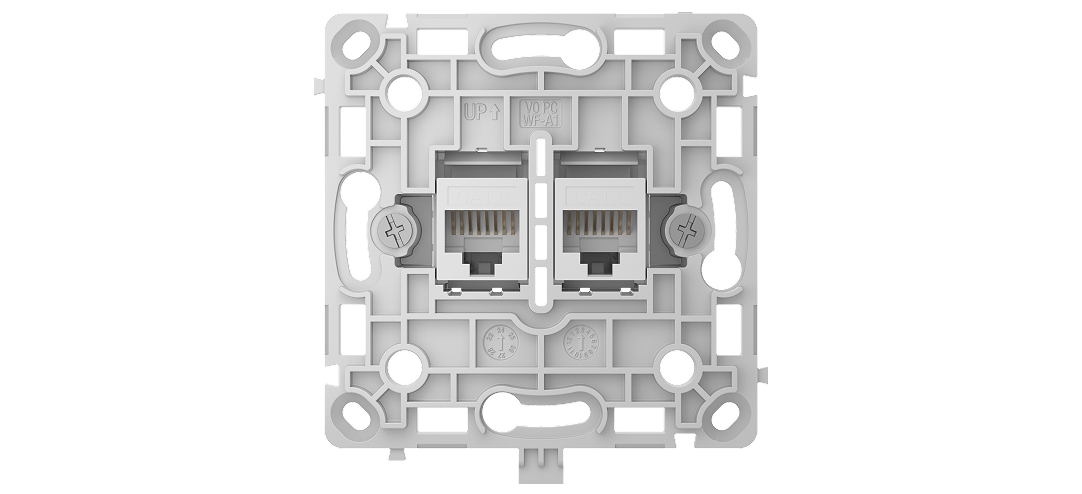

OutletCore (LAN) [55]
OutletCore (LAN) vertical [55]
Covers

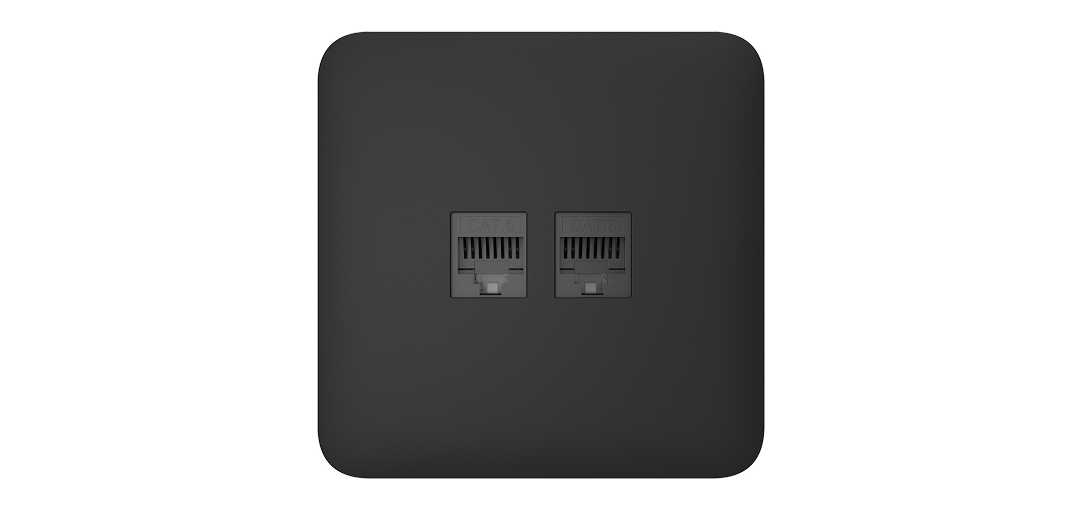

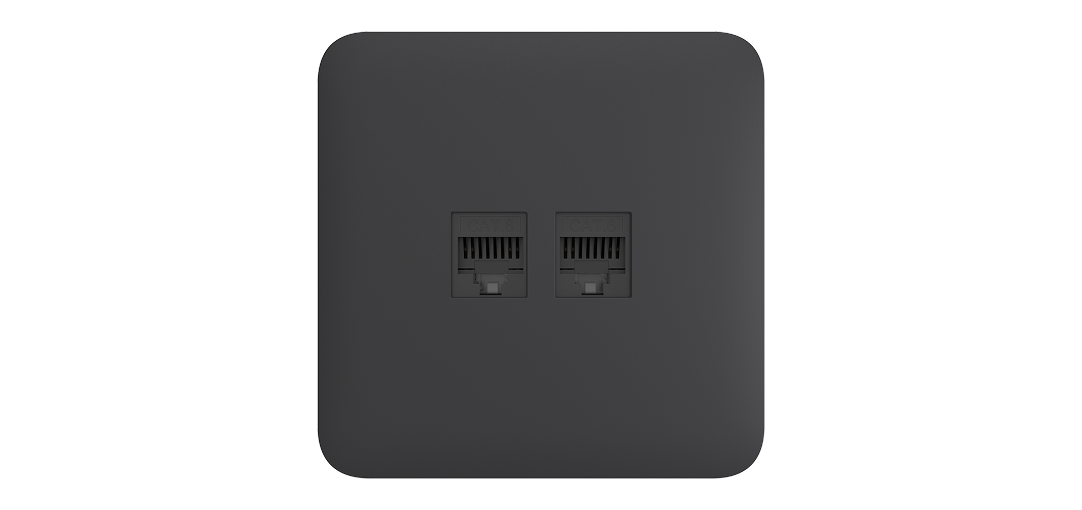

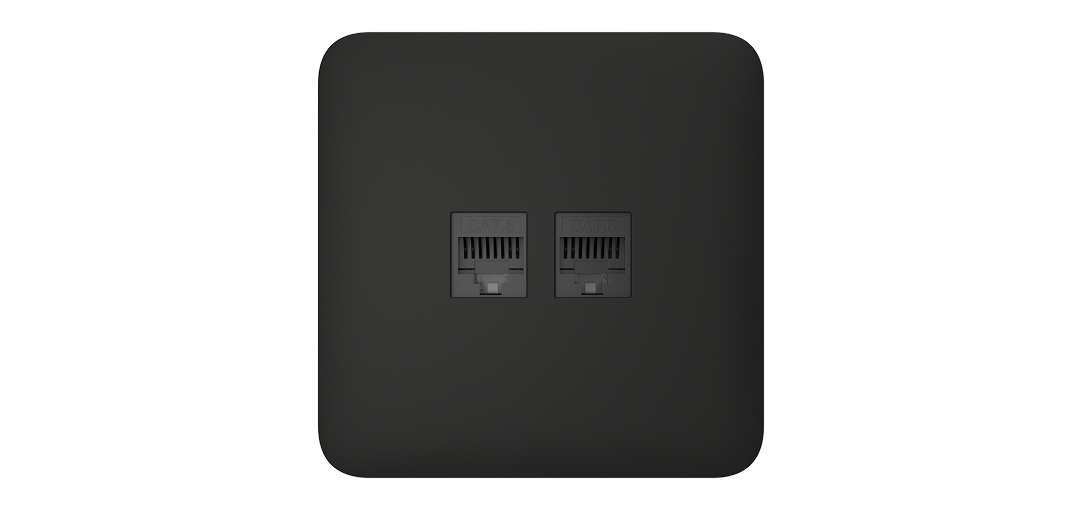

SoloCover (LAN)
Used when the outlet is installed as a separate device.
SideCover (LAN)
Used when the outlet is installed on the right or left side of a device set.

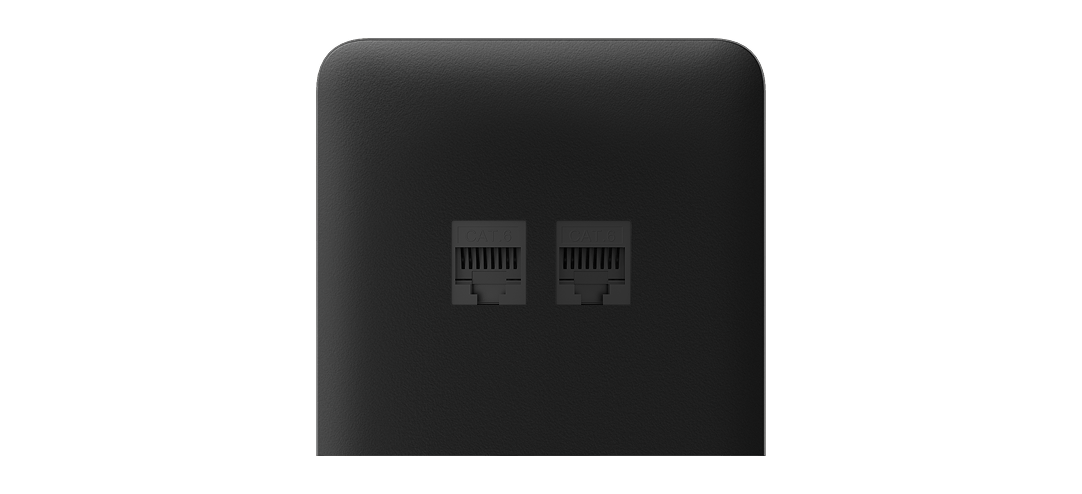

SideCover (LAN) vertical
Used when the outlet is installed on top or bottom of a device set.

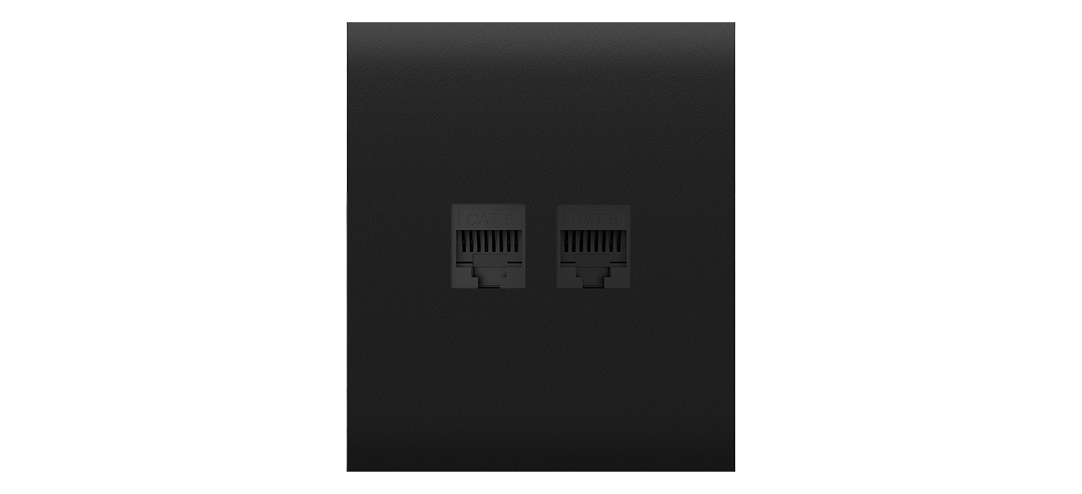

CenterCover (LAN)
Used when the outlet is installed between devices in a set. For horizontal installation.
CenterCover (LAN) vertical
Used when the outlet is installed between devices in a set. For vertical installation.
Frames
Frames for two, three, four, and five Ajax outlets and switches in any combination*.
Frame (2 seats)
Frame (3 seats)
Frame (4 seats)
Frame (5 seats)
Frame (2 seats) vertical
Frame (3 seats) vertical
Frame (4 seats) vertical
Frame (5 seats) vertical
* Combinations that include smart outlets are available only in a horizontal orientation.
Configuration
Single outlet
Outlet (LAN) is installed as a separate device.

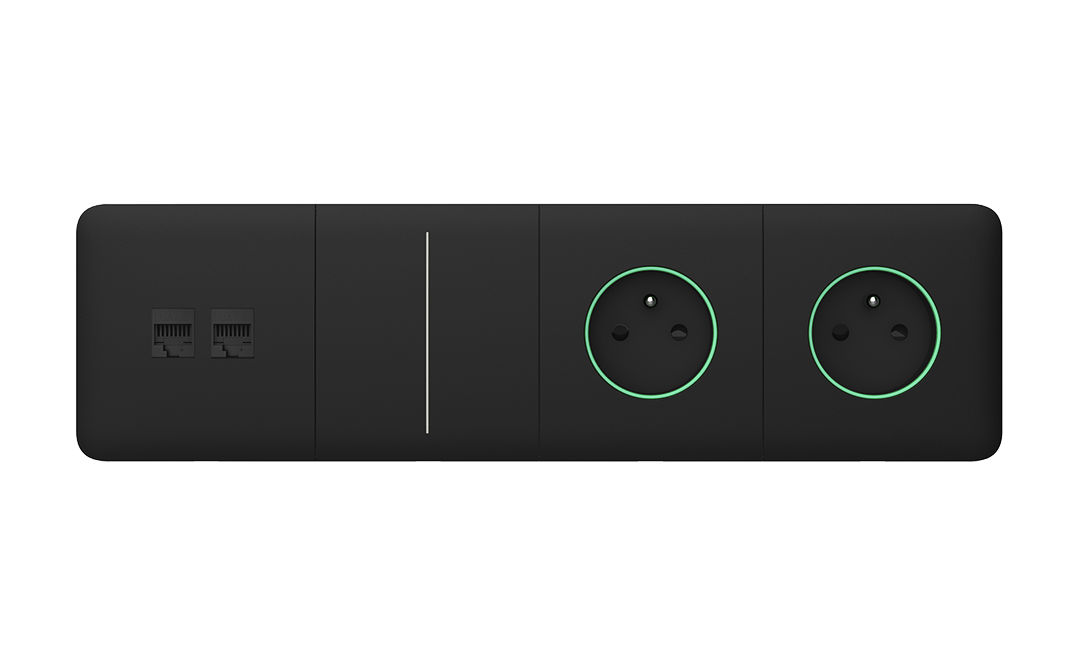

Combined outlet
Outlet (LAN) is installed alongside Ajax outlets and/or LightSwitch switches within a Frame.
Cover colors
Black
RAL 9005
Graphite
RAL 7024

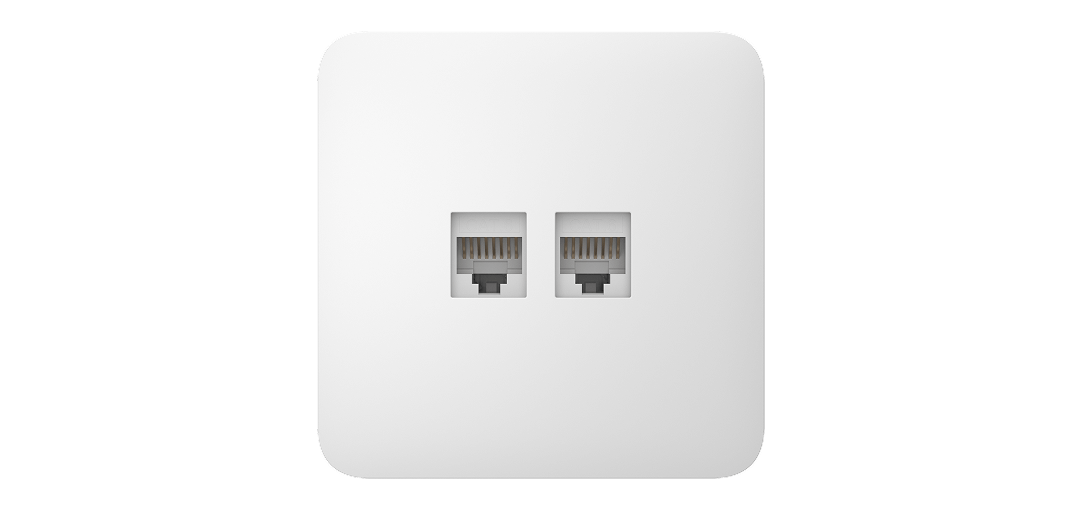

White
RAL 9003

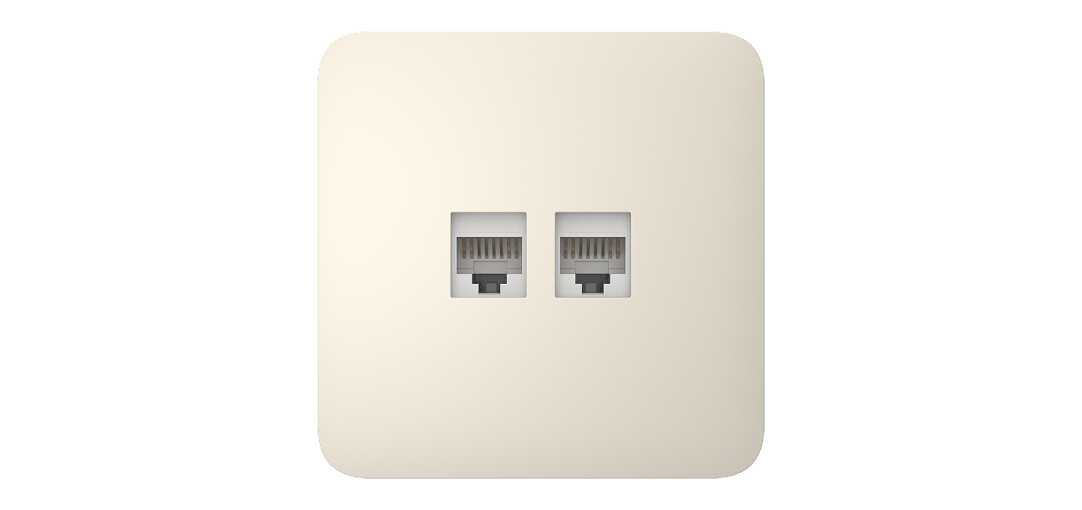

Ivory
RAL 1013

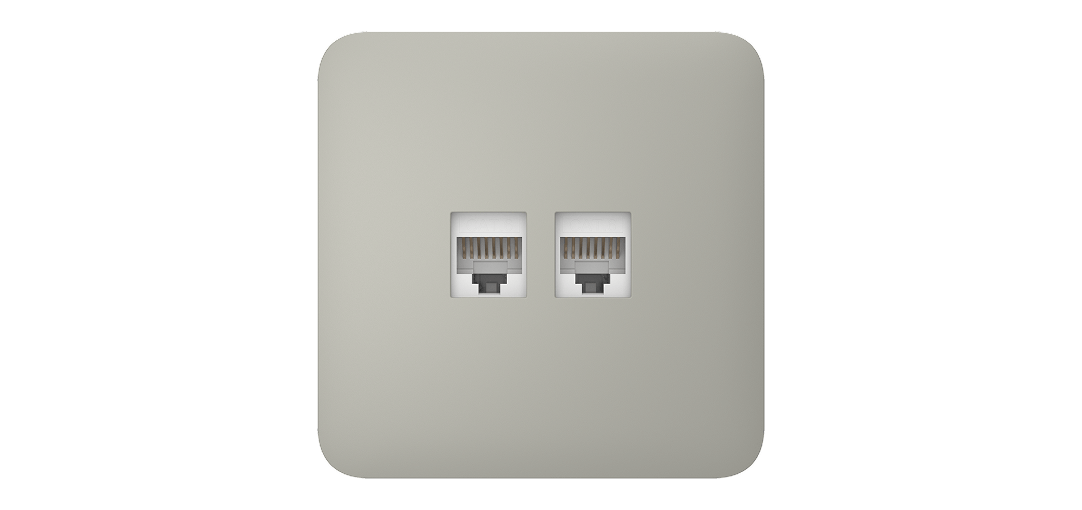

Fog
RAL 7047
Oyster
RAL 9002
Grey
RAL 7004
Olive
RAL 7044
The RAL colors provide an approximate representation of the actual color. Therefore, slight variations may occur. Please use them only as a reference when selecting a color.
Core colors
Black
White
Recommendations
The device is designed for indoor use only and must be installed by a professional electrician.
Key features
Ports
2 × CAT.6 Ethernet ports
Support for data transfer speeds up to 1 Gbit/s over a maximum distance of 328 ft.
Operating parameters
Operating temperature range
from 14 °F to 104 °F
Operating humidity
up to 75% with no condensation
Protection class
IP20

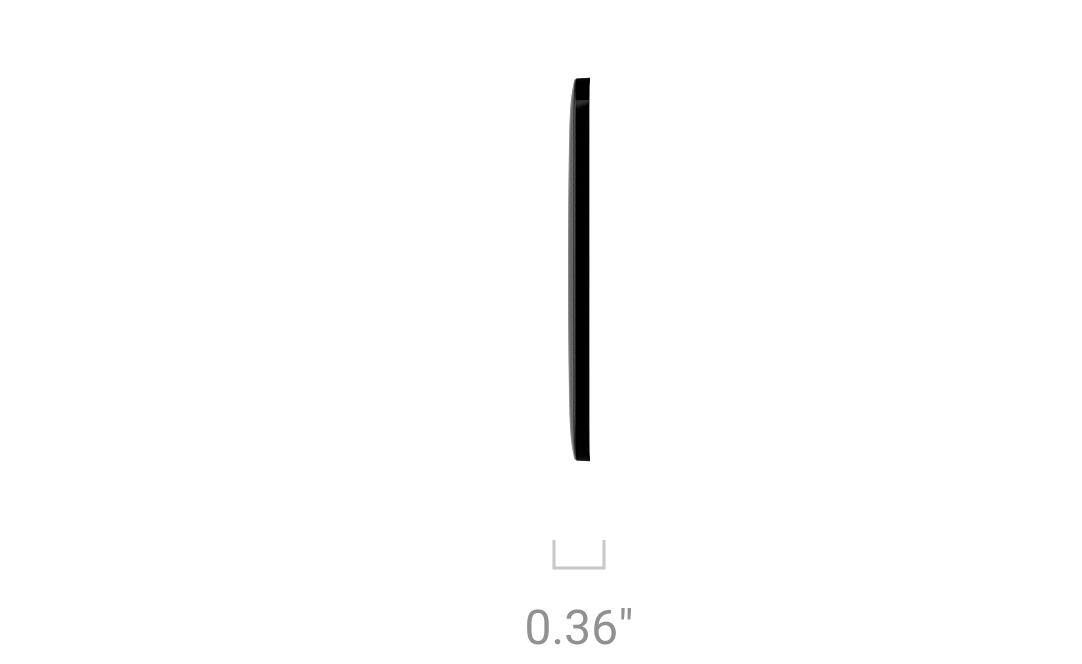

Dimensions

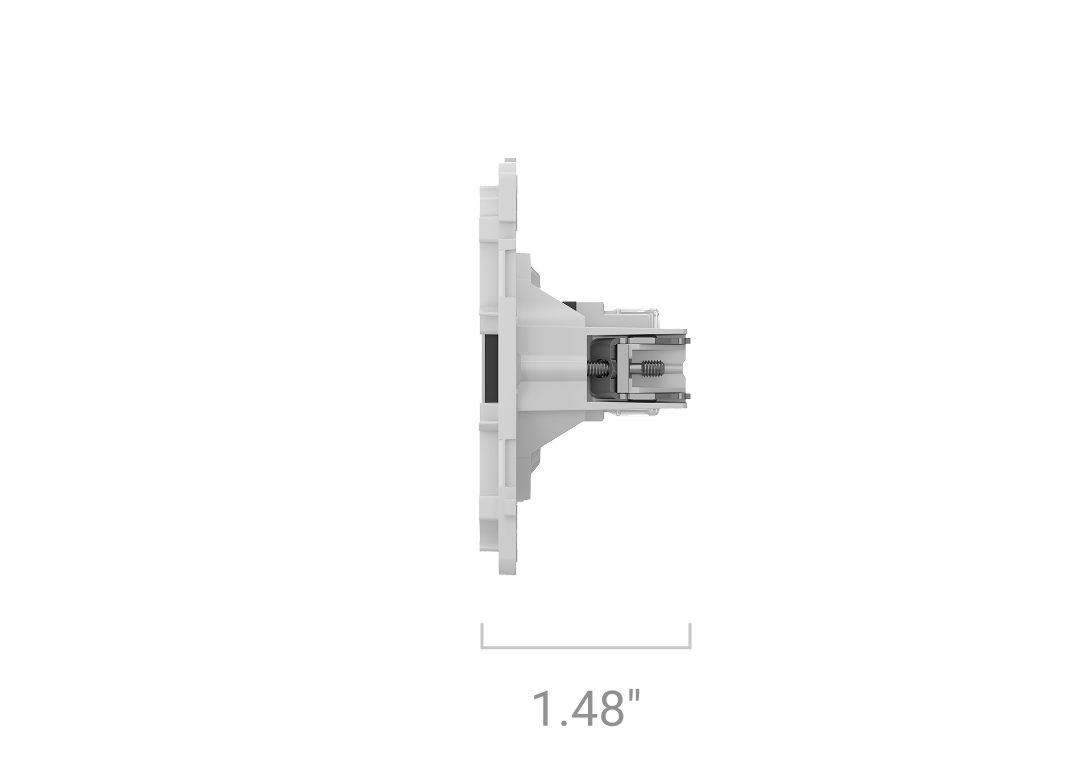

OutletCore (LAN) [55]
3.08" × 2.93" × 1.48"

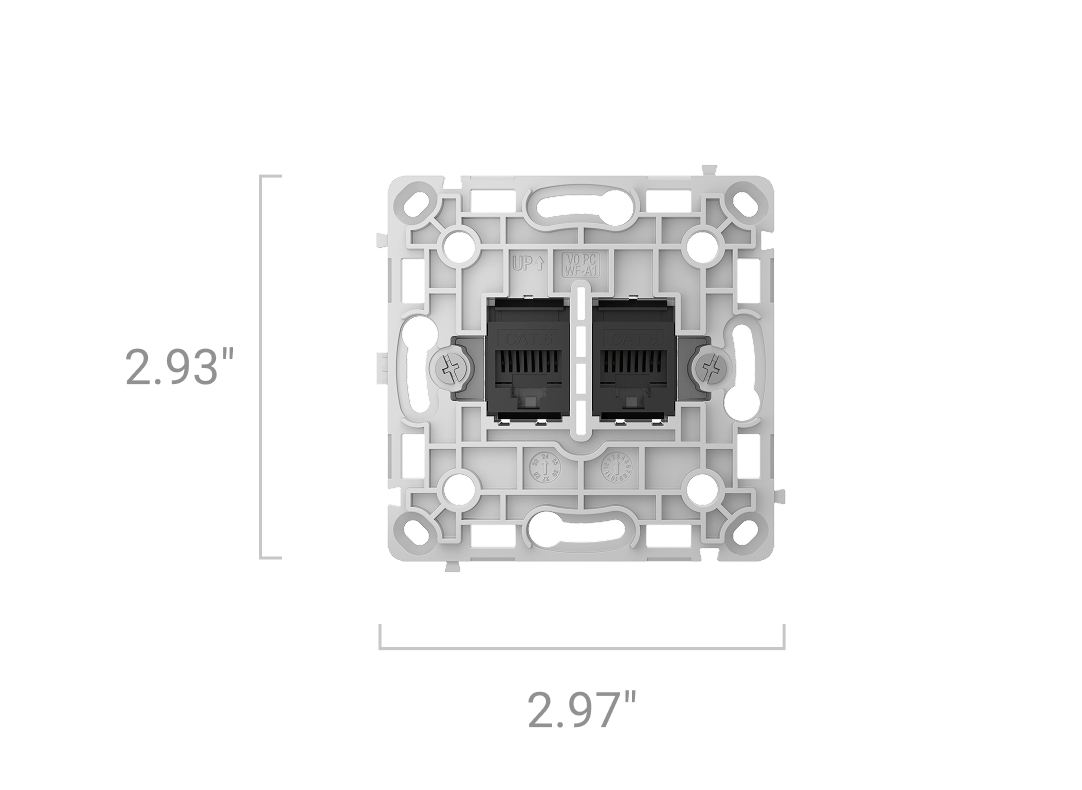

OutletCore (LAN) vertical [55]
2.93" × 2.97" × 1.48"

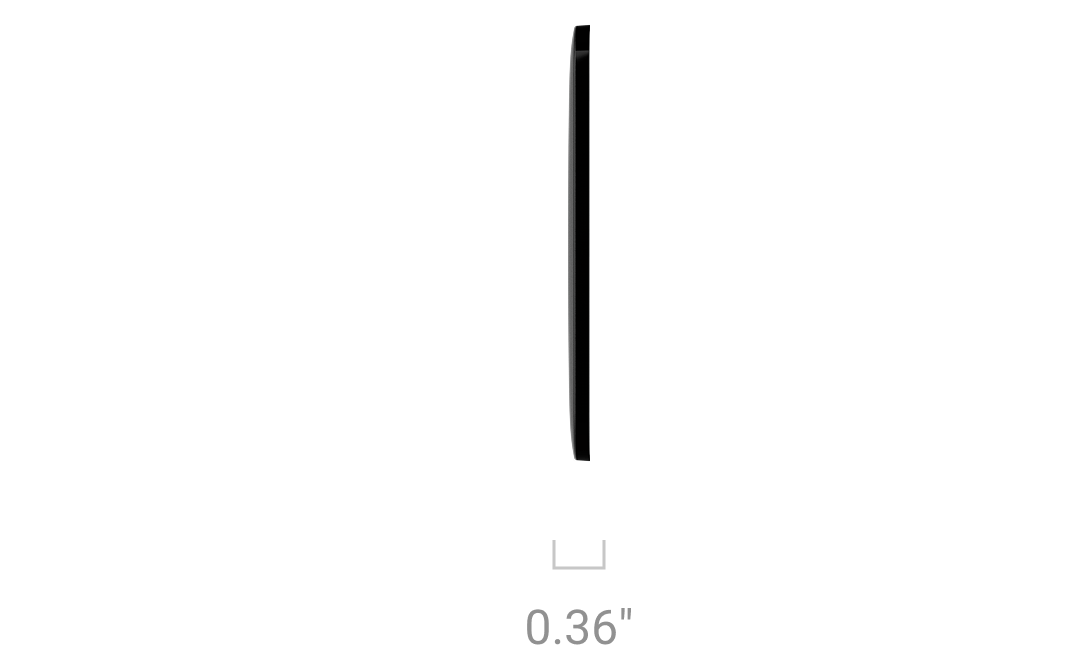

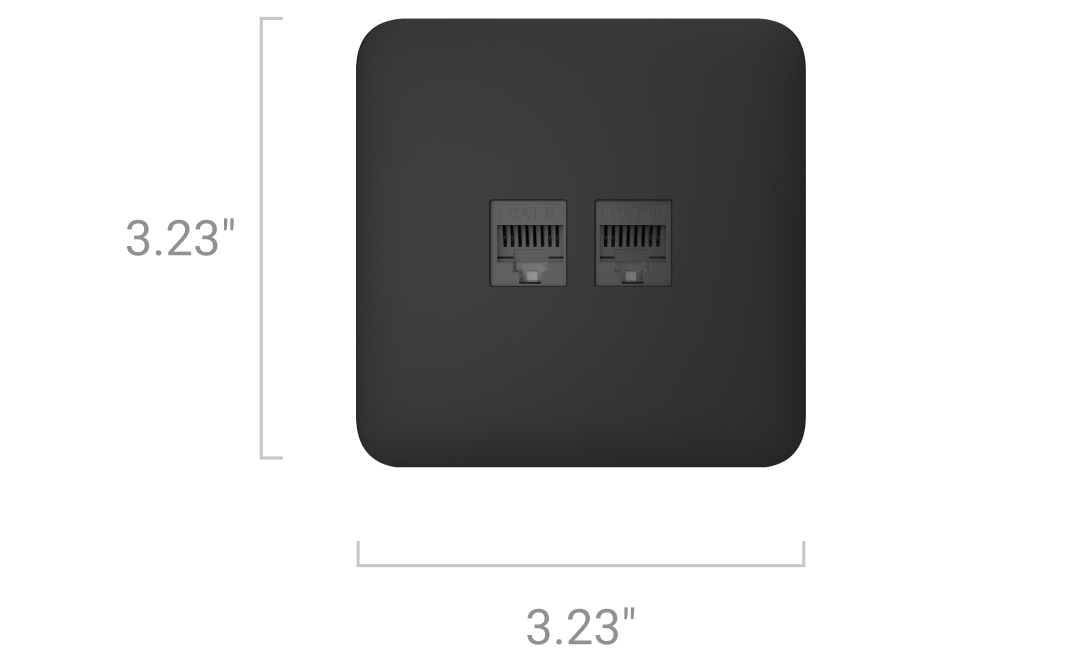

SoloCover (LAN)
3.23" × 3.23" × 0.36"

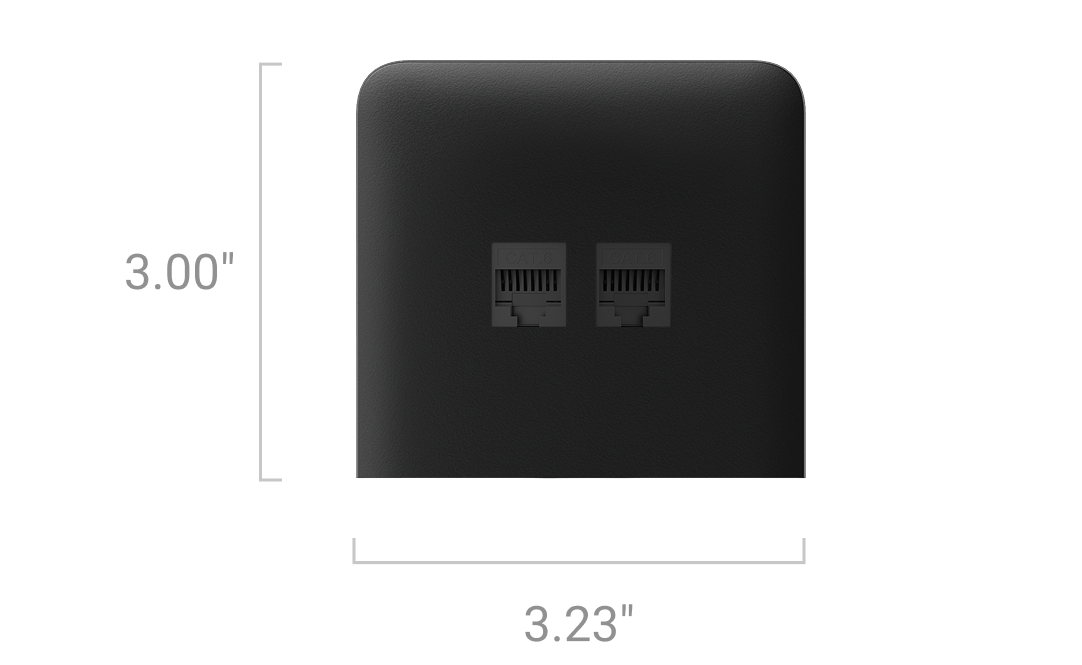

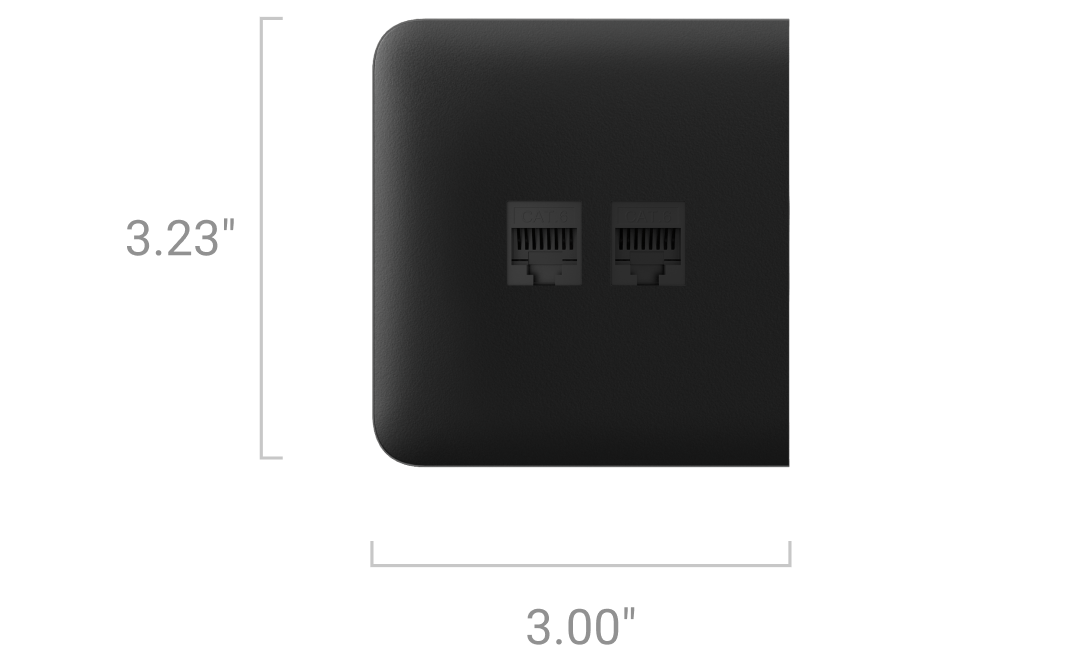

SideCover (LAN)
3.23" × 3.00" × 0.36"
SideCover (LAN) vertical
3.00" × 3.23" × 0.36"

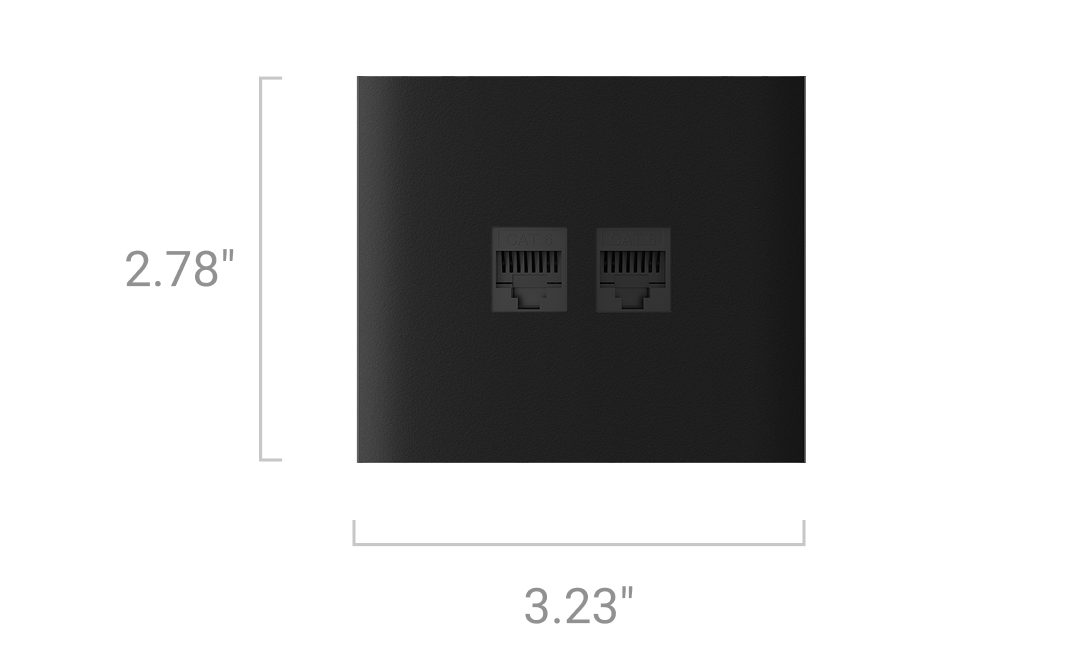

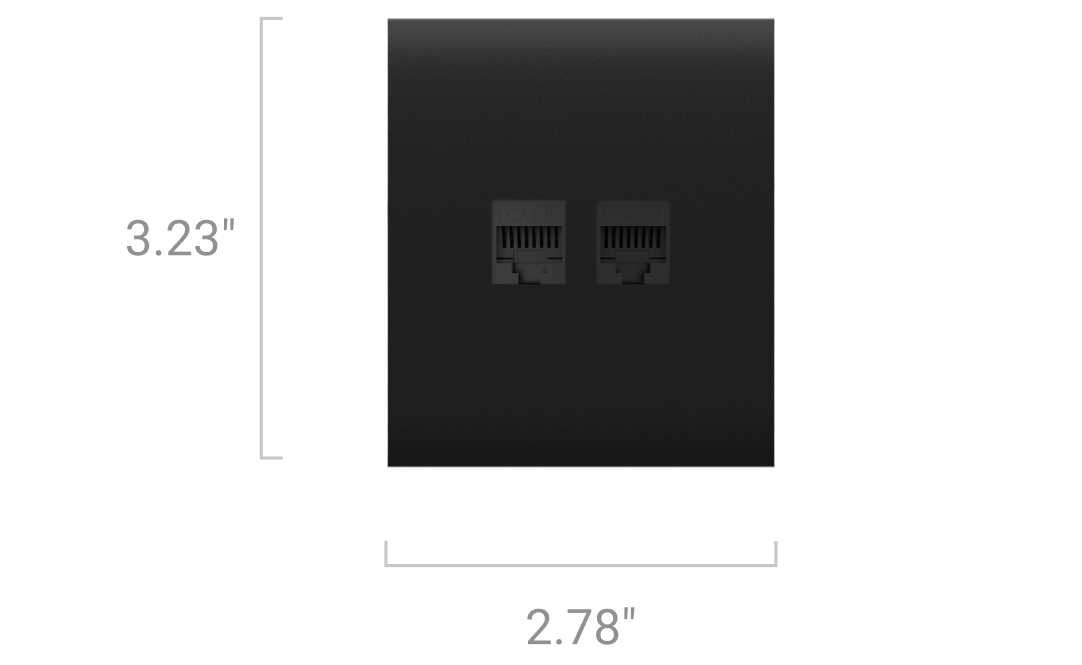

CenterCover (LAN)
3.23" × 2.78" × 0.36"
CenterCover (LAN) vertical
2.78" × 3.23" × 0.36"
Frames
Frame (2 seats) — 3.26" × 6.04" × 0.25"
Frame (3 seats) — 3.26" × 8.84" × 0.25"
Frame (4 seats) — 3.26" × 11.63" × 0.25"
Frame (5 seats) — 3.26" × 14.43" × 0.25"
Frame (2 seats) vertical — 6.04" × 3.26" × 0.25"
Frame (3 seats) vertical — 8.84" × 3.26" × 0.25"
Frame (4 seats) vertical — 11.63" × 3.26" × 0.25"
Frame (5 seats) vertical — 14.43" × 3.26" × 0.25"
Weight
OutletCore (LAN) [55]
1.41 oz
OutletCore (LAN) vertical [55]
1.42 oz
SoloCover (LAN)
0.5 oz
SideCover (LAN)
0.44 oz
SideCover (LAN) vertical
0.42 oz
CenterCover (LAN)
0.42 oz
CenterCover (LAN) vertical
0.41 oz
Frames
Frame (2 seats) — 0.57 oz
Frame (2 seats) vertical — 0.57 oz
Frame (3 seats) — 0.78 oz
Frame (3 seats) vertical — 0.78 oz
Frame (4 seats) — 1 oz
Frame (4 seats) vertical — 1 oz
Frame (5 seats) — 1.2 oz
Frame (5 seats) vertical — 1.2 oz
Complete set
Outlet (LAN) is a prefabricated device. All parts are purchased separately.
