Tech specs

Outlet [type E] Jeweller

Wireless smart wall outlet with power consumption monitor

Outlet [type E] Jeweller

Devices compatibility

Check

Components

Relay

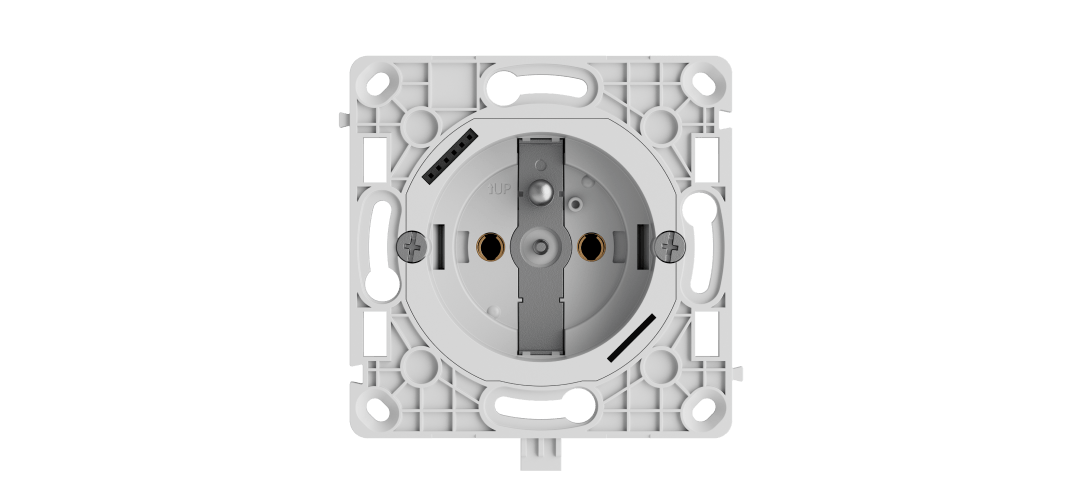

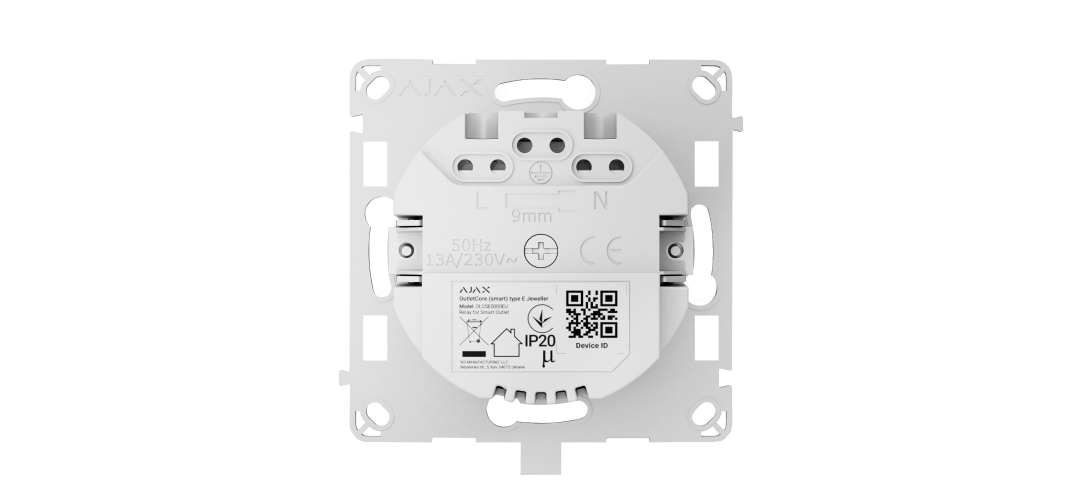

OutletCore (smart) [ type E ] Jeweller

To control the power supply of the outlet.

Cover

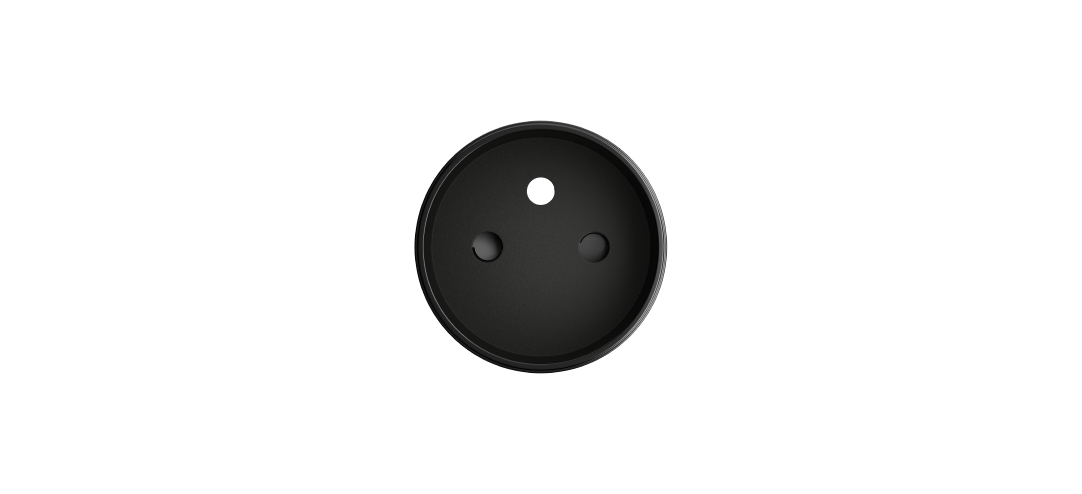

All covers consist of two elements of the same color: the front panel and the receptacle cap.

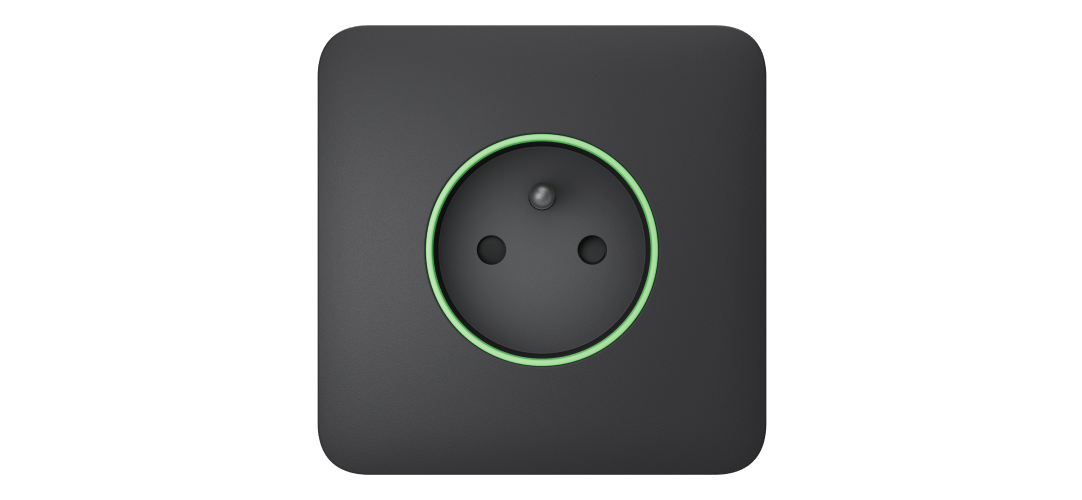

SoloCover (smart) [ type E ]

It is used when the outlet is installed as a separate device.

SideCover (smart) [ type E ]

It is used when the outlet is installed on the right or left of the device set.

СenterCover (smart) [ type E ]

It is used when the outlet is installed between the device set.

Frames

Frames for two, three, four, and five Ajax outlets and switches in any combination.

Frame (2 seats)

frame

Frame (3 seats)

frame

Frame (4 seats)

frame

Frame (5 seats)

frame

Configuration

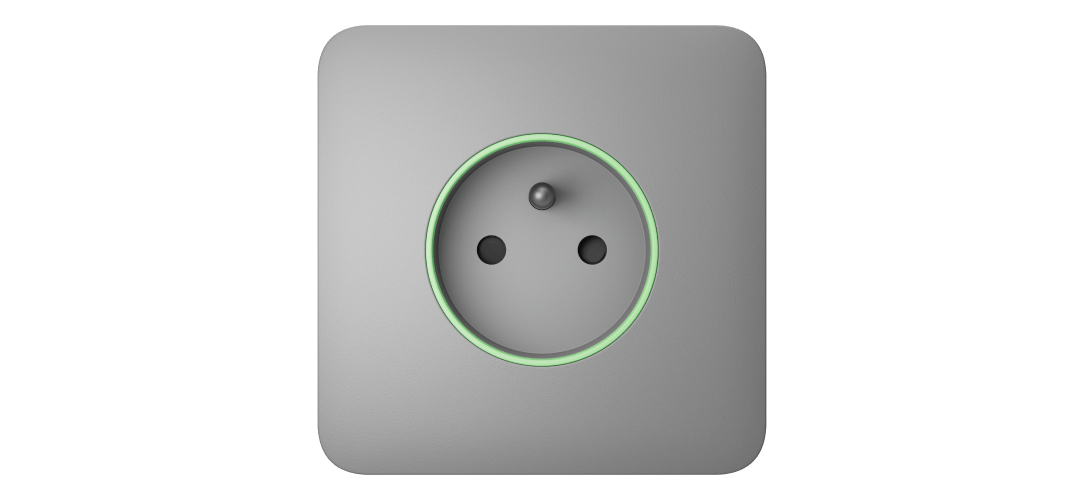

Single outlet

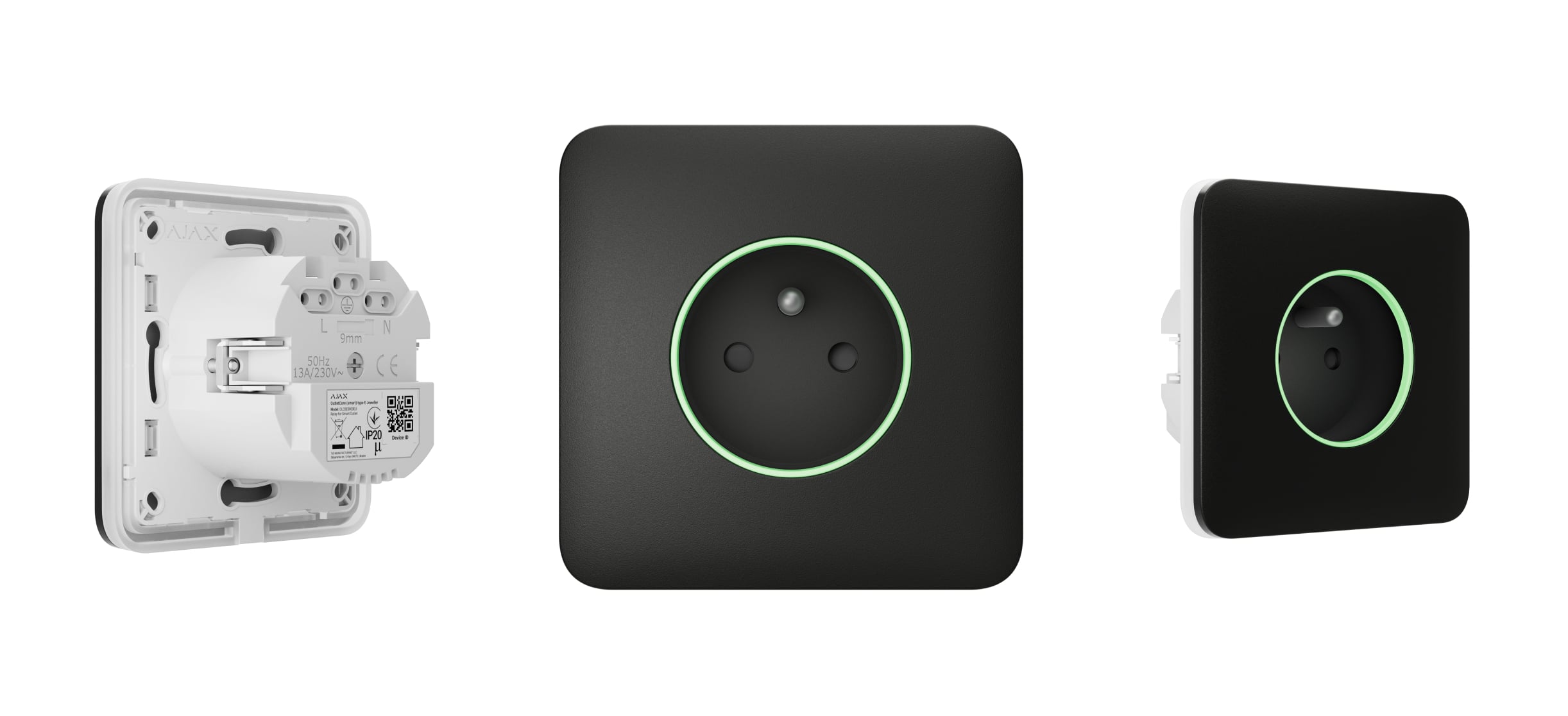

Outlet [ type E ] Jeweller is installed as a separate device.

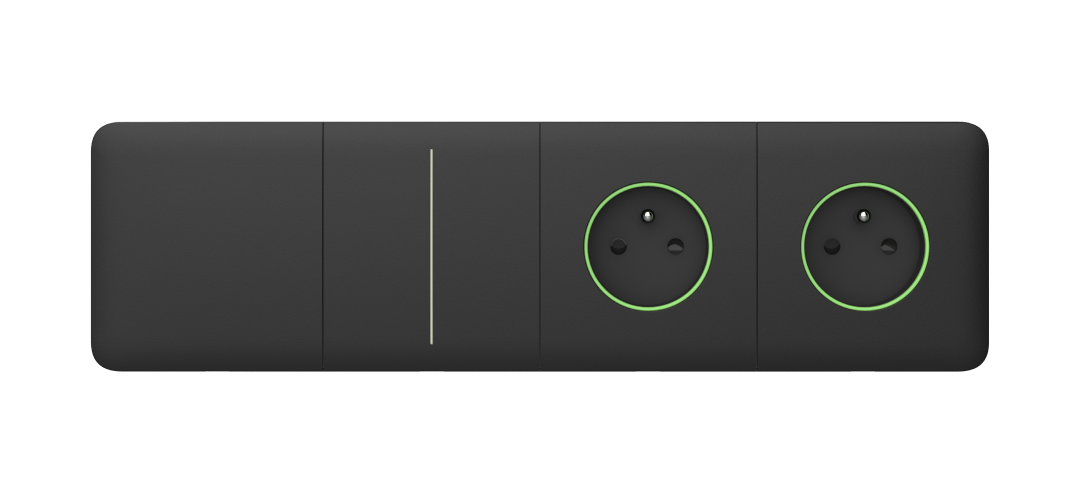

Combined outlet

Outlet [ type E ] Jeweller is combined as a set with Ajax smart outlets and/or LightSwitch switches and installed into Frame side by side.

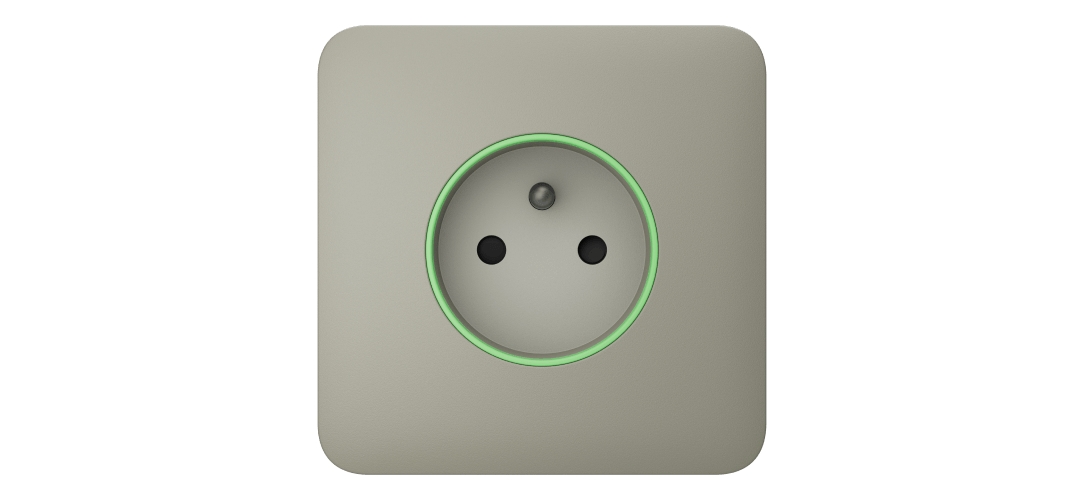

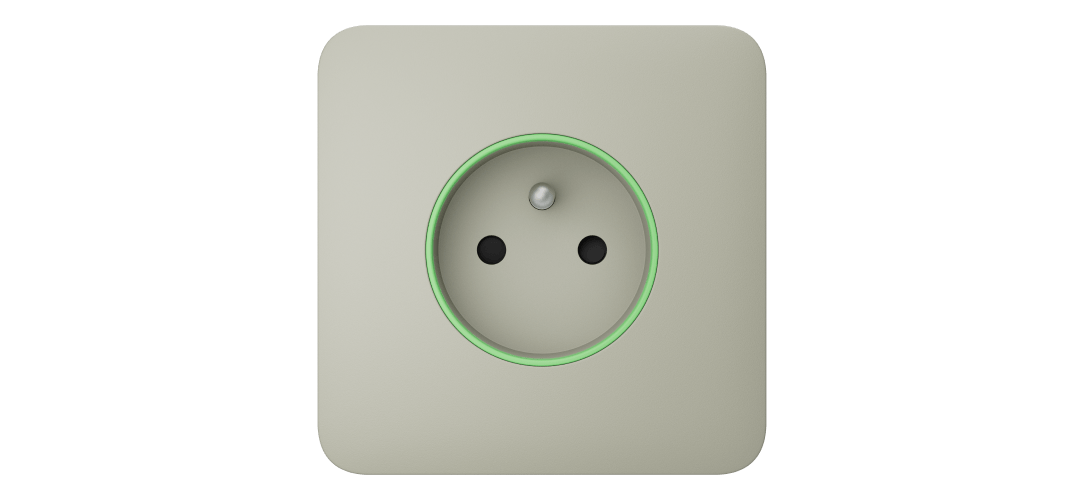

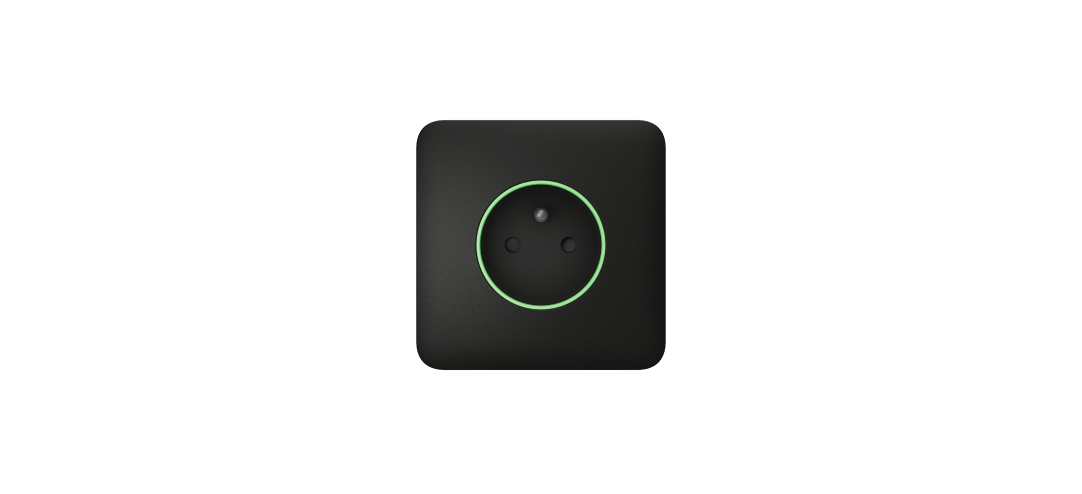

Cover colors

Black

RAL 9005

Graphite

RAL 7024

White

RAL 9003

Ivory

RAL 1013

Fog

RAL 7047

Oyster

RAL 9002

Grey

RAL 7004

Olive

RAL 7044

The RAL colors are as close as an approximation of the actual color. However, they may slightly differ, so please only use them as a guide to the color choice.

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the sales region.

Maximum effective radiated power (ERP)

up to 20 mW

Radio signal modulation

GFSK

Radio signal range

up to 3,600 ft

Between device and hub (or range extender) in an open space.

Encrypted communication

All the data stored and transmitted are protected by block encryption featuring a dynamic key.

Radio frequency hopping

Radio communication uses frequency hopping to prevent interception and jamming.

Key features

Control via smartphone

The user can set up the outlet configurations and receive a detailed event log in the Ajax app.

Automation scenarios

  • security mode change reactions
  • scheduled actions
  • alarm reactions
  • temperature scenarios
  • humidity scenarios
  • CO₂ level scenarios
  • by pressing LightSwitch

Energy consumption monitor

Control of the current, voltage, power consumption, and electric energy consumed by connected appliances. All data is saved to the non-volatile memory and can be reset in the Ajax app.

Shutoff timer

Adjustable timer to turn off the connected appliances after the expired time: from 10 seconds to 2 hours.

Touch button

For manual control of the power supply to plugged-in devices. It can be enabled in the Ajax app.

LED indication

Informs about the outlet’s state and the power consumption of connected appliances with different colors. The brightness of the LED frame can be adjusted or turned off in the Ajax app.

Night backlight

Optional and can be turned off in the Ajax app device settings.

Operation modes

  • pulse
  • bistable

Contact state

normally open

Children protection

The outlet is equipped with special internal shutters. They protect children by preventing them from inserting items like screwdrivers, scissors, or hairpins into the outlet, and also guard against dust and splashes.

Service life

At least 150,000 switches.

Recommendations

The device is designed for indoor use only. A professional electrician should install the device.

Sabotage protection

Protection against spoofing

device authentication

Communication loss detection

after 36 s

Detection time depends on the Jeweller or Jeweller/Fibra settings.

Power supply

Power supply voltage

230 V~, 50 Hz

Average consumption

up to 1.5 W

Output power

up to 3 kW (resistive load at 230 V)

Current protection

1 A–16 A

Once the current exceeds the selected value, the outlet turns off automatically. The recommended value is 13 A for permanent load and 13–16 A for short-term load.

Voltage protection

min — 184 V~
max — 253 V~

Once the voltage exceeds the specified levels, the outlet turns off automatically.

Temperature protection

more than 203 °F

If protection is triggered, the outlet turns off.

Electric shock protection class

Class I (with grounding terminal)

Operating parameters

Operating temperature range

from 32 °F to 104 °F

Operating humidity

up to 75% with no condensation

Protection class

IP20

Dimensions

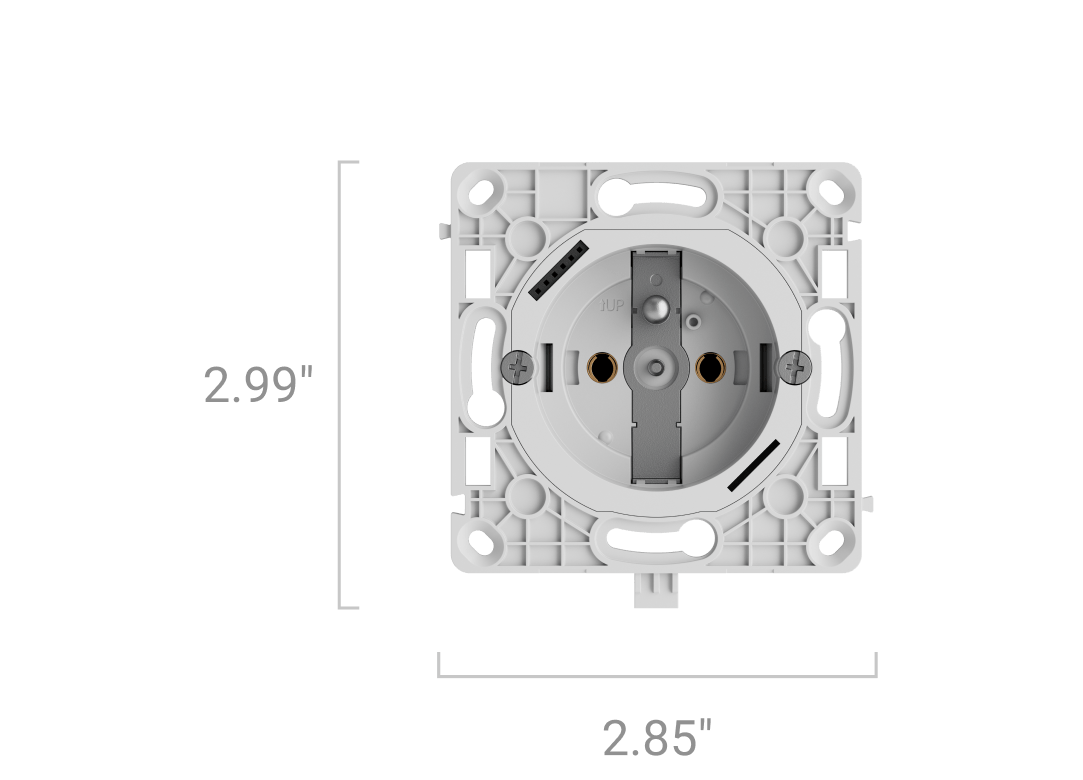

OutletCore (smart) [type E] Jeweller

2.85" × 2.99" × 1.75"

ttx
ttx

SoloCover (smart) [type E] Jeweller

front panel —3.24" × 3.24" × 0.4"

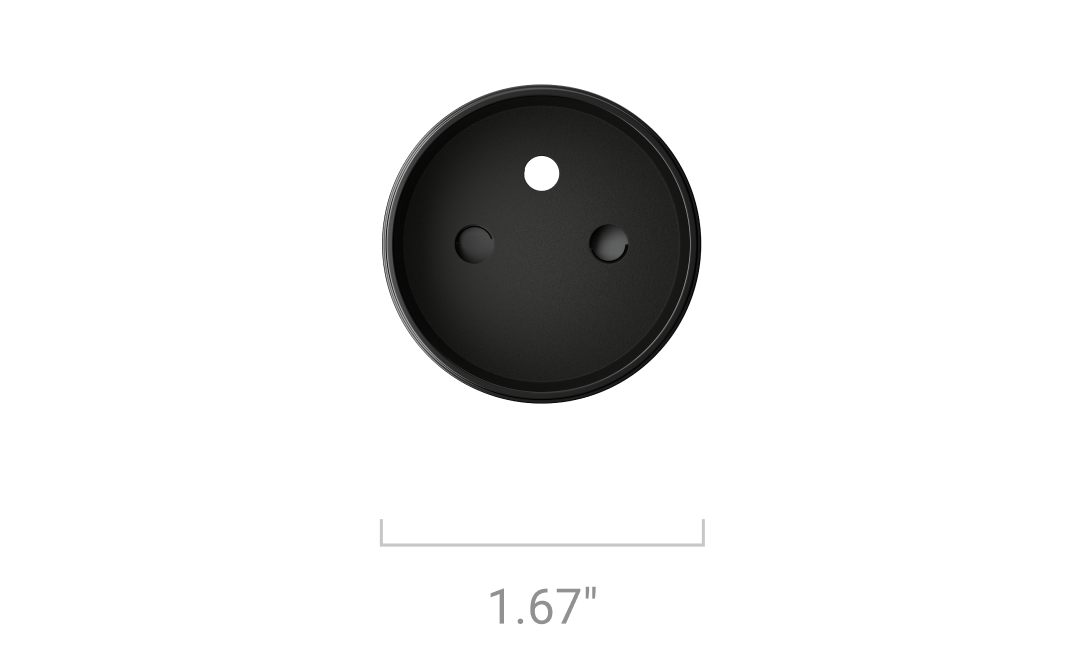

receptacle cap —1.67" × 0.85"

ttx
ttx
ttx
ttx

SideCover (smart) [type E] Jeweller

front panel —3.24" × 3" × 0.4"
receptacle cap —1.67" × 0.85"

ttx
ttx
ttx
ttx

СenterCover (smart) [type E] Jeweller

front panel —3.24" × 2,77" × 0.4"
receptacle cap —1.67" × 0.85"

ttx
ttx
ttx
ttx

Frames

Frame (2 seats) — 3.26" × 6.04" × 0.25"

frame
frame

Frame (3 seats) — 3.26" × 8.84" × 0.25"

frame
frame

Frame (4 seats) — 3.26" × 11.63" × 0.25"

frame
frame

Frame (5 seats) — 3.26" × 14.43" × 0.25"

frame
frame

Weight

OutletCore (smart) [type E] Jeweller

2.65 oz

SoloCover (smart) [type E]

front panel — 1.3 oz
receptacle cap — 0.28 oz

SideCover (smart) [type E]

front panel — 0.92 oz
receptacle cap — 0.28 oz

СenterCover (smart) [type E]

front panel — 0.88 oz
receptacle cap — 0.28 oz

Frames

Frame (2 seats) — 0.57 oz
Frame (3 seats) — 0.78 oz
Frame (4 seats) — 1 oz
Frame (5 seats) — 1.2 oz

Complete set

Outlet [ type E ] is a prefabricated smart outlet. All parts are purchased separately

Certification and compliance with standards

Outlet [type E] Jeweller

Outlet [type E] Jeweller

Radio Equipment Directive (RED)

Certificate issued by MiCOM Labs

  • EN 300 220-1 V3.1.1
  • EN 300 220-2 V3.2.1

Restriction of Hazardous Substances Directive (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018

Electromagnetic Compatibility Directive (EMC)

Certificate issued by MiCOM Labs

  • EN 301 489-1 V2.2.3
  • EN 301 489-3 V2.1.1
  • EN 55032:2015+A1:2020
  • EN 55035:2017+A11:2020
  • EN IEC 61000-3-2:2019+A1:2021
  • EN 61000-3-3:2013+A2:2021

Low Voltage Directive (LVD)

Test report issued by Shenzhen NTEK Testing Technology Co.

  • EN 62479:2010
  • EN IEC 60669-2-1:2022 + A11:2022
  • EN 60669-1:2018
  • EN 60669-2-5:2016

Other technical safety requirements

Test report issued by Shenzhen NTEK Testing Technology Co.

IEC 60884-1:2022

PSTI UK

Schedule 1


Frame

Restriction of Hazardous Substances Directive (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018

Additional information

Compliance with standards

Learn more

Warranty

24 months
