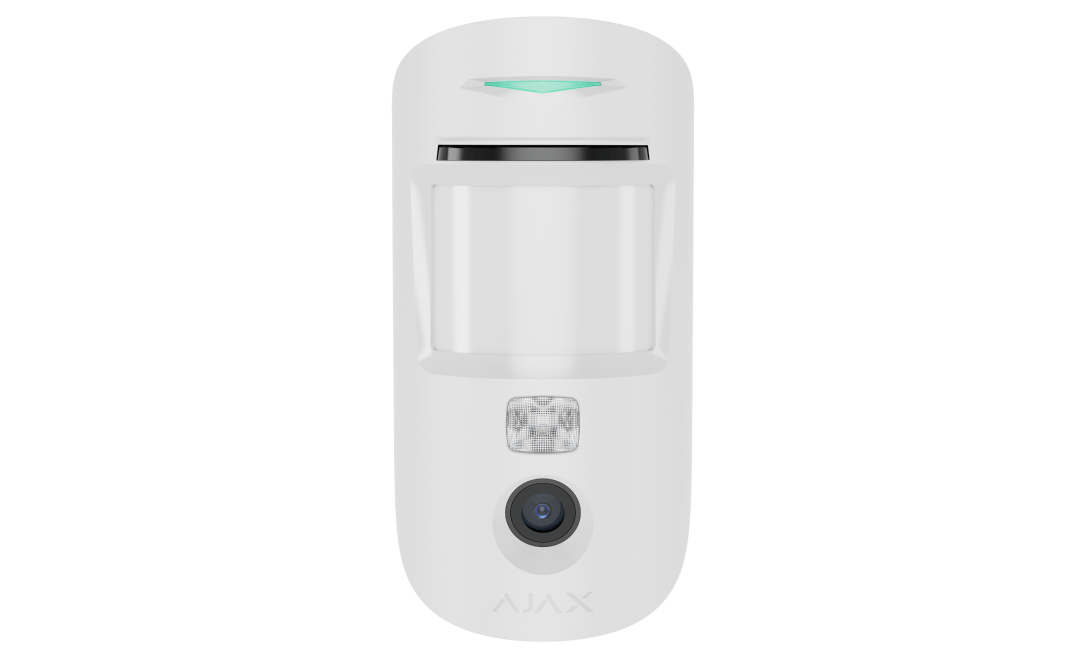

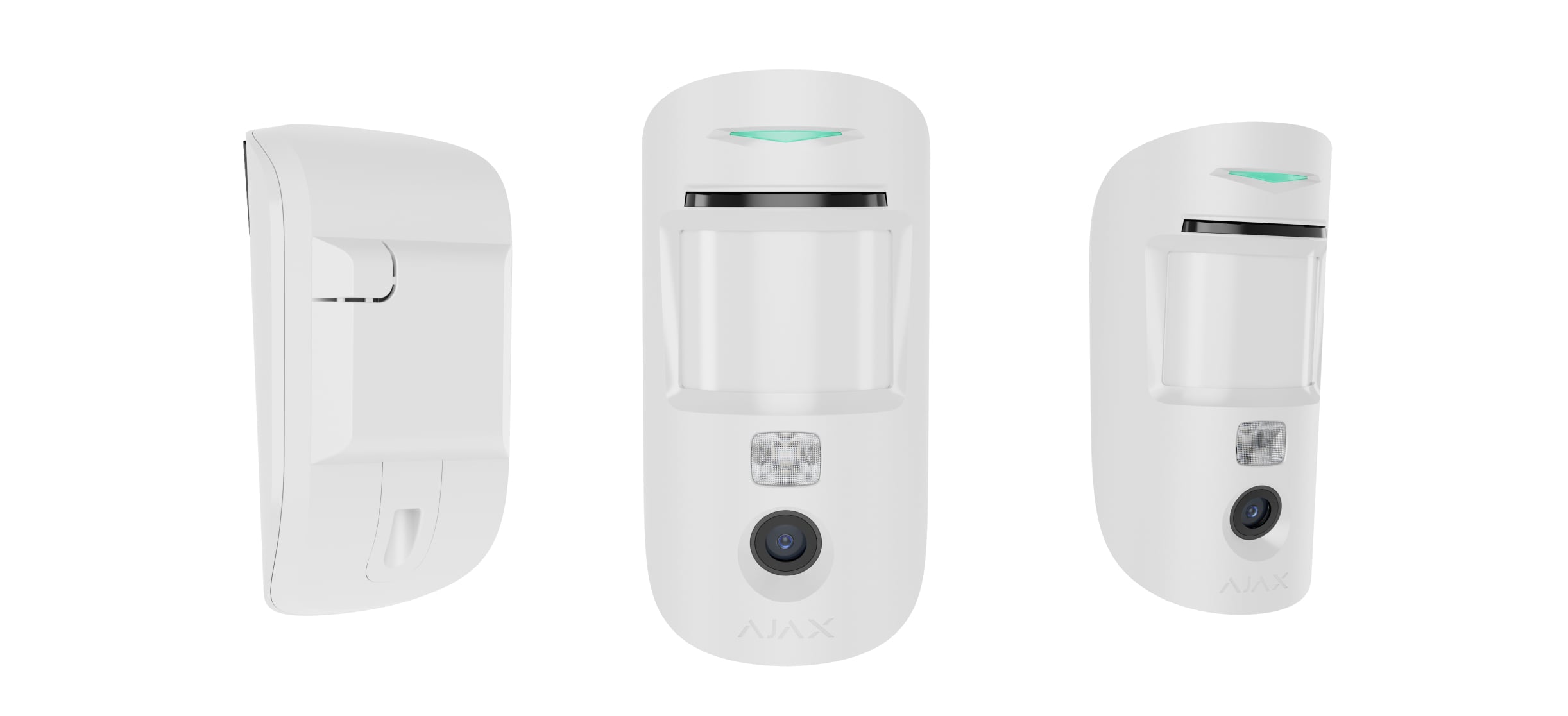

Superior MotionCam AM (PhOD) Jeweller
Wireless PIR motion detector with an anti-masking system. Taking on-demand photos and photos by alarm, schedule, scenario, tamper alarm, or masking attempt.
Devices compatibility
CheckCommunication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced sabotage protection.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote control and configuration in Ajax apps.
Frequency bands
868.0–868.6 MHz
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and noise interference.
Radio signal modulation
GFSK
Radio signal range
up to 5,600 ft
Between the detector and a hub (or a range extender) in an open space.
Encrypted communication
All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping
Radio communication uses frequency hopping to prevent interception and jamming.
Wings communication technology
Proprietary wireless communication technology to transmit photo verifications.
Key features:
- Two-way communication.
- Block encryption featuring a dynamic key.
- Advanced sabotage protection.
- Reloading the data packages in case of transmission errors.
- Photo delivery check.
Frequency bands
868.0–868.6 MHz
Radio signal range
up to 5,600 ft
Between the detector and a hub (or a range extender) in an open space.
Encrypted communication
All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping
Radio communication uses frequency hopping to prevent interception and jamming.
Detection
Sensitive elements
1 × PIR sensor
Motion detection distance
up to 39 ft
When installed at a height of 7.9 ft.
Reduced blind zone
from 2.6 ft
It detects a standing person at a distance of 2.6 ft from the device when the detector is properly installed at a height of 7.9 ft. Does not depend on the sensitivity level. Testing was performed with a person of 5.74 ft height.5.74
Crawling detection zone
from 6.56 ft (TBC)
Detects a person crawling at a distance of 6.56 ft from the device when the detector is properly installed at a height of 7.9 ft. The test results may be updated.
Motion detection angles
horizontal: 92°
Motion detection speed
from 0.66 to 6.6 ft/s
The direction of the detector sensors should be perpendicular to an alleged intrusion path into the facility.
Sensitivity
4 levels
Adjusted by a PRO or a user with admin rights in Ajax apps.
Temperature compensation
Effective motion detection at temperatures from 14 °F to 104 °F.
False alarm prevention
SmartDetect
Software algorithm.
Photo verification
Photo by alarm
A built-in camera is activated if the detector is armed and motion is detected.
Photo by tamper alarm
A built-in camera takes a photo if the tamper triggering is detected. The feature is disabled by default.
Photo by masking
A built-in camera takes a photo if the masking is detected. The feature is disabled by default.
Photo on demand
The user takes photos at any time or when the detector is armed (depending on settings). The feature is disabled by default.
Photo by scenario
The detector’s camera takes photos automatically when other Ajax detectors are triggered. The feature is disabled by default.
Photo by schedule
The detector automatically takes photos at a specified time.
Adjustable photo resolution
960 × 720 px*
640 × 480 px(by default)
320 × 240 px
160 × 120 px
Adjusted by a PRO or a user with admin rights in an Ajax app.
* The firmware version confirmation is required. First photo delivery in 16 seconds with TurboWings protocol.
IR illumination
For photography at night and in low-light conditions.
Series of pictures
from 1 to 5 images with a resolution of 320 × 240 px or 160 × 120 px
from 1 to 3 images with a resolution of 640 × 480 px or 960 × 720 px*
Adjusted by a PRO or a user with admin rights in an Ajax app.
* The firmware version confirmation is required. First photo delivery in 16 seconds with TurboWings protocol.
Photo delivery time
TBC
Recommendations
It is recommended that the detector be installed at a height of 7.9 ft.
The pet immunity feature is not available for this device.
The device is designed for indoor use only.
Sabotage protection
Tamper alarm
1 tamper
Notifications of attempts to detach the detector from the surface or unlock the SmartBracket and remove the detector from the mounting panel.
Protection against spoofing
device authentication
Anti-masking system
detects attempts to block the detector view
Communication loss detection
after 36 s
Detection time depends on the Jeweller/Fibra settings.
Power supply
Batteries
2 × CR123A
Pre-installed.
Type
Type C.
Calculated battery life
up to 4 years
With the Photo on demand feature disabled.
up to 3 years
With the Photo on demand feature enabled.
Detector’s operating voltage range
4.2−6.2 V⎓
Detector’s nominal operating voltage
6 V⎓
Quiescent detector’s current consumption at nominal voltage
0.040 mA
Maximum detector’s current consumption at nominal voltage
400 mA
Full capacity
3,300 mAh
Low battery voltage
4.55 V⎓
Low battery recovery voltage
4.9 V⎓
End-of-life battery voltage
4.2 V⎓
The device is switched off.
End-of-life battery capacity
600 mAh
Enclosure
Dimensions

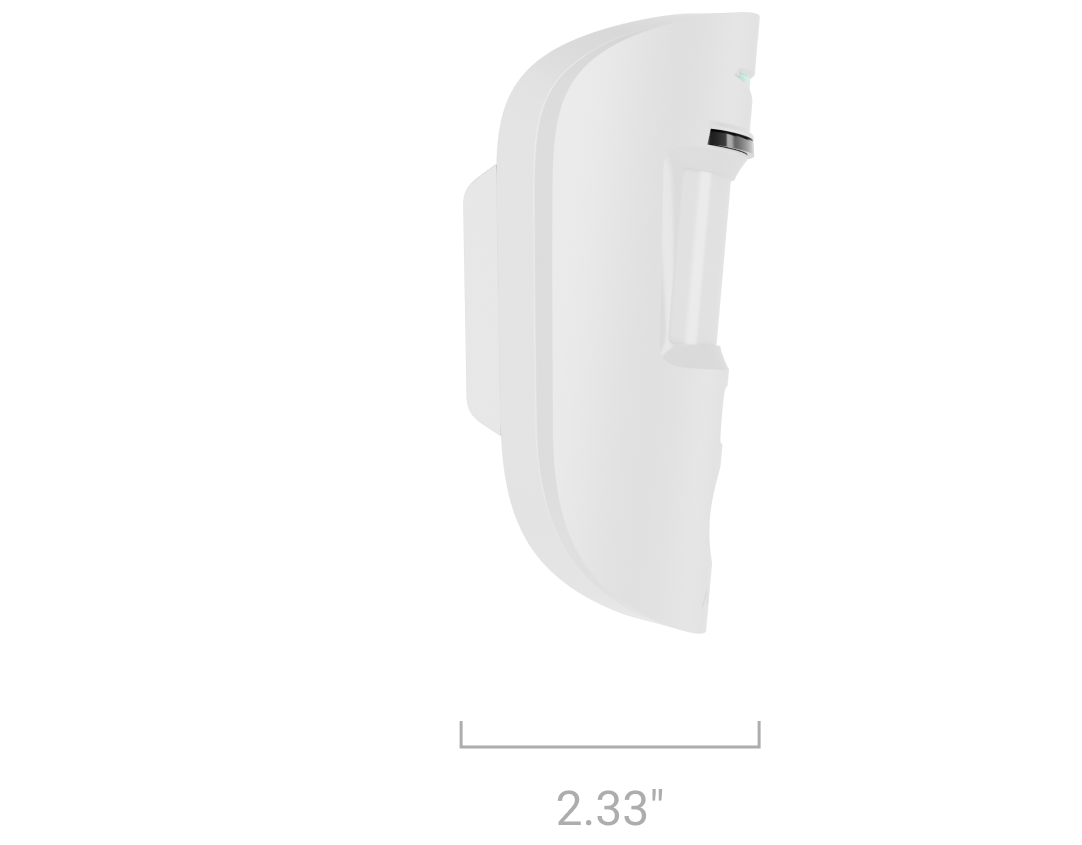

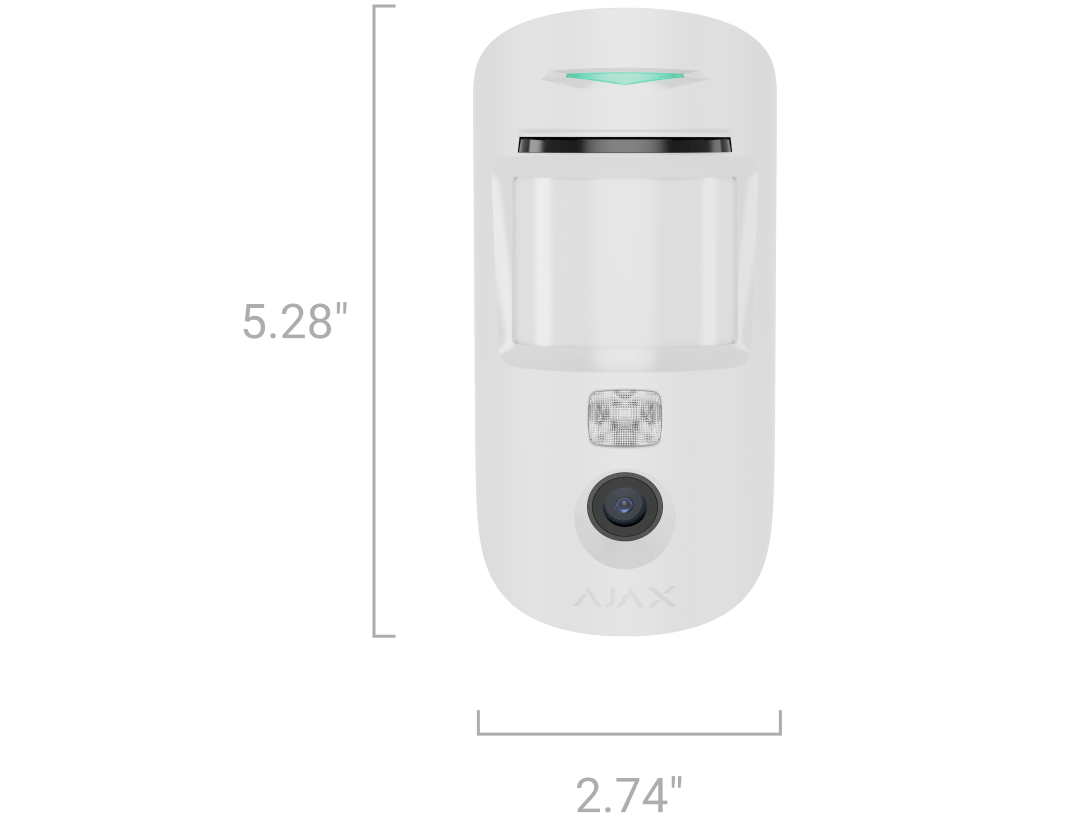

5.28" × 2.74" × 2.33"
Weight
6.21 oz
Operating temperature range
from 14 °F to 104 °F
Operating humidity
up to 75% non-condensing
Protection class
IP50
Color
White
Complete set
Superior MotionCam AM (PhOD) Jeweller
SmartBracket mounting panel
Installation kit
Quick start guide
