Superior LineProtect Fibra
Module to protect devices on the Fibra line from short circuits and sabotage
Increased security for wired devices with Superior LineProtect Fibra

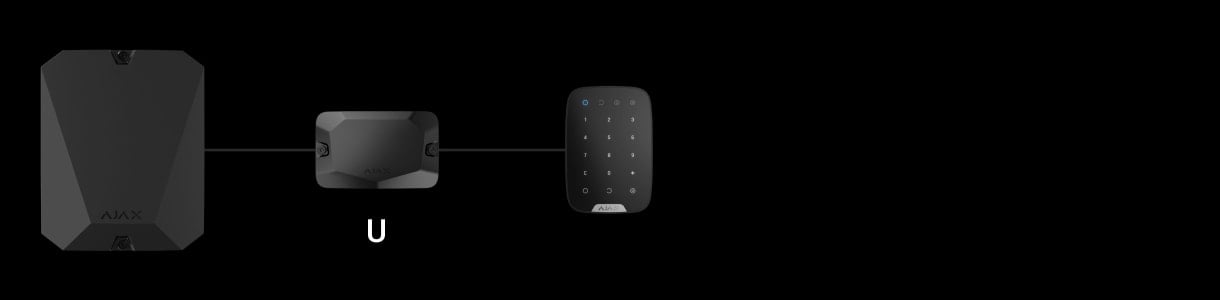

LineProtect is a module to protect the Fibra line and devices from electrical sabotage. If an intruder tries to damage the security system and, for example, hits the Superior StreetSiren Fibra with a stun gun, LineProtect will take the hit. All devices between LineProtect and the hub will continue to operate. The module can be installed at any point of the Fibra line. The output line from LineProtect can be up to 2000 meters in length. LineProtect inherits all the advantages of Ajax smart devices: it is easy to control the module from the app, receive event notifications, and configure or test LineProtect remotely.
Discover Superior LineProtect Fibra
Module to protect devices on the Fibra line from short circuit and sabotage
Watch on YoutubeKey features
Informative in-app notifications
Ajax
Short-circuit failure on the output line, Superior LineProtect Fibra in Corridor.
Ajax
Signal lines overvoltage failure, Superior LineProtect Fibra in workshop № 1.
Remote control and configuration
Low power consumption
up to 0.17 W

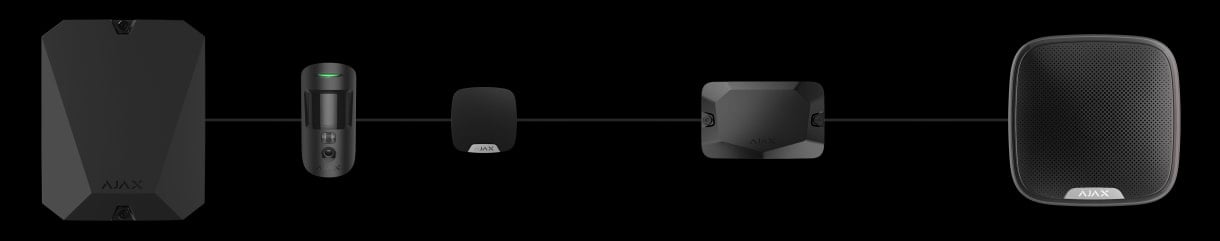

Can be installed at any point of the Fibra line
Up to 2,000 m
distance of wired communication with an Ajax hub
Fibra wired communication
Power adjustment
Tamper alarm
when mounted into Case1
Length of Fibra line
up to 2,000 m for LineProtect output2
This is the device of the Superior product line. Only accredited Ajax Systems partners can sell, install, and administer Superior products.
Protect against electrical shock
Superior LineProtect Fibra protects Ajax hubs and wired devices from sabotage when an intruder causes short circuits, applies 110/230 V~, or uses stun guns. The module monitors the input and output voltage on the Fibra line. If LineProtect detects an abnormal voltage on the line, it activates the fuses and cuts off the power supply to the devices installed between LineProtect and the hub. Note: LineProtect does not protect devices between the module and the end of the line.
Protecting Fibra devices from:
Short circuits
Applying 110/230 V~
Stun guns
High voltage on the Fibra line

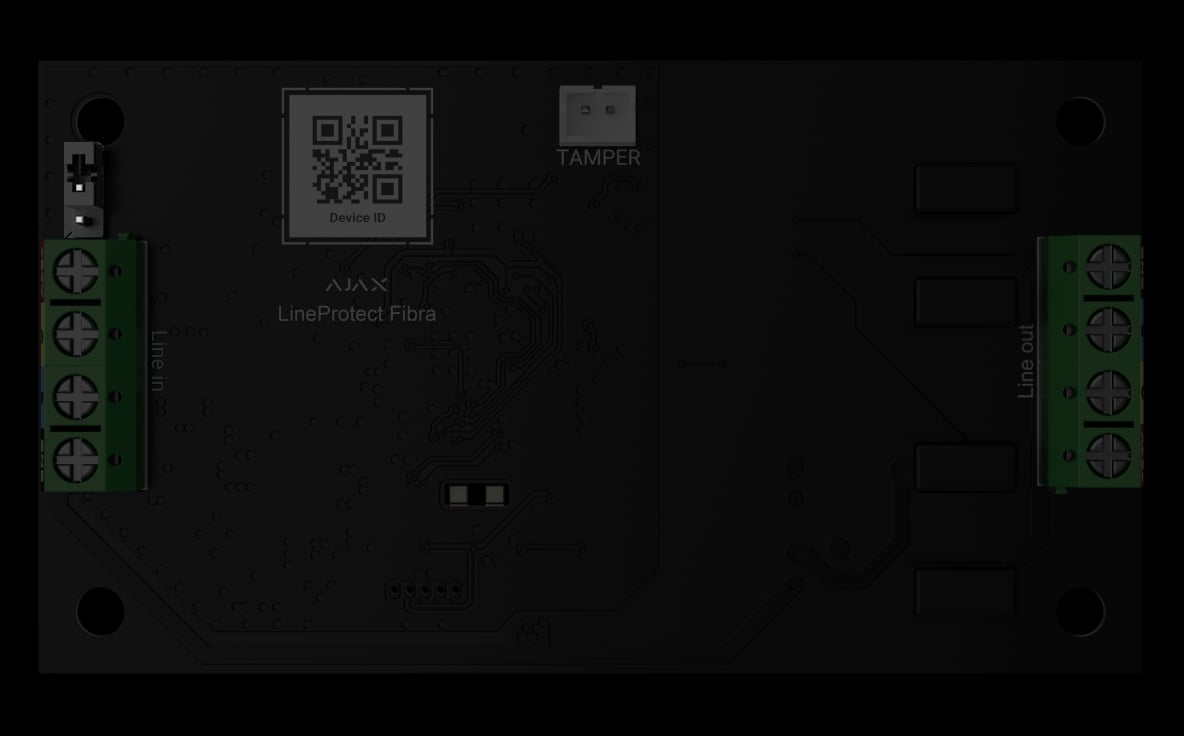

Discover future-proof hardware

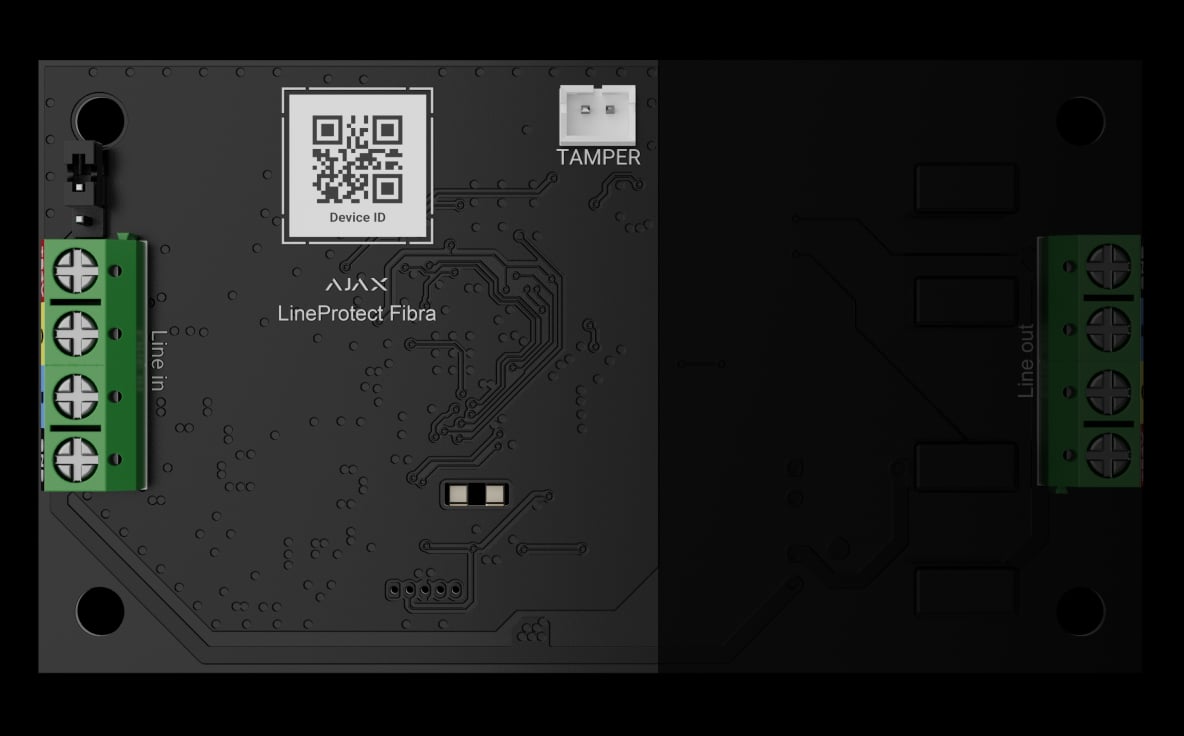

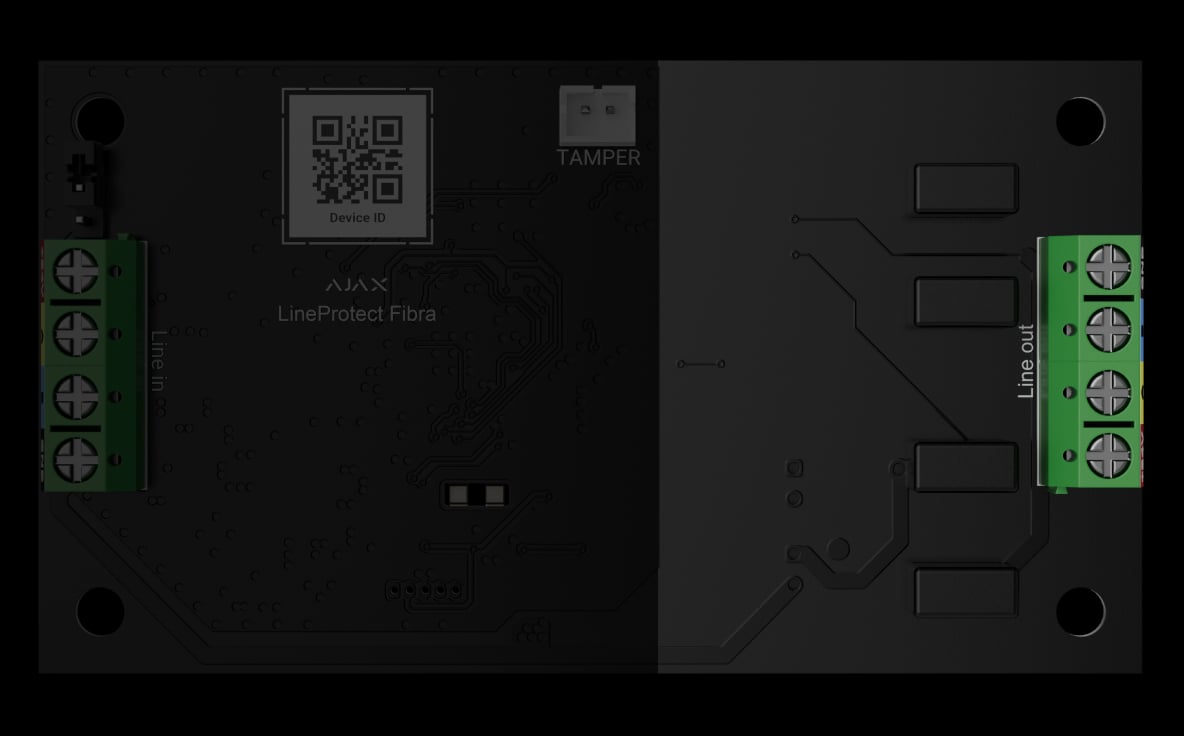

Separated zones of the device for risk diversification

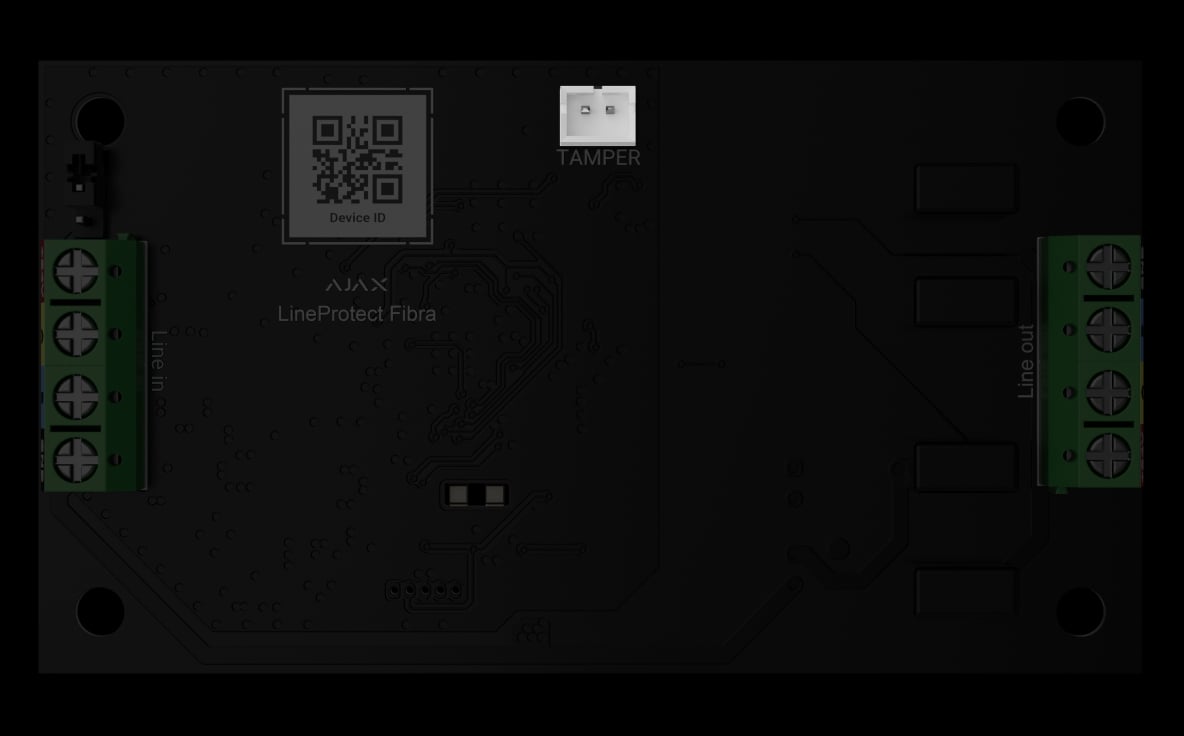

Pre-installed jumper to activate a termination resistor
Easy to mount into Case

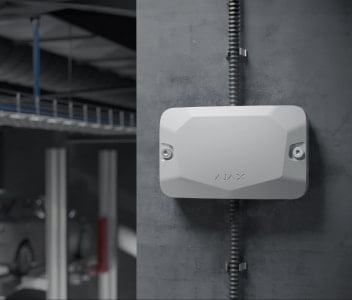

LineProtect is inserted into Case. This casing has an optimal arrangement of wire channels, special holders for the module, and the tamper module. Several variations of casings are available.
You can mount one LineProtect module into Case or fit several devices.The required minimum number of casings can be selected for the facility's needs, which saves the budget and speeds up the installation of the security system.
Case configurator
Get options for the most optimal Сase configurations that consider the Fibra devices you need.
Adapt innovative software to any system
LineProtect is designed to respond to threats quickly without giving intruders a single chance to sabotage the security system. We have developed a unique software algorithm to analyse the line to which LineProtect is connected. During the Lines Power Test, the module receives enough information to set its thresholds for detecting a short circuit and normal voltage values. The algorithm considers all critical parameters to select the optimal thresholds for maximum system protection.
Analyses devices and cable lengths on the line
Using software algorithms to detect sabotage as quickly as possible
Fibra
Unique wired technology
Fibra is Ajax’s proprietary technology for secure two-way communication between devices and a hub or module that extends the Fibra line. Fibra features encryption and device authentication to prevent sabotage, spoofing, and data theft. The Fibra line supports all types of devices, including sirens, keypads, and detectors with photo verification.
Communication range of up to 6,550 ft
One Fibra line for different device types
Photo delivery via Fibra line without interference
Protection against sabotage and spoofing
Energy efficiency as a priority
The module consumes up to 0.17 W at peak consumption times. With such low power consumption, an installer can connect more devices to a single Fibra line and lengthen the wired connectivity.
Fibra communication follows the TDMA principle. Each device has a short time frame to exchange data with a hub. The rest of the time, their communication modules are inactive. This significantly reduces power consumption and helps avoid interferences even when multiple devices communicate simultaneously.
Module’s consumption is up to 0.17 W
TDMA and power-saving modes
Sabotage resistance
Convenient to work for PROs
Installing a wired system is always a challenge. We have taken care of the quick installation of Superior LineProtect Fibra. The module is installed into Case and can be mounted in just a few minutes. With few clicks, it can be connected to the hub in iOS, Android, macOS, and Windows apps. Installers can configure the device remotely in the Ajax apps.
Fibra power supply calculator
Use our online calculator to ensure the Fibra system covers your facility. It helps verify the project of a wired security system and provides additional information for installers.
Superior LineProtect Fibra is installed into Case, which has an optimal arrangement of channels for wires, special holders for the device, and the built-in tamper module. There are several variations with different sizes of casings. Installation kit with dowels and screws included. No tools are required to install LineProtect into Case.
Installation into Case
Сase has special holders to secure the module
Jumper included
Installers can add a module in two ways: automatically scanning lines or scanning a QR code. When scanning lines, there are two ways to identify the desired device: by clicking in the app or tamper activating. When an installer adds a device, it will immediately have a default name and settings are suitable for most cases.
Pairing with a hub via line scanning or QR code
Device identification via triggering or LED indication
Optimal default settings
Forget about configuring via the keyboard. All testing and configuration can be done in mobile and desktop Ajax apps. An installer can work both on behalf of the company and as a sole installer.
Configuration and testing remotely and on-site
Desktop and mobile apps
Accounts for companies and installers
With proprietary protocols, any Ajax system can transmit alarms to the PRO Desktop monitoring app and third-party CMS. When an alarm is received, the monitoring station operator knows what happened and where the rapid response unit has to be sent. All Ajax devices are addressable, so events, the device type, its assigned name and room can be transmitted to PRO Desktop or third-party monitoring software.
Full addressability of the device
Instant notifications in Ajax apps
Alarm and event monitoring in PRO Desktop for monitoring companies
1 - When using a twisted pair cable UTP cat. 5. Other cables may have different values. Fibra power supply calculator.
2 - Superior LineProtect Fibra does not provide additional power supply to the line.
3 - Notification of attempts to break or open Case. Case is sold separately. Learn more

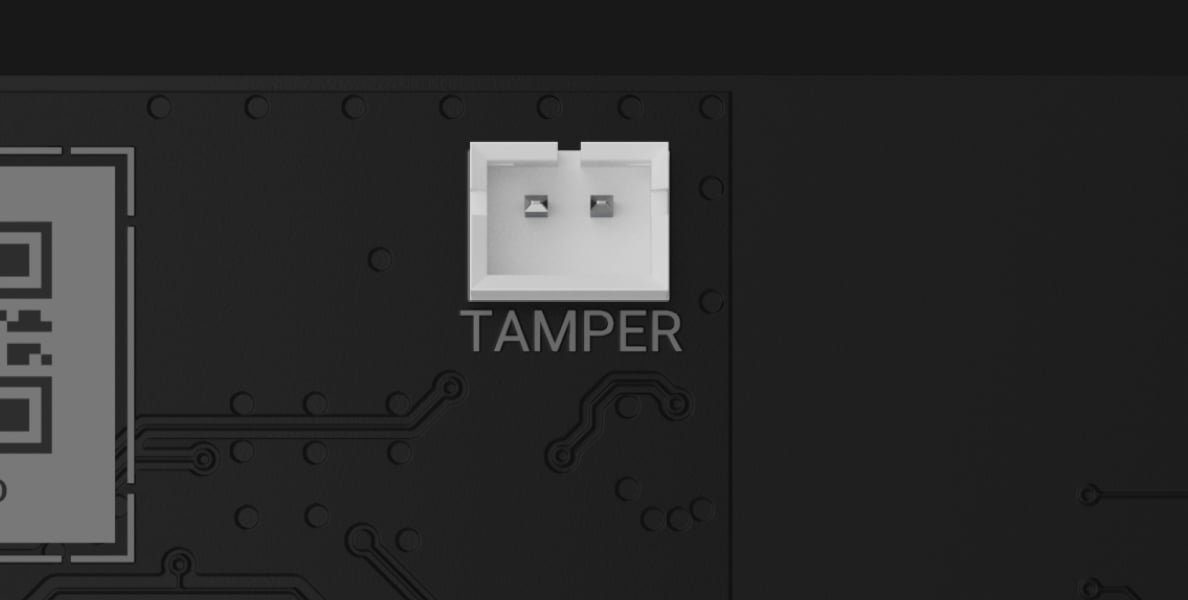

4 - Case has tamper boards. These boards are connected to the LineProtect terminals (indicated as TAMPER on a device board). LineProtect itself does not have a tamper.
5 - The list of transmitted parameters may differ depending on the type of the CMS and the selected communication protocol.
Technical information
Superior LineProtect Fibra
Ajax product categories
In an Ajax system, you can combine devices of all product categories: Intrusion protection, Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.
Superior LineProtect Fibra: Elevating security resilience
Superior LineProtect Fibra distinguishes itself as a sophisticated module developed to enhance the resilience of Fibra lines and safeguard connected devices from potential sabotage. Security module Superior LineProtect Fibra plays a pivotal role in strengthening the integrity of the properties security framework amidst dynamic threats.
Comprehensive security fortification
The Superior LineProtect Fibra module is an important part of a complete security defense for your system, guarding devices on the wired Fibra line from short circuits and sabotage. When faced with possible sabotage via stun guns, 110/230 V supply, or short circuits, the Superior LineProtect Fibra protects equipment like the Superior StreetSiren Fibra. Thanks to this proactive protection, devices positioned between LineProtect and the hub will continue functioning without connection interruption.
Strategic deployment flexibility
The versatility of Superior LineProtect Fibra strategic positioning along the Fibra line indicates its adaptability. With an output line up to 2000 meters long, LineProtect provides various installation options. Its flawless Ajax compliance allows easy control through the app, remote settings or testing, and event notifications.
Intelligent countermeasures
Superior LineProtect Fibra is an active defense against electrical shock in threat response. Monitoring input and output voltage continuously on the wired Fibra line, the module quickly cuts off power to devices between LineProtect and the hub by activating fuses when it detects unusual voltage. This proactive defense system guarantees the overall safety of your security system.
Advanced software adaptation
Superior LineProtect Fibra performs in-depth analysis during the Lines power test using complex software algorithms. Thanks to its vital information, the module provides an enhanced layer of defense against potential risks by setting thresholds for detecting short circuits and average voltage values.
Fibra technology implementation
To guarantee quick and secure two-way communication between the hub and linked devices, LineProtect uses Fibra technology in a wired connection. This protocol enables timely, information-rich notifications that provide detailed information on the triggers' devices, times, and locations.
Prioritizing energy efficiency
With a height consumption of up to 0.17 W, LineProtect prioritizes energy efficiency. This low consumption empowers installers to connect multiple devices to a single Fibra line, extending wired connectivity. Integration of the TDMA principle and power-saving modes minimizes interference and reduces power consumption during device communication.
Seamless integration into the Ajax security system
Superior LineProtect Fibra seamlessly integrates into the Ajax system, exchanging data with the hub through the secure Fibra wired communication protocol. Compatible with Superior Hub Hybrid (2G) and Superior Hub Hybrid (4G), LineProtect ensures a robust and interconnected security ecosystem.Rapid event transmission for an effective actionOperating within the Ajax system, LineProtect swiftly transmits alarms to the PRO Desktop monitoring app and central monitoring station (CMS) using diverse protocols. Events include tamper alarms, low supply voltage, communication loss, device activations/deactivations, and more. Addressable Ajax devices enable precise event transmission to the monitoring station, providing comprehensive information for swift and accurate responses from CMS operators.Installation guidelinesProper placement is the key to achieving LineProtect's maximum performance. Placement options should be based on cable lengths, device susceptibility to sabotage, and Fibra signal strength. Following installation guidelines guarantees that LineProtect is successfully integrated into the architecture of the security system.
Partnering for security excellence
Only authorized Ajax Systems partners can access LineProtect, an essential wired Fibra product line item. Working with Ajax Systems and its certified experts guarantees that LineProtect and other Fibra solutions are implemented and managed correctly, providing optimal security.Superior LineProtect Fibra is an unmatched defense against electrical sabotage. It strengthens security systems with the cutting-edge features and tactical deployment alternatives, keeping your wired security infrastructure stable and dependable despite changing security threats.
