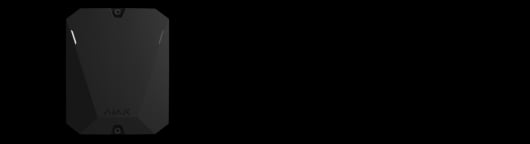

Superior LineSupply Fibra
Module providing additional power supply for Fibra devices

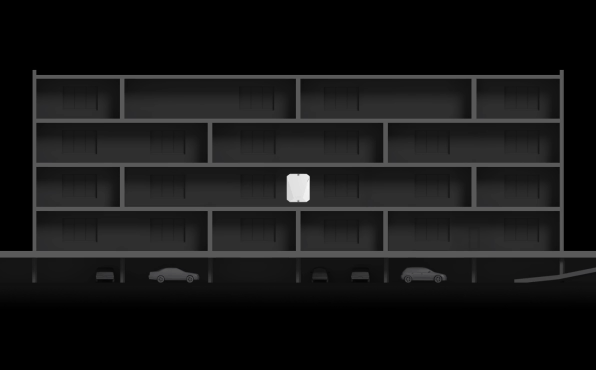

Protecting objects of any size
An Ajax system with LineSupply can cover a facility requiring kilometers or even tens of kilometers of wires, whether it’s a renovation or a new project. The device provides power to connected Fibra devices and extends the line length to 2,000 m more. One Fibra line can combine up to 10 LineSupply modules to boost communication length from 2 km to 22 km. This unlocks numerous possibilities in covering a large-scale object like a factory, farm, or power plant.
Discover Superior LineSupply Fibra
Module providing additional power supply for Fibra devices
Watch on YoutubeKey features
Output Fibra line length(1)
up to 2,000 m
Up to 10 modules
on the Fibra line
Splits Fibra line into two lines
Superior LineSupply (75 W) Fibra
Protects connected devices from
short circuit
overvoltage
Remote control and configuration
Convenient mounting and cable management
when installed into Case(3)
Additional power supply for the Fibra line
Fibra wired communication
Power adjustment
Up to 2,000 m
range of communication with an Ajax hub or a module that extends the Fibra line(1)
Informative in-app notifications
Ajax
Office: output line power supply turned on by Alex, Superior LineSupply Fibra in Hall #1
Ajax
Production: device detached from surface, Superior LineSupply Fibra in Workshop #1
Zero power consumption from the Fibra line
The module is powered by 110/230 V~ and a backup battery(2)
Two colors
Backup battery
with a capacity of up to 18 Ah(2)
This is the device of the Superior product line. Only accredited Ajax Systems partners can sell, install, and administer Superior products.
Thoughtful design with safety in mind

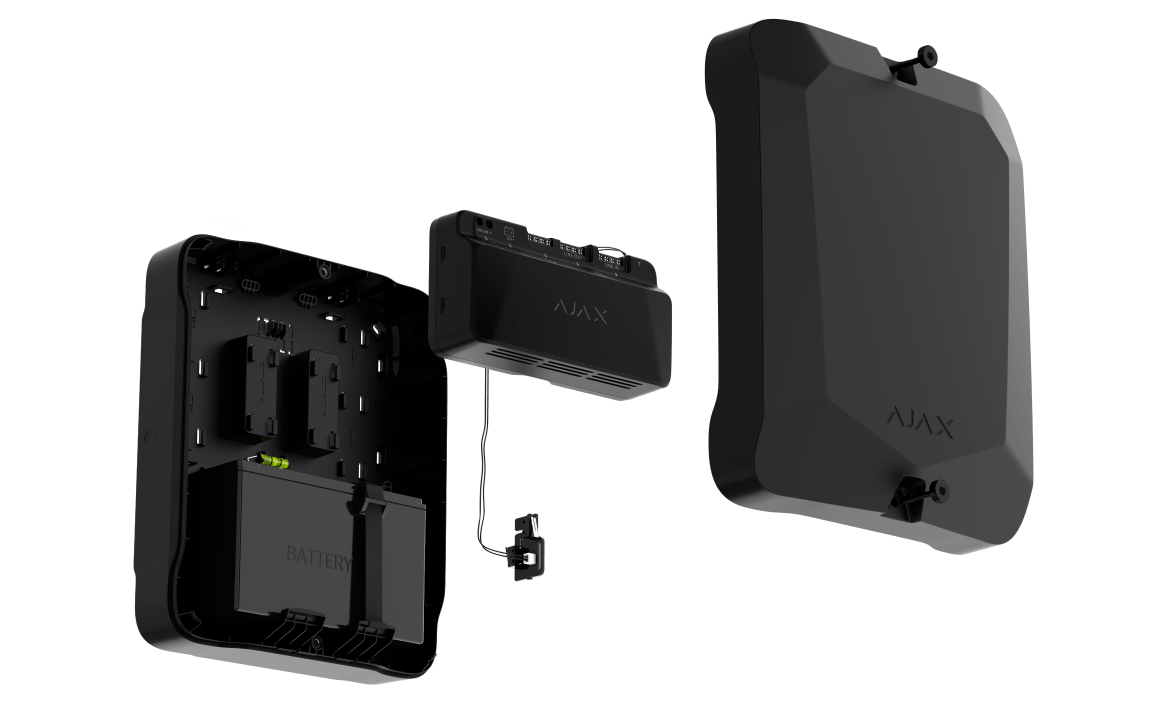

Working with a power supply module must be safe, so Superior LineSupply Fibra enclosure is designed to insulate every element exposed to current. It also has special rails, allowing the device to be quickly mounted inside a compatible Case without additional holders. Installers can choose two options for positioning the device with a 180-degree rotation. Passive ventilation protects the module from overheating. With two available enclosure colors, combining LineSupply with any Case is easy.

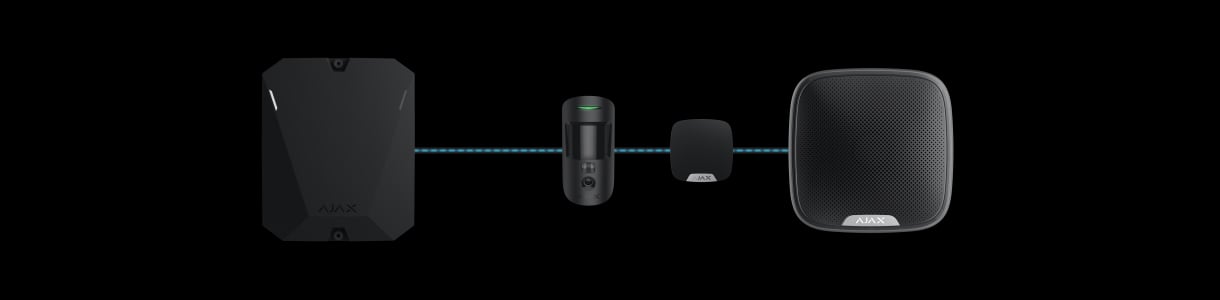

Record Fibra line length

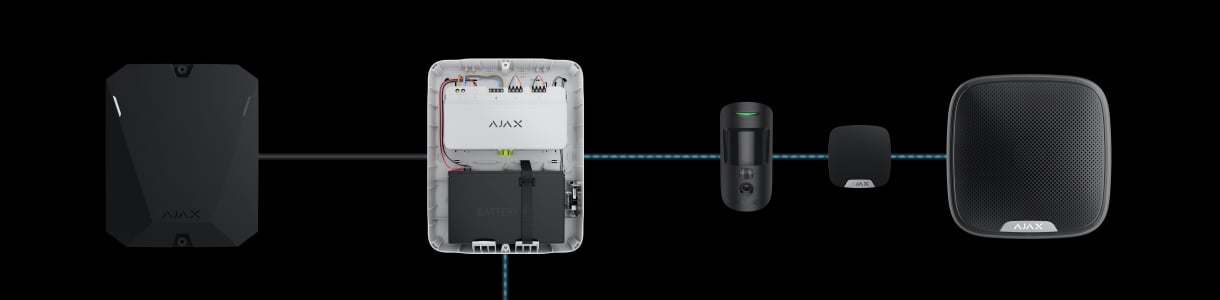

Typically, the output device’s line can reach 2,000 m(1). With LineSupply, the total Fibra line length can reach 22 km. An installer just needs to use up to 10 modules one after another on a Fibra line. As a result, the wired Ajax system can cover the territory of a factory, power plant, farm, office, or shopping center with underground parking or any other large facility.
- Up to 22 km of the Fibra line length
- Up to 10 modules installed on the line
Flexible security system design

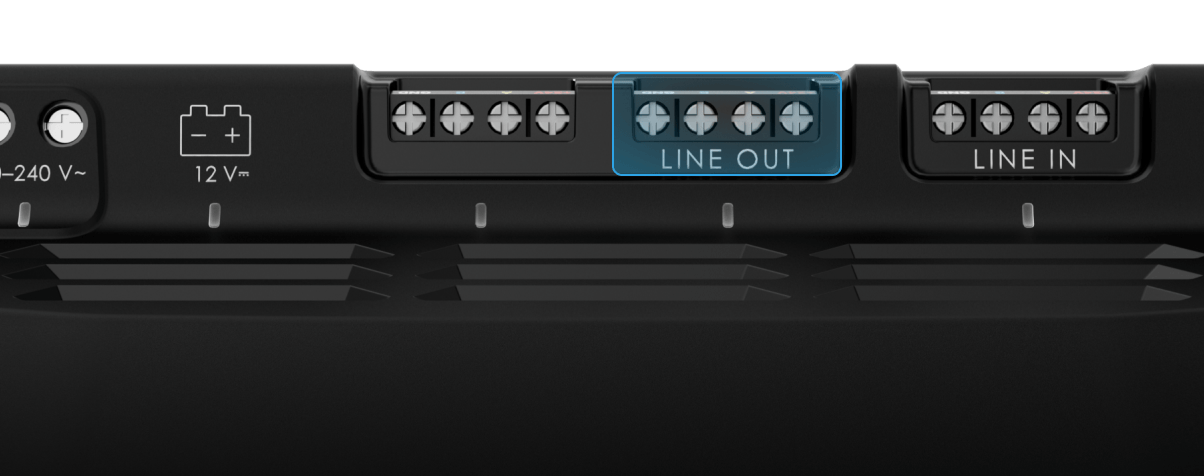

Superior LineSupply (75 W) Fibra splits the line into two and extends each one of them by 2,000 m(1). There is no need to replace wiring if you want to use Ajax instead of an outdated security system that already has splitters. The module can be installed at any point of the Fibra line (following another LineSupply as well).
Even more freedom in security systems design
As an installer, you can use Superior LineSplit Fibra when you need more line splits for an object with complicated topologies. The module splits the Fibra line into four lines, extends each one of them by 2,000 m, and brings a new level of flexibility into the installation process.
Discover future-proof hardware
Passive ventilation system
Prevents overheating

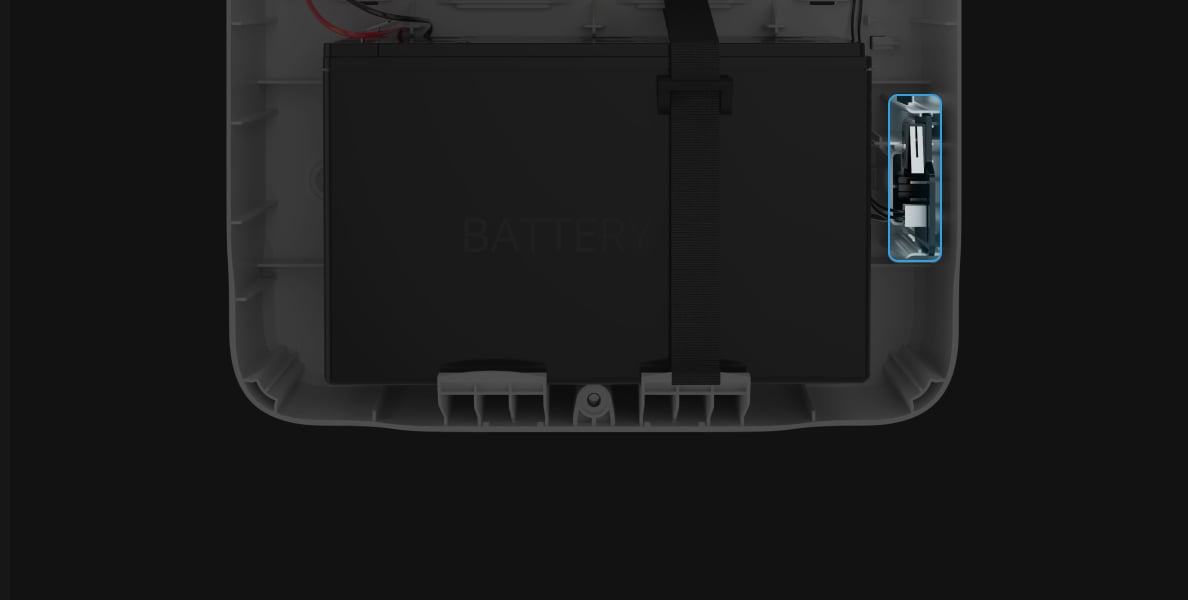

Tamper connector
Connects the module to the built-in Case tamper.

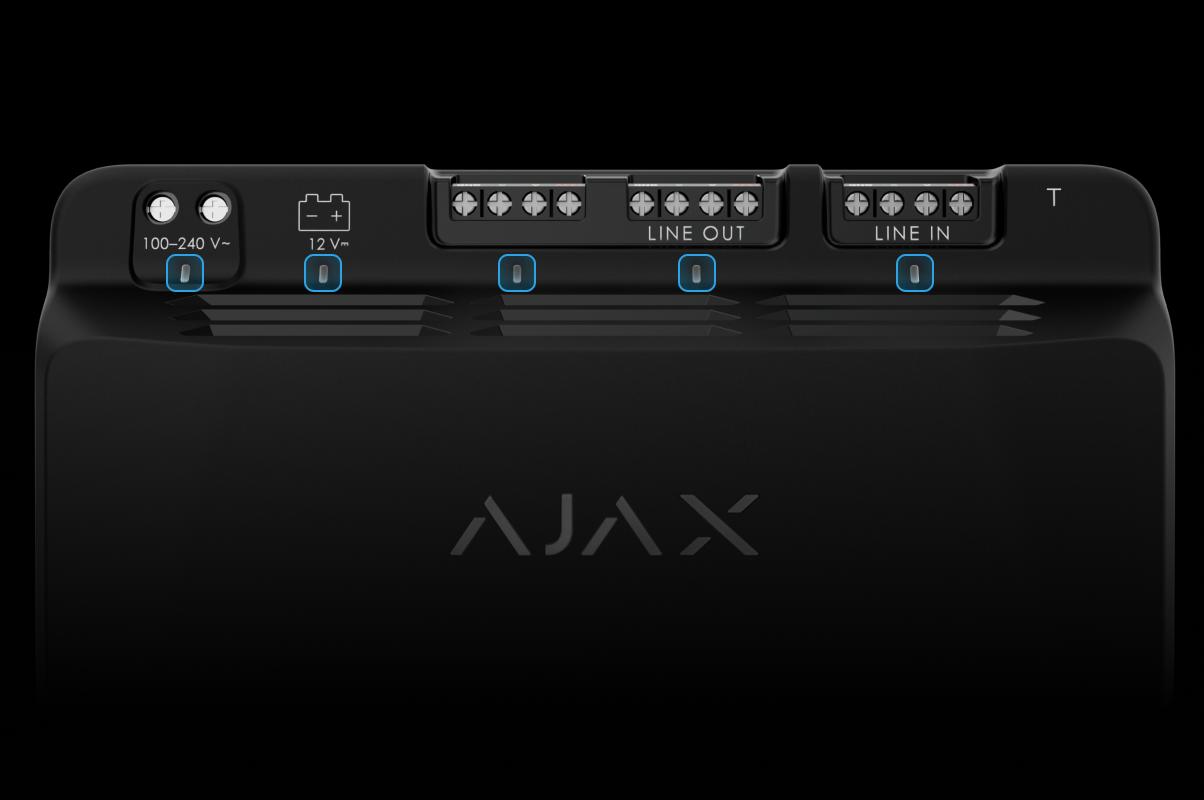

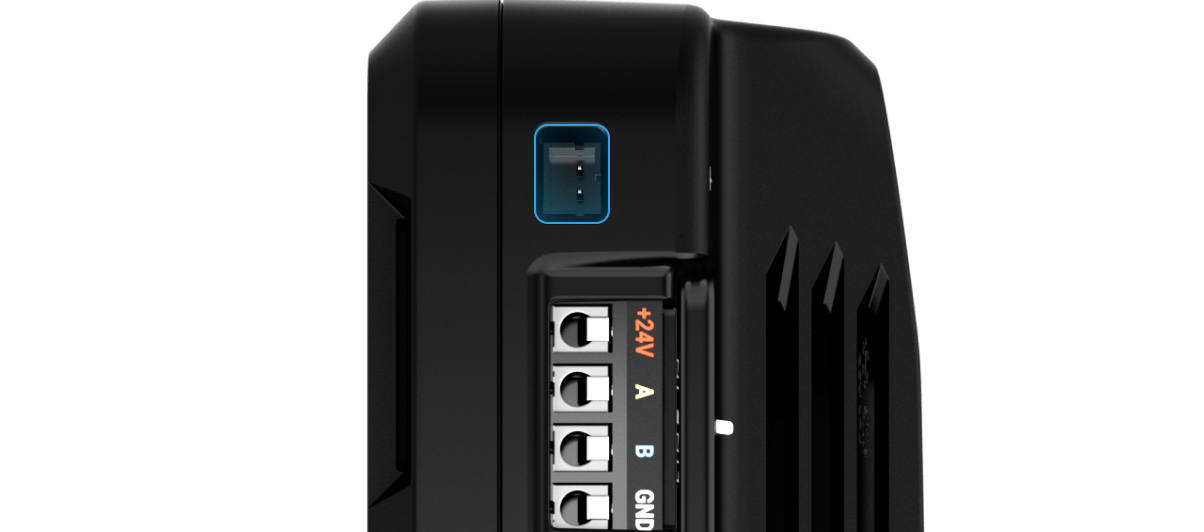

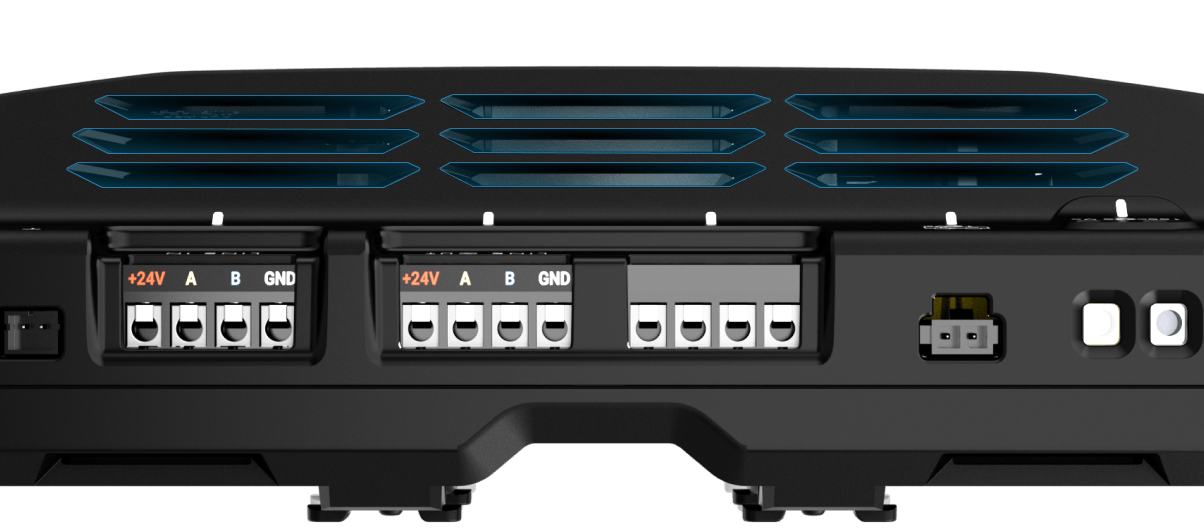

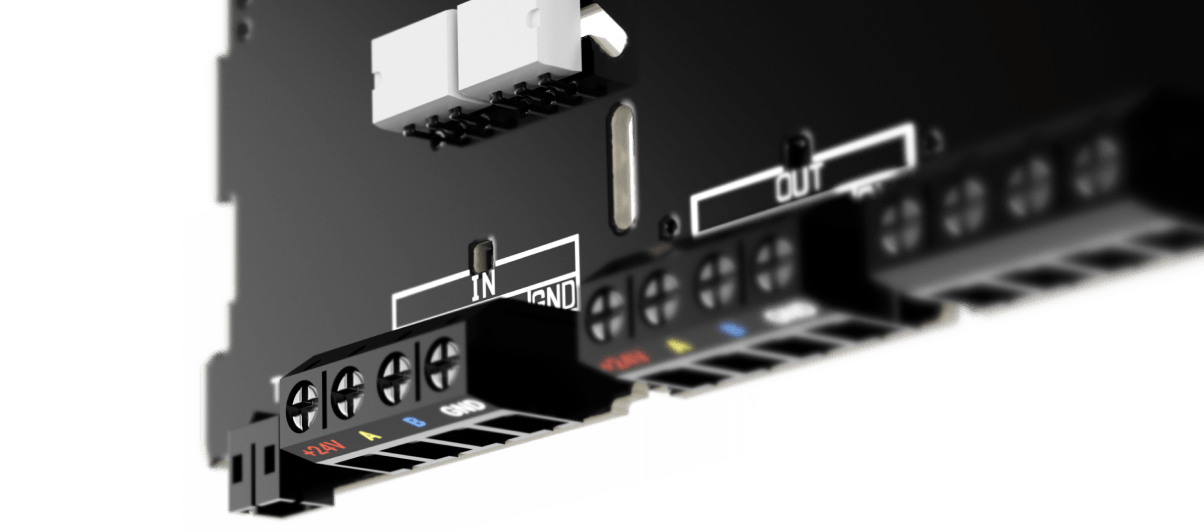

Output terminals for new Fibra lines
45 W version(4) has one output line, 75 W version(5) has two output lines.

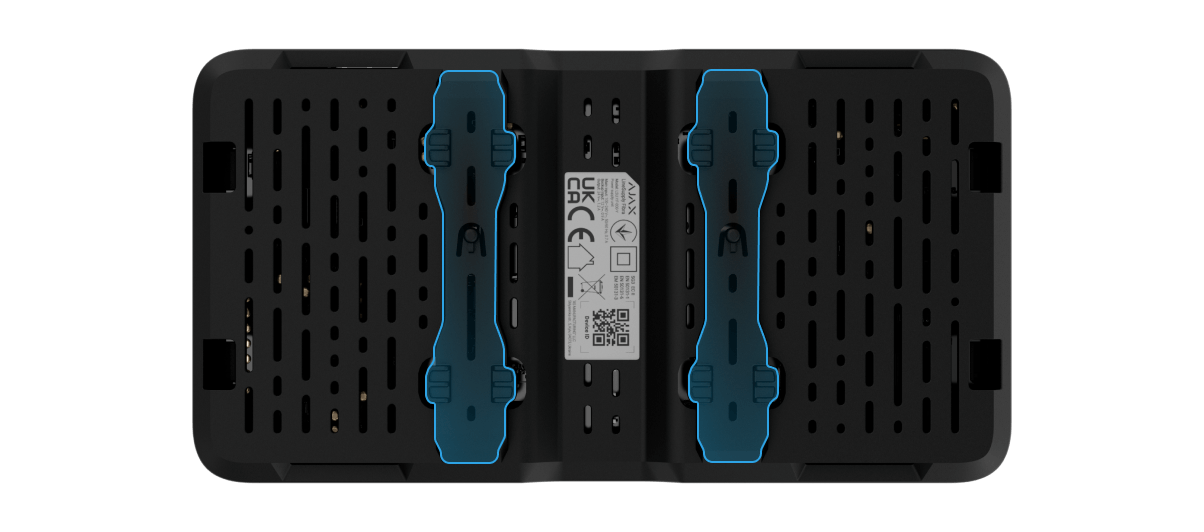

Rails on the enclosure
Help to install the device into Case in one move.

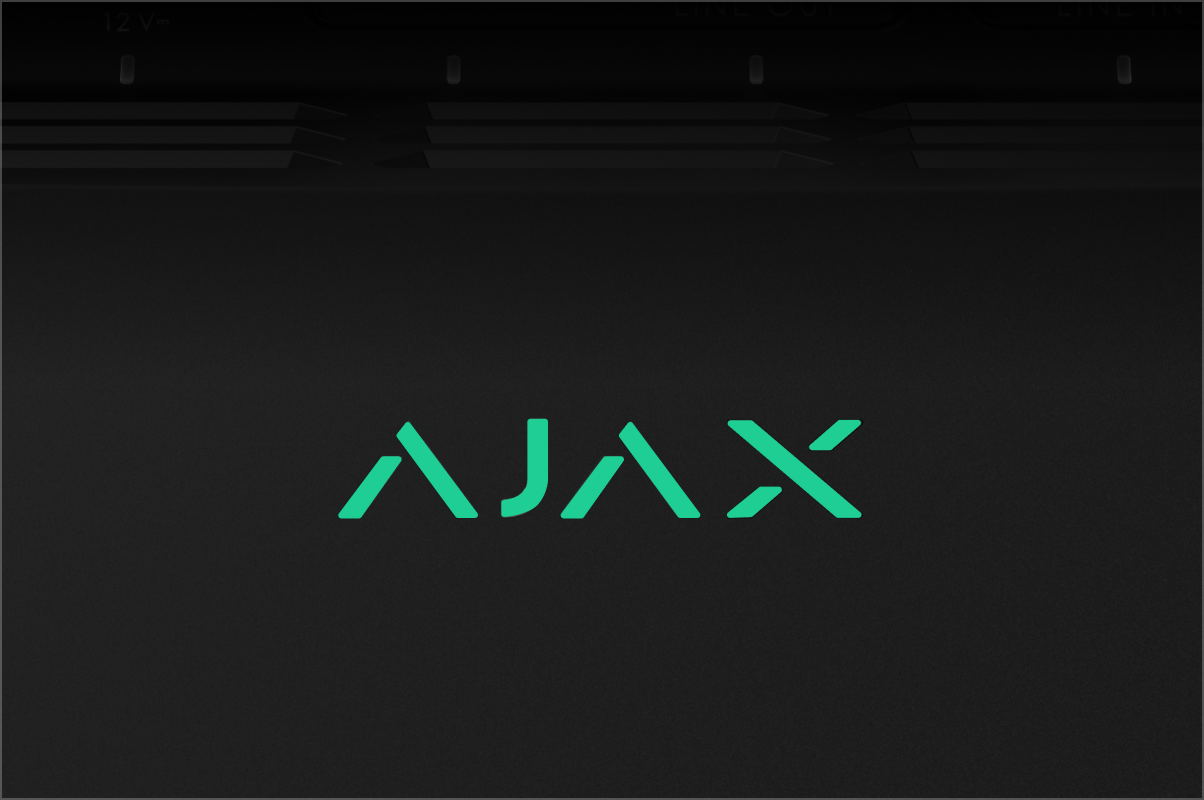

Ajax logo indicator
Informs about module states.
LED indicators
Informs about connection state of power supply, input and output lines.
Block with fuses
Protects against wrong battery poles, short circuit, and overvoltage at the output.
Galvanic isolation
Completely isolates the output lines from the hub power supply.

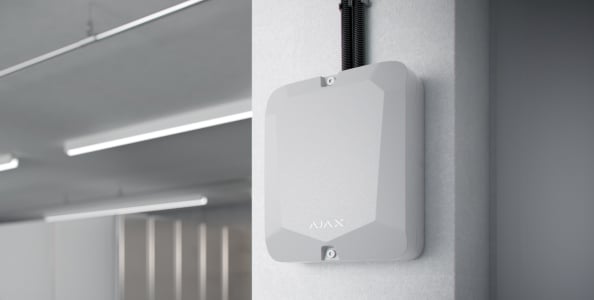

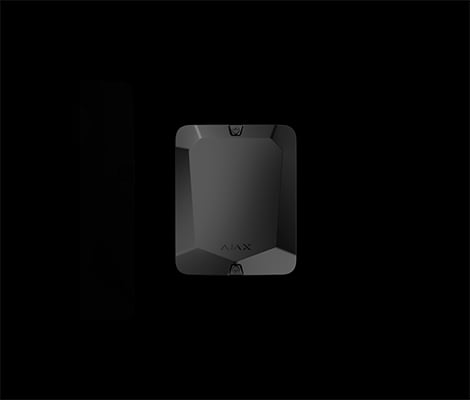

Multi-purpose casing
The convenience for PROs is a priority. Ajax products are thought-out to the smallest details and easy to work with. That’s why we created Case, a one-stop casing suitable for module-type Fibra devices. Various size options help combine multiple modules, optimize space, and reduce installation expenses. LineSupply is compatible with Case(3) and can be installed in the casing with other devices.
Case configurator
Get options for the most optimal Сase configurations that consider the Fibra devices you need.
Fibra
Unique wired technology
Fibra is Ajax’s proprietary technology for secure two-way communication between devices and a hub or module that extends the Fibra line. Fibra features encryption and device authentication to prevent sabotage, spoofing, and data theft. The Fibra line supports all types of devices, including sirens, keypads, and detectors with photo verification.
Communication range of up to 6,550 ft
One Fibra line for different device types
Photo delivery via Fibra line without interference
Protection against sabotage and spoofing
Energy efficiency first
LineSupply with connected devices consumes no power from the hub. Fibra communication itself requires minimum power consumption and follows the TDMA principle. Each device has a short time frame to exchange data with a hub, and its communication module is inactive the rest of the time. This significantly reduces power consumption and helps avoid interferences even when multiple devices communicate simultaneously.
Each LineSupply output line is power-independent, making the system even more reliable. The module is powered by 110–230 V~ mains and has a connector for a 12 V⎓ backup battery with a capacity from 7 to 18 A·h.
Power independence of connected devices from the hub
TDMA and power-saving modes
Mains power supply, battery backup
Sabotage resistance
Next-level Fibra line protection
Introducing LineProtect, the module to protect an Ajax hub and connected wired devices from sabotage when an intruder causes overvoltage, short circuits, applies 110/230 V~ or uses stun guns.
PRO is king
The myth about wired systems being difficult to install is busted. Ajax minimized an expensive, long, and dusty experience for PROs by developing an ultimate set of tools to make the process easy and flexible, from project design to client support and system maintenance. The module is installed inside Case with a flick of the wrist. Intuitive Ajax apps help quickly make the device a part of the system, and each device can be reconfigured remotely at any moment. No programming required — everything is available out of the box.
Fibra power supply calculator
The online tool provides security specialists with comprehensive information about the devices’ power consumption. It's easy to check before installation whether the wired system project will work in practice. The calculator allows real-time project-making, highlighting the problem areas and offering solutions. Once the calculations are finished, the results can be downloaded as a PDF file.

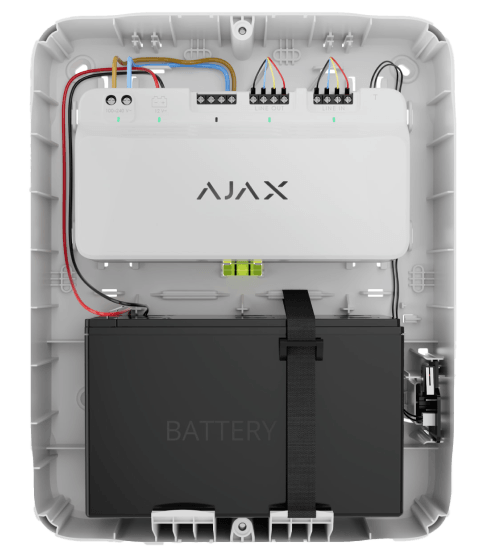

The module needs to be installed into Case. The installation kit includes all the necessary fasteners. The casing has flexible holders to secure the device with a flick of the wrist. A built-in spirit level and slightly bigger fixing points assist the professional in a perfectly accurate mounting position. Inside, Case has special fasteners and several parts on the sides and back for cable management. Markings for drill positioning and special protectors(7) help to stop the drill before it hits holders or other components. The top lid of the casing is equipped with anti-falling screws to prevent accidental dropping of installation parts.
Installation into Case(3)
All the necessary fasteners included in the installation kit
Thought-out cable management
The device is paired with the hub automatically via Fibra line scanning. This tool is available in the desktop or mobile PRO apps. An installer only needs to name the device and assign it to the room and security group. The device can also be added by scanning the QR code or entering its ID manually.
Pairing with a hub via automatic line scanning or QR code
Device identification via triggering or LED indication
Optimal default settings to cover major requests
Intuitive Ajax apps provide remote set-up and all device information from anywhere the Internet is available, on a smartphone or PC. An installer can remotely change the settings and provide services in-time. No need to visit the object.
Configuration and testing remotely or on site
iOS, Android, macOS, and Windows apps
Accounts for companies and installers
An Ajax system transmits alarms to the PRO Desktop monitoring app or any third-party CMS. The security company receives an alarm notification in less than a second. Notifications include all the necessary information: name of the device, time of the event, and the exact room where the device is located. The security company also receives photo or video verification, capturing the reason for the alarm.
Full addressability of connected devices
Instant in-app notifications
Alarm and event monitoring through Ajax PRO Desktop or third-party CMS
- 1 — When using a UTP cat. 5 twisted pair cable. Other cables may have different values. Fibra power supply calculator.
- 2 — The battery is not included in the complete set.
- 3 — Case is not included and sold separately. Learn more
- 4 — Output power per line from Superior LineSupply (45 W) Fibra is 30 W. Another 15 W is used to charge the backup battery.
- 5 — Output power per each of two output lines created by Superior LineSupply (75 W) Fibra is 30 W. Another 15 W is used to charge the backup battery.
- 6 — The list of transmitted parameters may vary depending on the CMS type and selected communication protocol.
- 7 — Case D (430) does not have protectors.
Technical information
Superior LineSupply (75 W) Fibra
Superior LineSupply (45 W) Fibra
Ajax product categories
In an Ajax system, you can combine devices of all product categories: Intrusion protection, Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.
Superior LineSupply Fibra: Revolutionizing security system power and coverage
Superior LineSupply Fibra stands out as a ground-breaking option in the rapidly changing world of security systems, offering flexible wired security system coverage for establishments of any size. Module for power supply of Fibra devices Superior LineSupply Fibra extends the line length to an amazing 2,000 metres and supplies extra power to linked Fibra devices, making it ideal for both new and refurbishment projects. With the help of this module, your wired security system will be more powerful and you will be able to protect large-scale facilities like factories, farms, and cottage communities.
Superior LineSupply Fibra's features
Versatility in power outputThere are two variants of Superior LineSupply Fibra available: Superior LineSupply (45 W) Fibra and Superior LineSupply (75 W) Fibra. With 30 W going to Fibra devices and an additional 15 W for charging the backup battery, the former produces 45 W of output power. Fibra's LineSupply (75 W) provides two output lines, each capable of 30 W for connected devices and 15 W for battery charging, for even more versatility.Flexibility in installationFlexibility is what makes the module for power supply of wired devices Superior LineSupply Fibra so beautiful. The module is a versatile and user-friendly option for a variety of security system setups because installers can place it at any point along the line, even after another LineSupply Fibra.Protection mechanismsStrong protection mechanisms against overvoltage and short circuits on the Fibra output lines are built into Superior LineSupply Fibra. If there is a problem, the module automatically cuts off the impacted output line and, after a short while — 12 seconds — tries to restore the system. The module ensures the stability and dependability of the system by carrying out its cyclic process if the problem continues.
Fibra data transfer protocol
Superior LineSupply Fibra uses the secure Fibra wired communication protocol to function inside the Ajax system. This technology ensures a smooth flow of data necessary for efficient security systems by enabling quick and dependable two-way communication between the hub and linked devices.
Events transmission for swift action
Alarm transmissionThe Ajax security system and module providing additional power supply for Fibra devices Superior LineSupply Fibra work together effortlessly to send warnings in a number of formats, such as ADEMCO 685, SIA (DC-09), SurGard (Contact ID), and more. The system may send out alerts for tampering, low voltage, short circuit, and other detections, as well as provide comprehensive information for fast action.Addressability and event detailsThe precise transfer of events, including device type, name, security group, and virtual room, to the monitoring station is ensured by the addressability of Ajax devices. By providing security personnel with this degree of detail, they can respond more quickly and efficiently, improving security in general.Malfunction detection and displayVia the Ajax app, module for power supply of wired devices Superior LineSupply Fibra informs users of any faults. The module finds problems with the shell coming off, short circuits, low voltage, overvoltage, problems with the backup battery, and more. The application displays malfunctions so they can be quickly found and fixed.
Optimal placement for maximum efficacy
The placement of Superior LineSupply Fibra in the security system maximises its performance. Installers need to take into account things like the intensity of the Fibra signal, the length of the cables, and where the power-hungry devices are located. Although LineSupply Fibra can be used as a repeater to increase the range, proper installation is essential to achieving best results.
Signal strength and power tests
Signal strengthFor the system to be reliable, the signal strength must be monitored. Because Superior LineSupply Fibra has a visual indicator, users can quickly determine the strength. This feature makes it easier to choose the best places to put modules.Lines power testThe Lines Power Test makes sure that the hub-connected devices have enough power by simulating maximum energy consumption. Users can uncover problems or faults influencing the system's performance thanks to the comprehensive test results.
Designing for success
For the module for power supply of wired devices Superior LineSupply Fibra to be installed and configured correctly, the system project must be properly designed. Robust security systems are ensured by paying attention to many characteristics such as wire lengths, installation heights, device types, and locations. To preserve the integrity of the entire Ajax system, the design and installation should be left to the professionals.
Maintenance and warranty
Module for power supply of wired security devices Superior LineSupply Fibra offers users peace of mind with its maintenance-free architecture. Users can rely on this Ajax Systems product's dependability and durability because it comes with a two-year warranty that is effective from the date of purchase. Ajax Technical Support is available to help in the unlikely event of technical difficulties, and they frequently solve issues remotely.Using Superior LineSupply Fibra in the wired security system means unmatched power distribution, communication reliability, and event transmission capabilities. It is essential for protecting buildings of all sizes because of its strong features and adaptability. Superior LineSupply Fibra is at the forefront of technological advancements, making sure that security systems adapt to the ever-increasing demands of the contemporary environment.
