Superior MultiRelay Fibra
Four-channel relay with potential-free contacts to control power supply remotely
Advanced automation for greater safety

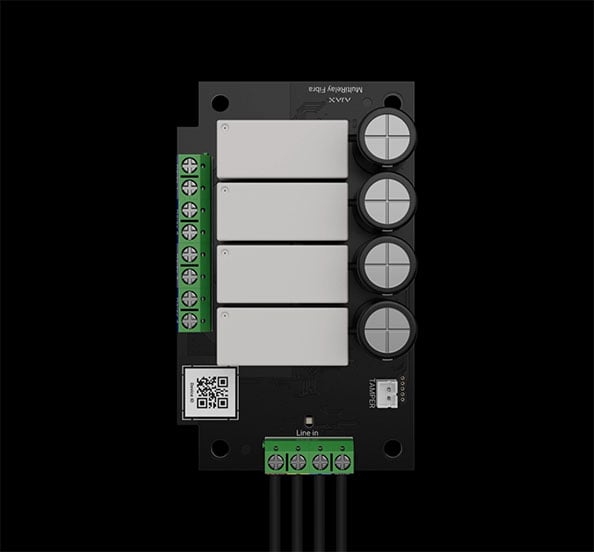

Superior MultiRelay Fibra is a relay module designed to implement complex wiring diagrams. It has four relays with potential-free (dry) contacts that can control four separate circuits independently. MultiRelay can integrate various appliances, electrical mechanisms and even third-party security devices into the Ajax system. With Ajax scenarios, the module provides fully automated actions in response to alarms and security mode changes or performs them by a specified schedule.
Key features
4 independent relays
Automation scenarios
Remote control and configuration
Potential-free contacts
Operate with both AC and DC circuits
In-line connection with different types of devices
2 operation modes
Informative in-app notifications
Ajax
Warehouse: Gate switched on by Hannah
Ajax
Office: Open-space lights switched off, scenario Night time
Up to 0.18 W
Low power consumption
Protection against overheating
All relays are deactivated if at least one of them exceeds +80°C

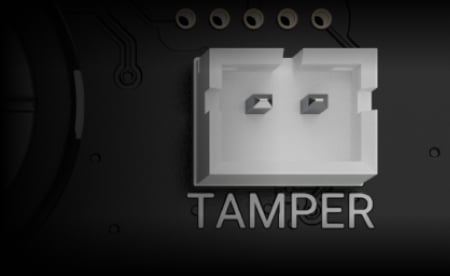

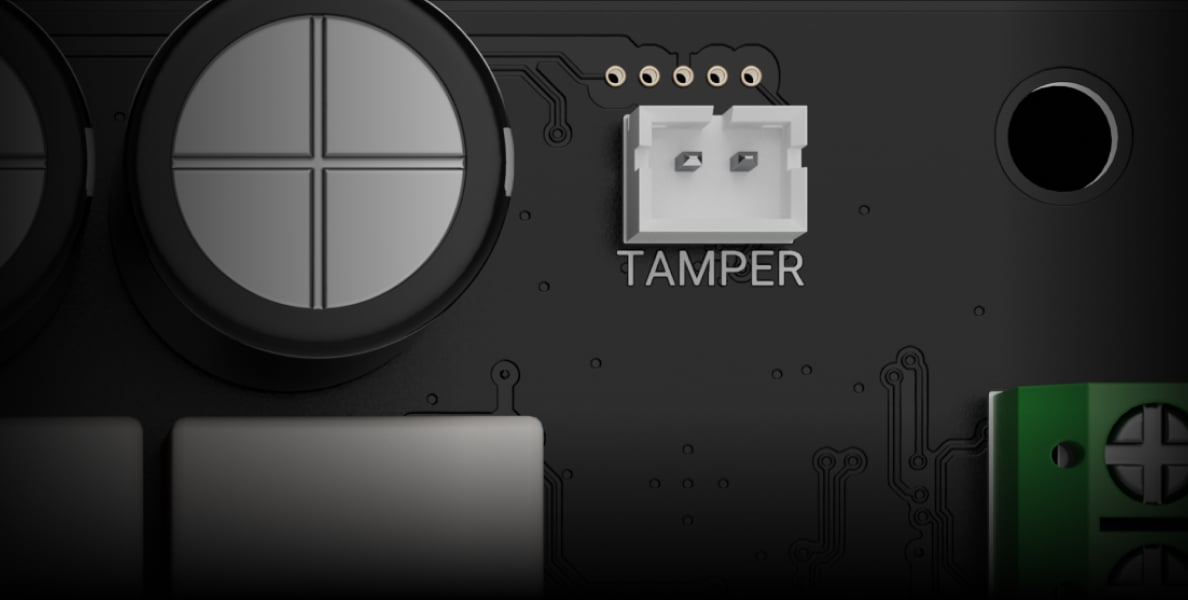

Tamper alarm
when installed into Case
Up to 2,000 m1
range of communication with an Ajax hub
Steady contact state
The current state of contacts remains the same after a power outage
Fibra wired communication
Power adjustment
This is the device of the Superior product line. Only accredited Ajax Systems partners can sell, install, and administer Superior products.
Remote power supply control

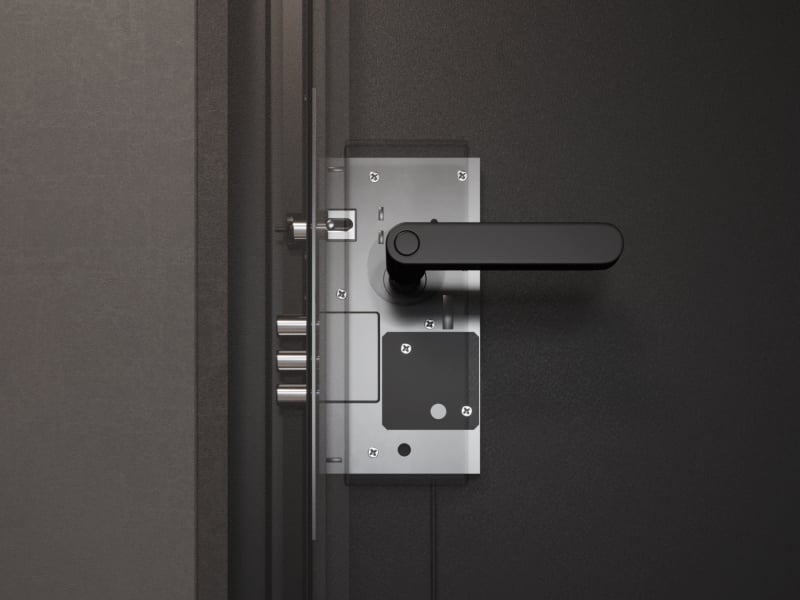

Electric locks
Lighting and power supply
Access control
Automatic gates / barriers
Roller shutters / blinds
Fog generators

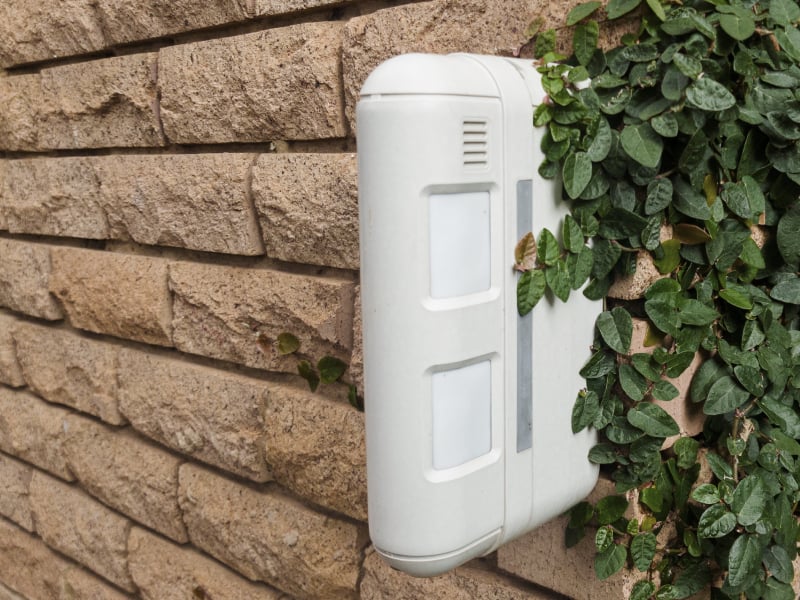

Third-party wired devices
Climate control
Effect of presence
Irrigation system
Smart security and comfort
Use automation scenarios to make life safer and more comfortable. Set your office lights to turn off automatically on arming. Program your projectors to turn on when outdoor motion detectors identify intruders. Or turn on your toaster at a certain time in the morning.
5 automation elements with MultiRelay
Impulse and bistable modes
Steady contact state
Support for both AC and DC circuits
Configurable NC/NO contact states

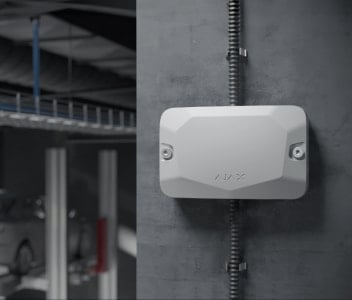

One multi-purpose casing

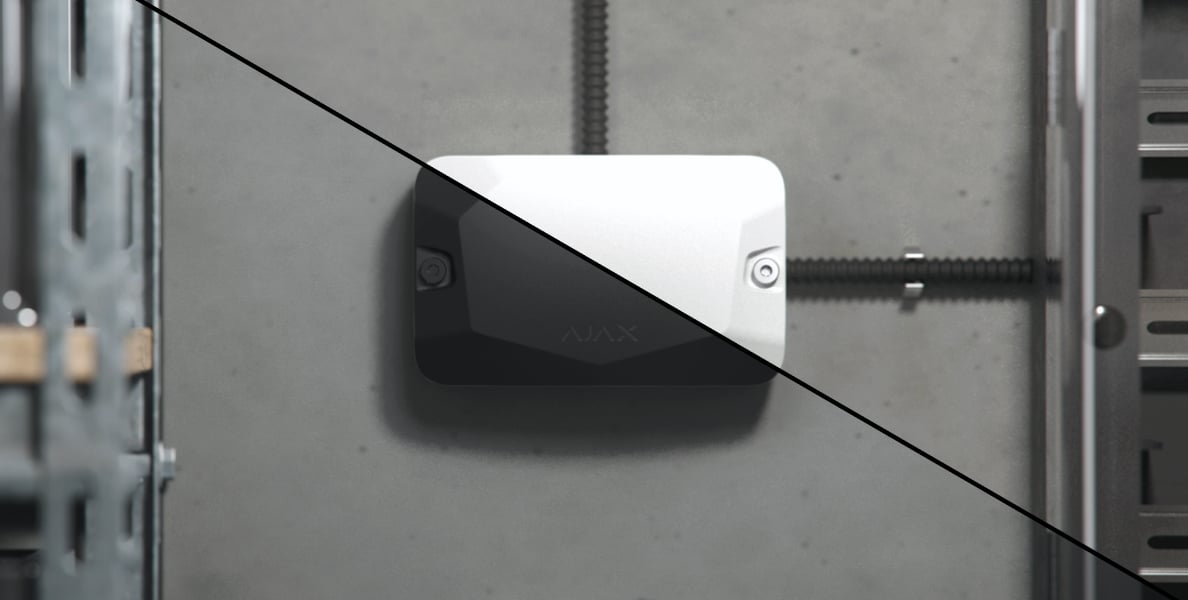

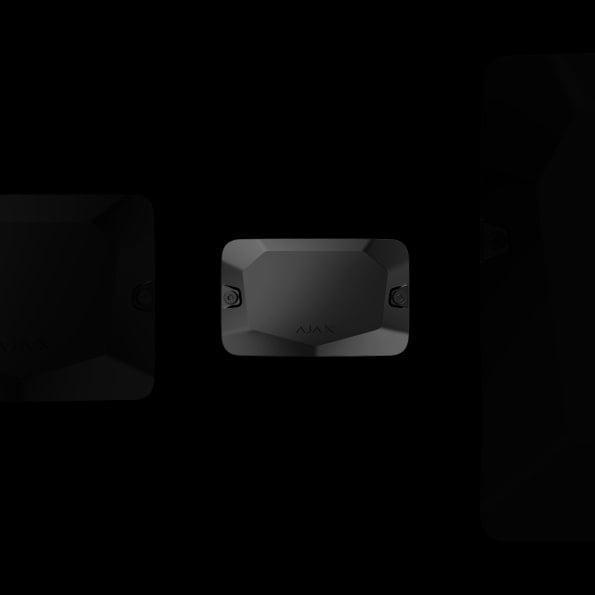

The convenience for PROs is a big priority, so Ajax products are always thought out to every detail, hence easy to work with. That’s why we created Case, a one-stop casing suitable for module-type Fibra devices. Various size options facilitate combining multiple modules, optimizing space and reducing installation expenses. MultiRelay is compatible with Case2 and can be installed in a single casing with other devices.
Learn more about Case
Case configurator
Get options for the most optimal Сase configurations that consider the Fibra devices you need.
Fibra
Unique wired technology
Fibra is Ajax’s proprietary technology for secure two-way communication between devices and a hub or module that extends the Fibra line. Fibra features encryption and device authentication to prevent sabotage, spoofing, and data theft. The Fibra line supports all types of devices, including sirens, keypads, and detectors with photo verification.
Communication range of up to 6,550 ft
One Fibra line for different device types
Photo delivery via Fibra line without interference
Protection against sabotage and spoofing
Energy efficiency as a priority
Fibra communication requires minimum power consumption: the module consumes only up to 0.18 W at its peak. Fibra also follows the TDMA principle. Each device has a short time frame to exchange data with a hub, and its communication module is inactive the rest of the time. This significantly reduces power consumption and helps avoid interferences even when multiple devices communicate simultaneously.
Power consumption of up to 0.18 W
TDMA and power-saving modes
Sabotage resistance
PRO is king
The myth about wired systems being difficult to install is busted. Ajax minimized an expensive, long, and dusty experience for PROs by developing an ultimate set of tools to make the process easy and flexible, from project design to client support and system maintenance. The module is installed inside Case with only one move of the hand. Intuitive Ajax apps help quickly make the device a part of the system, and each device can always be reconfigured remotely without site visits. No need for programmers — everything is available out-of-box.
Fibra power supply calculator
The online tool provides security specialists with comprehensive information about the devices’ power consumption. It's easy to check before installation whether the wired system project will work in practice. The calculator allows real-time project-making, highlighting the problem areas and offering solutions. Once the calculations are finished, the results can be downloaded as a PDF file.

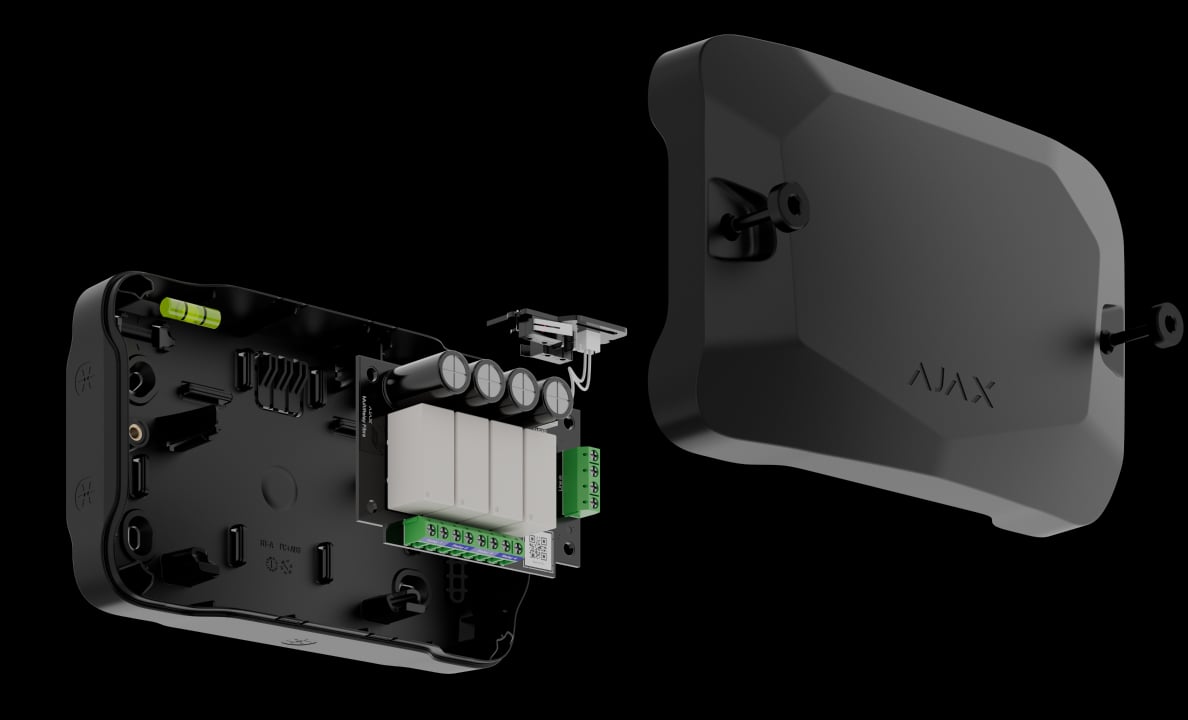

The module needs to be installed into Case. The installation kit includes all the necessary fasteners. The casing has holders for device placement which are flexible and require only one move of hand to install the module inside. A built-in spirit level and slightly bigger fixing points assist the professional in a perfectly accurate mounting position. Inside, Case has special fasteners for cable management and several perforated parts on the sides and back for wiring out cables. Markings for drill positioning and special protectors inside help to stop the drill before it hits holders or other components. The top lid of the casing is equipped with anti-falling screws to prevent accidental dropping of installation parts.
Installation into Case2
All the necessary fasteners included in the installation kit
Thought-out cable management
The device is paired with the hub automatically via Fibra line scanning. This tool is available in the desktop or mobile PRO apps. An installer only needs to name the device and assign it to the room and security group. The device can also be added by scanning the QR code or entering its ID manually.
Pairing with a hub via automatic line scanning or QR code
Optimal default settings to cover major requests
Intuitive Ajax apps provide remote set-up and all device information from anywhere the Internet is available, on a smartphone or PC. An installer can remotely change the settings and provide services in-time. No need to visit the object.
Apps for iOS, Android, macOS, and Windows
Remote configuration without site visits
Accounts for companies and installers
MultiRelay has two-way communication and ultimate informativeness. The security company will receive an alarm notification in less than a second. Notifications include all the necessary information: name of the device, time of the event, and even the exact room where the device is located. CMS also receives photo verification, capturing the reason for the alarm.
Full addressability of connected devices
Instant notifications in Ajax apps
Alarms and events monitoring in PRO Desktop for security companies
- 1 - With U/UTP cat.5 4×2×0.51 cable. Other cable types may have different values. Please use Fibra power supply calculator to check the wired system project before installation.
- 2 - Case is sold separately. Learn more about Case.
- 3 - Notification about attempts to open Case or detach it from the surface. Available only when Superior MultiRelay Fibra is installed into Case. Case is sold separately.
Technical information
Superior MultiRelay Fibra
Ajax product categories
In an Ajax system, you can combine devices of all product categories: Intrusion protection, Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.
Remote power control: Unveiling Superior MultiRelay Fibra
Superior MultiRelay Fibra is an innovative four-channel relay module with potential-free contacts that makes a bold statement in the evolving world of wired security systems. This cutting-edge gadget offers sophisticated automation for increased safety and security, redefining the remote power supply control field. This article examines many functions, applications, and technological developments that make Superior MultiRelay Fibra an essential part of contemporary wired security systems.
Unveiling versatility
Versatile control: four separate relays with potential-free contacts make up Superior MultiRelay Fibra, a four-channel smart relay from Ajax, which enables the independent control of four circuits. This adaptability makes complex wiring diagrams easier to implement.Smooth integration: the module's seamless integration with the Ajax security system allows for sophisticated automation of various appliances, electrical systems, and security devices from outside sources. Automation scenarios ensure a complete and responsive security environment by reacting to alerts, changing security modes, or pre-established schedules.Operational efficiency: Superior MultiRelay Fibra has an efficient communication range of up to 2000 m² with the Ajax hub, thanks to its low power consumption of up to 0.18 W. It features a tamper alarm for added security and maintains stable contact states during power interruptions.Diverse applications: Superior MultiRelay Fibra can be used in various settings, including climate control systems, automated gates, roller shutters, fog generators, lighting, electric locks, access control, and remote power supply control.
Empowering automation scenarios
Different triggersAlarms, schedule modifications, temperature variations, humidity levels, CO2 concentrations, and even the touch of a LightSwitch can all set off automation scenarios.Quick event transmissionThe wired Ajax security system sends events to the central monitoring stations and PRO Desktop, monitoring the premise quickly using various protocols. Events include low supply voltage, communication failure, device activation/deactivation, and tamper alerts, offering comprehensive details for efficient reaction plans.Intelligent security and comfortUsers can set up scenarios that automatically turn off workplace lights and arm or activate projectors upon detecting outside intruders by utilizing automation features with a four-channel smart relay from a wired Ajax MultiRelay module.
Technical excellence
Relay operation modes: wired four-channel relay with potential-free contacts to control power supply remotely. MultiRelay offers two operation modes for each relay: bistable, which changes the contact state with each activation, and pulse, which changes the contact state for a configurable amount of time.Steady contact state and configurability: users can select Normally Closed (NC) or Normally Open (NO) contact states for each relay to increase system flexibility. The device also maintains its current contact state during a power outage.Fibra technology: MultiRelay uses Ajax's proprietary Fibra protocol to ensure secure bidirectional communication. Fibra lines facilitate picture verification in various devices, such as detectors, keypads, and sirens.Energy efficiency and sabotage resistance: Fibra communication prioritizes TDMA principles and energy efficiency with minimal power usage. The system includes data encryption, frequent polling, tamper alerts, security against short circuits, and measures against sabotage.
Ease of installation and configuration
Simplified installation: the gadget is made to be installed quickly and fits into the Case perfectly. The multi-Fibra device-compatible Case minimizes expenses, streamlines installation, and best uses available space.PRO-friendly installation: Ajax debunks the misconception that installing wired systems is difficult. PROs gain from simple module installation, user-friendly apps, and remote reconfiguration, eliminating the need for programming or on-site visits.Fibra power supply calculator: this web-based tool helps security professionals evaluate power usage, allows real-time project scheduling, and answers any problems.
Conclusion
A versatile and significant part of the Ajax security ecosystem is a four-channel wired relay Superior MultiRelay Fibra. It is a leader in security systems due to its capacity to manage distant power supplies, enable sophisticated automation, and easily interface with various devices. Security experts looking for top-tier solutions for their projects should have Superior MultiRelay Fibra on hand because of its technological competence, ease of installation, and wide range of application situations.
