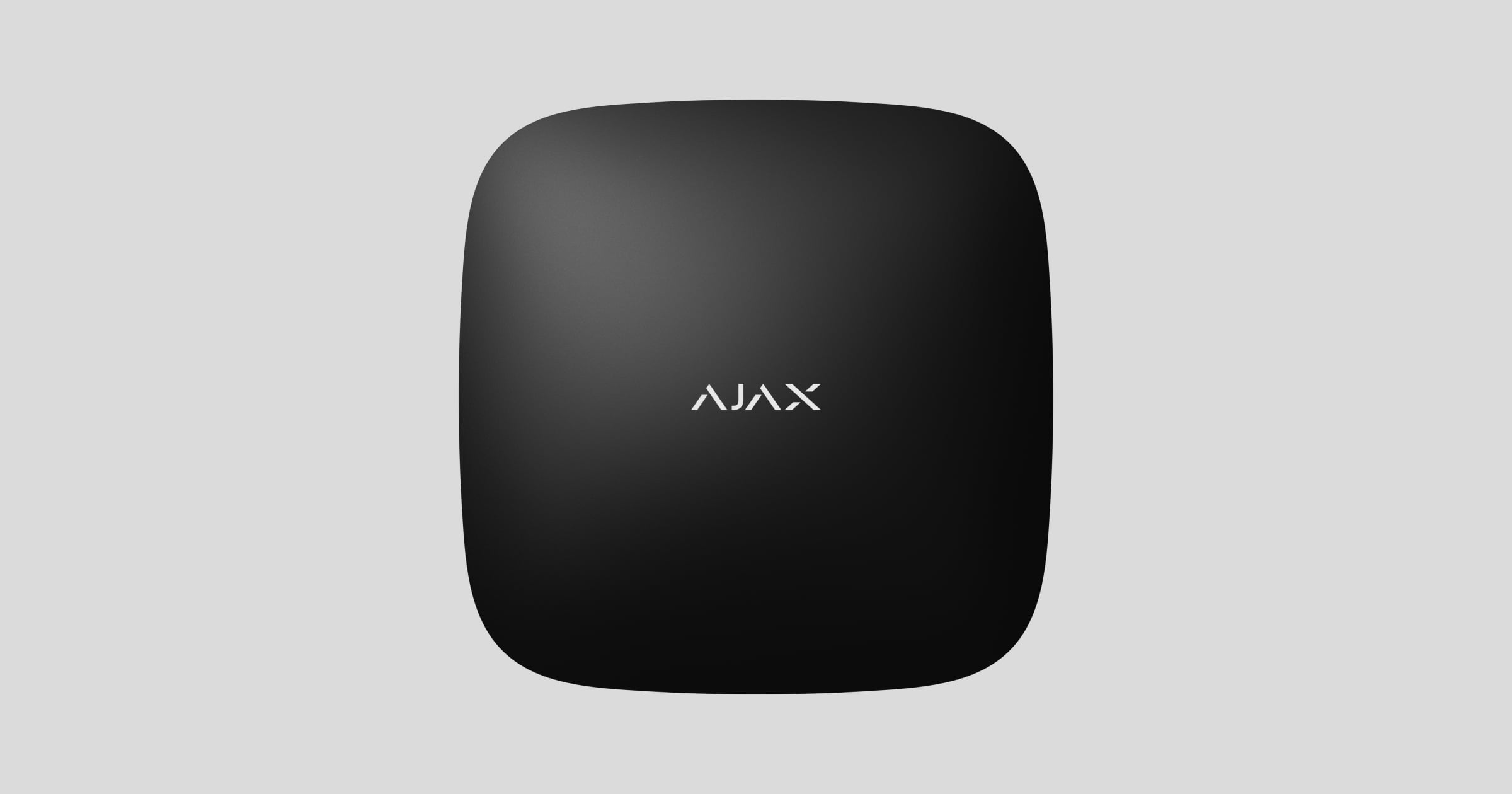

Takeover Module Jeweller user manual

Updated

Takeover Module Jeweller is a module used to integrate wireless third-party devices into an Ajax system. The integration module supports four protocols and three frequencies¹. The device is designed for indoor use only.

Takeover Module Jeweller operates in an Ajax system and exchanges data with a hub via the secure Jeweller and Wings radio protocols.

¹ Only Qolsys/Interlogix (319.5 MHz) and Honeywell/Resideo/2GIG (345 MHz) are available. Other protocols will be available with future updates.

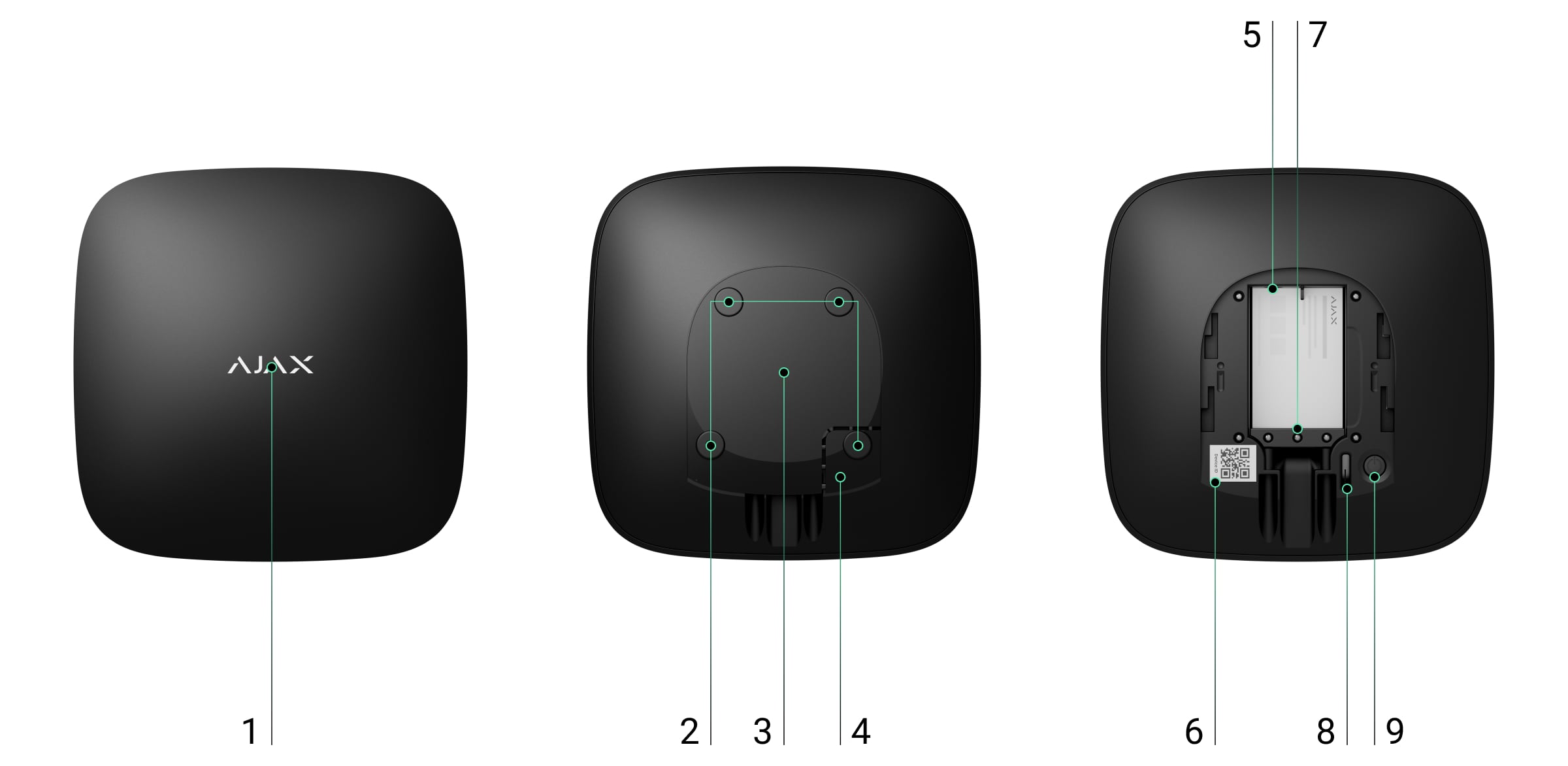

Functional elements

  1. Logo with an LED indicator.

  2. Holes to secure the SmartBracket mounting panel to the surface.

  3. SmartBracket mounting panel. Slide it down to open.

  4. Perforated part of the mounting panel. It triggers a tamper alarm if someone attempts to detach the device from the surface. Do not break it off.

  5. Power supply connector.

  6. QR code with the device ID. It is used to add the integration module to the hub.

  7. Сable retainer clamp.

  8. Tamper button.

  9. Power button.

Compatible hubs and range extenders

The integration module requires an Ajax hub running OS Malevich 2.40 or later.

Check device compatibility

Compatible wireless third-party devices

The integration module supports the following wireless third-party devices.

Qolsys devices

Device type

Name

Model

1

Door/window contact

IQ MICRO DW-S

QS1132-840 (white)
QS1130-840 (brown)

2

Door/window contact

IQ MINI DW-S

QS1135-840 (white)
QS1136-840 (brown)

3

Door/window contact

IQ DOOR/WINDOW-S

QS1133-840

4

Door/window contact

IQ DW MINI EXTENDED-S

QS1137-840

5

Door/window contact

IQ RECESSED DW-S

QS1134-840

6

Door/window/shock sensor

IQ SHOCK MINI-S

IQSM

7

Door/window/shock sensor

IQ SHOCK-S

QS1138-840

8

Motion detector

IQ MOTION-S

QS1231-840

9

Motion detector

IQ MOTION-S

QS1230-840

10

Flood detector

IQ FLOOD-S

QS5536-840

11

Glass break detector

IQ GLASS-S

QS1431-840

12

Garage tilt detector

IQ TILT-S

QS1131-840

13

Temperature sensor

IQ TEMP-S

QS5535-840

14

Smoke detector

IQ SMOKE

QS5110-840

15

CO detector

IQ CARBON

QS5210-840

16

Heat detector

IQ HEAT 135

QS5517-840

17

Heat detector

IQ HEAT 200

QS5518-840

18

Heat detector

IQ HEAT 135/200

QS5519-840

19

4-button key fob

IQ FOB-S

QS1331-840

20

Panic Pendant

IQ PENDANT-S

QS1332-840

21

Panic Fall Pendant

IQ FALL PENDANT

QS1314-840

22

Scenario executor + doorbell alerter

IQ DOORBELL

QS1119-840

Interlogix devices

Device type

Model

1

Door/window contact

TX-E201

2

Door/window contact

TX-E221

3

Door/window contact

TX-E231

4

Door/window contact

60-362N-10-319.5 or (NX-650N)
60-362N-11-319.5 or (NX-651N)

5

Door/window contact

60-362N-29-319

6

Door/window contact

NX-450
NX-451

7

Door/window contact

TX-1010-01-1

8

Door/window contact

TX-1012-01-1

9

Door/window contact

TX-1510-01-1

10

Door/window contact

60-670-95R

11

Door/window contact

60-499-10-319.5

12

Door/window contact

60-688-95

13

Door/window contact

VERSA-GE

14

Shock sensor

60-886-95

15

Motion detector

60-703-95

16

Motion detector

60-639-95R-OD

17

Motion detector

TX-E721

18

Motion detector

TX-2810-01-4

19

Motion detector

60-511-02-95

20

Motion detector

60-807-95R

21

Motion detector

60-880-95

22

Glass break detector

60-462-10-319.5

23

Glass break detector

60-873-95

24

Glass break detector

60-886-95

25

Smoke detector

TX-6010-01-1

26

Smoke detector

SLX-AD-T3

27

CO detector

TX-6310-01-1

28

CO detector

600-6520-95

29

Fire alarm call point

60-589-319.5

30

Smoke/heat/freeze detector

SDX-135Z

31

Smoke/CO/heat/freeze detector

CDX-135Z

32

Flood/freeze detector

TX-E611

33

Flood detector

NX-695

34

Heat detector

60-460-319.5

35

Heat detector

HDX-135
HDX-200

36

Freeze detector

60-504-10-319.5

37

Garage/tilt sensor

TX-E401

38

Garage/tilt sensor

TX-8010-01-1

39

Personal panic device

TX-4200-01-1

40

Pendant panic button

NX-475

41

Wristwatch panic button

NX-474

42

4-button key fob

TX-4014-01-2

43

2-button keychain

60-607-319.5

44

4-button micro key fob

600-1064-95R

AT&T devices (coming soon)

Device type

Model

1

Door/window contact

SW-ATT-V2

2

Recessed door/window contact

W-ATT-RDW

3

PIR motion detector

SW-ATT-PIR

4

Glass break detector

SW-ATT-GB

5

Temperature/flood sensor

SW-ATT-TF

6

Smoke detector

SW-ATT-SMKT

7

Wireless CO detector

SW-ATT-CO

8

Key fobs

SW-ATT-FOB

DSC devices (coming soon)

Device type

Model

1

Door/window sensor

WS4945NA

2

Motion detector

WS4904P

3

Motion detector

WLS914-433

4

Glass break sensor

WLS912L-433

5

Shock sensor

EV-DW4927SS

6

Smoke detector

WS4936

7

Smoke/heat detector

WS4916

8

Carbon monoxide detector

WS4933

9

2-button key fob

WS4949

10

4-button key fob

WS4939

11

Pendant button

WS4938

12

Wireless repeater

WS4920

Honeywell/Resideo/2GIG devices

Device type

Model

1

Door/window contact

5816WMWH

2

Door/window contact

5820L

3

Door/window contact

5815

4

Motion detector

5800PIR-COM

5

Motion detector

5898

6

Motion detector

5800PIR

7

Glass break detector

5853

8

Smoke detector

5806W3

9

Smoke detector + heat detector

5808W3

10

CO detector

5800CO

11

CO detector

GG-CO8345 (2GIG-CO8-345)

12

Asset theft detector

5870API

13

Temperature/ROR heat detector

5809SS

14

Temperature + flood detector

5821

15

Smoke + CO detector

5800COMBO

16

Low temperature detector

5800FLOOD

17

Smoke/CO/temperature detector

5800CMBOV

18

Smoke/heat detector

5800 SMOKEV

19

Outdoor motion detector

5800PIR-OD2

20

Panic single/double button

5802wXT-2

Operating principle

Takeover Module Jeweller is designed to integrate wireless third-party devices into an Ajax system. The integration module receives information about alarms, malfunctions, and events from devices through a wireless connection. Then, it sends the event to the hub via the Jeweller wireless data transfer protocol. The hub, in turn, sends notifications to users and the monitoring station.

The module supports four protocols and three frequencies¹, allowing integration of devices from different manufacturers.

Takeover Module Jeweller can be used to integrate alarm and auxiliary request panic buttons, key fobs (coming soon), indoor and outdoor motion detectors, as well as detectors that respond to door opening, vibration, glass break, fire (coming soon), and gas and water leaks.

The third-party device type is specified when adding the device to the module and can also be changed in the device’s settings. The selected type determines the text of alarm notifications and events of the added device, as well as event codes transmitted to monitoring software.

¹ Only Qolsys/Interlogix (319.5 MHz) and Honeywell/Resideo/2GIG (345 MHz) are available. Other protocols will be available with future updates.

Types of wireless devices

Takeover Module Jeweller can integrate up to 80 wireless third-party devices. The following types of devices with corresponding icons are available in an Ajax app:

Device type

Icon

Motion detector

Tilt detector

Opening detector

Shock detector

Glass break detector

Fire detector (coming soon)

CO detector (coming soon)

Smoke detector (coming soon)

Heat detector (coming soon)

Freeze detector (coming soon)

Flood detector

Key fob (coming soon)

Custom

Jeweller data transfer protocol

Jeweller is a proprietary wireless communication technology that provides fast and reliable two-way communication between the hub and devices. The integration module uses Jeweller to transmit commands, alarms, and events.

Learn more

Wings data transfer protocol

Wings is a proprietary wireless communication technology for transmitting large data packets. The integration module uses Wings to upload firmware updates.

Learn more

Firmware update

If a new firmware version for Takeover Module Jeweller is available, the UpdateRed-M icon appears in Ajax apps in the Devices HubFilled-M tab. An admin or a PRO with access to the system settings can run an update in the device states or settings. The on-screen instructions help to update the firmware successfully.

Sending events to the monitoring station

An Ajax system can transmit alarms to the Ajax PRO Desktop app and the monitoring station in the formats of SurGard (Contact ID), SIA (DC-09), ADEMCO 685, and other protocols.

Takeover Module Jeweller can transmit the following events:

  1. Integration module tamper alarm / restoration.

  2. Added device alarm/restoration.

  3. Loss/restoration of connection between the integration module and the hub or radio signal range extender.

  4. Loss/restoration of connection between the integration module and the devices added to it.

  5. Deactivation/activation of the integration module.

  6. Deactivation/activation of wireless devices added to the integration module.

  7. Unsuccessful attempt to arm a security system (if system integrity check is enabled).

When an alarm is received, the monitoring station operator knows what has happened and where to dispatch a rapid response unit. Ajax device addressability allows the system to send events to Ajax PRO Desktop and the monitoring station with the specified device type, name, security group, and virtual room. The list of transmitted parameters may vary depending on monitoring software and the selected communication protocol.

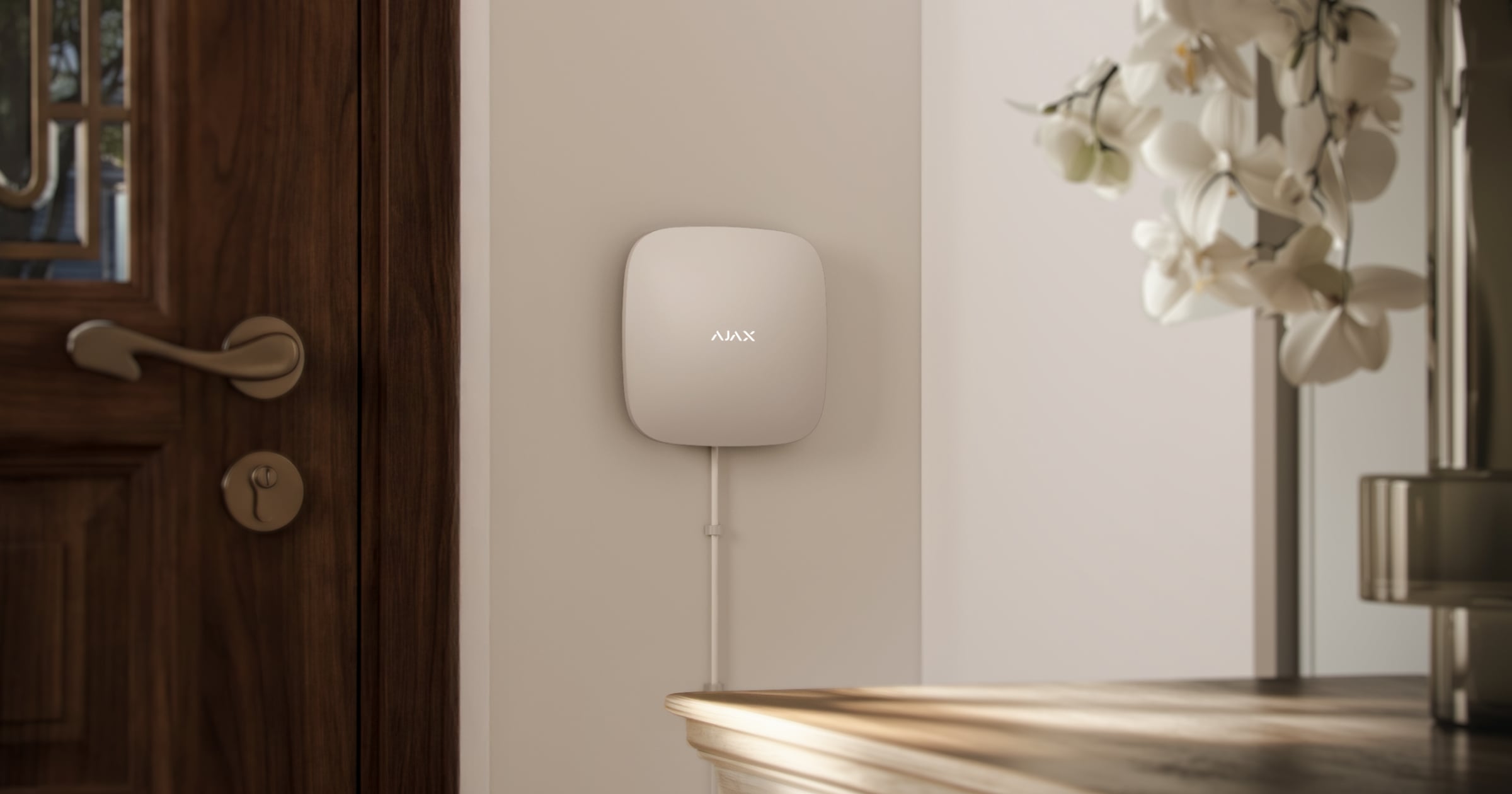

Selecting an installation site

Takeover Module Jeweller is designed for indoor installation. We recommend choosing an installation site that is hidden from view.

When choosing a location for installing Takeover Module Jeweller, consider the parameters that affect its operation:

You must follow the placement recommendations when designing the system for the facility. Only specialists can design and install an Ajax system. A list of recommended partners is available here.

Signal strength

The Jeweller signal strength is determined by the number of undelivered or corrupted data packets over a certain period of time. The SignalStrength-M icon in the Devices HubFilled-M tab in Ajax apps indicates the signal strength:

  • three bars — excellent signal strength;

  • two bars — good signal strength;

  • one bar — low signal strength; stable operation is not guaranteed;

  • crossed-out icon — no signal.

Refer to the Module functionality tests section to learn how to run the Jeweller and Wings signal strength tests.

What is the Jeweller signal strength test

What is the Wings signal strength test

Where not to install the integration module

  1. Outdoors. This may cause the module to malfunction.

  2. In places with temperature and humidity beyond the permissible limits. This may damage the module.

  3. Closer than 3 ft to the hub (or the radio signal range extender).

  4. In places with low or unstable Jeweller or Wings signal strength.

Installation

Before installing Takeover Module Jeweller, ensure you have selected the optimal location that meets the requirements of this manual.

When installing and operating the device, follow general electrical safety rules for using electrical appliances and the requirements of electrical safety regulations.

To install the module:

  1. Slide the SmartBracket mounting panel down to remove it from the module.

  2. Connect the power cable to the module’s power supply connector.

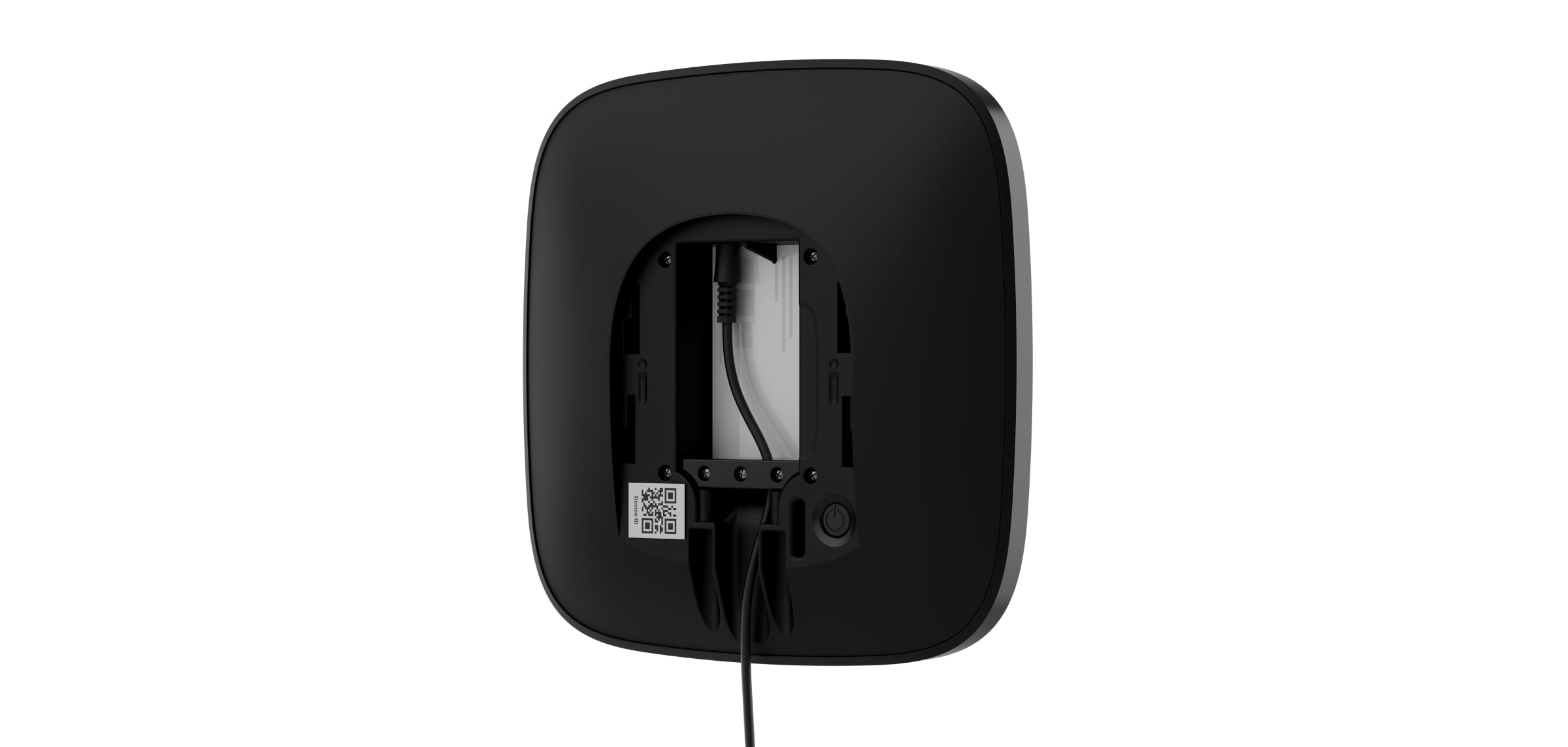

  3. Secure the power cable using the supplied cable retainer clamp and screws. The retainer clamp must fit tightly against the cable so that the module’s mounting panel closes easily. This reduces the likelihood of sabotage, as pulling the secured cable loose requires greater force.

  4. Add the module to the system.

  5. Temporarily secure the SmartBracket panel using double-sided adhesive tape or other temporary fasteners.

  6. Place the module on the SmartBracket mounting panel.

  7. Perform the module functionality tests.

  8. If the tests are successful, remove the module from SmartBracket.

  9. Secure the SmartBracket panel to the surface with bundled screws. Use all fixing points.

  10. Place the module on the SmartBracket mounting panel.

  11. Tighten the holding screws on the bottom of the module enclosure. The screws are required for more secure fastening and to protect the module from being dismantled.

Adding the integration module to the system

Before adding the module

  1. Install an Ajax app.

  2. Log in to your account or create a new one.

  3. Select a space or create a new one.

  4. Add at least one virtual room.

  5. Add a compatible hub to the space. Ensure the hub is turned on and has internet access via Ethernet, Wi-Fi, and/or mobile network.

  6. Check the states in the Ajax app to ensure the space is disarmed and the hub is not updating.

Types of accounts and their rights

Adding the module to the hub

  1. Open an Ajax app. Select a space to which you want to add the integration module.

  2. Go to the Devices HubFilled-M tab and tap Add device.

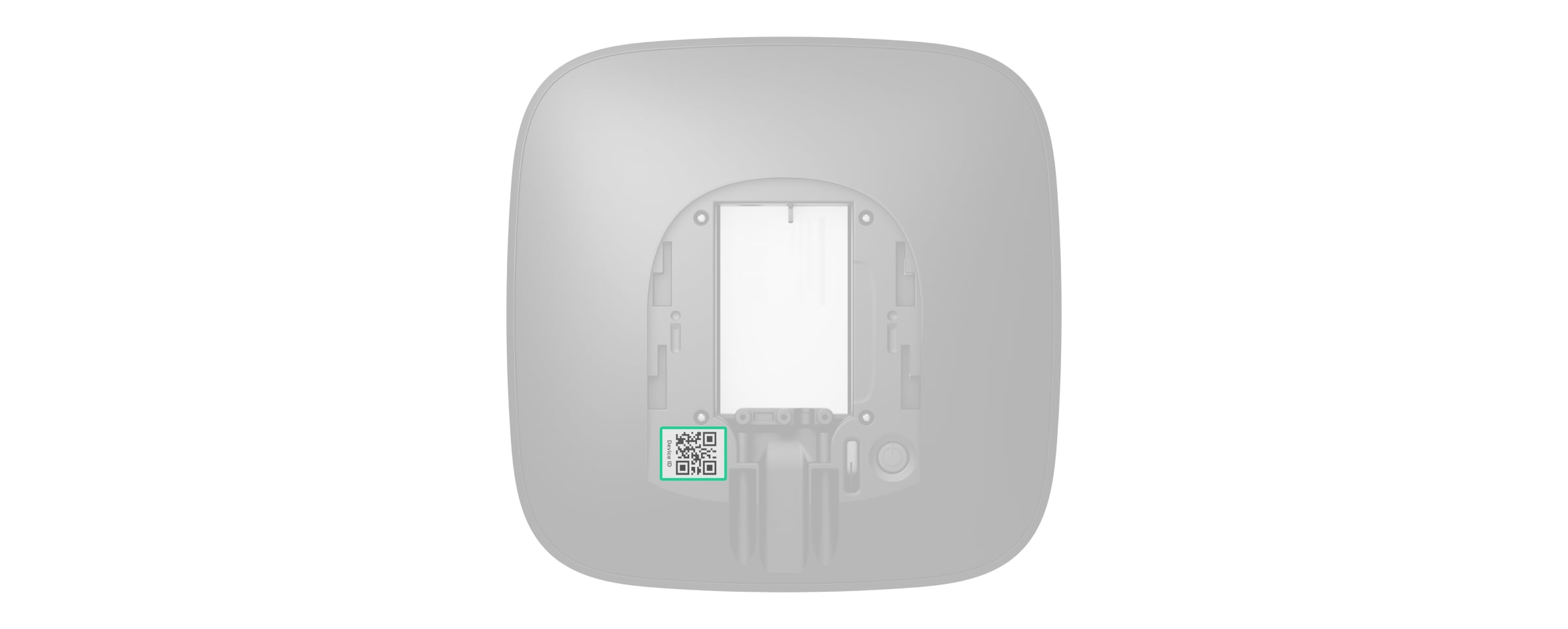

  3. Scan a QR code or enter the device ID manually. The QR code with the device ID is placed on the module enclosure. Also, it is duplicated on the device packaging.

  4. Assign a name to the integration module.

  5. Select a virtual room and a security group (if Group mode is enabled).

  6. Tap Add, and the countdown will begin.

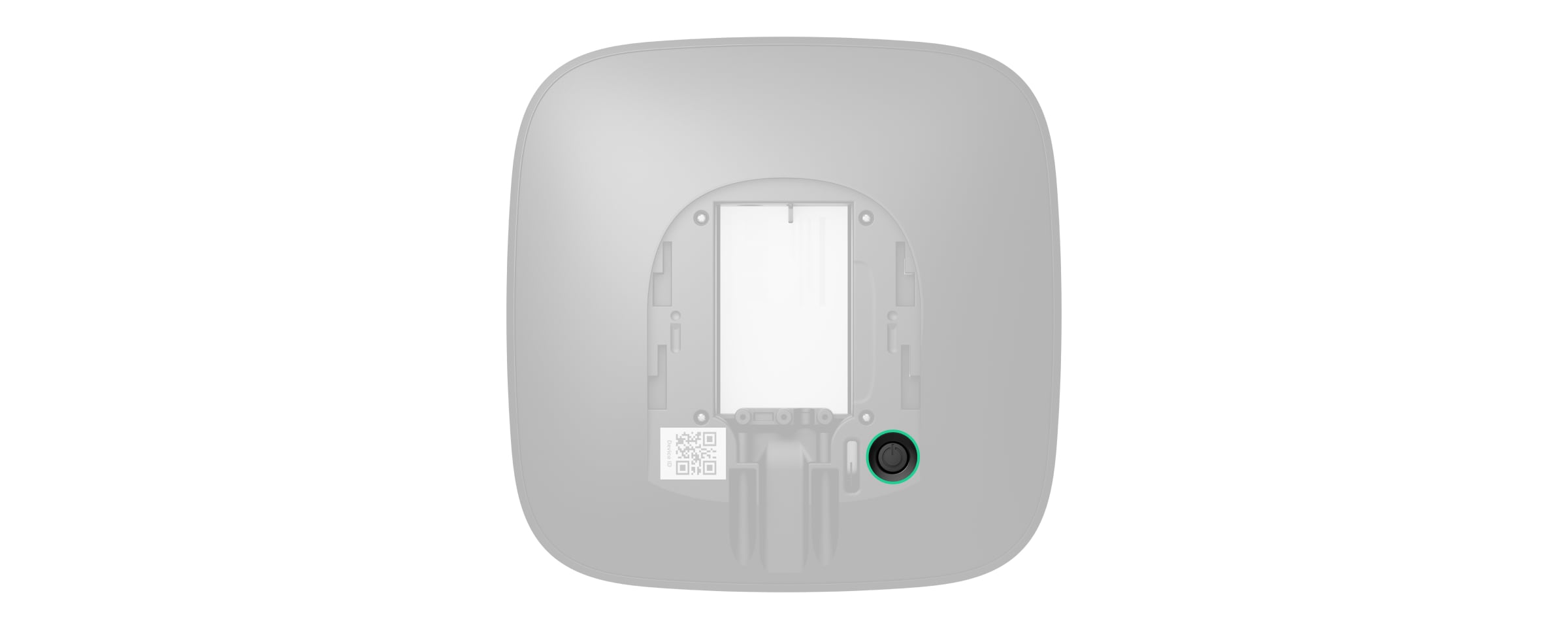

  7. Turn on the integration module by holding down the power button for three seconds.

Note that a connection request to the hub is sent the moment the integration module is turned on. If the connection fails, turn off the module for five seconds and try again. If the maximum number of devices has already been added to the hub, the system will send an error notification when you attempt to add more.

Once added to the hub, the integration module will appear in the list of hub devices in the Ajax app. The interval for updating device states in the list depends on the Jeweller or Jeweller/Fibra settings and is 36 seconds by default.

Adding a wireless device to the integration module

Before adding a third-party device to the integration module, read the manufacturer’s instructions for this device.

Ensure the integration module and wireless third-party devices are within their respective radio signal coverage areas.

Configuring the module’s compatibility mode

Before adding a wireless device to the integration module, configure the module to use the appropriate protocol and operating frequency so that they match the third-party device’s operating characteristics. Use the Compatibility mode option in the module settings to configure the protocol and operating frequency.

To configure the module’s compatibility mode, in an Ajax app:

  1. Go to the Devices HubFilled-M tab.

  2. Select Takeover Module Jeweller in the list.

  3. Go to Settings Settings-M.

  4. Go to Compatibility mode and select the manufacturer of the third-party device¹:

    1. Qolsys/Interlogix (319.5 MHz)

    2. AT&T (433 MHz) (coming soon)

    3. DSC (433 MHz) (coming soon)

    4. Honeywell/Resideo/2GIG (345 MHz)

  5. Tap Save to apply the settings.

Note that the integration module operates only on one frequency compatible with a specific manufacturer at a time. Operation on multiple frequencies simultaneously is not possible.

Switching the module’s compatibility mode will remove all previously added wireless third-party devices.

¹ Only Qolsys/Interlogix (319.5 MHz) and Honeywell/Resideo/2GIG (345 MHz) are available. Other protocols will be available with future updates.

Adding a Qolsys/Interlogix device

  1. In an Ajax app, go to the Devices HubFilled-M tab.

  2. Find Takeover Module Jeweller in the list.

  3. Select Devices under the module icon.

  4. Tap Add device.

  5. Assign a name to the device.

  6. Select a virtual room and a security group (if Group mode is enabled).

  7. Select the device type. For specific device types, select IQ or Other sensor type.

  8. Add the device to the integration module automatically or manually:

    1. To add the device automatically:

      1. Tap Scan for devices.

      2. Once the system starts searching for devices, trigger the device by pressing/releasing the tamper button (if possible) or by activating the main alarm.

      3. Select the required device from the list.

      4. Trigger the device again by pressing/releasing the tamper button (if possible) or by activating the main alarm.

    2. To add the device manually:

      1. Tap Add manually.

      2. Enter the serial number (DL ID) specified on the device or its packaging. If the device has multiple serial numbers, enter the first one.

      3. Trigger the device by pressing/releasing the tamper button (if possible) or by activating the main alarm.

  9. If the device is added successfully, the app will display a corresponding message. If the device is not found, follow the steps suggested by the app.

Once added to the integration module, the third-party device will appear in the list of module devices in the Ajax app.

Adding an AT&T device (coming soon)

  1. In an Ajax app, go to the Devices HubFilled-M tab.

  2. Find Takeover Module Jeweller in the list.

  3. Select Devices under the module icon.

  4. Tap Add device.

  5. Assign a name to the device.

  6. Select a virtual room and a security group (if Group mode is enabled).

  7. Select the device type.

  8. Add the device to the integration module automatically or manually:

    1. To add the device automatically:

      1. Tap Scan for devices.

      2. Once the system starts searching for devices, trigger the device by pressing/releasing the tamper button (if possible) or by activating the main alarm.

      3. Select the required device from the list.

      4. Trigger the device again by pressing/releasing the tamper button (if possible) or by activating the main alarm.

    2. To add the device manually:

      1. Tap Add manually.

      2. Enter the serial number (DL ID) specified on the device or its packaging. If the device has multiple serial numbers, enter the first one.

      3. Trigger the device by pressing/releasing the tamper button (if possible) or by activating the main alarm.

  9. If the device is added successfully, the app will display a corresponding message. If the device is not found, follow the steps suggested by the app.

Once added to the integration module, the third-party device will appear in the list of module devices in the Ajax app.

Adding a DSC device (coming soon)

  1. In an Ajax app, go to the Devices HubFilled-M tab.

  2. Find Takeover Module Jeweller in the list.

  3. Select Devices under the module icon.

  4. Tap Add device.

  5. Assign a name to the device.

  6. Select a virtual room and a security group (if Group mode is enabled).

  7. Select the device type.

  8. Add the device to the integration module automatically or manually:

    1. To add the device automatically:

      1. Tap Scan for devices.

      2. Once the system starts searching for devices, trigger the device by pressing/releasing the tamper button (if possible) or by activating the main alarm.

      3. Select the required device from the list.

      4. Trigger the device again by pressing/releasing the tamper button (if possible) or by activating the main alarm.

    2. To add the device manually:

      1. Tap Add manually.

      2. Enter the serial number (DL ID) specified on the device or its packaging. If the device has multiple serial numbers, enter the first one.

      3. Trigger the device by pressing/releasing the tamper button (if possible) or by activating the main alarm.

  9. If the device is added successfully, the app will display a corresponding message. If the device is not found, follow the steps suggested by the app.

Once added to the integration module, the third-party device will appear in the list of module devices in the Ajax app.

Adding a Honeywell/Resideo/2GIG device

  1. In an Ajax app, go to the Devices HubFilled-M tab.

  2. Find Takeover Module Jeweller in the list.

  3. Select Devices under the module icon.

  4. Tap Add device.

  5. Assign a name to the device.

  6. Select a virtual room and a security group (if Group mode is enabled).

  7. Select the device type.

  8. Add the device to the integration module automatically or manually:

    1. To add the device automatically:

      1. Tap Scan for devices.

      2. Once the system starts searching for devices, trigger the device by pressing/releasing the tamper button (if possible) or by activating the main alarm.

      3. Select the required device from the list.

      4. Trigger the device again by pressing/releasing the tamper button (if possible) or by activating the main alarm.

    2. To add the device manually:

      1. Tap Add manually.

      2. Enter the serial number (DL ID) specified on the device or its packaging. If the device has multiple serial numbers, enter the first one.

      3. Trigger the device by pressing/releasing the tamper button (if possible) or by activating the main alarm.

  9. If the device is added successfully, the app will display a corresponding message. If the device is not found, follow the steps suggested by the app.

Once added to the integration module, the third-party device will appear in the list of module devices in the Ajax app.

Module functionality tests

An Ajax system provides several tests to help you select the correct installation place for the devices. For Takeover Module Jeweller, the following tests are available:

  • Jeweller signal strength test — to determine the signal strength and stability between the hub (or the radio signal range extender) and the integration module via the Jeweller wireless data transfer protocol at the installation site.

  • Wings signal strength test — to determine the signal strength and stability between the hub (or the radio signal range extender) and the integration module via the Wings wireless data transfer protocol at the installation site.

Icons

The icons in an Ajax app display some of the Takeover Module Jeweller and added device states. The icons can be checked in the Devices HubFilled-M tab.

Module icons

Icon

Meaning

SignalStrength-M

Jeweller signal strength. It displays the signal strength between the hub and the integration module. The recommended value is 2–3 bars.

Learn more

Battery100-S

Backup battery charge level.

Learn more

UpdateRed-M

A firmware update is available. Go to the module states or settings to find the description and run an update.

label-updating

Firmware update is in progress: downloading/installing the latest version.

FireRed-M

A third-party device added to the module has registered a fire alarm (coming soon).

Leakage-M

A third-party device added to the module has registered a flood alarm.

COLevel-M

A third-party device added to the module has registered a CO alarm (coming soon).

SmokeDetected-M

A third-party device added to the module has registered a smoke alarm (coming soon).

TemperatureRiseAlertRed-M

A third-party device added to the module has registered an alarm when the upper temperature limit is exceeded (coming soon).

LowTemperatureAlertRed-M

A third-party device added to the module has registered an alarm when the temperature drops below the lower limit (coming soon).

AverageNoise-M

Radio interference level is high.

RexConnected-M

The module operates via the radio signal range extender.

Learn more

RruRemoved-M

Sending events to the monitoring station is deactivated for the module.

Learn more

TemporaryDeactivationWholeDevice-S-red

The module is permanently deactivated.

Learn more

TemporaryDeactivationTamperRed-M

Tamper alarm notifications are permanently deactivated.

Learn more

OneTimeDeactivationWholeDevice-S

The module is deactivated until the system is disarmed.

Learn more

OneTimeDeactivationTamper-S

Tamper alarm notifications are deactivated until the system is disarmed.

Learn more

offline

The module has lost connection to the hub, or the hub has lost connection to the Ajax Cloud server.

not-transferred

The module has not been transferred to the new hub.

Learn more

Icons of added devices

Icon

Meaning

SignalStrength-M

Connection between a third-party device and the integration module.

Battery100-S

Device battery charge level.

Bell-S

The Chime feature is enabled (coming soon).

Learn more

DelayWhenLeaving-M

DelayWhenEntering-M

Entry/exit delay is enabled.

Learn more

AlwaysActive-M

The device operates in Always active mode.

Learn more

NightMode-M

The device operates when Night mode is enabled.

Learn more

RruRemoved-M

Sending events to the monitoring station is deactivated for the module.

Learn more

Uptime-M

The device has reached the end of its service life.

TiltSensor-M

The device has triggered a tilt alarm.

FireRed-M

The device has triggered a fire alarm (coming soon).

Leakage-M

The device has triggered a flood alarm.

COLevel-M

The device has triggered a CO alarm (coming soon).

SmokeDetected-M

The device has triggered a smoke alarm (coming soon).

TemperatureRiseAlertRed-M

The device has triggered an alarm when the upper temperature limit is exceeded (coming soon).

LowTemperatureAlertRed-M

The device has triggered an alarm when the temperature drops below the lower limit (coming soon).

DeviceTestYellow-M

The device requires maintenance; refer to the device user manual.

Warning-S

The device is in fault mode.

ExternalContact-M

The device’s external contact has triggered an alarm.

OpenDoor-M-1

The device has triggered door/window opening alarm.

TemporaryDeactivationTamperRed-M

Tamper alarm notifications are permanently deactivated.

Learn more

OneTimeDeactivationTamper-S

Tamper alarm notifications are deactivated until the system is disarmed.

Learn more

TemporaryDeactivationWholeDevice-S-red

The device is permanently deactivated.

Learn more

OneTimeDeactivationWholeDevice-S

The device is deactivated until the system is disarmed.

Learn more

offline

The module has lost connection to the hub, or the hub has lost connection to the Ajax Cloud server.

States

Module states

The states include information about the integration module and its operating parameters. The states of Takeover Module Jeweller can be found in Ajax apps:

  1. Go to the Devices HubFilled-M tab.

  2. Select Takeover Module Jeweller in the list.

Parameter

Meaning

Data import

Displays an error during data transfer to the new hub:

  • Failed — the integration module has not been transferred to the new hub.

Learn more

Firmware update

Shows the state of the firmware update if a new version is available:

  • Update-M New firmware version is available. Tapping on Info-M opens the instructions for updating the module’s firmware.

  • UpdateError-S Failed to update firmware. Tapping on Info-M opens the instructions for updating the module’s firmware.

Malfunction

If you tap Info-M, the device’s list of malfunctions opens.

The field is displayed only if a malfunction is detected.

Jeweller signal strength

Signal strength between the module and the hub (or the range extender) via the Jeweller channel. The recommended value is 2–3 bars.

Jeweller is a protocol for transmitting events and alarms.

Connection via Jeweller

Connection state between the module and the hub (or the range extender) via the Jeweller channel:

  • Online — the module is connected to the hub (or the range extender). Normal state.

  • Offline — the module is not connected to the hub (or the range extender). Check the connection.

Wings signal strength

Signal strength between the module and the hub (or the range extender) via the Wings channel. The recommended value is 2–3 bars.

Wings is a protocol for updating the device firmware.

Connection via Wings

Connection state between the module and the hub (or the range extender) via the Wings channel:

  • Online — the module is connected to the hub (or the range extender). Normal state.

  • Offline — the module is not connected to the hub (or the range extender). Check the connection.

[Range extender name]

Connection state between the module and the radio signal range extender:

  • Online — the module is connected to the range extender.

  • Offline — the module is not connected to the range extender.

The field is displayed if the module operates via the radio signal range extender.

Battery charge

Battery level of the device. Two states are available:

  • OK

  • Low

Learn more

Lid

State of the module’s tamper button, which responds to detachment or opening of the device enclosure:

  • Open — the module has been removed from the SmartBracket mounting panel, or its integrity is compromised. Check the module.

  • Closed — the module is installed on the SmartBracket mounting panel. The integrity of the device enclosure and the mounting panel is not compromised. Normal state.

Learn more

External power

State of the external power supply connection:

  • Connected — an external power supply is connected to the module.

  • Disconnected — an external power supply is disconnected. Check the power cable connection to the integration module.

Radio interference level

The field shows whether the interference level in the radio channel is high:

  • OK — the interference level in the radio channel is acceptable.

  • High — the interference level in the radio channel is too high.

Learn more

Monitoring

The field shows the state of event transmission to the monitoring station:

  • Don’t send any events to CMS

The field is displayed only when event transmission to the monitoring station is disabled.

Learn more

Permanent deactivation

The field shows the state of the module’s permanent deactivation setting:

  • No — the module operates in normal mode and transmits all events.

  • Entirely — the system admin has completely excluded the module from the system operation. The module does not execute system commands or report alarms or other events.

  • Lid only — the hub admin has disabled notifications about the tamper button triggering.

Learn more

One-time deactivation

The field shows the state of the module’s one-time deactivation setting:

  • No — the module operates in normal mode.

  • Entirely — the module is completely disabled until the system is disarmed. The module does not execute system commands or report alarms or other events.

  • Lid only — notifications about the tamper button triggering are disabled until the system is disarmed.

Learn more

Firmware

Module firmware version.

Device ID

Module ID. It is also available on the QR code on the back of the enclosure and on module packaging.

Device No.

Module number. It is transmitted to the monitoring station if an alarm or event occurs in the system.

States of added devices

The states display information about added devices and their operating parameters. You can find the states of devices added to Takeover Module Jeweller in Ajax apps:

  1. Go to the Devices HubFilled-M tab.

  2. Select Takeover Module Jeweller in the list.

  3. Select Devices under the Takeover Module Jeweller icon.

  4. Select the device from the list.

Parameter

Meaning

Malfunction

Tapping on the Info-M opens the list of malfunctions of the added third-party device.

The field is displayed only if a malfunction is detected.

Connection

Connection state between Takeover Module Jeweller and the added third-party device:

  • Online — the device is connected to the integration module. Normal state.

  • Offline — the device is not connected to the integration module. Check the connection.

Battery charge

Battery level of the third-party device. Two states are available:

  • OK

  • Low

Lid

State of the third-party device’s lid:

  • Open — the device lid is open. Check the device.

  • Closed — the device lid is closed. Normal state.

[Sensor type]

Shows the state of the third-party device’s sensor. Depending on the sensor type, the following states are available:

  • Opening sensors and external contacts:

    • Open

    • Closed

  • Tilt and shock sensors:

    • Enabled

  • Other sensors:

    • OK

    • Alert

If the third-party device has more than one sensor, there may be multiple [Sensor type] fields.

External contact

State of the third-party device’s external contact:

  • Open — an external contact is open.

  • Closed — an external contact is closed.

The field is shown only when the third-party device features an external contact. Depending on the third-party device type, there may be multiple External contact fields.

Operating mode (coming soon)

State of the key fob operating mode:

  • Panic — to send a panic alarm.

  • Control — to control automation devices.

  • Mute fire alarm — to mute fire detector alarms. Only for Ajax fire alarm systems.

Available for the Key fob third-party device type.

Always active

If the option is enabled, the device added to the integration module constantly operates in armed mode and reports alarms.

You can configure the option only for certain device types.

Learn more

Monitoring

The field shows the state of event transmission to the monitoring station:

  • Don’t send any events to CMS

The field is displayed only when event transmission to the monitoring station is disabled.

Learn more

Alarm response:

Operating mode

Shows how the device responds to alarms:

  • Instant alarm — the device in armed mode immediately responds to a threat and raises an alarm.

  • Entry/Exit — when a delay is set, the device in armed mode starts the countdown and does not raise an alarm even if it is triggered before the countdown ends.

  • Follower — the device inherits delays from Entry/Exit devices. However, when the Follower is triggered individually, an alarm is immediately raised.

Alarm response:

Entry delay

Entry delay (alarm activation delay) is the time a user has to disarm the system after entering the premises.

Learn more

Alarm response:

Exit delay

Exit delay (arming delay) is the time a user has to leave the premises after the system is armed.

Learn more

Alarm response:

Arm in Night mode

If this option is enabled, the device switches to armed mode when the system is set to Night mode.

Learn more

Alarm response:

Entry delays in Night mode

Entry delay (alarm activation delay) in Night mode is the time a user has to disable Night mode after entering the premises.

Learn more

Alarm response:

Exit delays in Night mode

Exit delay (arming delay) in Night mode is the time a user has to leave the premises after Night mode is enabled.

Learn more

Alarm response:

Night mode delay

Entry delay in Night mode when the device is set to the Follower operating mode. It is the time a user has to disable Night mode after the Entry/Exit device is triggered.

Learn more

Permanent deactivation

The field shows the state of the device’s permanent deactivation setting:

  • No — the device operates in normal mode and transmits all events.

  • Entirely — the system admin has completely excluded the device from the system operation. The device does not execute system commands or report alarms or other events.

Learn more

You can also separately configure the device disconnection:

  • By number of alarms — the system automatically deactivates the device when the set number of alarms is exceeded.

  • By timer — the device is automatically deactivated when the restoration timer expires.

The feature is configured in Ajax PRO apps.

Learn more

One-time deactivation

The field shows the state of the device’s one-time deactivation setting:

  • No — the device operates in normal mode.

  • Entirely — the device is completely disabled until the system is disarmed. The device does not execute system commands or report alarms or other events.

Learn more

DL ID

The serial number (DL ID) of the third-party device. It is printed on the device or its packaging.

Device No.

The third-party device loop (zone) number.

Settings

Module settings

To change Takeover Module Jeweller settings, in an Ajax app:

  1. Go to the Devices HubFilled-M tab.

  2. Select Takeover Module Jeweller in the list.

  3. Go to Settings Settings-M.

  4. Set the required parameters.

  5. Tap Back to save the new settings.

Setting

Meaning

Name

Integration module name. Displayed in the list of hub devices, SMS, and notifications in the event feed.

To change the name, tap on the text field.

The name can contain up to 24 Latin characters or up to 12 Cyrillic characters.

Room

Allows a user to select the virtual room to which the integration module is assigned.

The room name is displayed in SMS and notifications in the event feed.

Compatibility mode

Allows a user to select the module’s protocol and operating frequency so that they match the third-party device’s operating characteristics:

  • Qolsys/Interlogix (319.5 MHz)

  • AT&T (433 MHz)

  • DSC (433 MHz)

  • Honeywell/Resideo/2GIG (345 MHz)

Switching the module’s compatibility mode removes all wireless third-party devices that were previously added to the module.

LED indication settings

Allows a user to configure the module’s LED indication:

  • Off — LED indication is disabled.

  • Always — LED indication is enabled regardless of the security mode.

  • Armed — LED indication is enabled only when the system is in armed mode.

The LED brightness setting allows a user to adjust the brightness of the module’s LED indicator. This setting is available when the LED indication is enabled.

Device offline detection time

Allows a user to specify the third-party device’s offline detection time. If a third-party device remains unreachable for longer than the specified time, the system marks it as offline. The following options are available:

  • 4 hours (by default)

  • 8 hours

  • 12 hours

  • 18 hours

  • 24 hours

Firmware update

Allows a user to switch the module to firmware update mode if a new version is available.

Jeweller signal strength test

Allows a user to switch the module to the Jeweller signal strength test mode.

With this test, users can check the signal strength between the hub (or the radio signal range extender) and the module via the Jeweller wireless data transfer protocol to select the optimal installation site.

Learn more

Wings signal strength test

Allows a user to switch the module to the Wings signal strength test mode.

With this test, users can check the signal strength between the hub (or the radio signal range extender) and the module via the Wings wireless data transfer protocol to select the optimal installation site.

Learn more

Monitoring

Opens the Monitoring settings menu:

  • Send events to CMS — the option allows PRO users to activate and deactivate event transmission to monitoring software for the module. It is enabled by default.

The Monitoring settings are available in Ajax PRO apps only.

User manual

Allows a user to open the Takeover Module Jeweller user manual in an Ajax app.

Permanent deactivation

Allows a user to disable event transmission for the module without removing it from the system.

Three options are available:

  • No — the module operates in normal mode and transmits all events.

  • Entirely — the module does not execute system commands or participate in automation scenarios; the system ignores module alarms and other events.

  • Lid only — the system ignores tamper button triggering events.

Learn more

One-time deactivation

Allows a user to disable module events until the system is disarmed.

Three options are available:

  • No — the module operates in normal mode and transmits all events.

  • Entirely — the module is completely disabled until the system is disarmed. The module does not execute system commands or report alarms or other events.

  • Lid only — tamper button triggering events are disabled until the system is disarmed.

Learn more

Delete device

Allows a user to disconnect the module from the hub.

Settings of added devices

To change the added device settings, in an Ajax app:

  1. Go to the Devices HubFilled-M tab.

  2. Select Takeover Module Jeweller in the list.

  3. Select Devices under the Takeover Module Jeweller tile.

  4. Select the device from the list.

  5. Go to Settings Settings-M.

  6. Configure the required settings.

  7. Tap Back to save the new settings.

Setting

Meaning

Name

Wireless device name. Displayed in the list of hub devices, SMS, and notifications in the event feed.

To change the name, tap on the text field.

The name can contain up to 24 Latin characters or up to 12 Cyrillic characters.

Room

Allows a user to select the device’s virtual room.

The room name is displayed in SMS and notifications in the event feed.

Device type

Allows a user to select the third-party device type.

Learn more

Sensor type

Allows a user to select the type of the third-party device’s sensor:

  • IQ

  • Other

This option is available only for certain device types.

Device sensors:

[Sensor type]

Opens the menu that allows a user to configure the device’s specific sensors.

This option is available only for certain device types.

Device sensors:

External contact

Opens the menu that allows a user to configure the device’s external contacts.

This option is available only for certain device types.

Additional ID

If the third-party device supports an additional ID, enabling this feature allows a user to configure a wider range of events that the device transmits.

When the option is enabled, the Additional ID and Type of event settings become available for configuring.

This option is available only for certain device types.

Chime settings (coming soon)

Opens the Chime settings. The option is available only for certain device types.

Learn more

Alert with siren

Opens the menu with siren activation settings. If the option is enabled, the sirens added to the system are activated when an alarm is triggered.

The list of available options depends on the selected device type.

Alarm response

Opens the menu with Alarm response settings. See the settings description below.

Alarm response:

Operating mode

Allows a user to specify how the device responds to alarms:

  • Instant alarm — the device in armed mode immediately responds to a threat and raises an alarm.

  • Entry/Exit — when a delay is set, the device in armed mode starts the countdown and does not raise an alarm even if it is triggered before the countdown ends.

  • Follower — the device inherits delays from Entry/Exit devices. However, when the Follower is triggered individually, an alarm is immediately raised.

Alarm response:

Entry delay

Entry delay: 5 to 255 seconds.

Entry delay (alarm activation delay) is the time a user has to disarm the system after entering the premises.

Learn more

Alarm response:

Exit delay

Exit delay: 5 to 255 seconds.

Exit delay (arming delay) is the time a user has to leave the premises after the system is armed.

Learn more

Alarm response:

Arm in Night mode

When this option is enabled, the device switches to armed mode if the system is set to Night mode.

Learn more

Alarm response:

Entry delays in Night mode

Entry delay in Night mode: 5 to 255 seconds.

Entry delay (alarm activation delay) in Night mode is the time a user has to disable Night mode after entering the premises.

Learn more

Alarm response:

Exit delays in Night mode

Exit delay in Night mode: 5 to 255 seconds.

Exit delay (arming delay) in Night mode is the time a user has to leave the premises after Night mode is enabled.

Learn more

Alarm response:

Night mode delay

Delay time in Night mode: 5 to 255 seconds.

It is the time a user has to disable Night mode after the Entry/Exit device is triggered.

The setting is displayed if the device is set to the Follower operating mode and the Arm in Night mode option is enabled.

Learn more

Always active

If the option is enabled, the device added to the integration module constantly operates in armed mode and reports alarms.

This option is available only for certain device types.

Learn more

Scenarios

Opens the menu with automation scenario settings.

Learn more

Monitoring

Opens the Monitoring settings menu:

  • Send events to CMS — the option allows PRO users to activate and deactivate event transmission to monitoring software for this device. It is enabled by default.

The Monitoring settings are available in Ajax PRO apps only.

Permanent deactivation

Allows a user to disable event transmission for the device without removing it from the system.

Two options are available:

  • No — the device operates in normal mode and transmits all events.

  • Entirely — the system admin has completely excluded the device from the system operation. The device does not execute system commands or report alarms or other events.

Learn more

A user can also separately configure the device deactivation:

  • By number of alarms — the system automatically deactivates the device when the set number of alarms is exceeded.

  • By timer — the device is automatically deactivated when the restoration timer expires.

The feature is configured in Ajax PRO apps.

Learn more

One-time deactivation

Allows a user to disable device events until the system is disarmed.

Two options are available:

  • No — the device operates in normal mode and transmits all events.

  • Entirely — the device is completely disabled until the system is disarmed. The device does not execute system commands or report alarms or other events.

Learn more

Delete device

Allows a user to disconnect the third-party device from the module.

Setting

Meaning

Name

Wireless device name. Displayed in the list of hub devices, SMS, and notifications in the event feed.

To change the name, tap on the text field.

The name can contain up to 24 Latin characters or up to 12 Cyrillic characters.

Room

Allows a user to select the device’s virtual room.

The room name is displayed in SMS and notifications in the event feed.

Device type

Allows a user to select the third-party device type.

Learn more

Device sensors:

[Sensor type]

Opens the menu that allows a user to configure the device’s specific sensors.

The option is available only for certain device types.

Chime settings

Opens the Chime settings. The option is available only for certain device types.

Learn more

Alert with siren

Opens the menu with siren activation settings. If the option is enabled, the sirens added to the system are activated when an alarm is triggered.

The list of available options depends on the selected device type.

Alarm response

Opens the menu with Alarm response settings. See the settings description below.

Alarm response:

Operating mode

Allows a user to specify how the device responds to alarms:

  • Instant alarm — the device in armed mode immediately responds to a threat and raises an alarm.

  • Entry/Exit — when a delay is set, the device in armed mode starts the countdown and does not raise an alarm even if it is triggered before the countdown ends.

  • Follower — the device inherits delays from Entry/Exit devices. However, when the Follower is triggered individually, an alarm is immediately raised.

Alarm response:

Entry delay

Entry delay: 5 to 255 seconds.

Entry delay (alarm activation delay) is the time a user has to disarm the system after entering the premises.

Learn more

Alarm response:

Exit delay

Exit delay: 5 to 255 seconds.

Exit delay (arming delay) is the time a user has to leave the premises after the system is armed.

Learn more

Alarm response:

Arm in Night mode

When this option is enabled, the device switches to armed mode if the system is set to Night mode.

Learn more

Alarm response:

Entry delays in Night mode

Entry delay in Night mode: 5 to 255 seconds.

Entry delay (alarm activation delay) in Night mode is the time a user has to disable Night mode after entering the premises.

Learn more

Alarm response:

Exit delays in Night mode

Exit delay in Night mode: 5 to 255 seconds.

Exit delay (arming delay) in Night mode is the time a user has to leave the premises after Night mode is enabled.

Learn more

Alarm response:

Night mode delay

Delay time in Night mode: 5 to 255 seconds.

It is the time a user has to disable Night mode after the Entry/Exit device is triggered.

The setting is displayed if the device is set to the Follower operating mode and the Arm in Night mode option is enabled.

Learn more

Always active

If the option is enabled, the device added to the integration module constantly operates in armed mode and reports alarms.

This option is available only for certain device types.

Learn more

Monitoring

Opens the Monitoring settings menu:

  • Send events to CMS — the option allows PRO users to activate and deactivate event transmission to monitoring software for this device. It is enabled by default.

The Monitoring settings are available in Ajax PRO apps only.

Permanent deactivation

Allows a user to disable event transmission for the device without removing it from the system.

Two options are available:

  • No — the device operates in normal mode and transmits all events.

  • Entirely — the system admin has completely excluded the device from the system operation. The device does not execute system commands or report alarms or other events.

Learn more

A user can also separately configure the device deactivation:

  • By number of alarms — the system automatically deactivates the device when the set number of alarms is exceeded.

  • By timer — the device is automatically deactivated when the restoration timer expires.

The feature is configured in Ajax PRO apps.

Learn more

One-time deactivation

Allows a user to disable device events until the system is disarmed.

Two options are available:

  • No — the device operates in normal mode and transmits all events.

  • Entirely — the device is completely disabled until the system is disarmed. The device does not execute system commands or report alarms or other events.

Learn more

Delete device

Allows a user to disconnect the third-party device from the module.

Setting

Meaning

Name

Wireless device name. Displayed in the list of hub devices, SMS, and notifications in the event feed.

To change the name, tap on the text field.

The name can contain up to 24 Latin characters or up to 12 Cyrillic characters.

Room

Allows a user to select the device’s virtual room.

The room name is displayed in SMS and notifications in the event feed.

Device type

Allows a user to select the third-party device type.

Learn more

Device sensors:

[Sensor type]

Opens the menu that allows a user to configure the device’s specific sensors.

The option is available only for certain device types.

Device sensors:

External contact

Opens the menu that allows a user to configure the device’s external contacts.

This option is available only for certain device types.

For this setting, Additional ID parameters must be configured for external contacts; otherwise, it will be grayed out.

Additional ID

Opens the menu that allows a user to configure an additional ID for external contacts. It is required for reporting alarms from the external contact.

This option is available only for certain device types.

Chime settings

Opens the Chime settings. The option is available only for certain device types.

Learn more

Alert with siren

Opens the menu with siren activation settings. If the option is enabled, the sirens added to the system are activated when an alarm is triggered.

The list of available options depends on the selected device type.

Alarm response

Opens the menu with Alarm response settings. See the settings description below.

Alarm response:

Operating mode

Allows a user to specify how the device responds to alarms:

  • Instant alarm — the device in armed mode immediately responds to a threat and raises an alarm.

  • Entry/Exit — when a delay is set, the device in armed mode starts the countdown and does not raise an alarm even if it is triggered before the countdown ends.

  • Follower — the device inherits delays from Entry/Exit devices. However, when the Follower is triggered individually, an alarm is immediately raised.

Alarm response:

Entry delay

Entry delay: 5 to 255 seconds.

Entry delay (alarm activation delay) is the time a user has to disarm the system after entering the premises.

Learn more

Alarm response:

Exit delay

Exit delay: 5 to 255 seconds.

Exit delay (arming delay) is the time a user has to leave the premises after the system is armed.

Learn more

Alarm response:

Arm in Night mode

When this option is enabled, the device switches to armed mode if the system is set to Night mode.

Learn more

Alarm response:

Entry delays in Night mode

Entry delay in Night mode: 5 to 255 seconds.

Entry delay (alarm activation delay) in Night mode is the time a user has to disable Night mode after entering the premises.

Learn more

Alarm response:

Exit delays in Night mode

Exit delay in Night mode: 5 to 255 seconds.

Exit delay (arming delay) in Night mode is the time a user has to leave the premises after Night mode is enabled.

Learn more

Alarm response:

Night mode delay

Delay time in Night mode: 5 to 255 seconds.

It is the time a user has to disable Night mode after the Entry/Exit device is triggered.

The setting is displayed if the device is set to the Follower operating mode and the Arm in Night mode option is enabled.

Learn more

Always active

If the option is enabled, the device added to the integration module constantly operates in armed mode and reports alarms.

This option is available only for certain device types.

Learn more

Scenarios

Opens the menu with automation scenario settings.

Learn more

Monitoring

Opens the Monitoring settings menu:

  • Send events to CMS — the option allows PRO users to activate and deactivate event transmission to monitoring software for this device. It is enabled by default.

The Monitoring settings are available in Ajax PRO apps only.

Permanent deactivation

Allows a user to disable event transmission for the device without removing it from the system.

Two options are available:

  • No — the device operates in normal mode and transmits all events.

  • Entirely — the system admin has completely excluded the device from the system operation. The device does not execute system commands or report alarms or other events.

Learn more

A user can also separately configure the device deactivation:

  • By number of alarms — the system automatically deactivates the device when the set number of alarms is exceeded.

  • By timer — the device is automatically deactivated when the restoration timer expires.

The feature is configured in Ajax PRO apps.

Learn more

One-time deactivation

Allows a user to disable device events until the system is disarmed.

Two options are available:

  • No — the device operates in normal mode and transmits all events.

  • Entirely — the device is completely disabled until the system is disarmed. The device does not execute system commands or report alarms or other events.

Learn more

Delete device

Allows a user to disconnect the third-party device from the module.

Setting

Meaning

Name

Wireless device name. Displayed in the list of hub devices, SMS, and notifications in the event feed.

To change the name, tap on the text field.

The name can contain up to 24 Latin characters or up to 12 Cyrillic characters.

Room

Allows a user to select the device’s virtual room.

The room name is displayed in SMS and notifications in the event feed.

Device type

Allows a user to select the third-party device type.

Learn more

Device sensors:

[Sensor type]

Opens the menu that allows a user to configure the device’s specific sensors.

If the sensor is enabled, specify the loop based on the device and sensor type. If necessary, refer to the device documentation.

The option is available only for certain device types.

Device sensors:

External contact

Opens the menu that allows a user to configure the device’s external contacts.

If the sensor is enabled, specify the loop based on the device and sensor type. If necessary, refer to the device documentation.

The option is available only for certain device types.

Device sensors:

Fault mode

Allows a user to enable device fault mode notifications. If the option is enabled, the system sends a notification that the device cannot detect motion due to high or low ambient temperature.

If the sensor is enabled, specify the loop based on the device and sensor type. If necessary, refer to the device documentation.

The option is available only for certain device types.

Device sensors:

Maintenance

Allows a user to enable device maintenance notifications. If the option is enabled, the system sends a notification that the device requires maintenance to operate properly.

If the sensor is enabled, specify the loop based on the device and sensor type. If necessary, refer to the device documentation.

The option is available only for certain device types.

Device sensors:

End of life (coming soon)

Allows a user to enable notifications about the end of the device’s service life. If the option is enabled, the system sends a notification that the device should be replaced to ensure fire safety.

If the sensor is enabled, specify the loop based on the device and sensor type. If necessary, refer to the device documentation.

The option is available only for certain device types.

Additional ID

If the third-party device supports an additional ID, enabling this feature allows a user to configure a wider range of events transmitted by the device.

When the option is enabled, the Additional ID and Type of event settings become available for configuring.

The option is available only for certain device types.

Chime settings (coming soon)

Opens the Chime settings. The option is available only for certain device types.

Learn more

Alert with siren

Opens the menu with siren activation settings. If the option is enabled, the sirens added to the system are activated when an alarm is triggered.

The list of available options depends on the selected device type.

Alarm response

Opens the menu with Alarm response settings. See the settings description below.

Alarm response:

Operating mode

Allows a user to specify how the device responds to alarms:

  • Instant alarm — the device in armed mode immediately responds to a threat and raises an alarm.

  • Entry/Exit — when a delay is set, the device in armed mode starts the countdown and does not raise an alarm even if it is triggered before the countdown ends.

  • Follower — the device inherits delays from Entry/Exit devices. However, when the Follower is triggered individually, an alarm is immediately raised.

Alarm response:

Entry delay

Entry delay: 5 to 255 seconds.

Entry delay (alarm activation delay) is the time a user has to disarm the system after entering the premises.

Learn more

Alarm response:

Exit delay

Exit delay: 5 to 255 seconds.

Exit delay (arming delay) is the time a user has to leave the premises after the system is armed.

Learn more

Alarm response:

Arm in Night mode

When this option is enabled, the device switches to armed mode if the system is set to Night mode.

Learn more

Alarm response:

Entry delays in Night mode

Entry delay in Night mode: 5 to 255 seconds.

Entry delay (alarm activation delay) in Night mode is the time a user has to disable Night mode after entering the premises.

Learn more

Alarm response:

Exit delays in Night mode

Exit delay in Night mode: 5 to 255 seconds.

Exit delay (arming delay) in Night mode is the time a user has to leave the premises after Night mode is enabled.

Learn more

Alarm response:

Night mode delay

Delay time in Night mode: 5 to 255 seconds.

It is the time a user has to disable Night mode after the Entry/Exit device is triggered.

The setting is displayed if the device is set to the Follower operating mode and the Arm in Night mode option is enabled.

Learn more

Always active

If the option is enabled, the device added to the integration module constantly operates in armed mode and reports alarms.

This option is available only for certain device types.

Learn more

Scenarios

Opens the menu with automation scenario settings.

Learn more

Monitoring

Opens the Monitoring settings menu:

  • Send events to CMS — the option allows PRO users to activate and deactivate event transmission to monitoring software for this device. It is enabled by default.

The Monitoring settings are available in Ajax PRO apps only.

Permanent deactivation

Allows a user to disable event transmission for the device without removing it from the system.

Two options are available:

  • No — the device operates in normal mode and transmits all events.

  • Entirely — the system admin has completely excluded the device from the system operation. The device does not execute system commands or report alarms or other events.

Learn more

A user can also separately configure the device deactivation:

  • By number of alarms — the system automatically deactivates the device when the set number of alarms is exceeded.

  • By timer — the device is automatically deactivated when the restoration timer expires.

The feature is configured in Ajax PRO apps.

Learn more

One-time deactivation

Allows a user to disable device events until the system is disarmed.

Two options are available:

  • No — the device operates in normal mode and transmits all events.

  • Entirely — the device is completely disabled until the system is disarmed. The device does not execute system commands or report alarms or other events.

Learn more

Delete device

Allows a user to disconnect the third-party device from the module.

Key fob settings (all manufacturers) (coming soon)

Setting

Meaning

Name

Wireless device name. Displayed in the list of hub devices, SMS, and notifications in the event feed.

To change the name, tap on the text field.

The name can contain up to 24 Latin characters or up to 12 Cyrillic characters.

Room

Allows a user to select the device’s virtual room.

The room name is displayed in SMS and notifications in the event feed.

Device type

Allows a user to select the third-party device type — the Key fob option.

Number of buttons

Allows a user to select the number of buttons on the key fob:

  • 1 button

  • 2 buttons

  • 4 buttons

Group management

Allows a user to select a security group that the key fob manages. All groups or a single group can be chosen.

The setting is available only if Group mode is enabled.

The setting is not available for one-button key fobs.

User

Allows selecting the key fob user.

The key fob is not assigned:

  • Key fob events are sent to Ajax apps under the key fob’s name.

  • Key fob settings determine security mode management rights.

The key fob is assigned to a user:

  • Key fob events are sent to Ajax apps under the user’s name.

  • The key fob has the same security mode management rights as the user.

The setting is not available for one-button key fobs.

Operating mode

Allows a user to select the key fob operating mode:

  • Panic — the system sends an alarm to the monitoring station and all users.

  • Control — the system controls automation devices.

  • Mute fire alarm — the system mutes Ajax fire detector alarms.

The setting is not available for two-button key fobs.

Type of event

Allows a user to select the alarm type:

  • Intrusion

  • Fire alarm

  • Auxiliary alarm

  • Panic button

  • Gas alarm

  • Malfunction

  • Leakage

  • Custom

The text of SMS and notifications in the app depends on the selected alarm type.

The setting is available only for Panic operating mode.

Alert with siren if button is pressed

If the option is enabled, the sirens added to the system are activated when an alarm is triggered.

The setting is available only for Panic operating mode.

Scenarios

Opens the menu with automation scenario settings.

Learn more

Monitoring

Opens the Monitoring settings menu:

  • Send events to CMS — the option allows PRO users to activate and deactivate event transmission to monitoring software for the device. It is enabled by default.

The Monitoring settings are available in Ajax PRO apps only.

Permanent deactivation

Allows a user to disable event transmission for the device without removing it from the system.

Two options are available:

  • No — the device operates in normal mode and transmits all events.

  • Entirely — the system admin has completely excluded the device from the system operation. The device does not execute system commands or report alarms or other events.

Learn more

A user can also separately configure the device deactivation:

  • By number of alarms — the system automatically deactivates the device when the set number of alarms is exceeded.

  • By timer — the device is automatically deactivated when the restoration timer expires.

The feature is configured in Ajax PRO apps.

Learn more

Delete device

Allows a user to disconnect the third-party device from the module.

Chime on opening (coming soon)

Chime is an audio signal that informs people in the premises about opening or tilt detector triggering when the system is disarmed. The feature is used, for example, in stores to notify employees that someone has entered the premises.

The notifications are set in two stages: configuring the sirens and configuring the opening or tilt detectors.

Learn more

Configuring a wireless opening or tilt detector added to the module

  1. Go to the Devices HubFilled-M tab.

  2. Find Takeover Module Jeweller in the list.

  3. Tap Devices under the Takeover Module Jeweller tile.

  4. Select the required device in the list.

  5. Go to its Settings Settings-M.

  6. Select the Chime settings option.

  7. Select the required Notify with chime sound option.

  8. Configure the chime sound: 1 to 4 short beeps. Once the required parameter is selected, the Ajax app will play the sound.

  9. Tap Save to apply the settings.

Also, ensure the Chime feature is enabled for the required siren in its Beep settings.

Indication

The Takeover Module Jeweller LED indicator may light up green or red depending on the device state.

Event

Indication

Note

Turning on the device

Lights up green for 0.5 s.

Connection to the hub is established

Lights up green.

If an external power supply is disconnected, the indicator will flash every 10 s.

No connection to the hub

Lights up red.

If an external power supply is disconnected, the indicator will flash every 10 s.

Turning off the device

Lights up green, then slowly fades out within 7 s.

Tamper alarm / tamper button recovery

Lights up green for 0.5 s.

The device has been removed from or installed on the SmartBracket mounting panel.

Jeweller signal strength test is in progress

The indication depends on the signal strength:

  • 3 bars — the LED lights up green for approximately 0.6 s and goes out for a very short time;

  • 2 bars — the LED lights up green for approximately 0.1 s and goes out for a short time;

  • 1 bar — the LED lights up green for approximately 0.15 s and goes out for about 0.5 s;

  • 0 bars — the LED lights up green for a very short time and goes out for approximately 1.4 s.

Downloading a new firmware version for the device

Lights up green twice and goes out every 4 s.

The device firmware update is in progress

Flashes green twice every 1.5 s.

The indication continues until the firmware update is finished.

There is a device hardware error

Flashes red twice every 1.5 s.

An external power supply is disconnected

Lights up for 3 min, then flashes every 10 seconds.

The indication color depends on whether the device is connected to the hub.

Low battery

Slowly lights up green, stays lit for for 0.5 s, and slowly goes out.

The battery is completely discharged

Briefly flashes green when turning on the device.

Malfunctions

When Takeover Module Jeweller detects a malfunction (for example, there is no connection via the Jeweller protocol), a malfunction counter appears in the upper left corner of the device icon in an Ajax app.

All malfunctions are displayed in the module states and the states of added devices. Fields with malfunctions are highlighted in red.

A malfunction of Takeover Module Jeweller is displayed in the following cases:

  • The integration module is removed from the SmartBracket mounting panel (the tamper button has been triggered).

  • High level of radio interference is detected.

  • The module has lost connection to the hub or radio signal range extender via Jeweller.

  • The module has lost connection to the hub or radio signal range extender via Wings.

  • The module’s external power supply is disconnected.

  • The backup battery is low.

A malfunction of the added device is displayed in the following cases:

  • The device enclosure is open (the tamper button has been triggered).

  • The device has lost connection to the integration module.

  • The device battery is low.

The system can report malfunctions to the monitoring company, as well as to users via push notifications and SMS.

Maintenance

Regularly check the functionality of the integration module and added devices. The optimal interval for the check is once every three months.

Clean the enclosure from dust, cobwebs, and other contaminants when they appear. Use a soft, dry cloth suitable for equipment care. Do not use any substances containing alcohol, acetone, gasoline, or other active solvents to clean the module.

Technical specifications

All technical specifications

Compliance with standards

Warranty

Warranty for products of Limited Liability Company “Ajax Systems Manufacturing” is valid for 2 years after purchase.

If the device does not operate properly, please contact support service first. In most cases, technical issues can be resolved remotely.

Warranty obligations

User Agreement

Contact Technical Support:

Manufactured by “AS Manufacturing” LLC

Need help?

In this section you'll find detailed manuals and educational videos about all features of Ajax. And in case you need help of a technical specialist, we're available 24/7.

Send request
Ajax Systems
