In case the wolves are real
No unnecessary dispatches

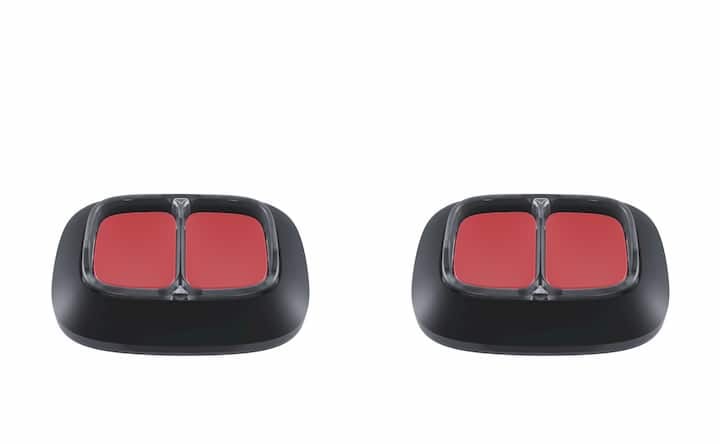

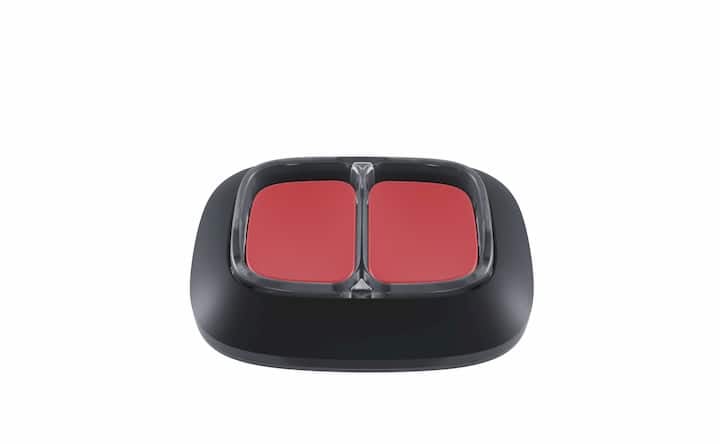

DoubleButton supports confirmed alarms. This feature implies instructing users: what sequence of presses is required to generate a confirmed alarm condition. It gives a 100% guarantee that a hold-up alarm was raised intentionally and only by an authorized user.
Jeweller
Guaranteed alarm delivery
The hold-up device transmits a signal to the hub via Jeweller—a two-way radio protocol communicating at a range of up to 1300 meters. A flashing LED verifies the successful delivery of the DoubleButton alarm. Jeweller encrypts the transmitted data and prevents device forgery. In the case of interference, the Ajax system switches to a free radio frequency, and when the air is jammed, it notifies users and a security company about the situation.
-
![]()
Radio signal range of up to 1,300 m -
![]()
Alarm delivery confirmation -
![]()
AES encryption -
![]()
RF hopping
Under the desk in a workplace
On a guard's neck
In a clerk's pocket
On the wall by a front door or bed
Truly effortless maintenance
The device body is resistant to temperature extremes, dust, and splashes. Buttons are designed for thousands of clicks. With a pre-installed battery lasting up to 5 years, DoubleButton does not require maintenance for a very long time.
-
![]()
IP55 body -
![]()
Ready to operate in heat and cold -
![]()
Works up to 5 years from battery
Connecting without puzzles
Add DoubleButton to a system and configure it — all in Ajax PRO — a mobile app for engineers. No need to disassemble the housing; just fix the device to a surface using Holder. Or hang it on lace or keychain. A few minutes and hold-up device is ready for use.
Tech specs
Classification
Wireless hold-up device1
Compatibility
Operates with all Ajax hubs and range extenders (with OS Malevich 2.10)
False alarm prevention
Yes
Number of buttons
2
Alarm transmission
Not longer than 0,15 sec
Always active (does not require waking up to use)
Always active (does not require waking up to use)
Jeweller radio technology
Communication range with a hub — up to 1300 m in an open area
Two-way communication
Operating frequencies — 868.0 - 868.6 or 868.7 – 869.2 MHz (depends on sales region)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Frequency hopping
Learn more about Jeweller
Two-way communication
Operating frequencies — 868.0 - 868.6 or 868.7 – 869.2 MHz (depends on sales region)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Frequency hopping
Learn more about Jeweller
Power supply
Operating temperature range
From -10°C to +40°C
Permissible humidity
Up to 75%
Protection class
IP55
Size
47 × 35 × 16 mm
Weight
17 g
Warranty
Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Learn more
Learn more
Service life
10 years
Complete set
DoubleButton
Pre-installed CR2032 battery
Quick Start Guide
Pre-installed CR2032 battery
Quick Start Guide
