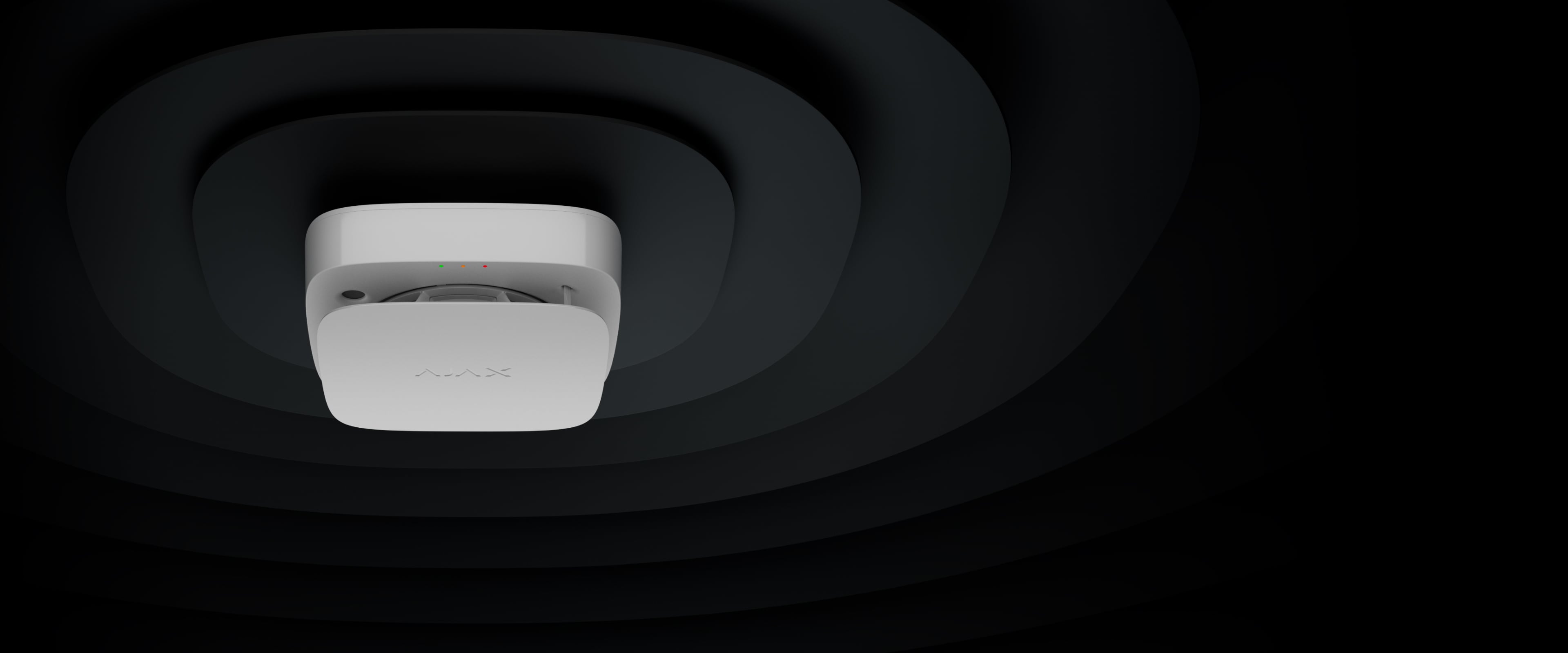

FireProtect 2 (Heat/Smoke) Jeweller
Wireless fire detector with heat and smoke sensors
SB version
SB version
SB version
SB version
SB version
Accuracy through steam, dust, and time
FireProtect 2 is a next-gen detector designed for residential fire safety. The unique smoke chamber does not require regular cleaning, the dual-spectrum sensor distinguishes smoke from steam, the thermistor quickly reacts to the synthetic materials burning, and sophisticated software minimizes false alarms. Thought-out design, mounting, and in-app settings make installation straightforward and quick. Everything meets the most modern fire safety standards.
FireProtect 2 features in a minute
Discover FireProtect 2
Two types of interconnected fire alarm1
Primary: via an Ajax hub, an alarm in 20 s
Versions with different battery type
Replaceable
Sealed
Sensors
Heat
Smoke
Compliance
Remote control and configuration
85 dB built-in siren
Informative in-app notifications
Ajax
Ajax
Jeweller radio communication
Power adjustment
Up to 1700 m
range of communication with an Ajax hub
Operates as part of the Ajax system or without pairing with an Ajax hub
Two colours
SmartBracket
with an adjustable rotation angle
Hassle-free installation
QR code
SmartBracket
App
Dual-spectrum optical smoke sensor
to filter false alarms
Dustproof smoke chamber impenetrable for insects
Compatible hubs and range extenders
CheckWherever there is a risk of fire
Kitchen
Living room
Bedroom
Hall
Home office
Pantry
Basement
Barn
Workshop
Discover future-proof hardware
Detection
Patented smoke chamber technology
Encouraged by world standards and best practices, Ajax reaches an entirely new level of technology in residential fire safety with FireProtect 2. A unique smoke chamber that is dustproof and impenetrable for insects, a dual-spectrum optical sensor, and a proprietary HazeFlow 2 software algorithm guarantee the speed and accuracy of fire detection — ultimate safety with no stress about false alarms.
Impenetrable for dust and insects
The smoke chamber is designed with zero possibility of contamination that can affect detection. A unique circulation mechanism provides the optical sensor with an unobstructed field to quickly identify products of combustion in the air.
The FireProtect 2 smoke chamber does not require regular cleaning.
Ignores сooking fumes and water steam
The smoke chamber is hardwired with a dual-spectrum optical sensor that has blue and infrared LEDs with different wavelengths. It uses the most reliable real-time detection method, directly measuring the microparticle concentration in the air. This technology allows FireProtect 2 to determine the size of the volatile particles inside the chamber and respond only to smoke, ignoring vapour and water steam.
Only real threats considered
In-depth research on materials combustion resulted in HazeFlow 2 — a smoke detection algorithm developed by Ajax. The algorithm contemporaneously analyses and compares data from the dual-spectrum optical sensor to a specified pattern to define smoke from vapour or steam. The detector instantly raises the alarm when pattern dynamics indicate a real case of fire.
Even when it's fire without smoke
FireProtect 2 is equipped with two class A1R thermistors to detect smokeless fire threats. They give a significant advantage in detecting a rapid temperature rise when synthetic materials burn, or a fire starts from smoldering. Thermistors are located outside the enclosure to eliminate life-saving detection delays. So FireProtect 2 is ready to detect a fire as fast as possible, even if it starts imperceptibly.
Heat alarm
- 10°C increase in temperature within a minute
- Exceeding +64°C
Autonomous operation
Stable performance for a decade
Cutting-edge engineering of hardware and software allowed us to implement advanced capabilities and offer autonomy in the size of the compact smart detector. FireProtect 2 complies with strict residential fire safety standards with long-lasting battery life while featuring constant data exchange with a hub and real-time analysis system to filter false alarms. The detector is available in two versions with different battery options to cover every market need.
SB version
10 years of operation
with non-replaceable sealed batteries
RB version
Up to 7 years of operation
with replaceable CR123A batteries
Low battery warning
The detector reports low batteries at least 30 days before its full discharge. Installers and users get notifications from their Ajax apps. Also, FireProtect 2 has an LED indicator and audible beeps for a low battery alert.
In-app notification
Audible indication
LED indication
Alarm system
Always informed, everywhere
For residential fire alarm systems, informing people about fire danger is the priority. FireProtect 2 is equipped with a powerful 85 dB siren to eliminate the risk of missing an alarm. The detector uses impossible-to-ignore tones with different patterns to indicate an alarm or event, so it’s easy to recognize the type of threat and react accordingly.
Different sound and LED indications
Smoke or heat alarms
Malfunction
Low battery level
End of life
Enhanced wireless interconnection
All FireProtect 2 detectors can synchronously notify about the fire alarm in two ways:primary and fallback. In case of danger, the initiating detector sends a fire alarm to the hub. The hub initiates the primary interconnect: all fire detectors will activate the built-in sirens in 20 seconds — three times faster than the fire standard requires. All information is immediately available in Ajax apps: initiating detector’s location, fire alarm type, and exact time.
If there is no connection with the hub, the initiating detector activates the fallback interconnection by directly sending the alarm to other fire detectors. It takes only 1 minute to raise an alarm.
20 seconds to activate up to 200 fire detectors
Less than a minute to activate up to 50 fire detectors
Unleash the Ajax power
The Ajax smart and complex ecosystem brings new standards to the fire safety industry. FireProtect 2 is ready to protect your home without an Ajax hub but can do even more when connected to it. Intuitive Ajax apps provide remote setup and all detector information in real-time from anywhere the Internet is available, on a smartphone or PC. With instant notifications, there is no chance of missing a fire alert, and scenarios let you automate fire security to enhance home protection while you’re away. A complete set with stable wireless communication — essential reliability tested over the years by nearly two million users.
Only with Ajax
Full monitoring for the building
The system instantly notifies about alarms with the critical alerts from the Ajax apps. Security companies and users know exactly which device triggered, when and where it happened. The system controls each device state and reports if there is a malfunction or it's time to replace the batteries.
The event log records 500 recent events within the system. The data is explicit with the device, time, and description of the event. It helps reconstruct the actual event and find the causes to obtain comprehensive information for firefighters or an insurance company.
Monitoring with PRO Desktop
With PRO Desktop, building administration staff can observe not only security but Ajax fire detectors for instant reaction to alarms. Device statuses, event log, batteries data — the CMS operator has a complete picture in one intuitive interface, all informative and centralized. The installation engineer can remotely change the settings and provide services in time.
Advanced automation for greater safety
Ajax fire detectors are a part of the Ajax ecosystem and can interact with automation devices and PhOD detectors of the MotionCam lineup through scenarios. In the case of a fire alarm, the WallSwitch relay de-energizes the house, and Relay activates emergency lights. At the same time, MotionCam (PhOD) sends pictures into Ajax apps to identify the cause of the alarm. The result is a reliable combination of security and automation that works as a Swiss watch.
To find out the situation at the protected facility and quickly respond to it.
Fire detected
FireProtect 2
MotionCam (PhOD)
Cause of fire
To power off the possible cause of the fire and protect appliances from the consequences of firefighting.
Fire detected
FireProtect 2
WallSwitch
Mains power-off
Relay
Emergency lights on
To speed up people’s evacuation and ease firefighters' access to the building.
Fire detected
FireProtect 2
Relay
Emergency exits unlocked
Unique wireless technologies
The Ajax system uses two-way secure radio communication based on the Jeweller proprietary protocol. It supports block cipher encryption and device authentication on every session with the hub to prevent sabotage, spoofing, or data theft.
Ajax wireless technology has up to 1,700 meters of radio signal communication range in an open space, making it on average longer than competing solutions from different manufacturers. Automatic power adjustment makes it energy efficient by not using the maximum power of radio transmitters in system devices on a regular basis. It is also more stable, using less noisy radio frequencies. Ajax hubs use radio hopping to protect against radio interference and signal interception. The system automatically changes frequency within a band and notifies the security company and users about the jamming.
Up to 1,700 meters of radio communication with a hub
Encrypted two-way radio communication
Notifications about jamming and connection loss
The Ajax radio protocol uses polling to display current device statuses and transmits alarms, events, and all the readings into the Ajax apps. Jeweller features encryption and authentication to prevent spoofing.
معرفة المزيدOnly with Ajax
Scaled and comprehensive
For complex radio signal conditions like large houses with thick walls or warehouses with several buildings, there is the ReX range extender. It boosts the range of all Ajax devices and manages their communication with the hub via Jeweller. And ReX 2 assures stable communication even through steel and concrete via Ethernet using the wire as the additional communication channel. Up to 5 range extenders can operate within one Ajax system to expand the network twice as big, covering underground parking, basements, and metal hangars.
Up to 5 range extenders within one system
Ethernet as an alternative communication channel
Effortless installation and maintenance
FireProtect 2 is ready to operate straight out of the box. There is no need to disassemble the detector during installation. With an improved SmartBracket panel, an installer can effortlessly fix the detector on ceilings and level it at 90° angles after mounting. The Ajax apps help quickly make the device a part of the system. And it can always be reconfigured remotely without site visits.
Equipped with unique dustproof technology, the maintenance-free smoke chamber does not require regular clean-ups. A self-test system automatically diagnoses sensors and reports their state to the hub. Testing can also be run manually anytime in the app or by pressing the detectors' front panel with any suitable item, either a hand or a mop handle.
Pairing with the security system via QR code
SmartBracket panel with an adjustable rotation angle — no need to disassemble the enclosure
Configuring and testing in mobile and desktop apps
A dustproof smoke chamber that does not require cleaning
Technical information
FireProtect 2 RB (Heat/Smoke)
FireProtect 2 SB (Heat/Smoke)
