MotionCam Outdoor (PhOD) Jeweller
Wireless PIR motion detector with extended photo verification possibilities. For outdoor and indoor use.
Jeweller and Wings radio communication

Power adjustment
Effortless installation


IR backlightfor taking photos in the dark

digital algorithm for filtering false alarms



Critical
Ajax

Ajax

Ajax
Data-rich notifications
Two IR sensors


Remote control and setup
Temperature compensation

Effective detection in heat and cold
IR backlightfor taking photos in the dark

digital algorithm for filtering false alarms

Remote control and setup
Temperature compensation

Effective detection in heat and cold
Device compatibility
Checkالجوائز

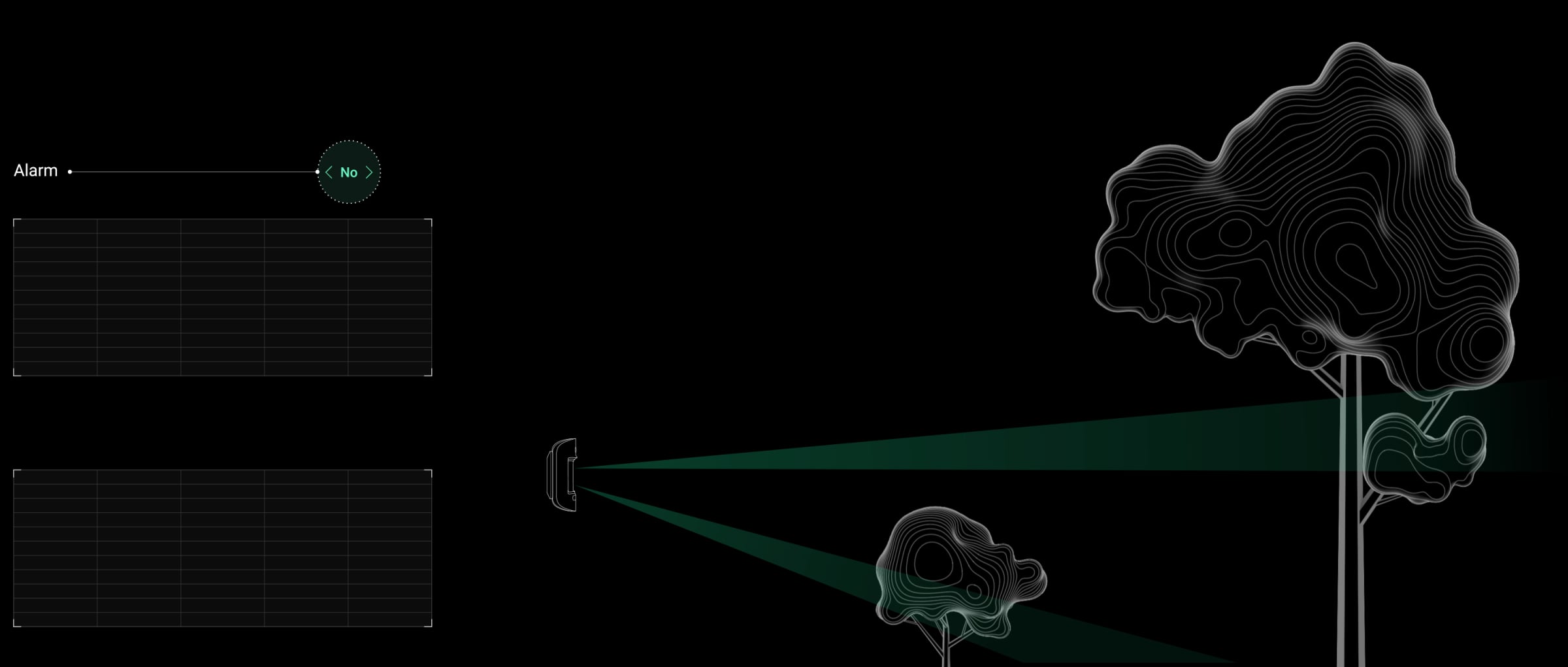

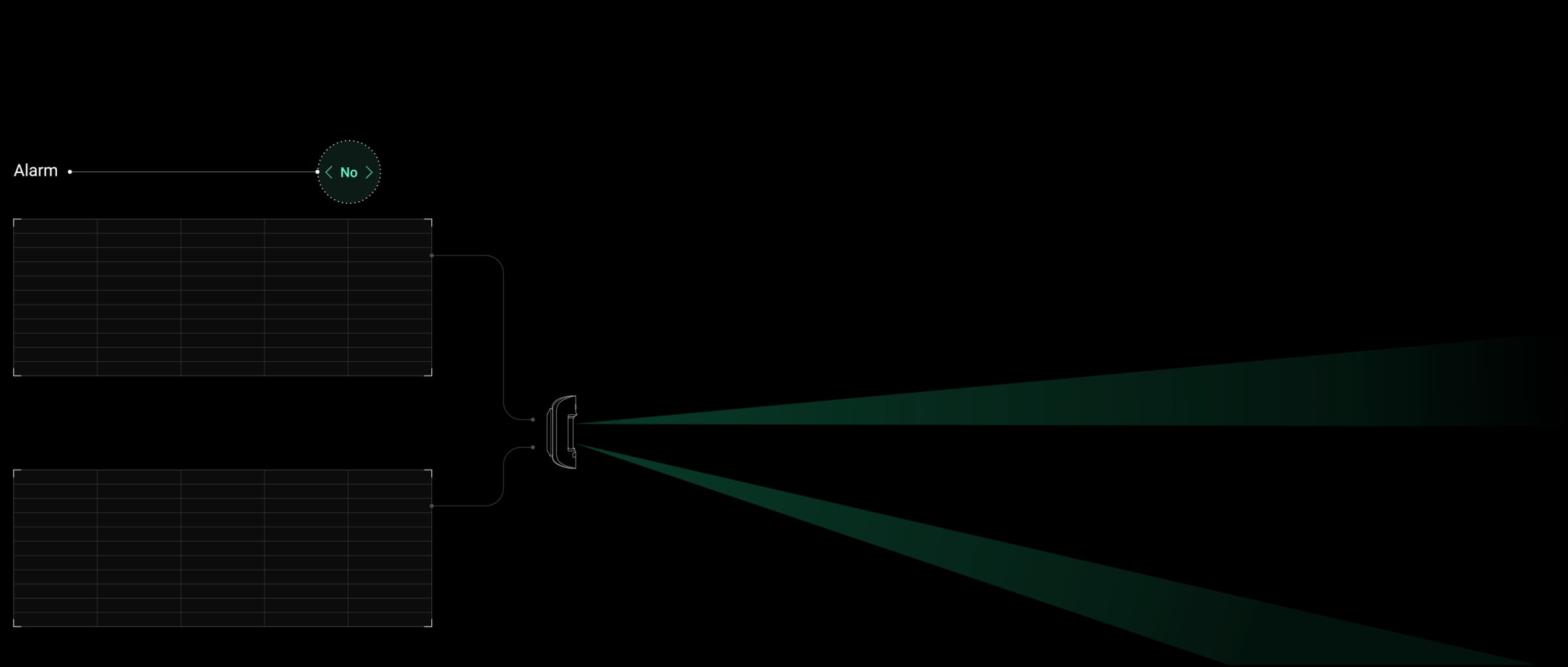

Intelligent false alarm filter
MotionCam Outdoor is equipped with two independent PIR sensors, the signals of which are analyzed by a two-step LISA algorithm. When both sensors detect motion, LISA performs correlation and spectral analysis of the signals, which help to instantly distinguish real threats from interferences.

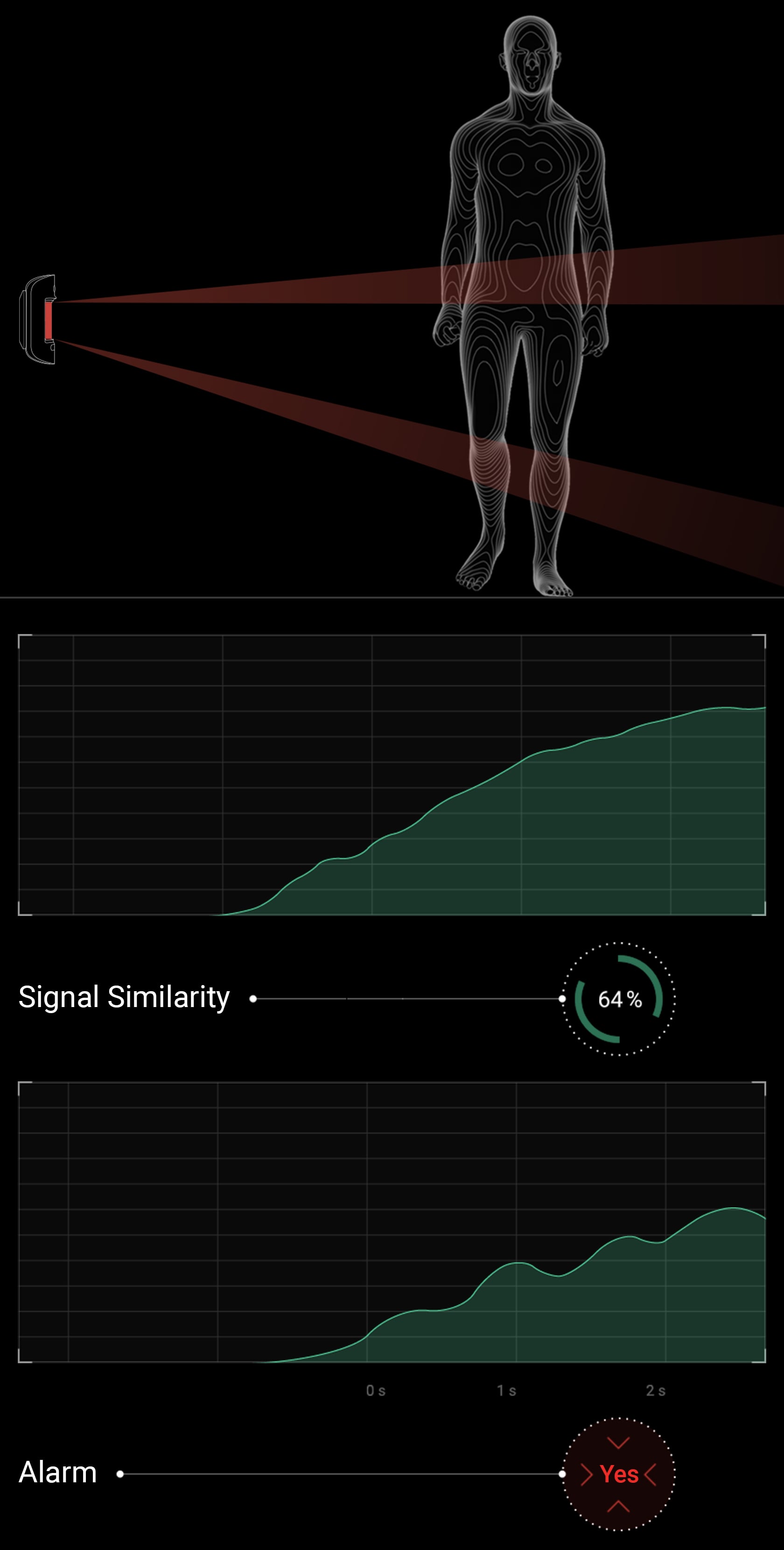

Correlation analysis
Whenever MotionСamOutdoor detects motion, LISA analyses and compares signal forms from two sensors in real time. If forms are similar, the alarm is activated.

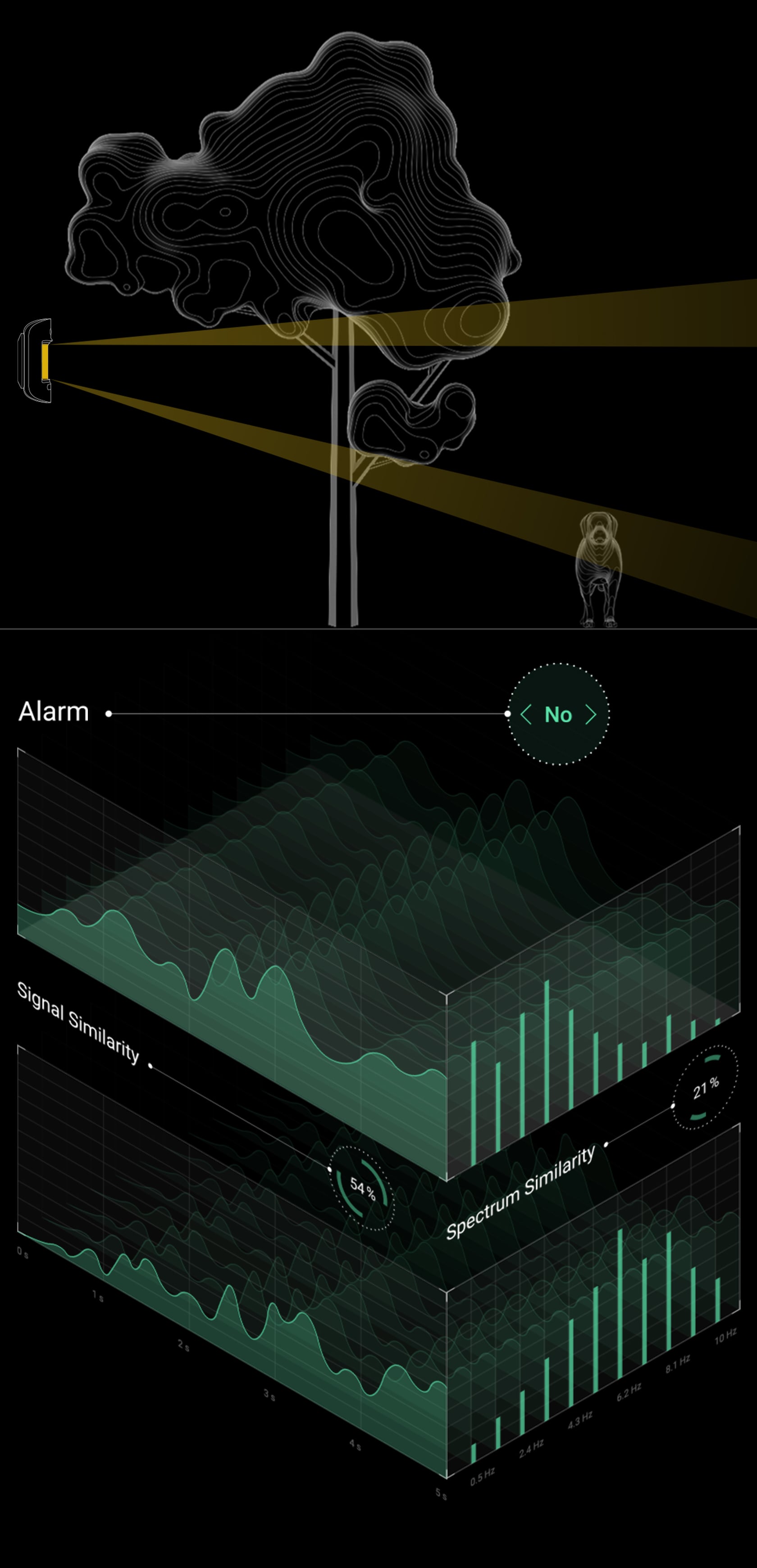

Spectral analysis
When both sensors detect motion, but the correlational analysis doesn’t identify enough similarities, LISA compares frequency components in the signals of both sensors.


Outdoor surveillance and alarm confirmation
MotionCam Outdoor is equipped with a camera to quickly assess the situation at the protected facility. The detector takes an automatic series of photos as soon as it detects an intrusion into the territory. A series of photos combines into an animation showing the situation development in the dynamics. MotionCam Outdoor PhOD can take a series of photos by request of the user from the Ajax mobile app, regardless of the security mode. Furthermore, the device can take photos on a set schedule, when selected devices in the system trigger an alarm, and when someone arms or disarms the system.





Don't miss a thing
Combining the best optics, fast processor and advanced software algorithms, MotionCam Outdoor takes informative pictures in any weather, day or night.
HDR camera
IR backlight
Series of 2-5 photos

Advantages of photo verification
Territory under surveillance
In case of any doubts, system users can check what is happening at the facility. No need to wait for an alarm. Just open the app, select the detector, and you'll see the situation in the yard in a few seconds.

Less reasons to worry
Outdoor motion detectors operate in a complex environment full of natural sources of false alarms. MotionCam Outdoor allows system users and monitoring station operators to see in seconds whether the alarm is real, so they can respond accordingly.

More security
Both system users and the rapid response unit must have a clear understanding of what is happening at the facility where the security alarm was triggered. The detector will show how many criminals are still on the approaches to the premises and whether they are armed. This will help a security patrol to prepare and users can avoid danger.

Evidence in a smartphone
A series of animated photos in the app allows conveying the peculiar features of burglars to law enforcement without wasting time. Thanks to the infrared backlight, the detector spots them even in complete darkness. The chances of catching criminals on the spot increase.


MotionCam Outdoor Jeweller
MotionCam Outdoor Jeweller is an outdoor motion detector with basic photo verification capabilities. The device can capture photos only when an alarm is raised.
Privacy first
MotionCam Outdoor (PhOD) Jeweller is designed to control security without compromising privacy. Photos are protected from prying eyes at the detector, system, and app level.

Clear division of rights

Encryption and GDPR

Detailed event log
Unique wireless technologies
Detector uses two radio protocols at a time: Jeweller for alarm notification and Wings for photo transmission. Jeweller provides instant alarm delivery, and Wings will deliver the first photo from the scene in 9 seconds. Even with communication interruptions and a weak signal. Thanks to the range of communication with an Ajax hub of up to 1,700 meters, the detector is easy to install where it will be most effective.
Installation range up to 1,700 m
Photo delivery in less than 9 seconds
Two-way encrypted communication

Effective security in any weather
MotionCam Outdoor resists the heat up to +60°С and withstand the cold down to −25°С. And to protect the sensors of the anti-masking system from rain and snow, we included a special hood.
- Efficiency in heat and cold
- IP56 enclosure protection
- Bundled hood to protect from rain and snow



ReX 2 Jeweller
With the help of the ReX 2 Jeweller range extender, the radio communication range can be doubled up to 3400 meters; or, photo confirmations can be transmitted via Ethernet cable. Due to the automatic adjustment of signal strength and frame synchronization, any number of system devices can be connected to ReX 2 Jeweller – the communication reliability will not be affected.
Up to 5 range extenders with a total coverage of up to 35 km2 can be connected to one Ajax system.

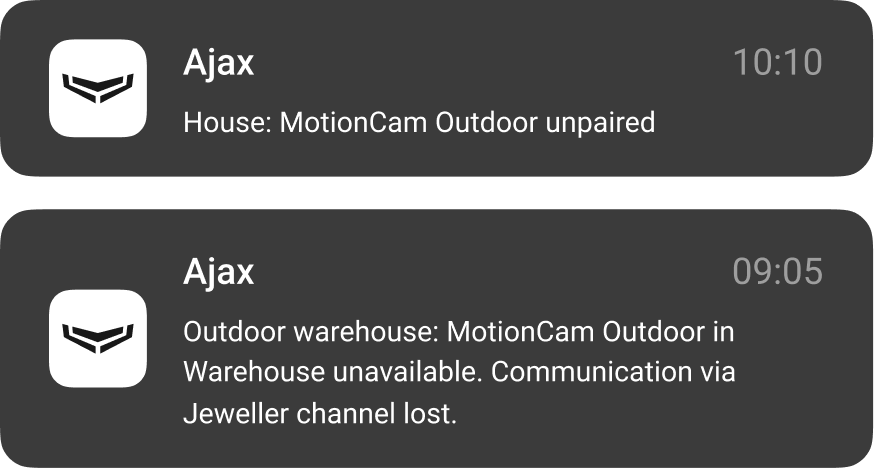

Complex anti-sabotage system

Detection of communication loss in 36 seconds

Notification about dismantling

Sensors to detect masking

Data protection with encryption and hopping

Authentication against device forgery

Event notification in 0.15 seconds

Jamming detection in 30 seconds
Intuitive installation and connection
The detector connects to the Ajax security system in a few clicks. Open the Ajax app, scan the QR code and add the detector to the room. No need to disassemble the detector enclosure. The SmartBracket mounting panel allows you to securely mount the detector both on a flat surface and in a corner.
Pairing with the security system via QR code

SmartBracket panel for installation without disassembling the enclosure

Configuring and testing in mobile and desktop apps

Technical information
MotionCam Outdoor (PhOD) Jeweller
Professional installation
Qualified engineers guarantee the quality installation of devices and disclosure of all the features of your security system. Contact a certified Ajax partner for help.
