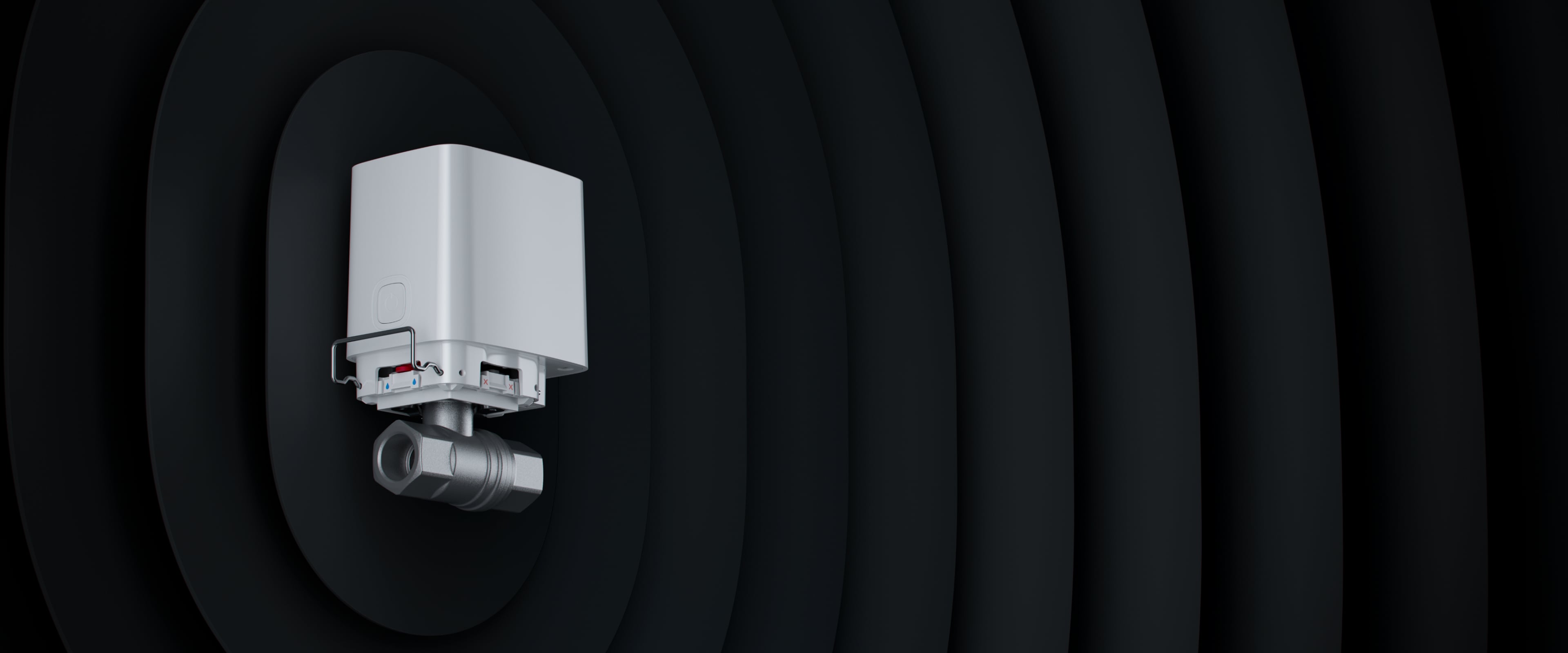

Ajax WaterStop Jeweller
Remotely controlled water shutoff valve
Ajax WaterStop Jeweller won the Red Dot Design Award
Not a drop of problems
Ajax WaterStop automatically shuts off the water in 7 seconds at a facility with an Ajax security system if LeaksProtect or a third-party water leak detector is triggered. The device combines a high-quality valve and a powerful electric actuator. You can control Ajax WaterStop and check its status from anywhere in the world — all you need is an Internet connection and an Ajax app. You can also create a scenario to shut the water off at a specific time or when arming the system.
Ajax WaterStop features in a minute
Discover Ajax WaterStop
4 mounting positions
Water shut-off in 7 seconds
RuB valve included
ISO 5211 standard
1" (DN 25)
¾" (DN 20)
½" (DN 15)
Up to 1,100 m
range of communication with an Ajax hub
Up to 3 years
of battery life
Compatible with cold and hot water pipes
Jeweller radio communication
Power adjustment
Mounting the electric actuator
without additional tools
Automatic stuck prevention
with scenarios
Automation scenarios
Electric actuator protection against unauthorized dismantling
Button and lever
to shut off the water manually
Informative in-app notifications
Ajax
Ajax
Remote control and configuration
Compatible hubs and range extenders
CheckWherever there is a risk of water leak
Discover future-proof hardware
Electric actuator
Button to control the water supply
Locker to mount electric actuator without tools
Mounting platform with lever for manual shutoff
RuB valve
Hardware
Water shut-off in 7 seconds
Ajax WaterStop is equipped with a powerful actuator of up to 8.5 N•m torque. This is enough to shut off even a stuck-up valve without the risk of damaging it. Under normal operating conditions, Ajax WaterStop shuts off the water in 7 seconds after the command or automatically by scenario whenever LeaksProtect or a third-party sensor detects flooding. In a setting with a ¾-inch pipe and 2.5 bar of pressure in the water supply system, less than 1 liter of water will leak out.
Inside the water leak prevention system based on Ajax, every device operates either on pre-installed batteries or has a backup power supply in case of a blackout. The system monitors the facility 24/7, giving you complete peace of mind that the property is protected.
Shuts even a stuck-up valve
Suitable for facilities with unstable or no power supply
Protected on every level
Ajax WaterStop is suitable for controlling both hot and cold water supplies and is ready to operate in challenging environments. With additional protection, Ajax WaterStop withstands overcurrent and notifies about overheating, making it impossible for the electric actuator to fail even when the shutoff valve is stuck.
Overheating notification
Overcurrent protection
One-stop solid brassware
Ajax WaterStop is available in three versions with different valve options: ½” (DN 15), ¾” (DN 20), or 1” (DN 25). Those are the most common sizes used to cover any demand, from residential to business facilities. Also, the Ajax WaterStop electric actuator is compatible with all ball valves that meet the ISO 5211 standard. So when it comes to specific tasks and sizes, a plumber installs an available on every market compatible valve, and the installation engineer easily connects the electric actuator.
How to check if Ajax WaterStop is compatible with a third-party shutoff valve
Installation without any construction involved
The myth about anti-flood systems being difficult to install is busted. Ajax minimized an expensive, long, and dusty experience for clients and professionals. Cutting-edge hardware and software engineering allowed us to implement advanced capabilities with significant autonomy in a compact size. Miniature Ajax water leak detectors suit hard-to-reach places and do not require enclosure disassembling — they can be installed on a horizontal surface without attaching. The shutoff valve is installed in line with an existing plumbing system. The actuator unit does not require wires and fits limited spaces, having four possible installation positions towards the valve.
Autonomous operation
Stable performance for years
Batteries
No additional cable routing is required: Ajax WaterStop is autonomous and does not depend on the 110 or 220 V~ grid. With a 3-year battery life and no wires, the installation process takes much less time and effort. Ajax apps will notify an installation engineer and users about the low battery level in advance. The batteries are replaceable — so after three years, the installer pops the new ones, and Ajax WaterStop continues to operate as usual.
Up to 3 years of operation with pre-installed batteries
In-app low battery warning
Replaceable CR123A batteries
External power supply
When a constant shut-off valve operation is required or the installation place uses extreme temperatures, the batteries can discharge faster. An option to connect a 9–12 V⎓ power supply will come in handy, eliminating frequent battery replacement and reducing service costs. And the pre-installed batteries will serve as a backup, so even in a power outage Ajax WaterStop continues to operate without any problem.
9–12 V⎓ power supply connection
Pre-installed batteries as a backup power source
9–12 V⎓ power supply unit is not included in the Ajax WaterStop complete set.
Unique wireless technologies
The Ajax system uses two-way secure radio communication based on Jeweller proprietary protocol. It supports block cipher encryption and device authentication on every session with the hub to prevent sabotage, spoofing, or data theft.
Ajax wireless technology has up to 1,100 meters of radio signal communication range in an open space, making it on average longer than competing solutions from different manufacturers. Automatic power adjustment makes it energy efficient by not using the maximum power of radio transmitters in system devices on a regular basis. It is also more stable, using less noisy radio frequencies. For protection against radio interference and signal interception, Ajax hubs use frequency hopping: the system automatically changes frequency within a band and notifies the security company and users about the jamming.
Up to 1,100 meters of radio communication range with a hub
Encrypted two-way radio communication
Notifications about jamming and connection loss
The Ajax radio protocol uses polling to display current device statuses and transmits alarms, events, and all the readings into the Ajax apps. Jeweller features encryption and authentication to prevent spoofing.
معرفة المزيدScaled and comprehensive
Use the ReX range extender for complex radio signal conditions like large houses with thick walls or warehouses with several buildings. ReX boosts the range of all Ajax devices and manages their communication with the hub via Jeweller. And ReX 2 assures stable communication even through steel and concrete via Ethernet using the wire as the additional communication channel. Up to 5 range extenders can operate within one Ajax system to expand the network twice as big, covering underground parking, basements, and metal hangars.
Up to 5 range extenders within one system
Ethernet as an alternative communication channel
البرنامج
All data at a glance
Intuitive Ajax apps provide all information in real-time from anywhere the Internet is available, on a smartphone or PC. Users can check the device state and control the water supply remotely — any action can be done with one click.
The Ajax system instantly notifies about events with informative notifications: security companies and users know exactly which device triggered, when and where it happened. The system controls each device state and reports if there is a malfunction or if it's time to replace the batteries.
Ajax WaterStop can be configured at any time from anywhere, as long as there is an Internet connection. It takes seconds to change the settings or reconfigure the scenario.
The event log records 500 recent events within the system. The data is explicit with the device, time, and description of the event. It helps to reconstruct the actual event and find the causes to obtain comprehensive information for the insurance company.
Full monitoring for the building
With PRO Desktop, building admin staff can observe security, automation, and smart home devices. Device statuses, event log, and microclimate data — the operator has a complete picture in one intuitive interface, all informative and centralized. And photo verification of alarms from detectors of the MotionCam lineup will help to find out the situation at the protected facility and quickly respond to it. The installer can remotely change the settings and provide additional services according to the object specifics.
Advanced automation for greater safety
Ajax WaterStop is a part of the Ajax ecosystem. Using scenarios , it can interact with automation devices and PhOD detectors of the MotionCam lineup. Whether it’s a minor water leak or a massive flooding, Ajax WaterStop shuts off the water in a matter of seconds. At the same time, MotionCam (PhOD) sends pictures to Ajax apps to identify what causes the water leak and assess the possible damage. And to prevent emergencies, automatic water supply control will turn off the water when no one is using it — a reliable combination of security and automation that runs like a Swiss watch.
Water leak prevention system
Ajax WaterStop automatically shuts off the water when LeaksProtect or any other third-party leak detector integrated into Ajax via Transmitter or MultiTransmitter detects a water leak.
- Water leak
- LeaksProtect Jeweller
- Ajax WaterStop Jeweller
Water shut-off when changing the security mode
Ajax WaterStop automatically shuts off the water when you arm the system. Be sure that there will be no water leaks at the facility when you're away.
- Arming
- Ajax WaterStop Jeweller
Scheduled water supply
Adjust a schedule, and Ajax WaterStop will automatically turn off the water supply at a particular time.
- Schedule
- Ajax WaterStop Jeweller
Only with Ajax
Sabotage-resistant
Communication failure detection
Anti-sabotage mount lockers
Tamper alarm
Control button locking
Intuitive installation and connection
The Ajax WaterStop actuator is ready to operate straight out of the box. It installs on the mounting platform without tools and enclosure disassembling in four possible positions towards the valve. A plumber installs a bundled or another compatible shutoff valve in advance without an installation engineer's presence — all he needs to know is the electric actuator dimensions.
Ajax apps help quickly make the device a part of the automated system. There is no need to visit the object to disable the device or change the settings. The design allows maintenance and repair in hard-to-reach places: pipe tunnels, technical boxes, walls, etc. It is possible to replace the actuator unit without dismantling the shutoff valve.
Pairing with the security system via QR code
Installation on a shut-off valve without disassembling the enclosure of the electric actuator
Configuring and testing in mobile and desktop apps
Technical information
Ajax WaterStop ½" (DN 15)
Ajax WaterStop ¾" (DN 20)
Ajax WaterStop 1" (DN 25)
Ajax product lines
Superior, Fibra, and Baseline product lines are mutually compatible. This opens up numerous possibilities for building systems of any configuration.
