Superior Hub G3 Jeweller

Ajax devices

up to 250

Specifically:

• up to 5 range extenders;
• up to 10 sirens without Superior Jeweller support;
• up to 50 keypads with a built-in siren without Superior Jeweller support.

Users

up to 200

• Any number of admin users within the hub limit.
• PRO accounts for installers.
• PRO accounts for installation and monitoring companies.
• Access management for users.

Automation scenarios

up to 64

• By alarm.
• By schedule.
• By arming/disarming.
• By temperature, humidity, CO₂ concentration.
• By pressing Button.
• By touching LightSwitch.

Security groups

up to 25

Rooms

up to 50

Event log

up to 1,000 events

Events are saved on the non-volatile onboard flash memory.

Data transfer protocols

Superior Jeweller

To transmit commands, alarms, and events. An upgraded version of the Jeweller radio protocol for Superior devices, ensuring compliance with Grade 3 (EN 50131). If at least one device operates via the regular Jeweller protocol, the system will be limited to Grade 2: encryption remains, but frequency hopping is disabled.

Jeweller

To transmit commands, alarms, and events from devices without Superior Jeweller support.

TurboWings

To transmit photos from devices supporting TurboWings.

Wings

To transmit large data packets, such as firmware updates, and photos from devices without TurboWings support.

VoRF

Proprietary wireless audio streaming protocol using time division duplex.

Frequency bands

865.0–868.0 MHz

868.0–868.6 MHz

868.7–869.2 MHz

869.4–869.65 MHz

Radio communication range

up to 3,500 m

Between a hub and a radio signal range extender, or between a range extender and connected devices (in an open space). The maximum range depends on the connected device.

Maximum effective radiated power (ERP)

up to 20 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Advanced encrypted communication

The communication between the device and the hub is protected by an advanced encryption scheme that ensures data confidentiality and integrity.

Enhanced frequency hopping

To prevent radio interference and jamming. For enhanced hopping to function, all devices in the system must use the Superior Jeweller protocol. If even one device uses the regular Jeweller protocol, hopping will be limited to only 2 frequencies.

Photo verification

Types depend on the detector and settings.

Photo delivery time

up to 4.5 s — 320 × 240 px resolution

Photo delivery time depends on the detector model and image resolution selected in the device settings.

Photo resolution

up to 960 × 720 px

Depends on the detector.

Series of photos

from 1 to 5 pictures

Supported protocols

• SIA DC-09 (SIA-DCS)
• SurGard (Contact ID)
• ​​ADEMCO 685
• Other proprietary protocols

Event types

• System alarms and events
• Panic button coordinates
• Photo verification

Tamper alarm

The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel.

Protection against spoofing

device authentication

Frequency hopping

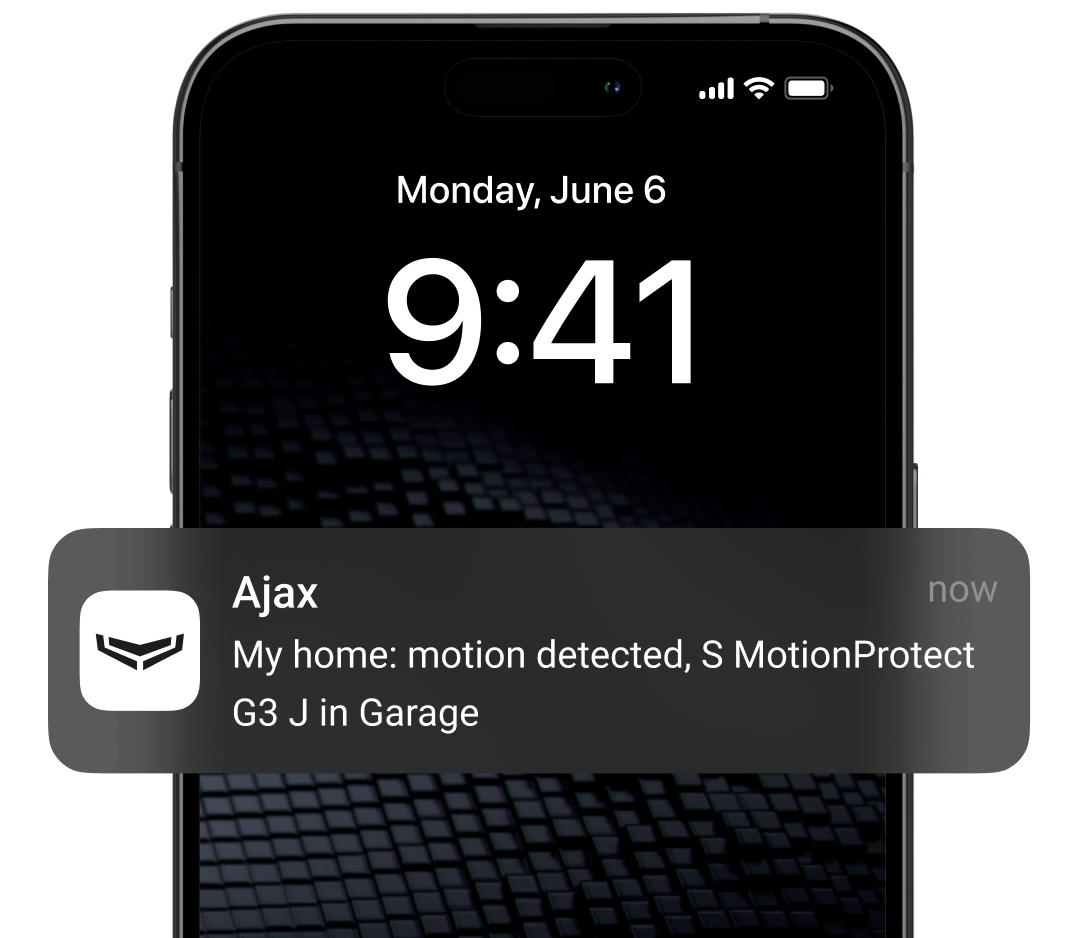

The hub sends notifications to all users and the security company of jamming or losing connection with the devices.

Jamming alert

Superior Hub G3 Jeweller analyzes the channel’s noise level and the quality of communication with added devices and sends an alert in 30 seconds.

Main power supply type

Type A.

Device operating AC voltage range

110–240 V, 50/60 Hz

From the main power supply. Up to 30 W of mains power consumption.

Device operating DC voltage range

6.0–8.2 V⎓

Low battery voltage

7.0 V⎓

Low battery recovery voltage

8.135 V⎓

End-of-life battery voltage

6.0 V⎓

Superior Hub G3 Jeweller is switched off.

Minimum backup battery energy level in the charged state

100%

On Superior Internal Battery (16h)

up to 16 hours

When Wi-Fi, Ethernet, and cellular (LTE) communication channels are enabled. Superior Internal Battery (16h) is not included in the complete set.

up to 100 hours

In Battery saving mode.

On Superior Internal Battery (60h)

up to 60 hours

When W-Fi, Ethernet, and cellular (LTE) communication channels are enabled. Superior Internal Battery (60h) is not included in the complete set.

up to 300 hours

In Battery saving mode.

Maximum at nominal voltage

120 mA

Quiescent at nominal voltage*

up to 120 mA

When Wi-Fi, Ethernet, and cellular (LTE) communication channels are enabled.

up to 115 mA

When Ethernet and cellular (LTE) communication channels are enabled.

up to 28 mA

When Ethernet and other communication channels are disabled.

* From the backup battery after the loss of the main power supply.

Superior Hub G3 Jeweller

SmartBracket mounting panel

Power cable

Ethernet cable

Installation kit

SIM card (depends on the sales region)

Quick start guide
