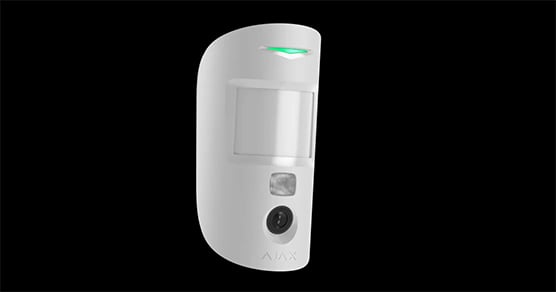

MotionCam (PhOD) Jeweller
Wireless PIR motion detector with extended photo verification possibilities
Lightning-fast alarms. Verified.
MotionCam (PhOD) Jeweller has a built-in camera that takes photos once the detector is triggered. It needs just 9 seconds to show the actual situation on the scene. With visual evidence available in Ajax apps, the security company can quickly verify the threat and respond accordingly. Photo verification relieves users of unnecessary anxiety and prevents security companies from false patrol calls. Users can take an on-demand photo with a single tap to monitor their house's state at any time. The detector can also automatically take photos by an alarm of another device in the system, by a specific schedule, and by arming or disarming.
Discover PhOD detectors
Introducing motion detectors with extended photo verification possibilities
Watch on YoutubeKey features
Up to 39 ft
motion detection distance
Horizontal viewing angle
Vertical viewing angle
Versatile photo verification possibilities
Photo by alarm
Photo on demand
Photo by scenario

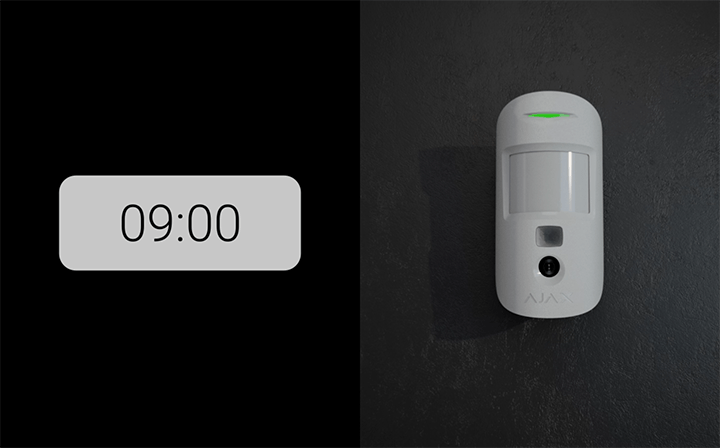

Photo by schedule
Photo by arming/disarming
9 seconds
to deliver the first photo1
HDR technology for clear photos2
Software algorithm to prevent false alarms
Remote control and configuration
Pet immunity
Up to 5 years
with pre-installed batteries
Photo privacy protection
Up to 5,550 ft
communication range with an Ajax hub or range extender3
Informative push notifications
Critical
Ajax
Warehouse: Motion detected, MotionCam (PhOD) in Storage area
Ajax
Office: Lid is closed, MotionCam (PhOD) in Hall

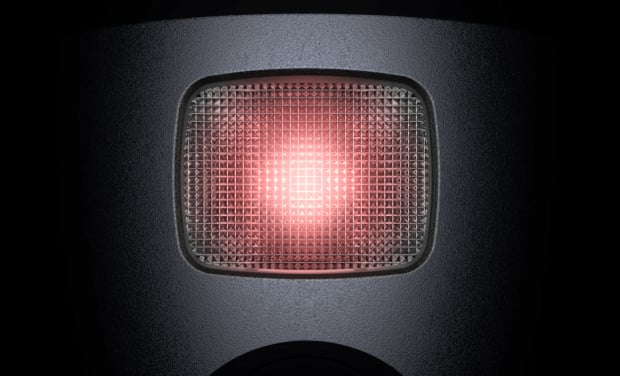

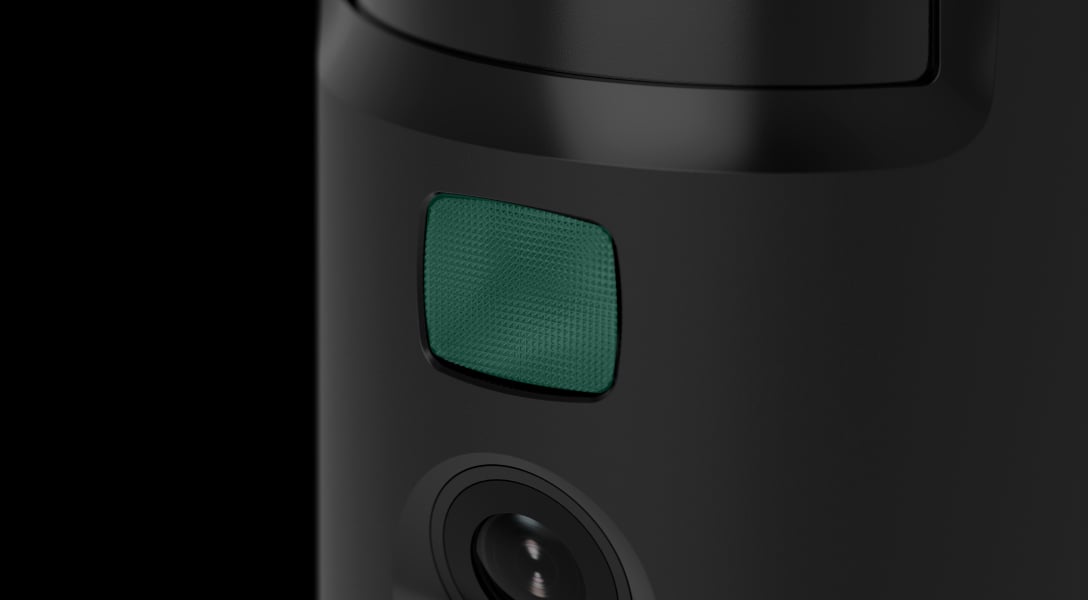

IR illumination
for low-light conditions
Jeweller and Wings radio communication
Power adjustment
Temperature compensation
for effective detection in heat and cold
Two colors
Hassle-free installation
QR code
SmartBracket
App
In an Ajax system, you can combine devices of all product categories: Intrusion protection, Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.
Awards

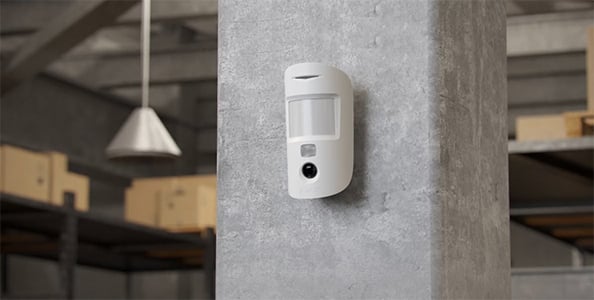

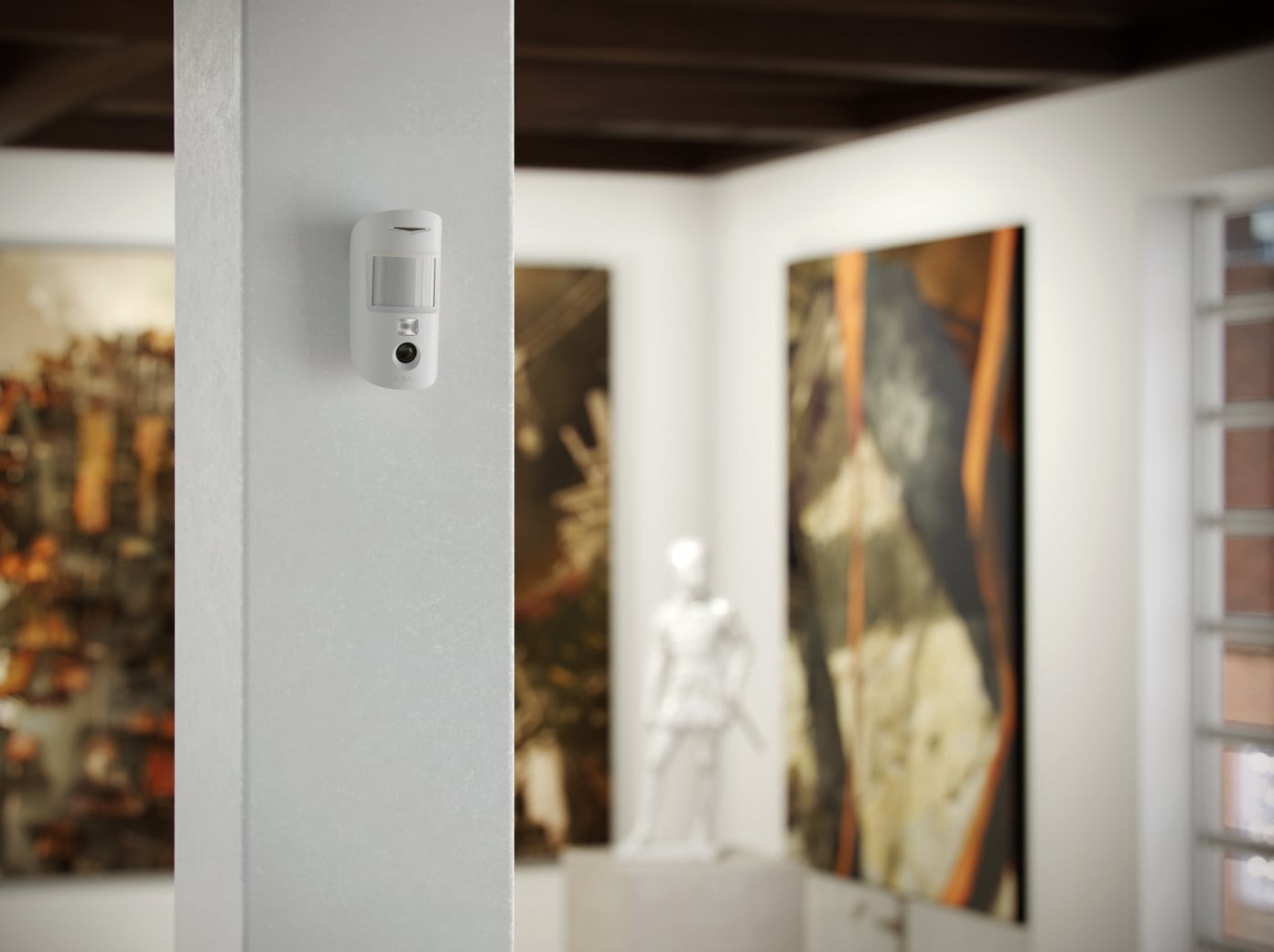

Wherever there is a risk of intrusion
Office
Store

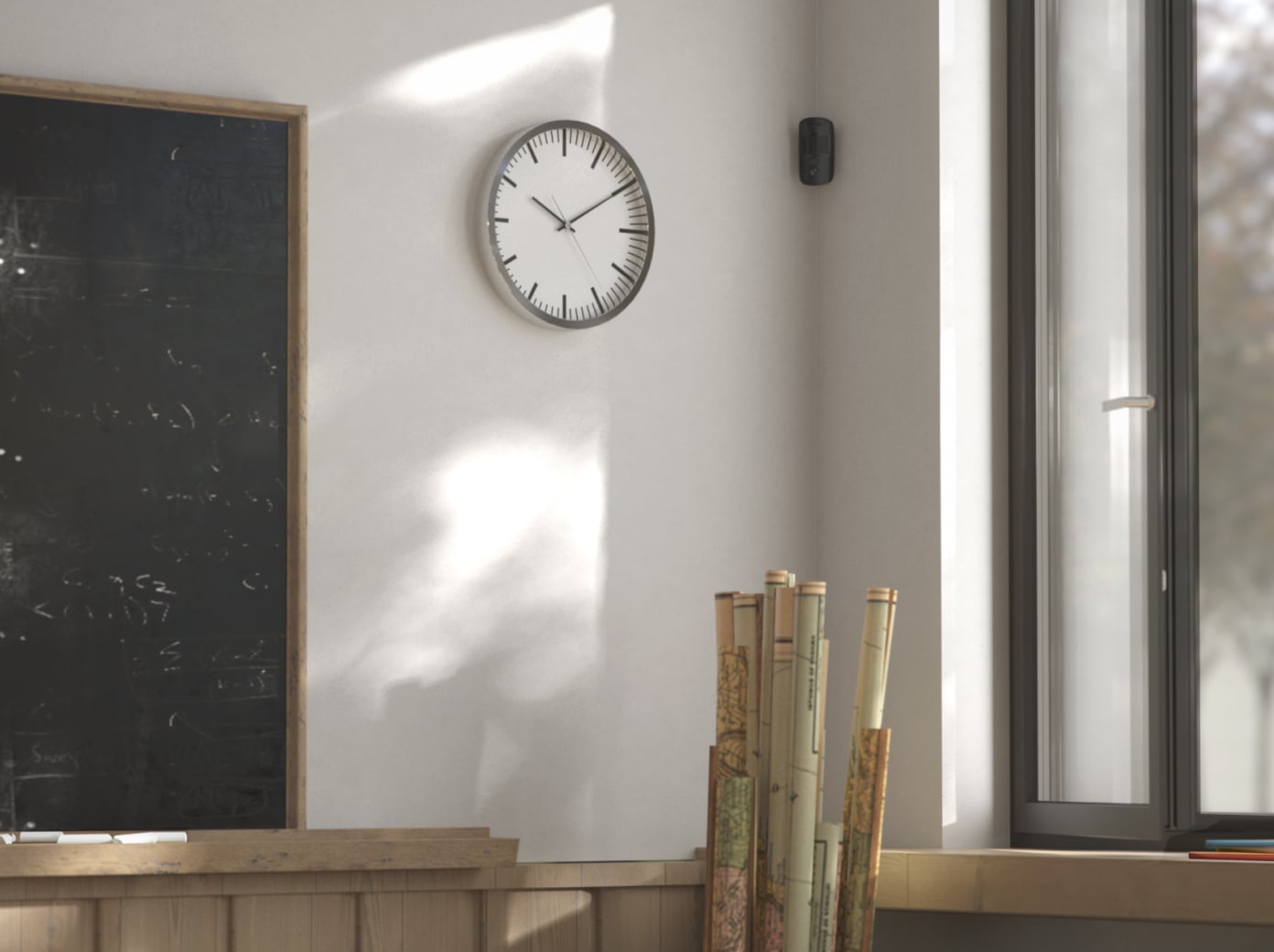

Educational institution

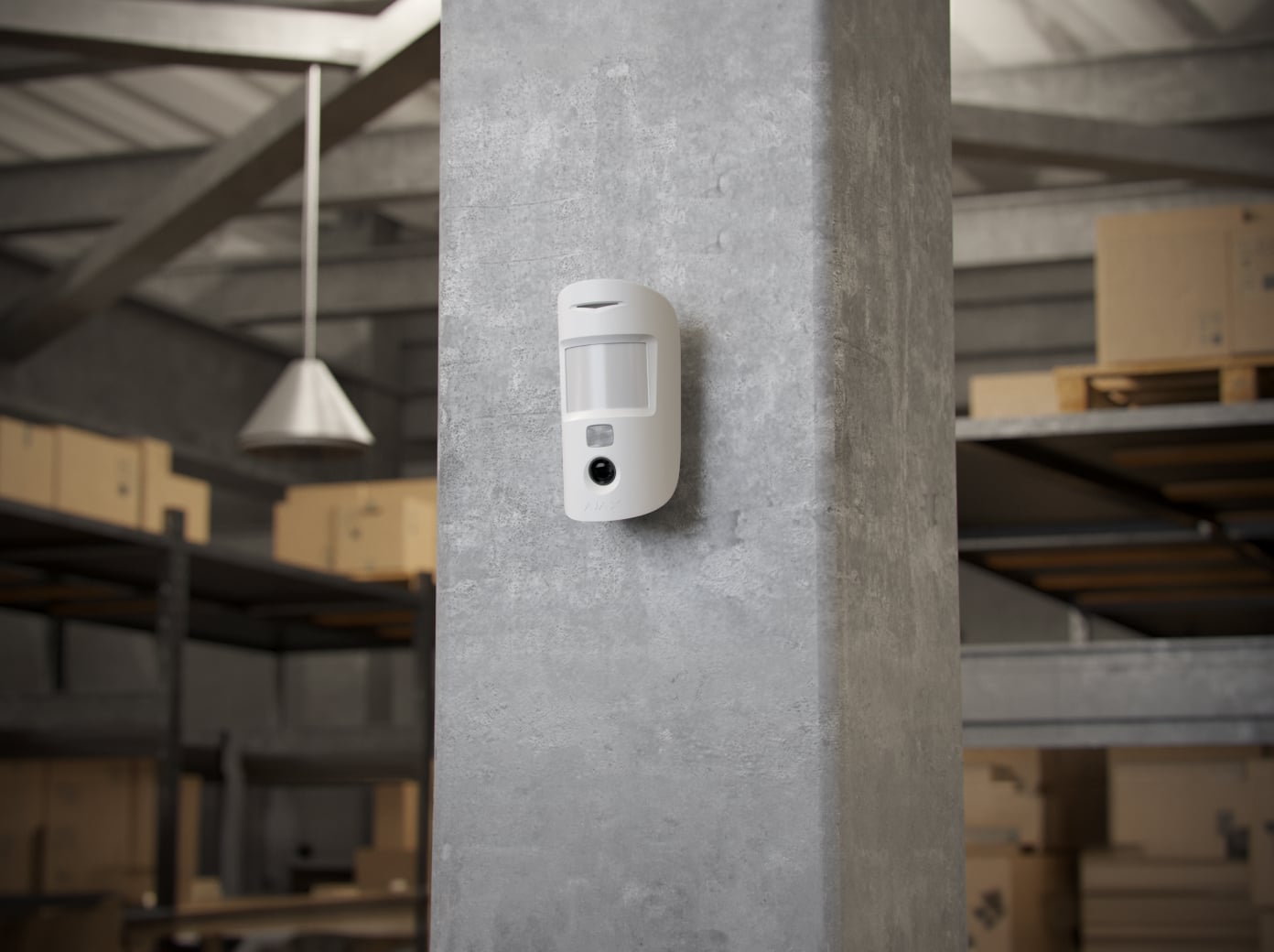

Warehouse or manufacturing

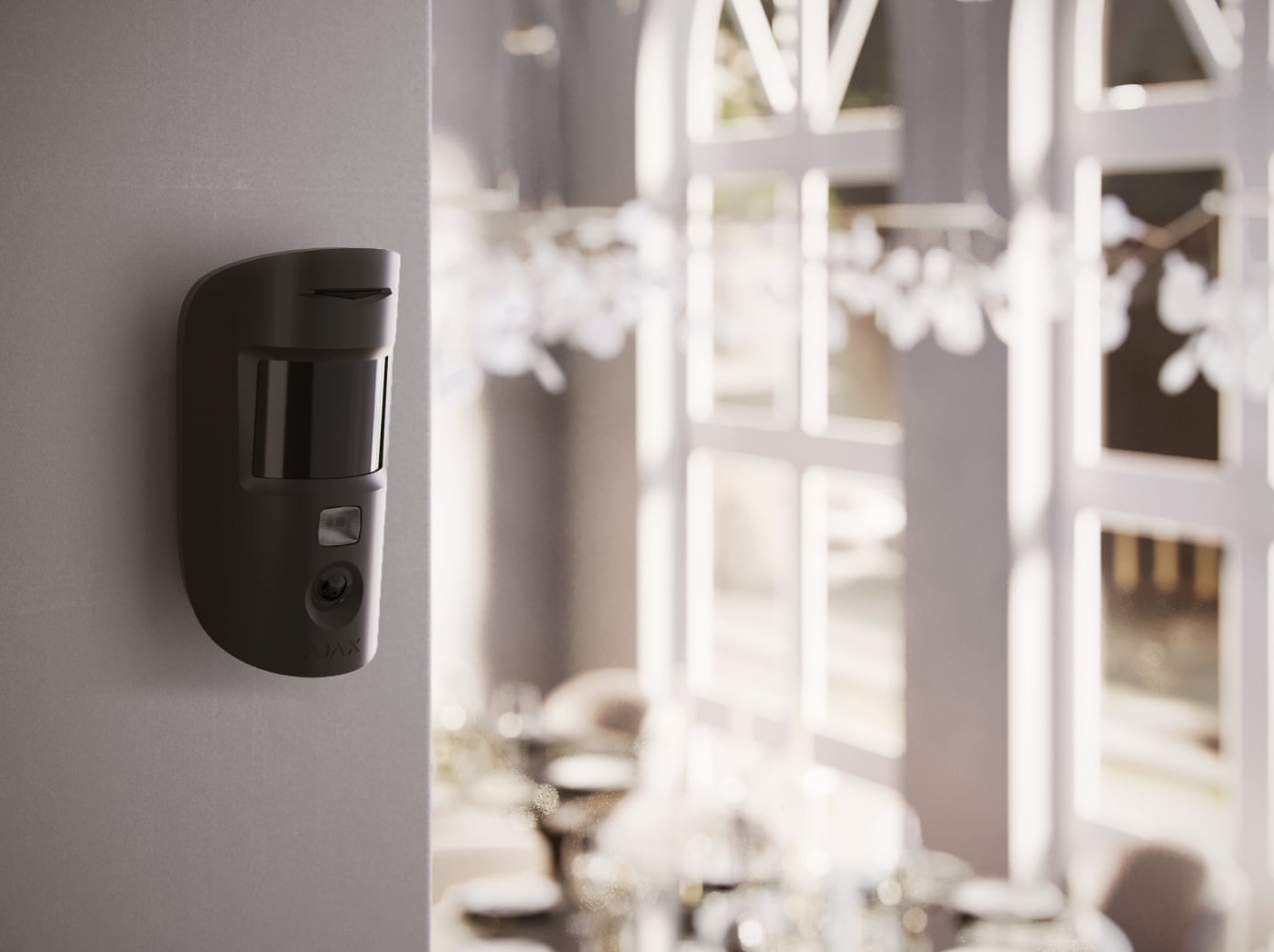

Cafe
Museum
Apartment

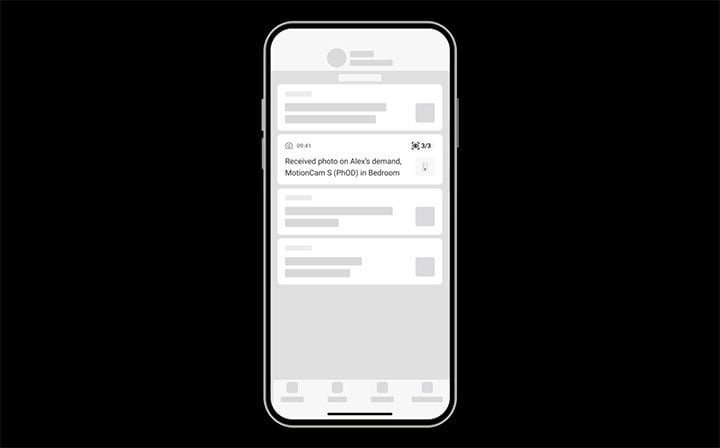

Peace of mind on demand
The detector needs just a few seconds to show the actual situation on the scene and dispel the user's doubts in case of an alarm. It takes a click in the Ajax app to take an on-demand photo. Also, the detector can automatically take photos by schedule, when another detector in the system is triggered, and when someone arms or disarms the system.
HDR for challenging lighting conditions
MotionCam (PhOD) Jeweller captures clear, balanced images using an advanced optical system, a CMOS sensor, and HDR (High Dynamic Range) technology. HDR improves colors and contrast by combining photos with different exposures into one. This prevents images from being too bright or too dark. As a result, photos look more colorful, detailed, and natural — just like we see things in real life.
HDR preserves details in both bright and dark areas, whereas without it, windows appear overexposed and shadows are too dark
Privacy first
Detailed event log
Strict permission distribution
Encryption and GDPR
The Ajax product portfolio includes motion detectors with basic photo verification capabilities. These devices can capture photos only when an alarm is raised.

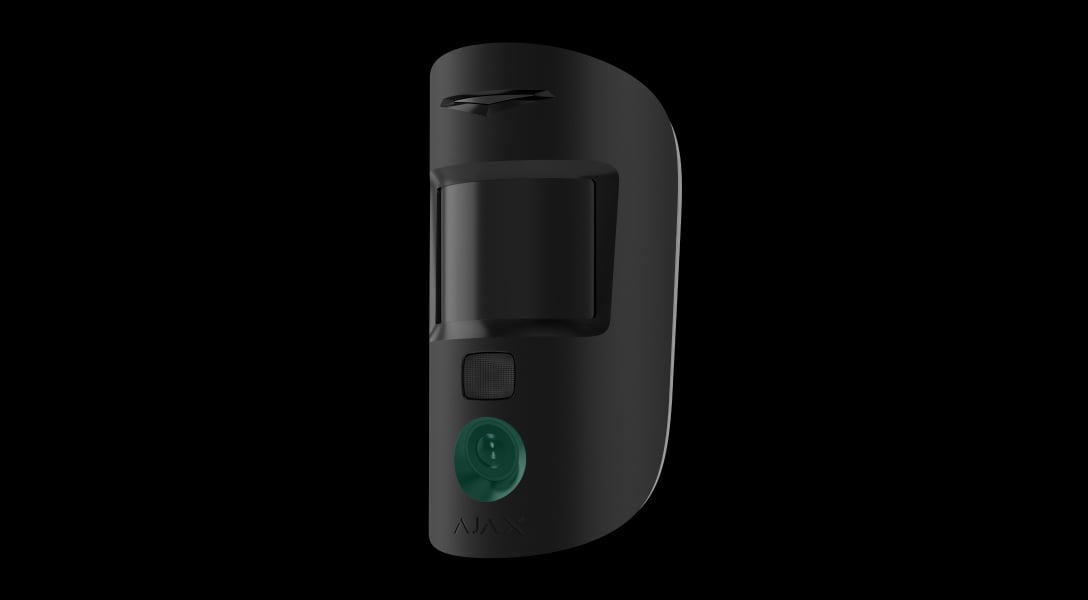

Discover future-proof hardware
Fresnel lens
PIR sensor
Camera
IR illumination for low-light conditions
Pre-installed batteries

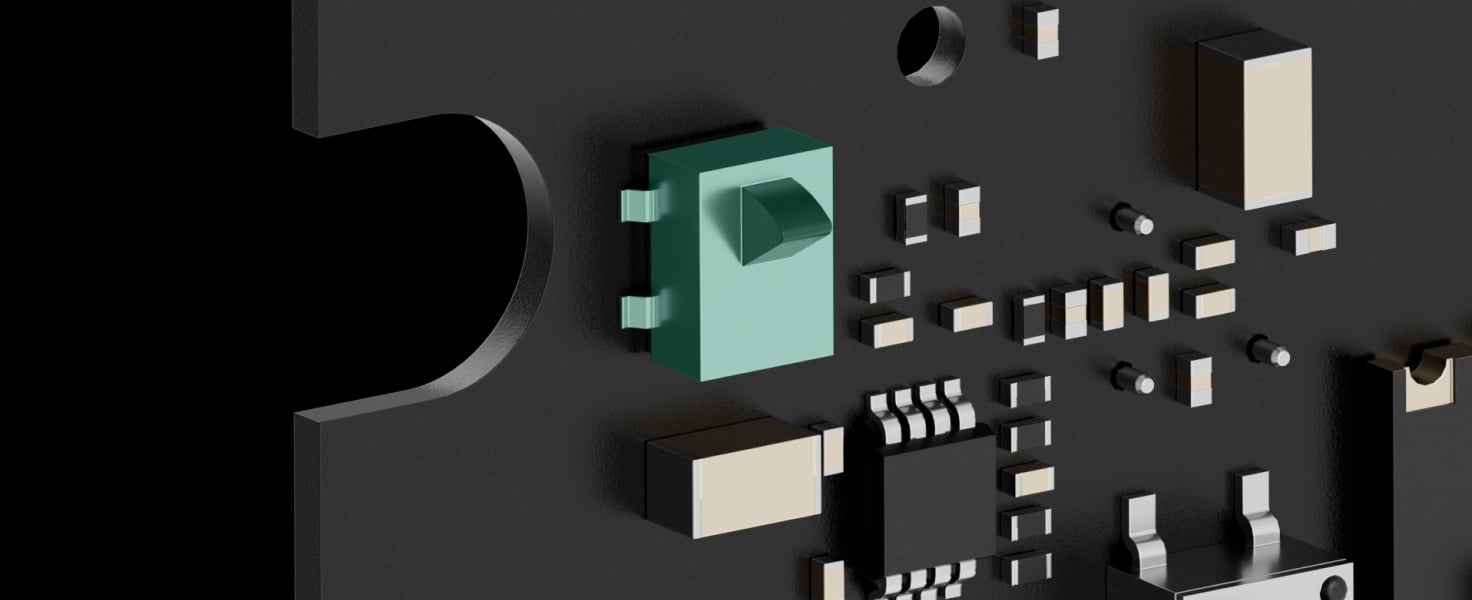

Tamper
Jeweller and Wings antennas
SmartBracket mounting panel
No intruder goes unnoticed

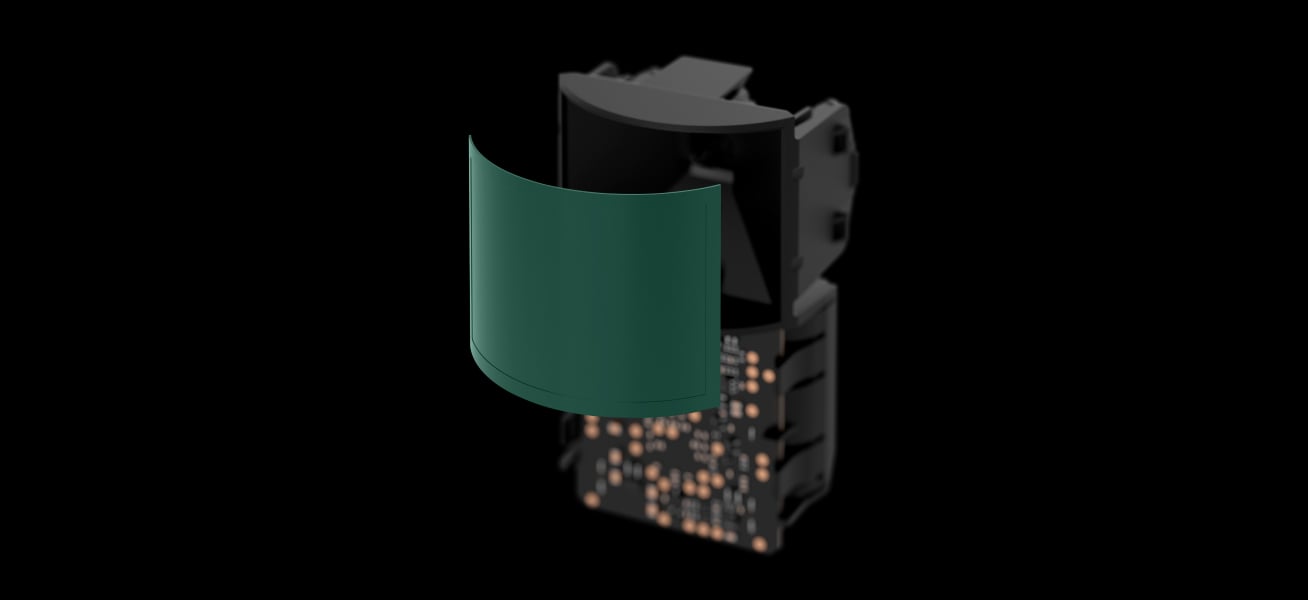

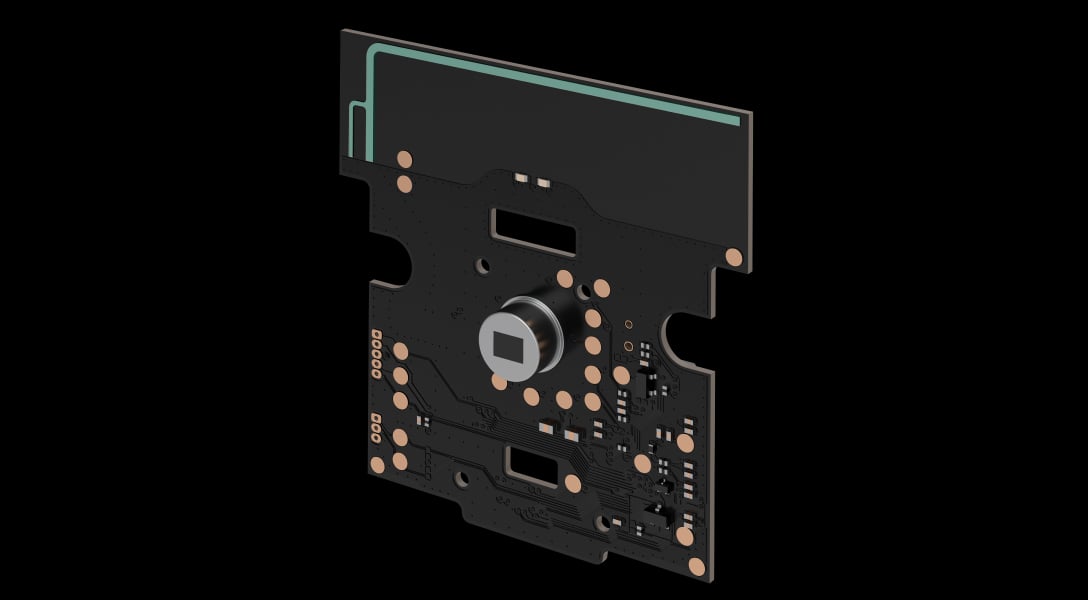

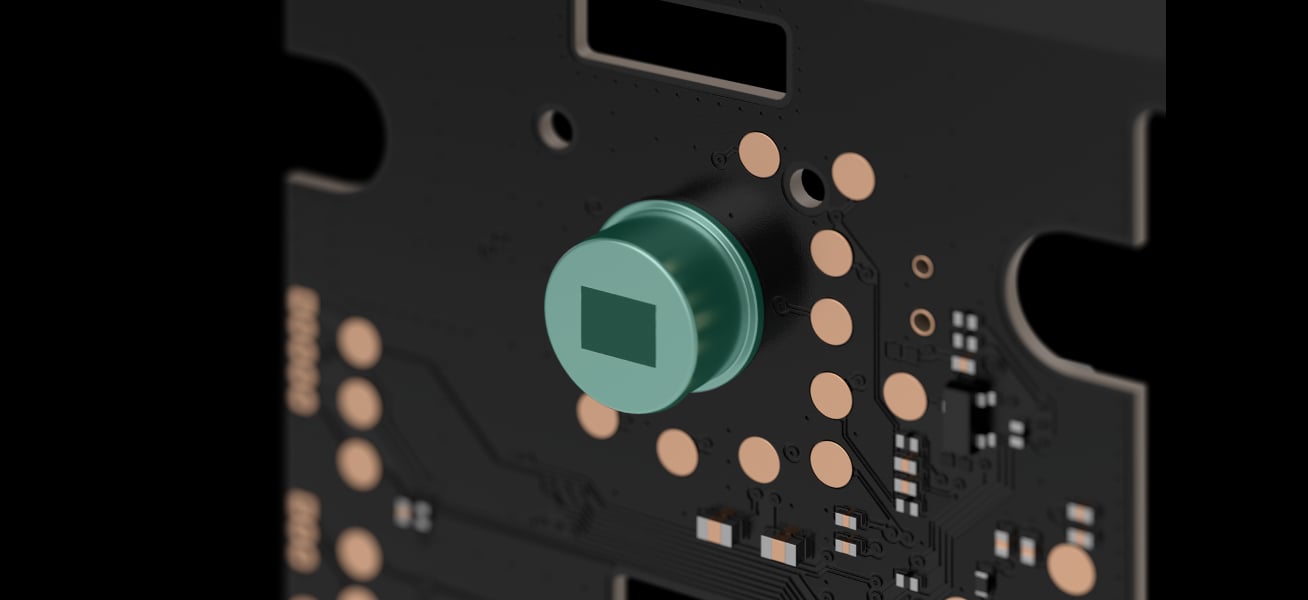

PIR sensor
All Ajax motion detectors use PIR sensors by Excelitas Technologies — a field-leading American manufacturer specializing in designing and producing optronic components since 1931. Ajax Systems constantly proves the sensor's Superior quality at the production stage: we test 100% of manufactured devices. Wrapped into Ajax technologies, it brings the utmost accuracy of intrusion detection.

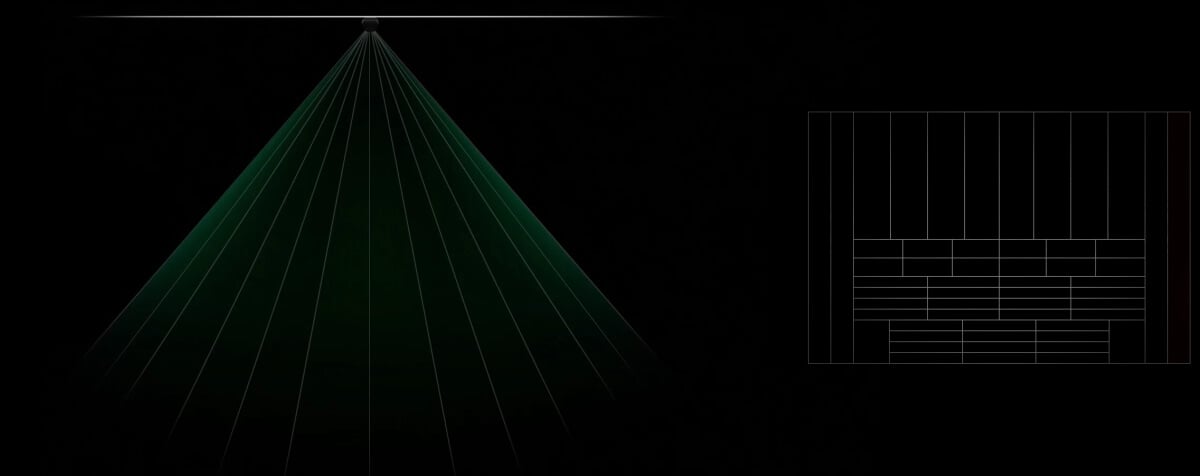

Special lens

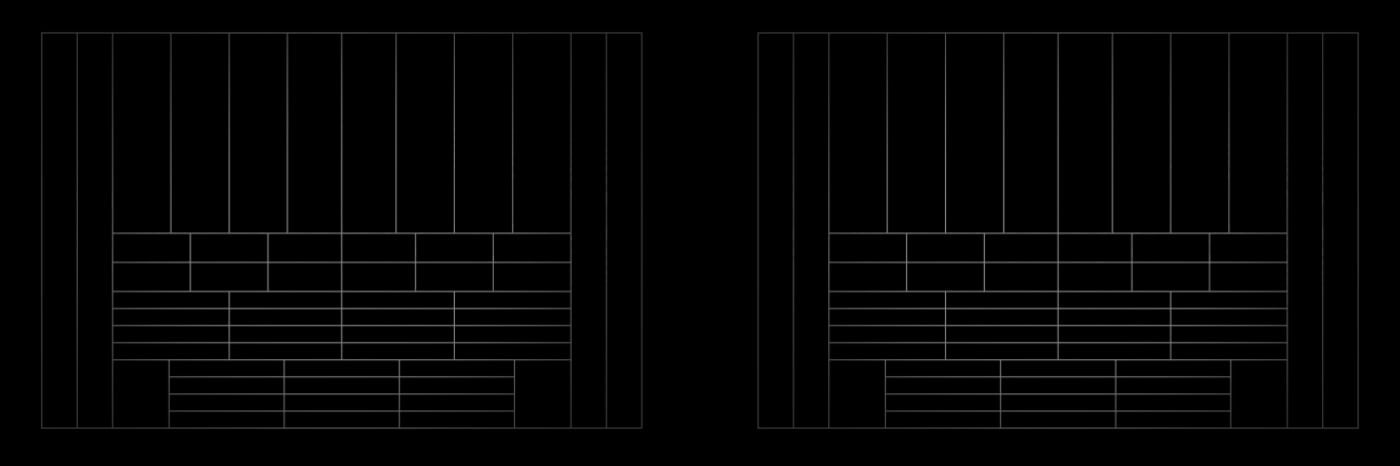

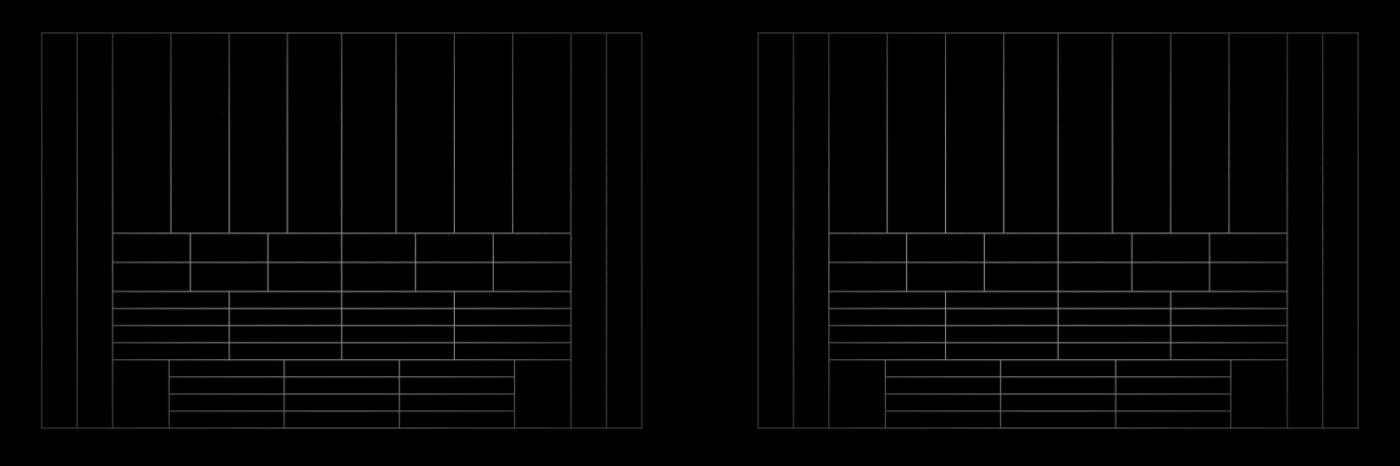

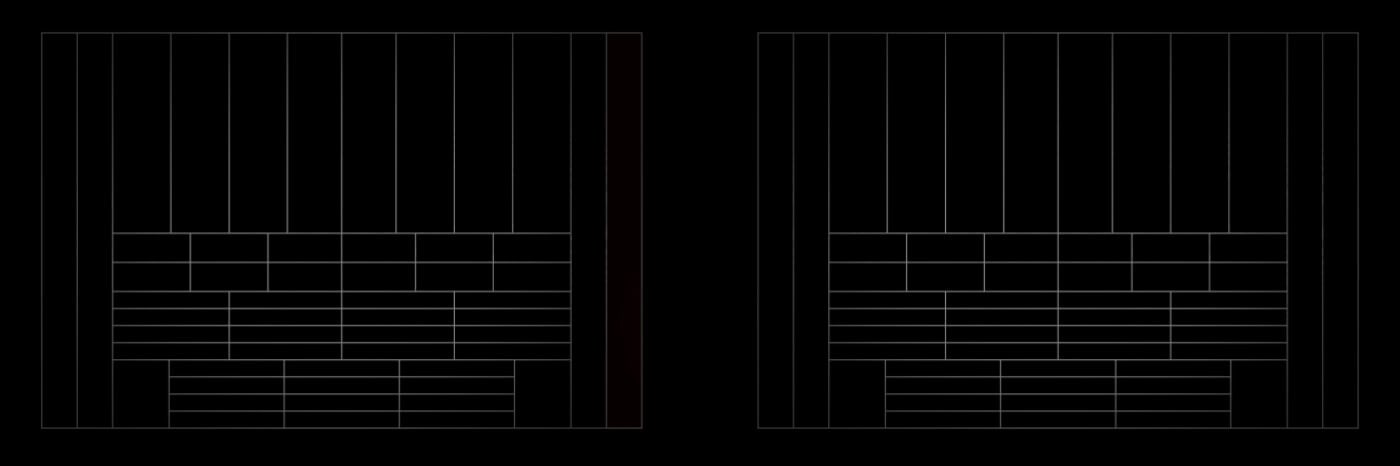

The pattern of the Fresnel lens sections is designed to differentiate between the IR diagrams of a human, animal, and thermal noise. Large lens sections capture radiation at an adult's head and torso level. Smaller sections make the diagram more detailed. The lens provides the detector with accurate information about the thermal object in the detection zone and the nature of its movement.
Thermal interferences filter
We processed thousands of thermal patterns caused by humans, animals, and the environment to develop the SmartDetect software algorithm. In armed mode, the detector constantly analyzes the thermal diagram from the PIR sensor, including the IR radiation intensity, thermal spot size, movement speed, time spent in the detection zone, and other parameters. The algorithm identifies false alarm markers instantly and with high accuracy. As a result — the detector accurately responds to human motion without false alarms.

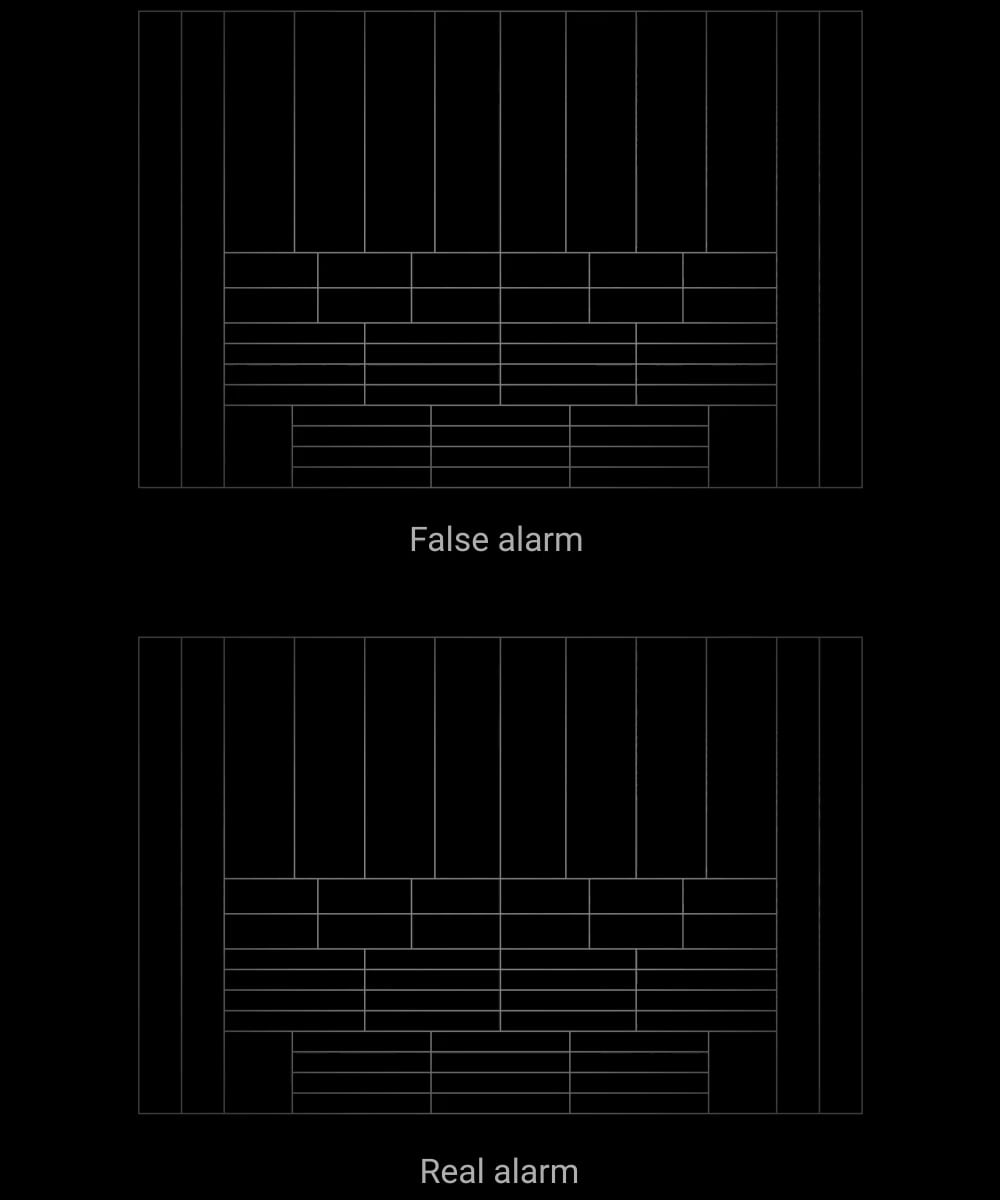

False alarm
Real alarm
False alarm
Real alarm
False alarm
Real alarm

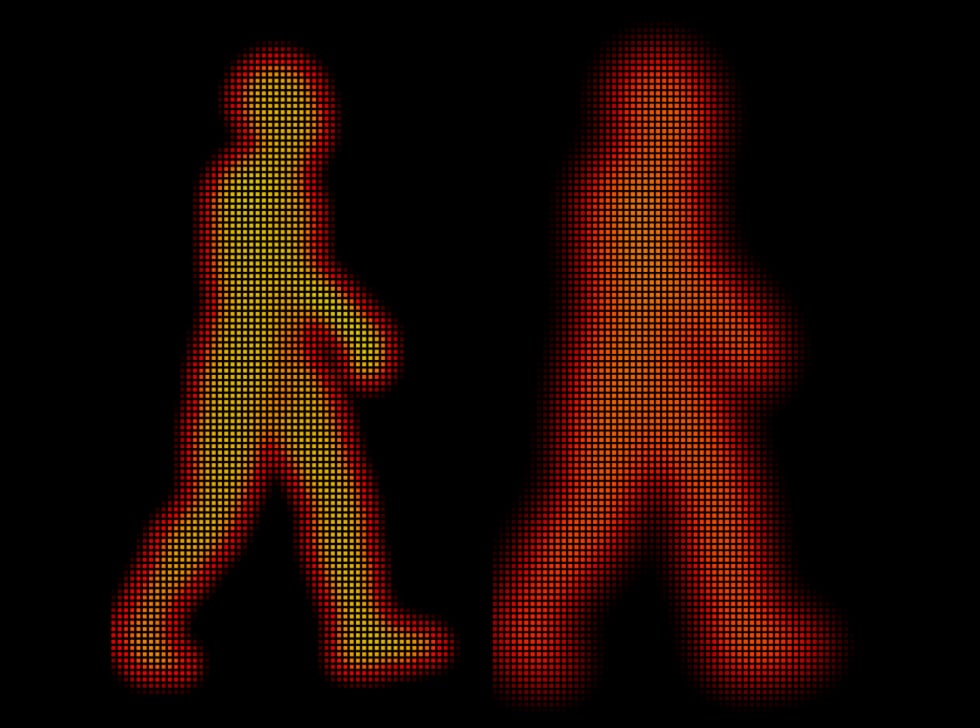

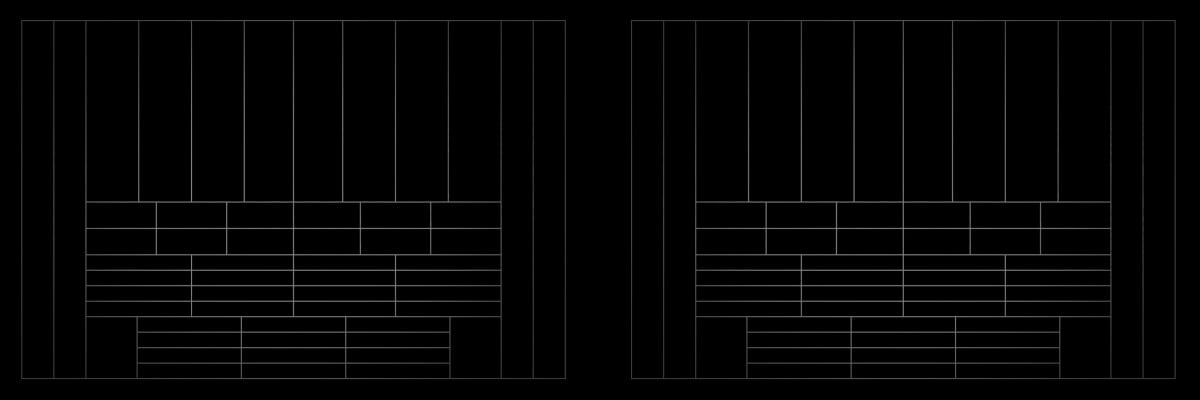

Temperature compensation
Temperature compensation is a software mechanism keeping the thermal diagram contrast even if the ambient temperature is close to the temperature of the human body. With each ambient temperature measurement, the detector corrects the PIR sensor data according to the coefficient table stored in its memory. The detector is effective over the entire operating temperature range.

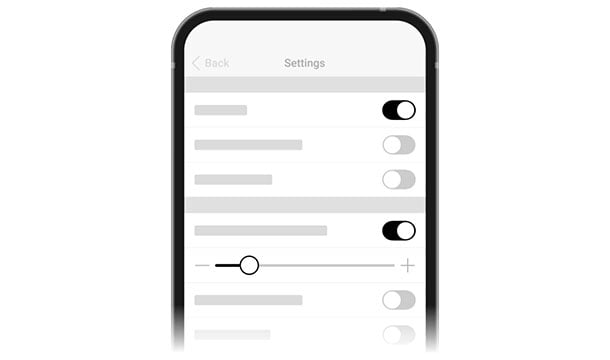

Sensitivity level
The detector can adapt to the conditions of a particular facility, considering possible thermal interference or pets. The sensitivity setting changes the set of markers by which false alarms are filtered. Low sensitivity makes the detector less likely to respond to an active pet. A high sensitivity will raise the alarm in case of any motion in the detection zone.

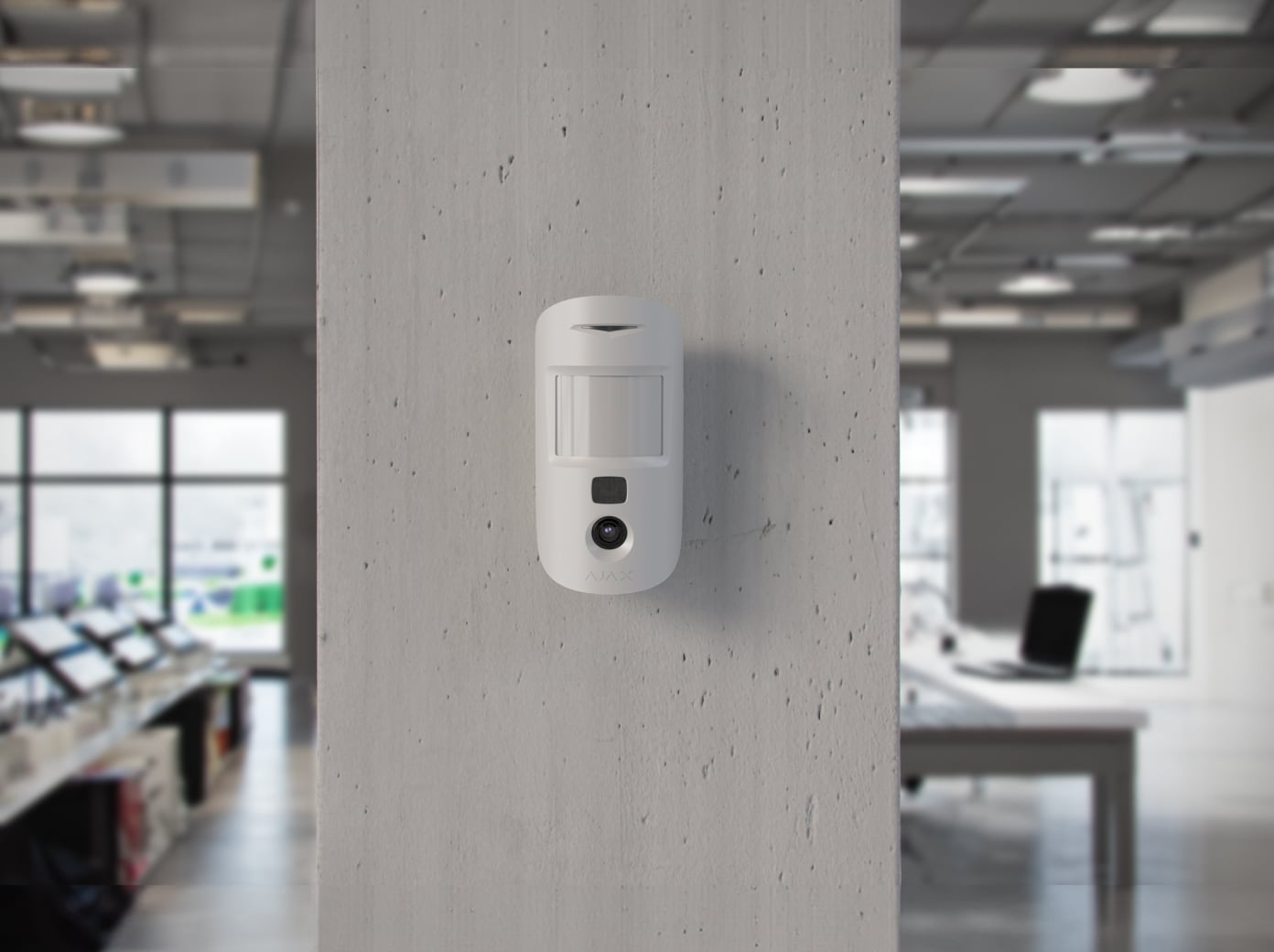

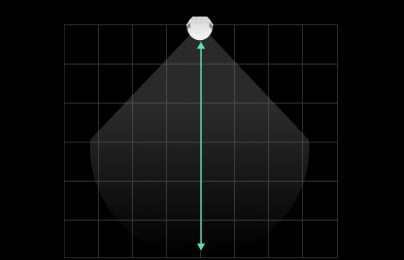

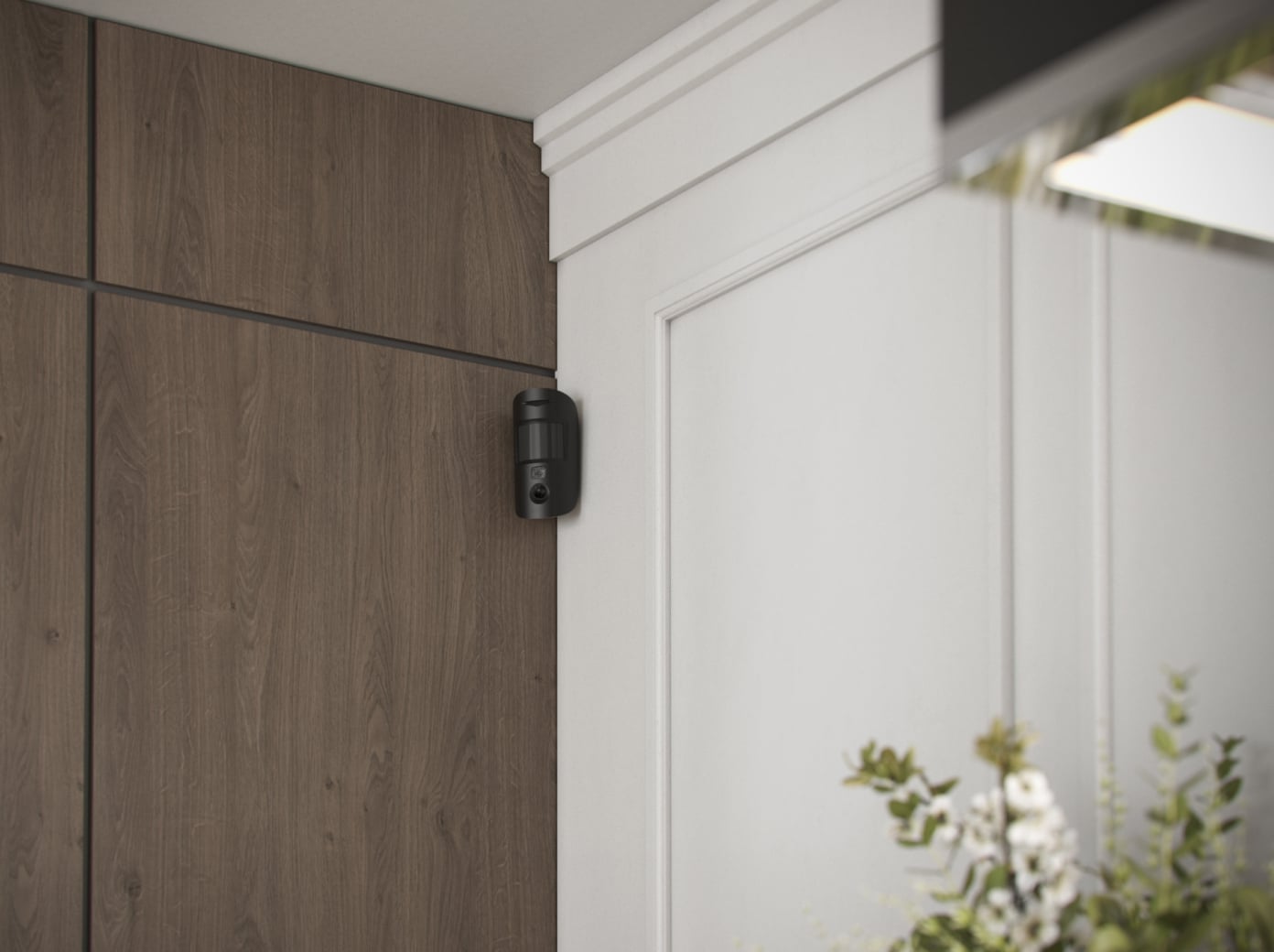

Professional installation

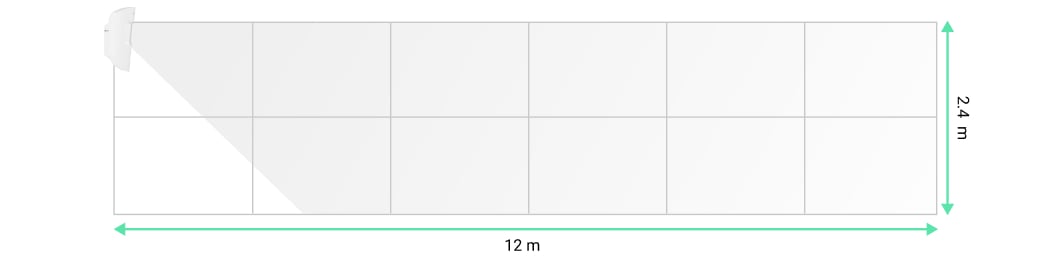

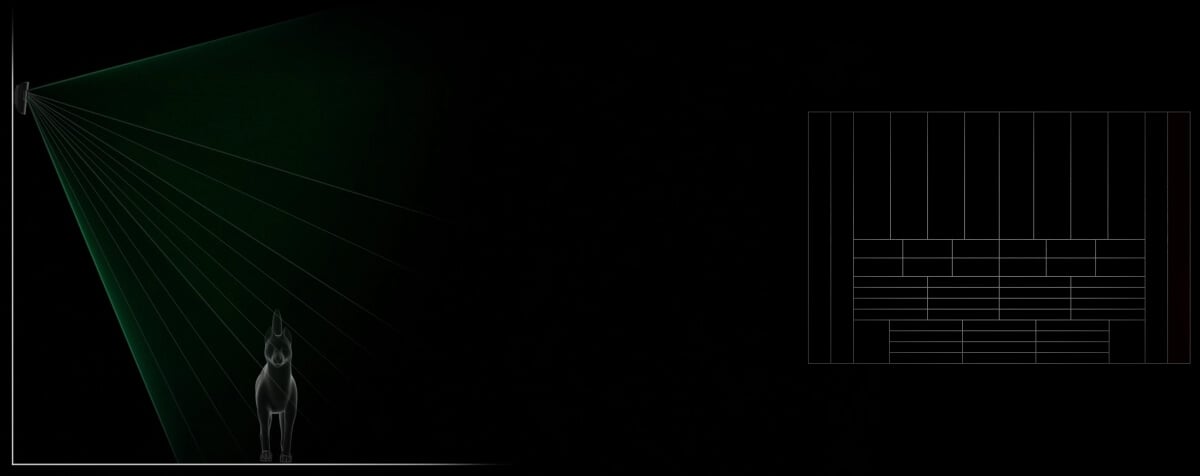

With the correct installation at the height of 7.9 ft and lens direction perpendicular to an alleged intrusion path, the detector provides an accurate thermal diagram and pet immunity. It instantly responds to a real threat, minimizing false alarms caused by animals weighing up to 44 lb and below 1.6 ft in height.

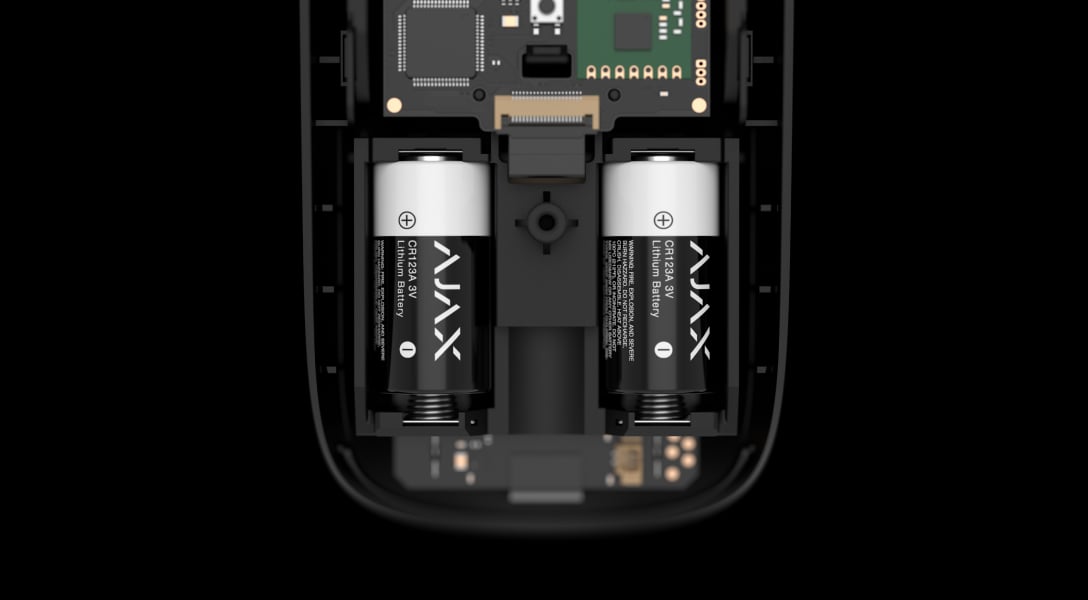

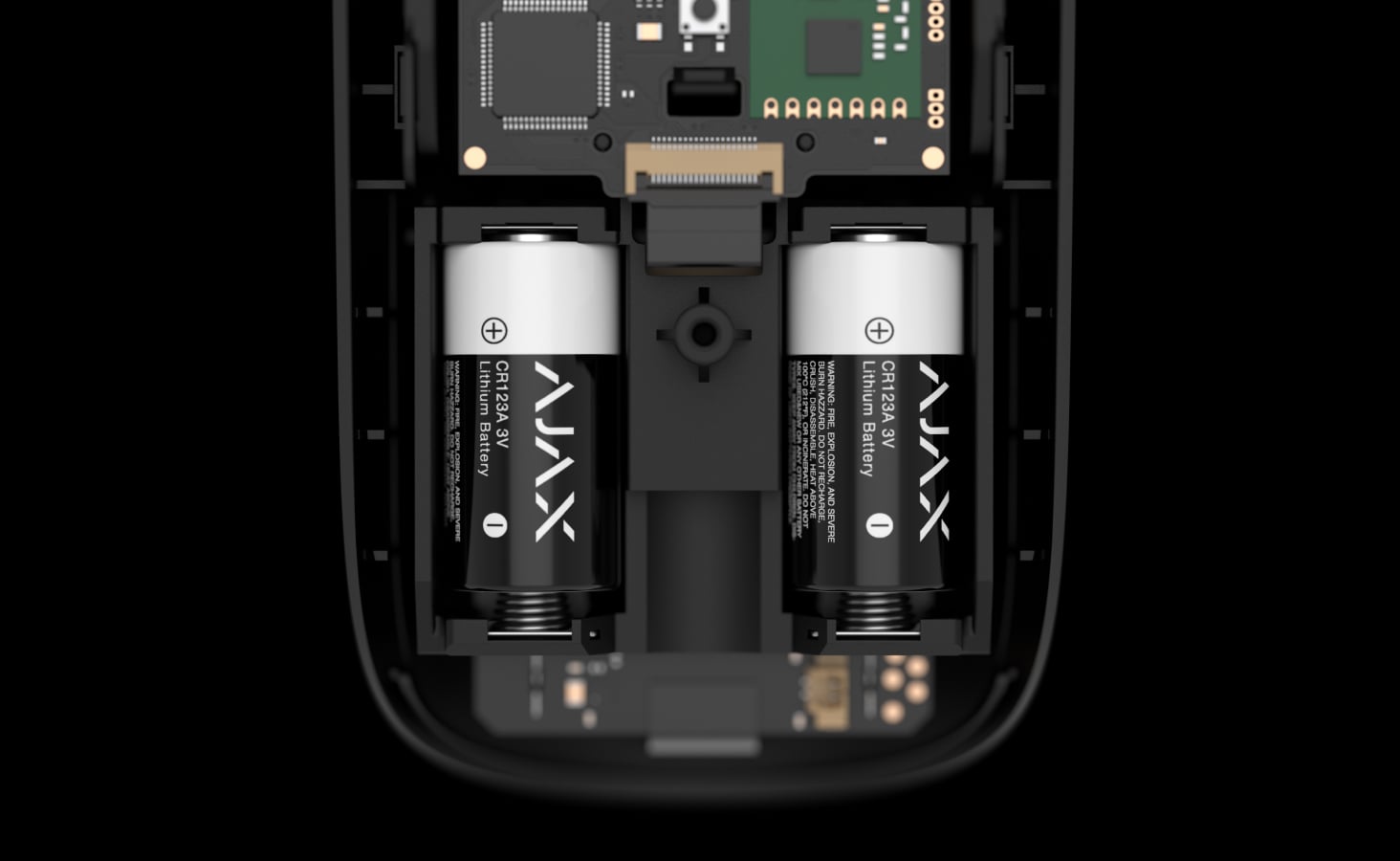

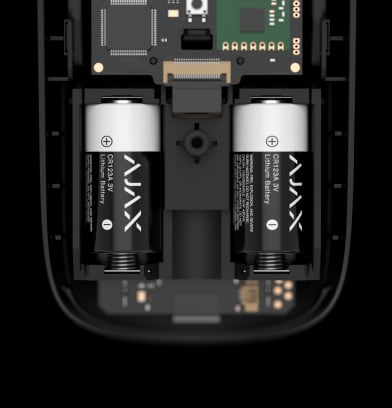

Stable operation with pre-installed batteries
MotionCam (PhOD) Jeweller comes equipped with pre-installed batteries, boasting a remarkable 5-year lifespan. Ajax apps proactively notify both the monitoring company and users of a low battery level a couple of months in advance. The batteries are replaceable, allowing the installer to simply swap them out after five years. Thanks to the batteries, MotionCam (PhOD) Jeweller functions independently of the facility’s power grid.
Up to 5 years of operation from pre-installed batteries
Low battery level warning
Replaceable CR123A batteries

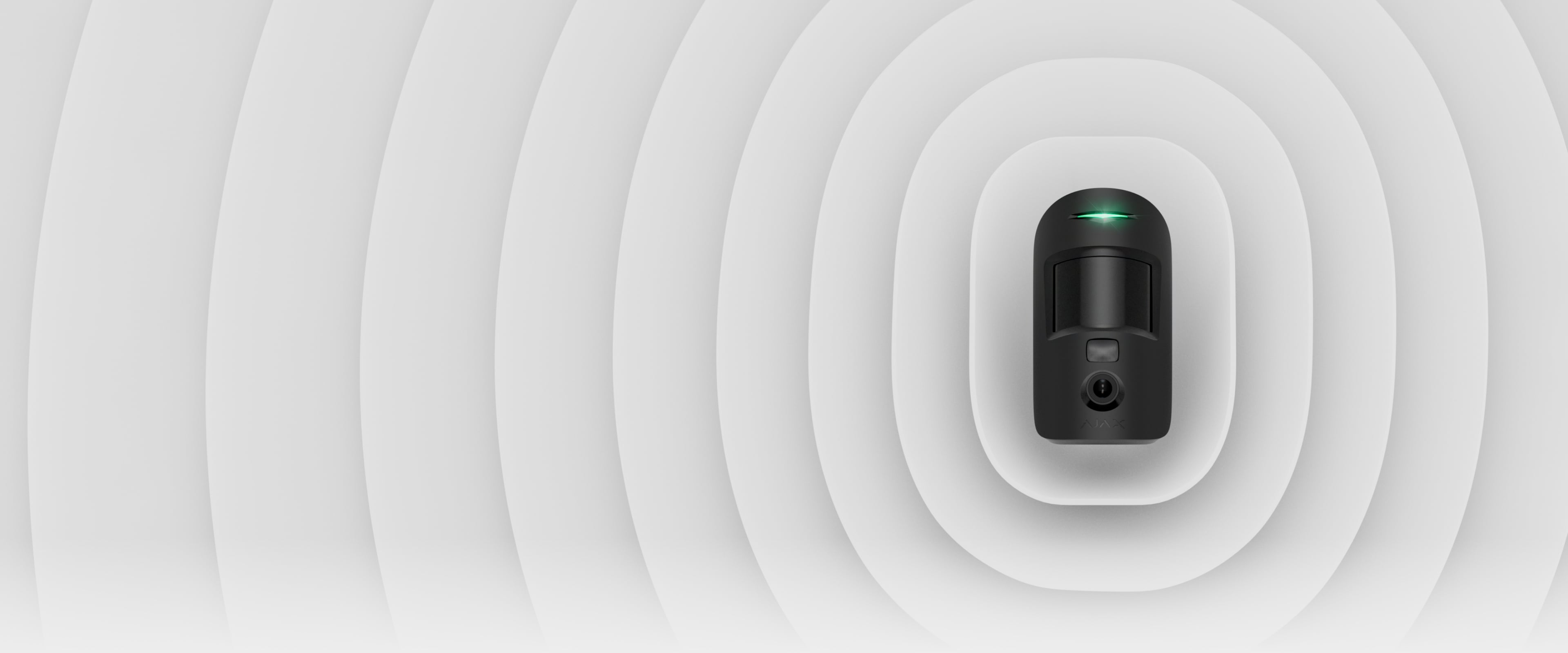

Jeweller | Wings
Unique wireless technologies

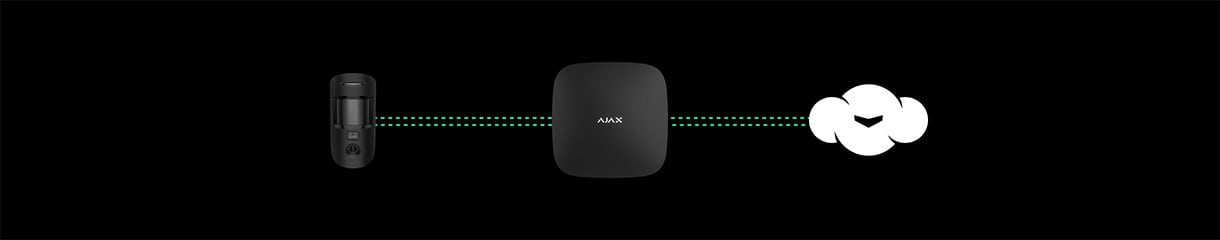

MotionCam (PhOD) uses Jeweller and Wings proprietary radio protocols for reliable communication
Up to 5,550 ft of radio communication3 with a hub or range extender
Encrypted two-way radio communication
Notifications about jamming and connection loss
9 seconds1 to deliver the first photo

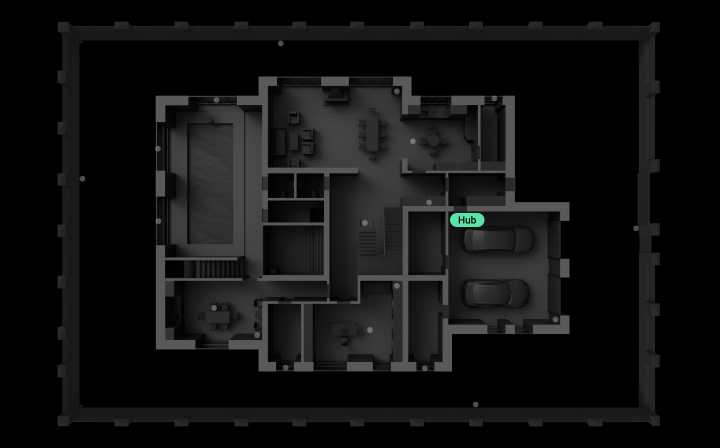

Communication through steel and concrete

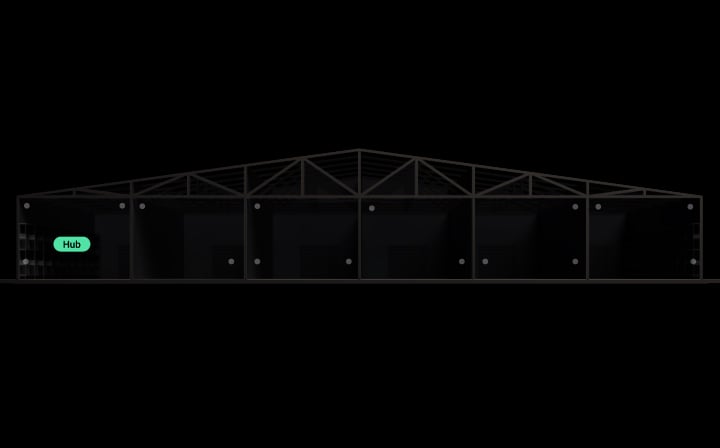

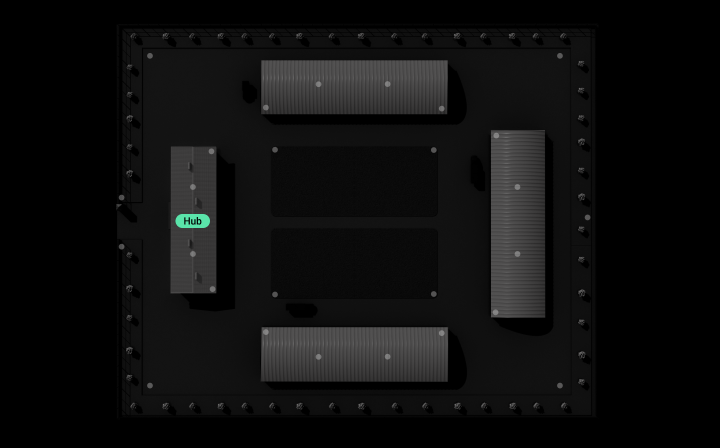

Some facilities have thick walls, metal partitions, or sheer distances that affect signal quality. Ajax range extenders are designed to increase the range of a wireless network and deliver stable connection with a hub despite the obstacles. And by choosing the model with an Ethernet cable connector, you get an additional communication channel. А single system can accommodate up to five range extenders.
Up to 5 range extenders within one system
Ethernet-equipped model available
System supervision
All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, including tamper, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.
Automatic device self-diagnosis with status report
Regular polling to display the current device state on apps
Instant maintenance notifications

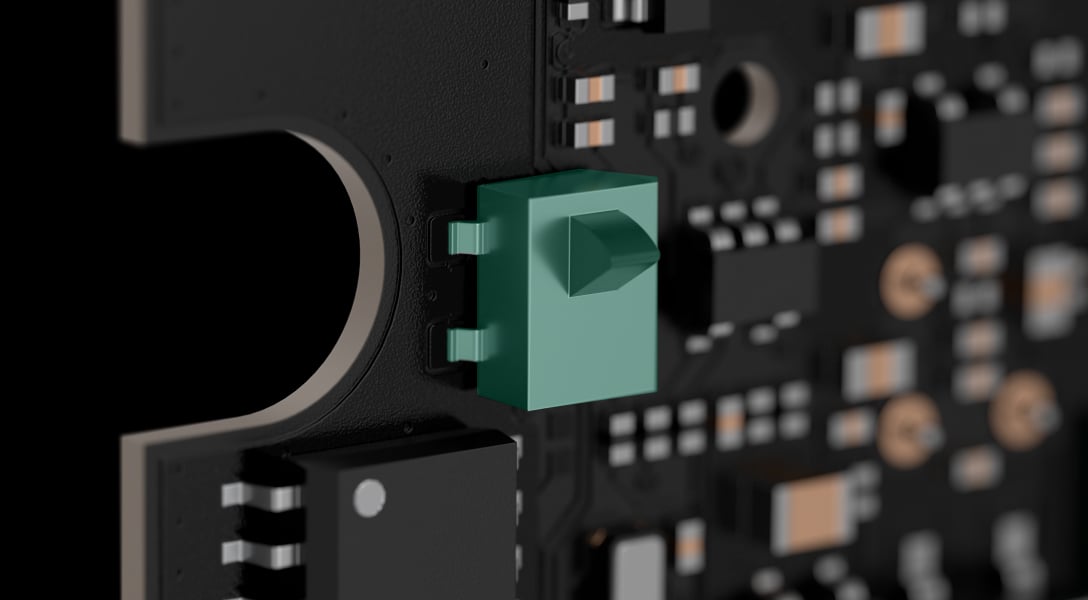

Sabotage-resistant
Tamper alarm
Data encryption
Data-rich notifications
Device authentication against spoofing
Regular polling
Communication failure detection
Effortless installation and setup

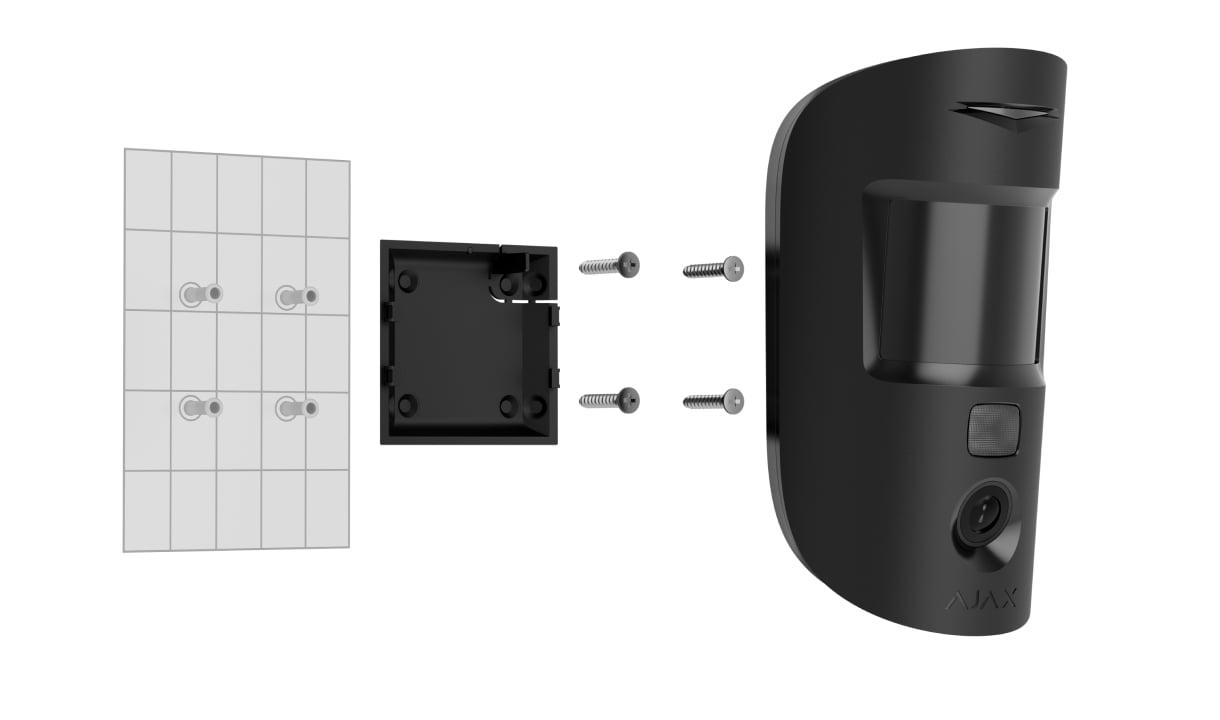

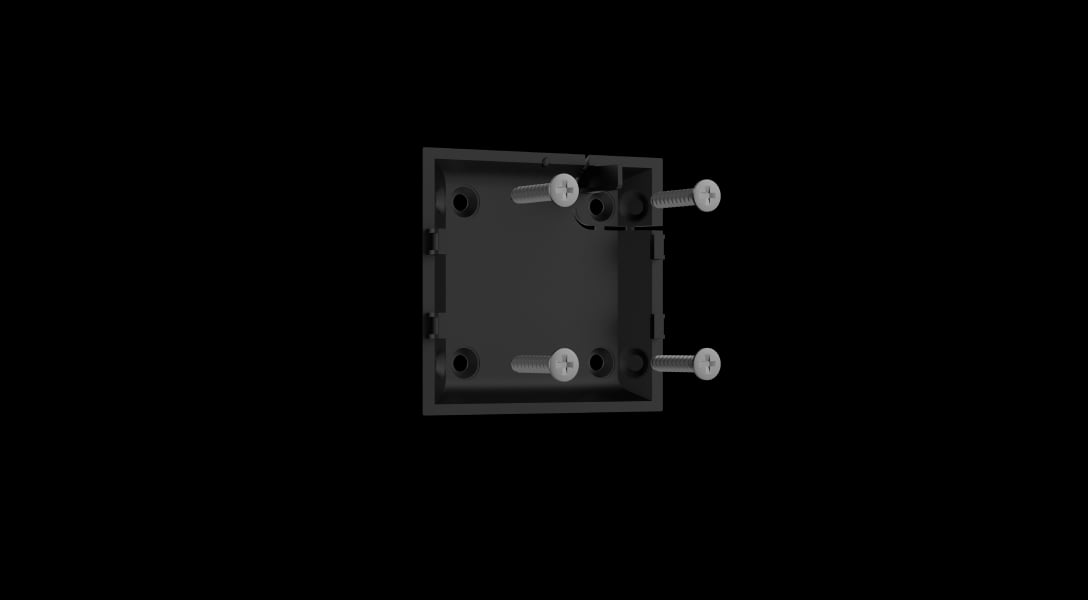

MotionCam (PhOD) is ready to operate straight out of the box. Using the SmartBracket panel, an installer can effortlessly mount the device on the wall, eliminating the need to disassemble the enclosure. Ajax apps help quickly make the device a part of the ecosystem: simply pair the device with the hub by scanning the QR code. It can always be reconfigured remotely without the need for on-site visits.
Pairing with the hub via QR code
SmartBracket panel — no need to disassemble the enclosure

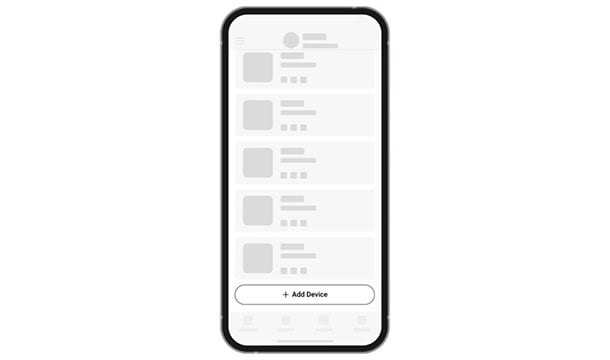

Configuring and testing in mobile and desktop apps
PRO Desktop app for macOS and Windows
- 1 With default settings (photo resolution is 320 × 240 px).
- 2 The HDR image feature is available for devices with the 15.59.35.14 firmware version or later. Сontact your Ajax Systems manager, supplier, or authorized partner to check the availability in your region.
- 3 In an open space.
Technical information
MotionCam (PhOD) Jeweller
More MotionCam models
Ajax product categories
In an Ajax system, you can combine devices of all product categories: Intrusion protection, Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.
Wireless motion detectors with photo verification in the security system
Motion detectors of the security system are designed to record the fact of unauthorized entry into the secured property. When the motion sensor is activated, its signal is transmitted to the alarm central via a wire or radio signal, depending on the type of system.
How motion detector work
Motion detectors analyze microwave, ultrasonic, infrared and radio-type radiation. If movement is noticed in the room, the sensor detects changes in the parameters of incoming waves and activates a specific reaction to the event. When triggered, the motion sensor sends data to the alarm control panel, informs the user, and initiates the activation of the siren.
Types of motion detectors
Motion sensors differ in:
- The type of alarm reaction: ultrasonic devices, infrared, microwave and combined type.
- Place of installation: outdoor and indoor devices.
- Data transmission method: wireless or wired system.
- Wave processing and creation mechanism: active and passive models that process radiation at the input.
How to choose a motion detector for a security system
To choose a motion sensor for alarming correctly, it is worth considering the features of the devices:
- First, you need to choose the type of motion sensor installation — on the wall or ceiling. With the choice of location, the installation engineer will best help.
- The presence of immunity in animals helps to avoid false alarms on pets.
- Energy consumption level — the amount of electricity that the sensor consumes.
- The detection angle and radius determine how large a territory the motion sensor can control.
- Customizable — adjusting the weight and height of the object you need to react to.
- The speed of the motion sensor's response to an alarm.
- The case is protected from opening and damage.
Wireless motion detector from Ajax Systems — MotionCam (PhOD) Jeweller
MotionCam (PhOD) Jeweller is a wireless motion detector from Ajax. MotionCam (PhOD) Jeweller for indoor installation detects movement in a guarded room and allows you to take photos from the scene on alarm and on request.
The MotionCam (PhOD) Jeweller motion detector will show the current situation at the guarded object in seconds and dispel doubts in the event of an alarm. You can request a photo with one click in the Ajax application. Also, the sensor will automatically take a series of photos if it detects movement or a FireProtect or FireProtect Plus fire detector is triggered.
The principle of operation of the wireless motion detector for the MotionCam (PhOD) Jeweller
MotionCam indoor wireless motion sensor (PhOD) works with the Ajax security system.
The internal motion sensor communicates with the system control panel at a distance of up to 1700 meters, using two secure radio protocols — Jeweller for transmitting events and alarms and Wings. The second protocol is responsible for transferring photo data from the scene.
MotionCam (PhOD) Jeweller is a wireless indoor motion sensor with photo verification support. The device detects movement in a guarded room using an IR sensor and detects moving objects with a temperature close to a human body. After the sensor detects movement, the built-in camera takes pictures. Thus, the user can evaluate the event in dynamics.
When the MotionCam wireless motion detector (PhOD) is triggered, the event is transmitted to the security system control panel, which starts scripts, turns on sirens, and informs users and the security company about the alarm. Each MotionCam (PhOD) Jeweller motion sensor event is recorded in the notification feed of the Ajax application. The alarm message also contains the room in which the sensor was triggered, the control panel's name and the device's name.
Photo on request
The MotionCam (PhOD) Jeweller allows users to take pictures using the built-in cameras. Using the function, you can check the situation at the facility or monitor the house's condition. Depending on the settings, a photo can be taken anytime or when motion sensors with alarm photo verification are armed.
By default, Photo on Demand is disabled for system users. Users with the right to manage privacy settings (control panel settings, Privacy item) determine who can take and view on-demand photos and which photo-verified sensors can be used for shooting. PRO-users of the system cannot manage privacy settings but can take photos on demand if granted such a right.
Privacy settings do not apply to photos taken by sensors during an alarm. All system users can see event photos with access to the system control panel's event feed.
Photo according to the scenario
The "Photo by scenario" function allows to create a scenario for motion sensors of the MotionCam series, according to which they will take pictures when other Ajax devices are alarmed.
By default, Scripted Photo is disabled for all motion sensors. A user with access to privacy settings can enable the feature. Users of PRO applications cannot manage privacy settings, but they can grant this right to system users.
In the system settings, you can also specify when the photo-verified sensor can take pictures according to the scenario: when the MotionCam (PhOD) Jeweller is armed or at any time.
Scenario photos are available to all security system users who have access to the event feed. A photo event when other devices are alarmed is sent to the control panel of the security company.
Photo according to the scenario
The "Photo by scenario" function allows you to create a scenario for motion sensors of the MotionCam series, according to which they will take pictures when other Ajax devices are alarmed.
By default, Scripted Photo is disabled for all motion sensors. A user with access to privacy settings can enable the feature. Users of PRO applications cannot manage privacy settings, but they can grant this right to system users.
In the system settings, you can also specify when the photo-verified sensor can take pictures according to the scenario: when the MotionCam (PhOD) Jeweller is armed or at any time.
Scenario photos are available to all security system users who have access to the event feed. A photo event when other devices are alarmed is sent to the control panel of the security company.
Features of MotionCam (PhOD) Jeweller wireless indoor motion detector
The MotionCam (PhOD) Jeweller motion detector has a number of the following features:
Working with Jeweller and Wings data transfer protocols
The sensor uses Jeweller technology for alarm and event transmission and Wings for photo transmission. These two-way wireless communication protocols provide fast and reliable communication between a system control panel or repeater and connected system devices.
The protocols support floating-key block encryption and device recognition at every communication session to prevent sabotage and sensor substitution.
It is possible to control communication with system devices and their statuses in Ajax applications thanks to the central sensor polling system with a frequency of 12 to 300 seconds. The user or PRO sets the polling frequency with administrator rights individually.
Photo delivery time
The alarm message is transmitted instantly. The time it takes for images to be delivered to the Ajax application depends on the Wings signal strength, Internet connection speed, image resolution, and connection to a repeater.
False alarm filter
In motion sensors, special optics are combined with a software false alarm filter, which, in combination with a professional installation, ensures high detection accuracy.
The Fresnel lens in the device's design provides the most informative thermal diagram. SmartDetect software algorithm filters out false alarms.
Data protection
The MotionCam (PhOD) Jeweller wireless motion sensor monitors the safety of system owners. Photo confirmations are protected from strangers at the sensor level, the security system and the Ajax application.
Thermal noise filter
The MotionCam (PhOD) Jeweller motion sensor instantly analyzes the thermal diagram read by the sensor: movement speed, time spent in the detection zone, infrared radiation intensity, heat spot size and other parameters.
Temperature compensation
Temperature compensation is a software mechanism that allows you to keep the thermal pattern contrast even if the temperature in the armed room is close to the temperature of the human body.
Motion detector sensitivity setting
Sensitivity adjustment allows you to adapt the sensor to the conditions of a particular room: pets and possible thermal interference. Increasing or decreasing sensitivity affects the false alarm filter.
With the high sensitivity of the motion sensor configured, the device will react to any movement in the detection zone. If the sensitivity is low, the sensor is less likely to respond to an active pet.
Sensitivity is configured in the Ajax application remotely or on-site.
Installation and configuration of the Ajax motion detector
To install the sensor, you should use the services of an installation company. Ajax device installation services are provided by accredited partners.
MotionCam (PhOD) Jeweller connects to the Ajax security system after scanning the QR code on the device body. The sensor housing does not need to be disassembled. The SmartBracket mounting plate allows you to mount the wireless sensor on a flat surface or in the corner of a room.
Mounting the MotionCam (PhOD) Jeweller wireless motion detector at the optimum height in the correct location and perpendicular to the likely path of intrusion into the premises ensures an informative thermal diagram. Proper installation of the device significantly improves the accuracy of alarm detection. Professional installation also enhances the effectiveness of the sensor's immunity to animals.
