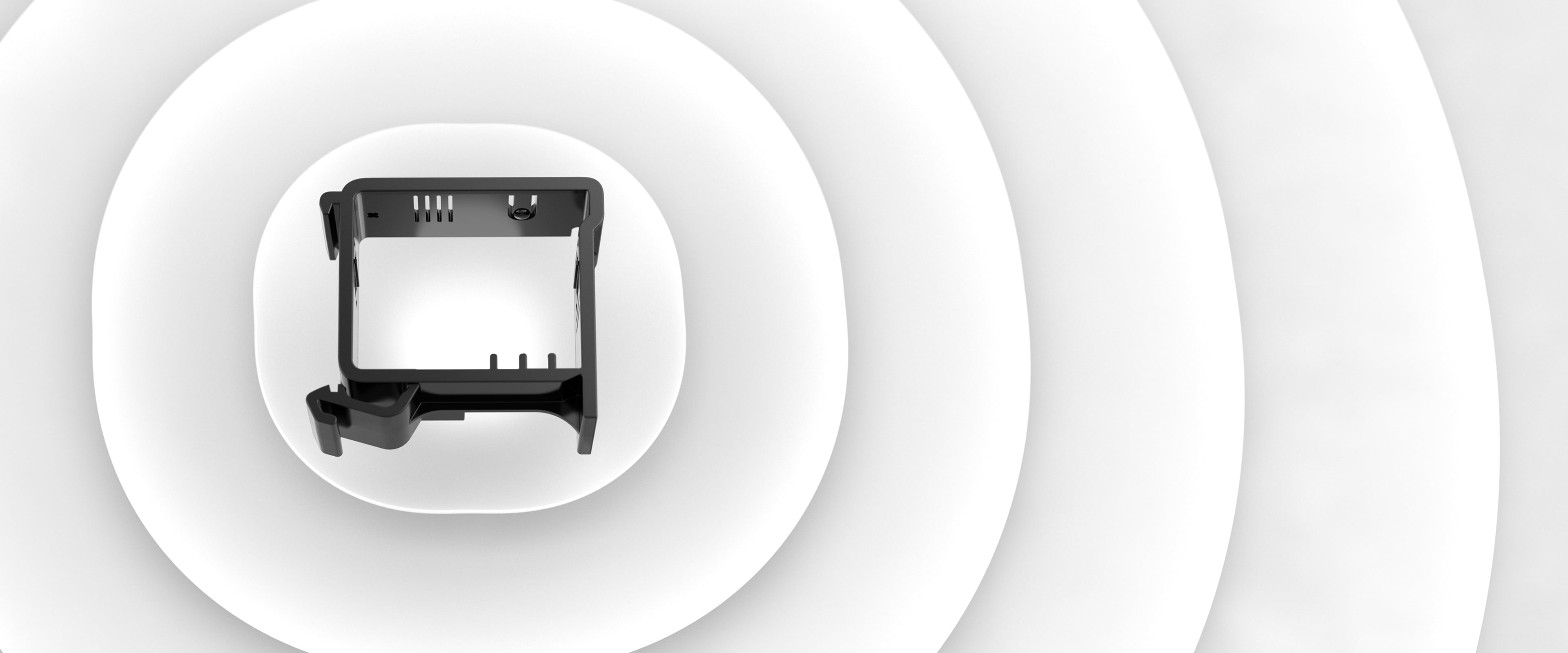

DIN Holder

Relay or WallSwitch DIN Holder

Holder for fixing Relay or WallSwitch — power management devices on a DIN rail. The DIN Holder is an important part that allows you to securely mount a Relay or WallSwitch on a DIN rail. Installation is possible, for example, in a switchboard, mounting box or server cabinet.

Power Management Holder Specifications

The holder for fixing the Relay or WallSwitch DIN Holder is made of durable black polycarbonate, weighing 9 grams. The holder size is 52 × 41 × 18 mm. The holder with the installed relay has the same width as a single-phase circuit breaker. The holder can be installed in places with humidity up to 75%.Included with the holder is a set of stickers that will help identify which circuit or device the relay controls and brief instructions.

Installing DIN Holder for WallSwitch and Relay

The Relay and WallSwitch Power Management Device Holder is mounted on a rail using side hinges and does not require the use of third-party tools. The holder housing securely fixes the devices on a 35 mm DIN rail and follows the shape of the relay.Neighboring circuit breakers will also not cause inconvenience. The hole system of the holder for Relay and WallSwitch power management devices provides passive ventilation of the case - the relay will operate at air temperatures up to +60°C.
