Socket (type G) Jeweller

Smart sockets for room automation

The high cost of smart home electronic equipment limits its use in everyday life and raises concerns about the mismatch between the level of comfort offered by such technology and its cost. Today's consumers have access to less sophisticated gadgets for remote control of home appliances. There are smart sockets that solve most of the difficulties that arise in everyday life at a low cost.An electromagnetic relay capable of turning the power on and off at the socket contacts, as well as turning on and off a household appliance, the plug of which is inserted into the specified socket. This is part of the electrical circuit of the smart plug. The socket "does not know" which gadget is plugged into it. The most important element is that the power of the household appliance does not exceed the limit indicated in the technical data sheet of the socket.Relay commands to perform “on” and “off” create a “controller”, which is an electronic circuit of a “smart socket”, which is controlled by the program loaded into it and control signals from external sources. Depending on the model, the controller can be mounted in the socket control panel or directly inside the socket itself.

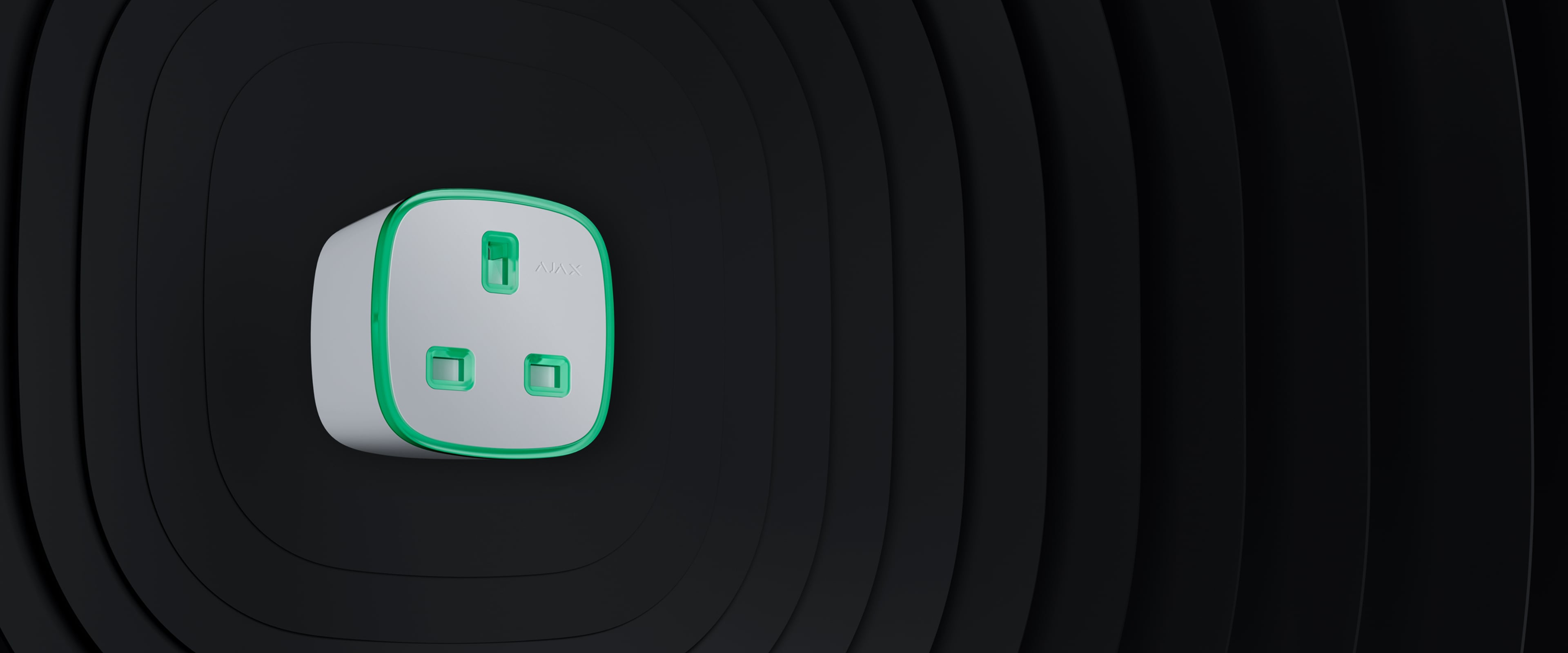

Smart socket Socket (type G) from Ajax

The smart socket from Ajax allows its users to remotely control the power supply of equipment, counts the consumed electricity, executes automation scenarios and increases the comfort of the room in which it is installed.

How smart socket from Ajax Socket (type G) works

Smart socket from Ajax connects to the 230 V network and closes/opens the circuit on command. The device can withstand loads up to 3 kW, which is enough to connect even a very voracious device. Socket operates in bistable or pulsed mode and protects devices from overcurrent and voltage surges.To communicate with a security system control panel or a signal repeater, the Jeweller radio protocol is used, which uses frames to synchronize device communication sessions, encryption to protect against data theft and authentication to prevent forgery. Communication is maintained at a distance of up to 1100 meters, and commands are delivered in 0.15 seconds.Socket (type G) smart socket is compatible with all control panels and Ajax signal repeaters. The socket from Ajax automatically turns off when the individually set temperature is exceeded and is protected over the voltage range. The brightness of the LED frame of the device is adjustable within 15 levels, as is the LED indication with a choice of 7 colors.

Features of smart socket Socket (type G)

Smart socket Socket (type G) has a number of the following features and capabilities:

• Smart socket from Ajax is easy to connect and configure. In order to add a Socket to the system, it is enough to scan the QR code in the application, give it a name and a room. Device configuration and automation scenarios take place in real time in the application.
• Automation scripts are available to make life more comfortable and safer. You can set up automatic turning off the light in the room when arming, program the spotlights to turn on when strangers are detected on the territory by street motion sensors, or the toaster can turn on in the morning at a specified time.
• Leaving the premises, the user can put the security system in armed mode - and all voracious and dangerous equipment will automatically turn off. The iron, heater and toaster will stop working, eliminating the risk of fire and excitement.
• Turn on the heater in winter and the air conditioner in summer, run a humidifier, and heat bath water. All this is remotely in the application at any distance from the guarded building.
• Smart socket Socket complies with energy safety regulations, as it meets the standards for electrical appliances. Each smart socket is fully tested for the influence of high temperatures, the quality of materials, and the ability to work for a long time under load.
• Smart socket from Ajax will tell you which appliances consume the most electricity. When the equipment begins to consume energy, the Socket LED ring changes the color of the backlight.
• The socket also improves the security of the premises. Special shutters close the sockets of the smart socket and prevent the child from plugging third-party objects into them. Additional protection against dust and splashes.
